Klipsch PRO-14RC In-Ceiling Speaker at Vinyl Sound Toronto Canada

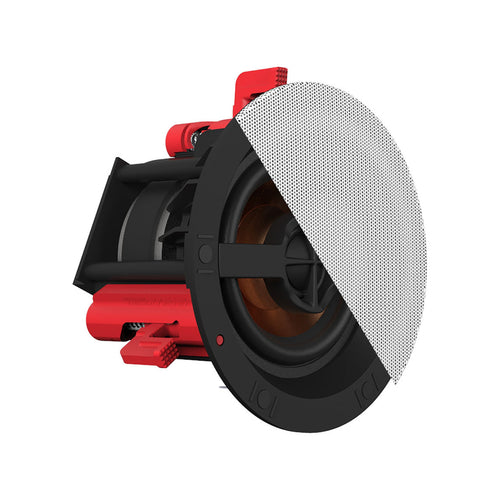

The PRO-14RC is a minimal-footprint 3.5" in-ceiling speaker from Klipsch (Indianapolis, Indiana, USA), available at Vinyl Sound in Toronto, Canada. Part of the Professional Reference Architectural series, it is purpose-built for distributed audio installations where a clean, nearly invisible ceiling presence is the priority. The PRO-14RC features a 3.5" Injection Molded Graphite (IMG) woofer and a 1" Fixed Aluminum Dome FEA-Optimized Tweeter with a custom-designed tweeter bridge using shark-fin geometry and asymmetric dimples to diffuse standing waves, covering 92 Hz to 23 kHz (+/-3 dB) at 88 dB sensitivity. At just 4.86" overall grille footprint with both round and square bezel-free magnetic grilles included, the PRO-14RC is the distributed audio solution for rooms, corridors, bathrooms, kitchens, and commercial spaces in Toronto and across Canada where interior design demands that sound be heard but never seen.

True Reference Acoustics in a Minimal 4.86" Footprint

The PRO-14RC's defining characteristic is its ability to deliver Klipsch Reference-quality acoustic performance from the smallest ceiling opening in the Professional Series lineup. At just 4.86 inches overall grille diameter and a 4.21-inch ceiling cutout, it installs in ceiling joist bays that are too narrow for any standard 6.5" or 8" in-ceiling speaker. The 3.5" IMG woofer uses the same Injection Molded Graphite cone material found across the Klipsch Reference series, combining low mass with high stiffness and controlled damping for accurate midrange and upper bass reproduction from a compact driver. The 1" Fixed Aluminum Dome Tweeter is mounted on a custom-engineered tweeter bridge that uses a "shark fin" profile and asymmetric surface dimples to break up and diffuse standing waves that would otherwise color the frequency response within the small enclosure geometry. The FEA (Finite Element Analysis) optimization of the tweeter ensures the aluminum dome operates with maximum accuracy and minimum distortion across the upper frequency range to 23 kHz. Compared to a standard 8" in-ceiling speaker, the PRO-14RC allows maximum installation flexibility without sacrificing the Reference-series acoustic voicing that Klipsch is recognized for globally.

Sky Hook Patented Tool-Free Installation System

The PRO-14RC uses Klipsch's patented Sky Hook (Cinch by Swarm) installation system, which eliminates the need for a screw gun or manual torque setting during ceiling speaker deployment. When the speaker is inserted into the 4.21-inch ceiling cutout, the mounting dog legs automatically engage at a preset clamping force, securing the speaker without any tool intervention. This automatic engagement eliminates the overtorquing risk that cracks drywall or breaks mounting hardware, and reduces per-unit installation time by up to 75 percent compared to conventional screw-based dog-leg systems. For distributed audio projects across Toronto and Canada involving many small rooms, corridors, or retrofit installations in finished spaces where minimizing ceiling disruption is critical, the Sky Hook system's speed and non-destructive clamping provide a meaningful practical advantage for professional installers and confident DIY homeowners alike.

Key Features

• 3.5" Injection Molded Graphite (IMG) Woofer: IMG cone material combines low mass with high stiffness and controlled internal damping, producing tight, articulate upper bass and accurate midrange reproduction from a 3.5" driver. The same IMG technology is used across the Klipsch Reference series, bringing Reference-grade driver material performance into the PRO-14RC's compact minimal-footprint format.
• 1" Fixed Aluminum Dome FEA-Optimized Tweeter with Shark-Fin Tweeter Bridge: The aluminum dome tweeter is mounted on a custom-designed tweeter bridge with shark-fin geometry and asymmetric dimples that diffuse standing waves within the small enclosure, preventing the resonance modes that would otherwise color the high-frequency response. Finite Element Analysis (FEA) computer modeling optimizes the tweeter's operating geometry for maximum accuracy to 23 kHz.
• 4.86" Overall Grille Footprint, 4.21" Ceiling Cutout: The smallest grille footprint in the Klipsch Professional Series in-ceiling lineup. The minimal 4.21-inch cutout fits ceiling joist bays inaccessible to standard 6.5" or 8" in-ceiling speakers and creates the least disruptive visual impact of any Klipsch architectural ceiling speaker, making it ideal for rooms where interior design requires ceiling speakers to be nearly invisible.
• Patented Sky Hook Tool-Free Installation System: Dog legs automatically engage at a preset clamping force when the speaker is inserted into the cutout. No tools required. Reduces installation time by up to 75 percent versus conventional screw-based mounting, with no risk of drywall damage from overtorquing.
• 110-Degree Coverage Angle: The wide 110-degree coverage angle distributes audio across the listening area effectively from a compact driver, making the PRO-14RC suitable for background music in rooms, corridors, kitchens, and hospitality spaces where even sound coverage across all seating or standing positions is required.
• 88 dB Sensitivity, 30W RMS / 120W Peak Power Handling: Compatible with standard AV receivers, multi-room distributed audio amplifiers, and whole-home audio systems. The 120W peak power handling provides dynamic headroom for transient passages well beyond the recommended 30W continuous operation level.
• Bezel-Free Round and Square Paintable Magnetic Grilles Included: Both a round and a square flat powder-coated magnetic grille are included in the box, giving homeowners and designers the flexibility to choose the shape that best complements their ceiling. Both grilles are paintable and attach magnetically for clean, bezel-free appearance and tool-free removal.
• PVC Magnetic Paint Shield Included: A magnetic PVC paint shield protects the speaker module from paint overspray and construction dust during renovations and new builds, enabling rough-in installation well before final decoration.
• Pairs with PRO-800SW Subwoofer: The PRO-14RC pairs with the Klipsch PRO-800SW in-ceiling subwoofer, which shares the same 4.9" overall grille footprint, enabling a complete minimal-footprint in-ceiling stereo-plus-bass system that requires only the smallest possible ceiling openings throughout.
• 8-Ohm Compatible, ABS Infinite Baffle Enclosure: Standard 8-ohm impedance provides broad compatibility with all AV receivers and distributed audio amplifiers. The ABS infinite baffle enclosure provides consistent acoustic loading within the 4.34-inch mounting depth.

Technical Specifications

What's in the Box

• Klipsch PRO-14RC In-Ceiling Speaker (1 unit)
• Round Paintable Magnetic Grille
• Square Paintable Magnetic Grille
• PVC Magnetic Paint Shield
• Note: Installation Kit IK-400-C sold separately

Frequently Asked Questions

What is the Klipsch PRO-14RC?

The Klipsch PRO-14RC is a minimal-footprint 3.5" two-way in-ceiling speaker from the Professional Reference Architectural series, featuring a 3.5" IMG woofer and a 1" FEA-optimized Fixed Aluminum Dome Tweeter with a shark-fin tweeter bridge that diffuses standing waves within the small enclosure. It covers 92 Hz to 23 kHz (+/-3 dB) at 88 dB sensitivity, handles 30W RMS and 120W peak, and requires only a 4.21-inch ceiling cutout with a 4.86-inch overall grille footprint. The patented Sky Hook tool-free installation system reduces installation time by up to 75 percent, and both round and square magnetic grilles are included.

Who is the Klipsch PRO-14RC designed for and when should I choose it over a larger in-ceiling speaker?

The Klipsch PRO-14RC is designed for rooms and installations where the smallest possible ceiling opening is the priority, either for aesthetic reasons or because structural constraints prevent a larger cutout. Ideal applications include narrow hallways where only a small joist bay is accessible, kitchens where cabinetry or range hoods limit available ceiling positions, bathrooms where a full-size speaker grille would be visually disproportionate, hotel corridors with high speaker density, and any interior design project in Toronto and across Canada where a visible speaker grille is considered unacceptable. When the room is large and bass extension below 92 Hz is important, a larger speaker or a paired subwoofer such as the PRO-800SW would be the better specification. For background music zones where clarity, vocal intelligibility, and a discreet appearance matter more than deep bass, the PRO-14RC is the optimal choice.

What is the shark-fin tweeter bridge and why does it matter in a compact in-ceiling speaker?

The shark-fin tweeter bridge on the Klipsch PRO-14RC is a custom-engineered mounting structure that supports the 1" aluminum dome tweeter above the 3.5" IMG woofer cone. The bridge uses a shark-fin aerodynamic profile and asymmetrically placed surface dimples to break up and scatter the standing wave resonances that form between the tweeter housing and the woofer cone surface in compact enclosures. In a small-format in-ceiling speaker, the short distance between the tweeter and woofer creates acoustic reflections that can color the frequency response in the midrange and upper-bass crossover region. By disrupting these standing waves through the shark-fin geometry and dimple diffusion, Klipsch engineers ensured the PRO-14RC delivers a smooth, coherent frequency response despite its unusually compact driver spacing, a design challenge that does not exist in larger-format in-ceiling speakers with greater driver separation.

How does the Klipsch PRO-14RC compare to the Sonance 4R or Polk Audio MC60 for minimal-footprint whole-home audio?

The Klipsch PRO-14RC offers more advanced tweeter engineering and a more sophisticated installation system than the Sonance 4R and Polk Audio MC60. The PRO-14RC's FEA-optimized aluminum dome tweeter with shark-fin standing-wave diffusion addresses a specific acoustic challenge that compact in-ceiling speakers face, a level of engineering detail not present in the Sonance 4R or Polk Audio MC60. The patented Sky Hook tool-free installation system also provides faster, lower-risk deployment than the conventional screw-based mounting on both alternatives. For distributed audio projects in Toronto and across Canada where minimal ceiling disruption, precise acoustic engineering, and installation efficiency are the specification criteria, the PRO-14RC represents a higher level of product development than either competitive model in the compact in-ceiling category.

Can the Klipsch PRO-14RC be paired with a subwoofer for better bass performance?

Yes, Klipsch specifically designed the PRO-14RC to pair with the PRO-800SW in-ceiling subwoofer, which shares the same 4.9-inch overall grille footprint. The PRO-800SW handles low-frequency reproduction below the PRO-14RC's 92 Hz bass rolloff, extending the combined system's bass response while maintaining the minimal ceiling presence that the PRO-14RC is designed for. Because both speakers share the same small footprint, an installer can deploy a PRO-14RC plus PRO-800SW combination in a room and still create only two minimal ceiling openings, achieving full-range audio coverage without the visual impact of conventional larger-format in-ceiling speakers and subwoofers.

What amplifier power does the Klipsch PRO-14RC require?

The Klipsch PRO-14RC is compatible with any standard AV receiver or distributed audio amplifier rated for an 8-ohm load. It is rated at 30W RMS continuous power and handles up to 120W peak, making it suitable for standard multi-room distributed audio amplifiers used in whole-home audio systems across Toronto and Canada. The 88 dB sensitivity is slightly lower than larger Klipsch in-ceiling models, so amplifiers and receivers should be rated at a minimum of 20W to 50W per channel to ensure adequate output levels in background music and distributed audio applications.

Where can I buy the Klipsch PRO-14RC in Toronto or Canada?

The Klipsch PRO-14RC is available at Vinyl Sound, an authorized Klipsch dealer in Toronto, Canada. Vinyl Sound carries the full Klipsch Professional Reference Architectural series and can assist with speaker selection, minimal-footprint system design, and professional installation for whole-home audio and distributed audio projects throughout the Greater Toronto Area and across Canada.
