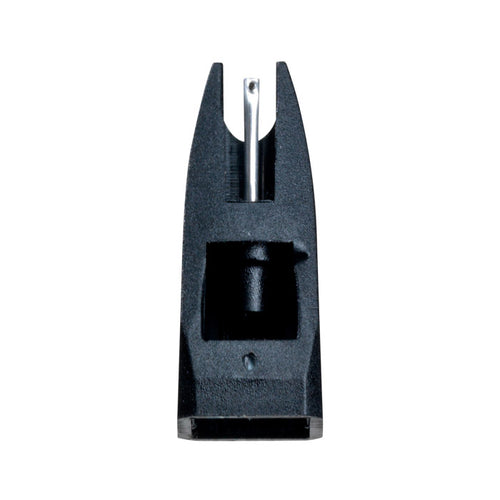

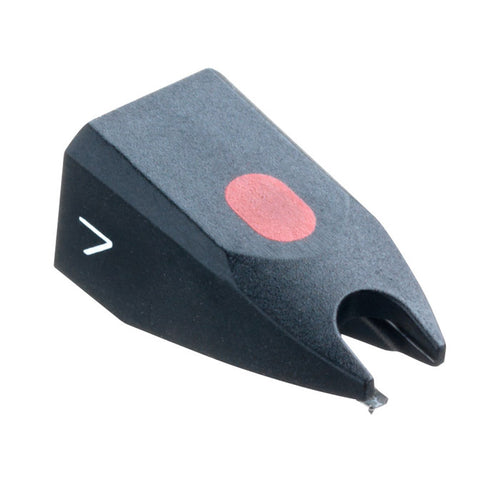

ORTOFON - STYLUS 7

$101.00

Quantity

Product Details

Technical specifications

Frequency range: 20-20.000 Hz
Frequency response: 20-18.000 Hz + 2dB
Tracking ability at 315Hz at recommended tracking force *): 60 µm
Compliance, dynamic, lateral: 25 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
*) Typical value

Equivalent stylus tip mass: 0.5 mg
Tracking force range:  1.0-1.5 g (10-15 mN)
Tracking force, recommended:  1.25 g (12.5 mN)
Tracking angle: 20°
Stylus colour: Black
Recommended for TM 7 and TM 7U cartridges models
