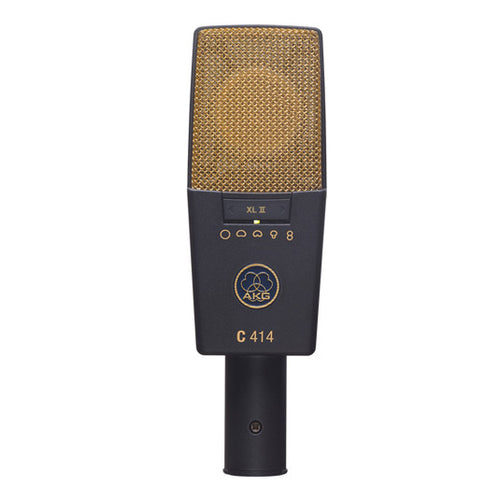

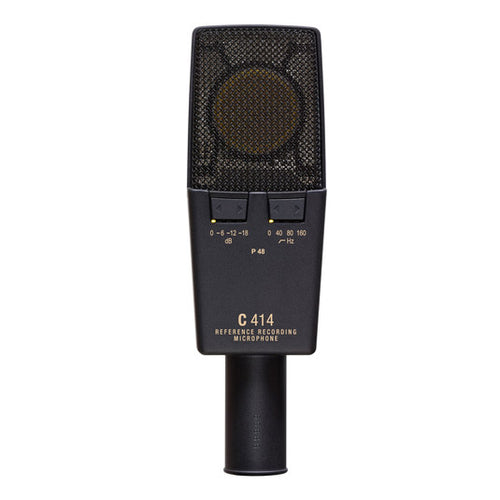

AKG C414XL-II Reference multipattern condenser microphone

The classic C12 sound

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

General Specifications

Polar Patterns

Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid

Audio frequency bandwidth

20 - 20000 Hz

Equivalent noise level

6 dB-A

Sensitivity

23 mV/Pa

Signal to Noise

88 dB-A

Preattenuation Pad

-6; -12; -18 dB

Bass cut filter

160; 80; 40 Hz

Electrical impedance

200 Ohms

Recommended load impedance

2200 Ohms

Dimensions

Length

38 mm

Width

50 mm

Height

160 mm

Net Weight

300 g

Design

Finish

dark gray/gold

Audio Output

Type

Balanced XLR

Gender

Male

Contacts

3-pin

Powering Interface

Voltage

44 to 52 V

Current

4.5 mA

Application

Pro Studio

Instrument

Vocals

Piano / Strings

Horns / Woodwinds
