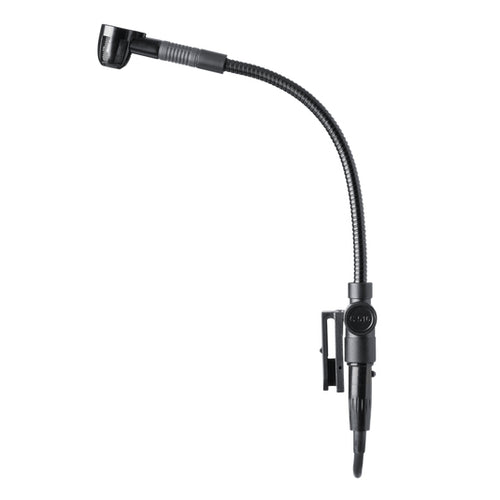

AKG C516ML Professional Clip-On miniature condenser instrument microphone

Mighty micro mic

The C516 ML professional miniature instrumental microphone, part of the MicroMics family, is designed for use on accordions, pianos, guitar speakers and keyboard/organ cabinets. The C516 ML comes with a wide variety of mounting materials, such as screws and adhesive pads for easy installation on the instrument or amp, and an A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

General Specifications

Type

Pre-polarized condenser microphone

Polar Pattern

Cardioid

Audio frequency bandwidth

60 - 20000 Hz

Equivalent noise level

31 dB-A

Sensitivity

5 mV/Pa

Signal to Noise

63 dB-A

Electrical impedance

200 Ohms

Recommended load impedance

2000 Ohms

Max. SPL for 1%/3% THD

130/132 dB SPL

Dimensions

Width

47 mm

Height

235 mm

Net Weight

46 g

Cable length

1.5 m (5 ft.)

Design

Body

metal

Finish

matte black

Audio Output

Type

Mini XLR

Gender

Female

Contacts

3-pin

Powering Interface

Voltage

2 to 12 V

Current

2 mA

Application

Project Studio

Live Instrument

Instrument

Guitar Amps / Bass Amps

Piano / Strings
