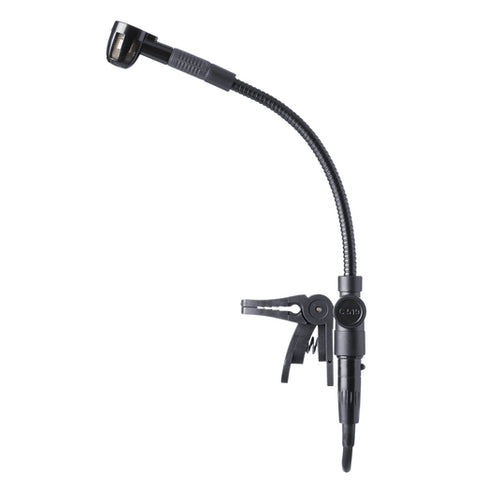

AKG C519ML Professional miniature clip-on condenser microphone

Horn section liberation

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound. The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphone's frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

General Specifications

Audio frequency bandwidth

60 - 20000 Hz

Equivalent noise level

31 dB-A

Sensitivity

5 mV/Pa

Signal to Noise

63 dB-A

Electrical impedance

200 Ohms

Recommended load impedance

2000 Ohms

Polar Pattern

Cardioid

Dimensions

Width

47 mm

Height

213 mm

Net Weight

195 g

Design

Body

metal

Finish

matte black

Audio Output

Type

Mini XLR

Gender

Female

Contacts

3-pin

Powering Interface

Voltage

9 to 52 V

Current

2 mA

Application

Project Studio

Live Instrument

Instrument

Horns / Woodwinds
