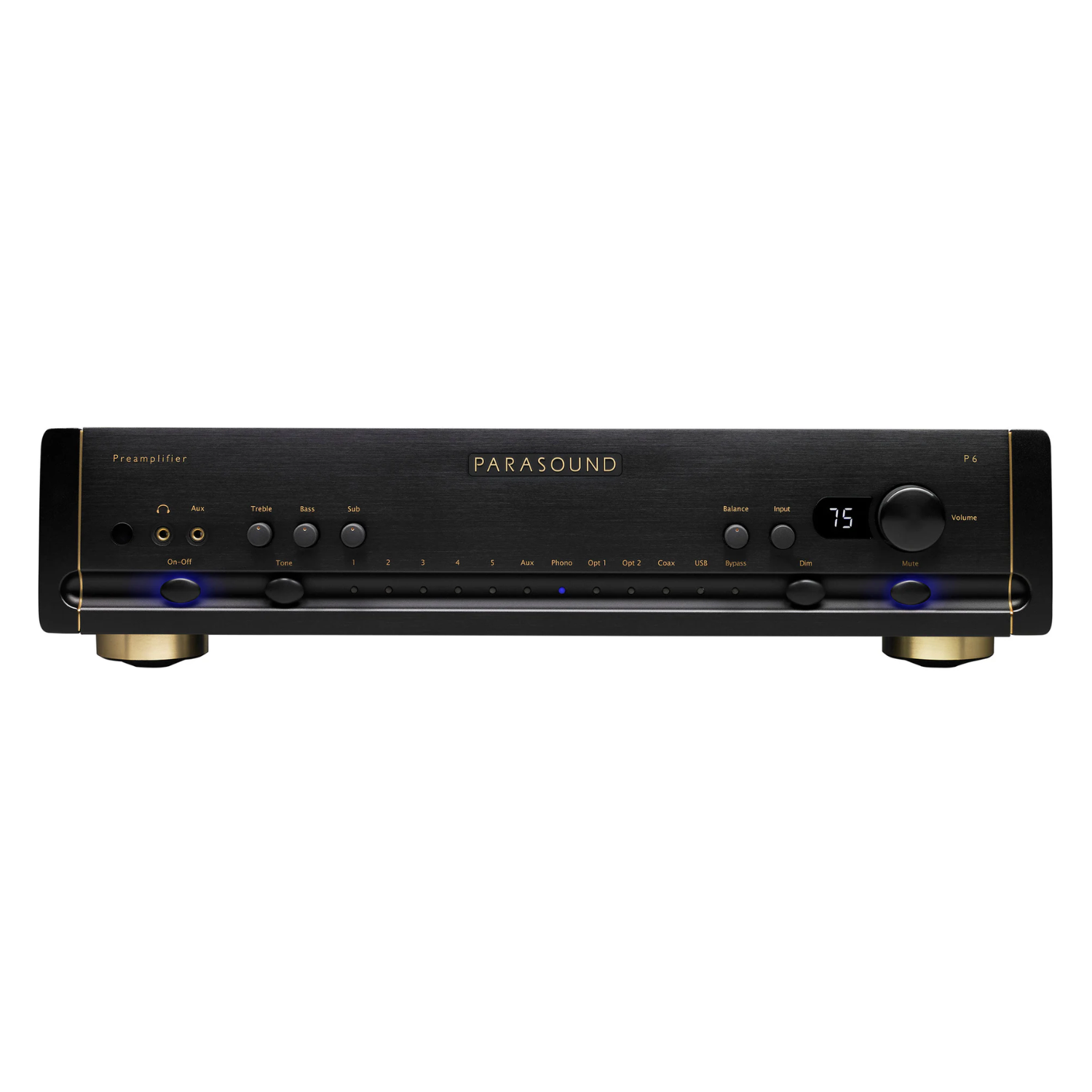

PARASOUND HALO P6 PREAMPLIFIER & DAC

New Features (Changes from the P 5)
• ESS Sabre32 Reference DAC replaces the original Burr-Brown DAC
• USB input is now capable of DSD & 384kHz/32-bit PCM (up from 96Khz/24-bit)
• Burr Brown analog resistor ladder volume control
• Dimmable front panel volume display
• Upgraded USB receiver with "plug and play" operation with Windows 10
• An additional optical input (2 total)
• Ball bearing supported solid aluminum volume knob
• Programable default turn on volume setting
• Favorite volume memory with remote control button
• Increased phono stage gain for lower output cartridges
• Improved Left/Right channel separation and balance tracking
• Sand blasted metal end caps replace plastic end caps on the P 5
• Updated cosmetics with subtle gold highlights
• Preamp and DAC Features
• ESS Sabre32 Reference DAC (ES9018K2M)
• Asynchronous USB 2.0 supports PCM up to 384kHz/32-bit
• USB input decodes Native DSD64, DSD128, DSD256 and DoP DSD
• Coax and optical inputs accept PCM up to 192kHz/24-bit
• Analog bass management with high & low pass crossovers
• Home theater bypass input for surround sound integration
• Front panel subwoofer level control
• Dedicated high current headphone amplifier (TI TPA6120)
• Phono input for MM, MC and MI with 100 Ω or 47k Ω load
• Front panel Aux input with automatic +12 dB gain stage
• 5 pairs RCA line level Analog inputs
• 1 pair XLR balanced Analog input
• Balanced XLR and RCA left and right preamp outputs
• 1 balanced XLR and 2 RCA subwoofer outputs
• Bass & treble controls with relay bypass from remote or front panel
• Rear panel IR input and IR loop output jacks
• 12 Volt trigger output
• Back-lit remote control with discrete buttons
• 0.5w standby power consumption meets Energy Star & EU specs
