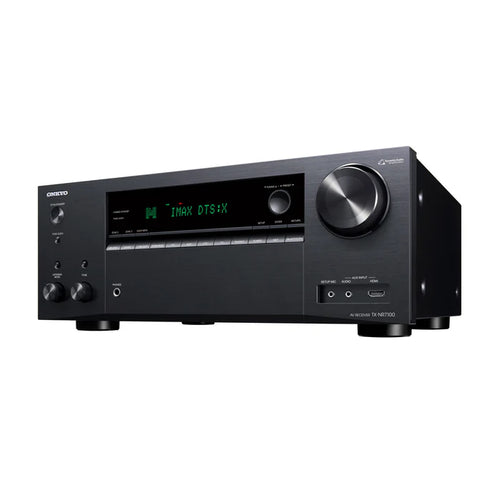

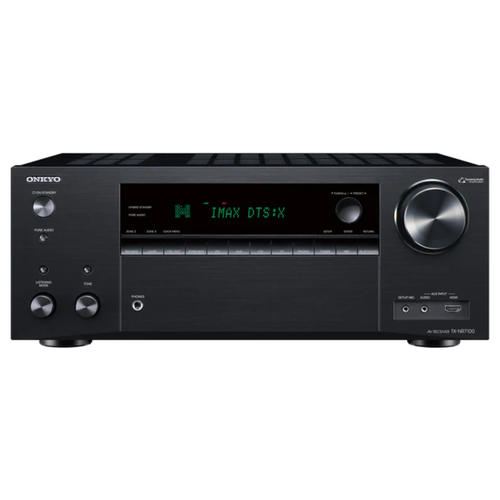

Onkyo TX-NR7100 9.2-Channel THX Certified AV Receiver at Vinyl Sound Toronto Canada

The TX-NR7100 is a 9.2-channel THX Certified AV receiver from Onkyo (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Positioned at the top of the TX-NR Series, it is the first receiver in this line to include both nine amplified channels and built-in, ready-to-use Dirac Live Room Correction. The TX-NR7100 is rated at 220 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) and 100 W per channel (8 ohms, 20 Hz to 20 kHz, 0.08% THD, 2-ch driven, FTC), with a frequency response of 10 Hz to 100 kHz in Direct and Pure Audio modes. It supports Dolby Atmos, DTS:X, and IMAX Enhanced for 5.1.4 and 7.1.2 immersive layouts, delivers HDMI 2.1 with 8K/60 and 4K/120 support across all six main inputs, and integrates AirPlay 2, Chromecast built-in, DTS Play-Fi, and Works with Sonos for comprehensive multiroom streaming.

Nine-Channel Amplification and THX Certified Performance

The TX-NR7100 houses nine discrete Class AB amplifier channels, each rated at 220 W into 6 ohms and 100 W into 8 ohms at FTC standard. Dynamic power headroom extends to 250 W into 3 ohms and 220 W into 4 ohms for demanding front channel loads, and the signal-to-noise ratio measures 106 dB on line inputs. THX Certified Select accreditation means every operating mode and input combination has been verified through thousands of independent tests to ensure that nothing is added to or removed from the source material. The certification covers cinema, gaming, music, and Surround EX listening modes, giving the TX-NR7100 the independently verified authority to reproduce film soundtracks at true reference levels. An onboard hi-res DAC supports playback up to 24-bit/192 kHz across WAV, FLAC, AIFF, and DSD up to 5.6 MHz via the USB Type-A input on the front panel.

Dirac Live Room Correction and Immersive Surround Formats

Dirac Live Room Correction is included and ready to use out of the box on the TX-NR7100, making it the first receiver in the TX-NR Series to offer full built-in Dirac calibration without additional cost or unlock. Using a smartphone app and the included wired measurement microphone, Dirac Live analyses the room's acoustic response and applies a precision correction curve across the full frequency band, improving musical staging, dialogue clarity, and bass definition in any room layout. AccuEQ is also available as an alternative calibration path that operates without an internet connection. The TX-NR7100 supports Dolby Atmos, Dolby Surround, DTS:X, Neural:X, and IMAX Enhanced for immersive audio, enabling 5.1.4 and 7.1.2 speaker layouts that place sound precisely in three-dimensional space above and around the listener. IMAX Enhanced certification adds a proprietary video processing algorithm that optimises colour accuracy, contrast, and detail on compatible content.

HDMI 2.1, Gaming, and Multi-Zone Distribution

The TX-NR7100 provides seven HDMI inputs (six rear-panel HDMI 2.1 and one front-panel HDMI 2.0) and three HDMI outputs (Main with eARC, Sub/Zone 2, and Zone 2 at 4K/60). Inputs 1 through 3 deliver the full 40 Gbps uncompressed bandwidth for 8K/60 and 4K/120 without Display Stream Compression, while inputs 4 through 6 operate at 24 Gbps with DSC for 4K/120. All main inputs support VRR, ALLM, QFT, DSC, QMS, HDCP 2.3, HDR10+, Dolby Vision, HDR10, and HLG, covering every visual feature required by PlayStation 5 and Xbox Series X. VRR eliminates frame tearing and ALLM switches the display into low-latency mode automatically. A dedicated Zone 2 HDMI output enables independent 8K-capable video distribution to a second room from a separate source. Two dual mono subwoofer pre-outputs and a Zone 2/Zone B RCA stereo line-out complete the output array.

Streaming, Connectivity, and Klipsch Optimised Mode

The TX-NR7100 integrates AirPlay 2, Chromecast built-in, and DTS Play-Fi for wireless streaming, alongside Works with Sonos certification with Volume Pass-Through supporting up to three independent Sonos zones. Built-in streaming services include Spotify Connect, Tidal Connect, Deezer, TuneIn, and Pandora, with Roon Tested certification for networked hi-res playback. Bidirectional Bluetooth 4.2 supports SBC and AAC for incoming audio and SBC, aptX, and aptX HD for wireless headphone output. Six rear-panel RCA analogue inputs, a phono MM input, one optical and one coaxial digital input, a USB Type-A port, and an Ethernet jack round out the connectivity. Klipsch Optimised Mode stores factory crossover values for Klipsch Reference and Reference Premiere speakers, automatically applying the correct per-channel settings when those models are selected during setup. Custom installation is supported via RS-232 serial control, a 12-volt trigger output, and IR input.

Key Features

• 9.2-Channel Class AB Amplification: 220 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) and 100 W per channel (8 ohms, FTC) with dynamic headroom to 250 W at 3 ohms for demanding front channel loads.
• Dirac Live Room Correction Included: First TX-NR Series receiver with built-in, ready-to-use Dirac Live; calibrates the full frequency band via smartphone app and included measurement microphone.
• THX Certified Select: Independently verified across thousands of tests for cinema reference output level, distortion, and noise in Cinema, Music, Gaming, and Surround EX modes.
• HDMI 2.1 Across All Six Main Inputs: Inputs 1-3 at 40 Gbps (uncompressed 8K/60 and 4K/120); inputs 4-6 at 24 Gbps with DSC; all with VRR, ALLM, QFT, HDCP 2.3, Dolby Vision, and HDR10+.
• Three HDMI Outputs with Zone 2 HDMI: Main output with eARC, Sub/Zone 2 output for independent Ultra HD video distribution, and a Zone 2 output up to 4K/60 for a third room.
• Dolby Atmos, DTS:X, and IMAX Enhanced: Full object-based surround decoding for 5.1.4 and 7.1.2 layouts with Neural:X upmixing and IMAX Enhanced video optimisation.
• Works with Sonos (Up to 3 Zones): Volume Pass-Through for unified Sonos app control across up to three independent zones, each streaming a different service simultaneously.
• Comprehensive Streaming: AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Tested, Spotify Connect, Tidal Connect, Deezer, TuneIn, and Pandora built in.
• Hi-Res Audio Playback: Up to 24-bit/192 kHz via USB Type-A front panel port; WAV, FLAC, AIFF, and DSD up to 5.6 MHz supported.
• Bidirectional Bluetooth with aptX HD: Receive audio via SBC or AAC; transmit 24-bit hi-res audio to wireless headphones via aptX HD.
• Phono MM Input: Dedicated phono stage (3.5 mV rms / 47k ohms) for direct turntable connection without a separate phono preamplifier.
• Klipsch Optimised Mode: Factory crossover values for Klipsch Reference and Reference Premiere speakers applied automatically per channel for accurate out-of-the-box integration.

Technical Specifications

Connections at a Glance

• 6 x HDMI 2.1 inputs rear panel (inputs 1-3 at 40 Gbps / inputs 4-6 at 24 Gbps with DSC)
• 1 x HDMI 2.0 input front panel (up to 4K/60)
• 3 x HDMI outputs (Main with eARC, Sub/Zone 2, Zone 2 at 4K/60)
• 1 x Component video input
• 2 x Composite video inputs
• 6 x RCA analogue inputs
• 1 x RCA Phono MM input (turntable)
• 1 x Optical digital input
• 1 x Coaxial digital input
• 1 x USB Type-A front panel (hi-res music playback up to 24-bit/192 kHz and DSD)
• 2 x mono subwoofer pre-outputs
• Zone 2 / Zone B RCA stereo line-out
• Dual-band Wi-Fi; Bluetooth 4.2 bidirectional (aptX HD TX)
• Ethernet, RS-232, 12V trigger output, IR input
• 6.35 mm and 3.5 mm headphone outputs (front panel)

Frequently Asked Questions

What is the Onkyo TX-NR7100?

The Onkyo TX-NR7100 is a 9.2-channel THX Certified AV receiver from Onkyo's TX-NR Series, rated at 220 W per channel (6 ohms) and 100 W per channel (8 ohms, FTC). It is the first receiver in the TX-NR Series to include built-in Dirac Live Room Correction, and supports Dolby Atmos, DTS:X, and IMAX Enhanced for 5.1.4 and 7.1.2 immersive layouts, HDMI 2.1 with 8K/60 and 4K/120 across all six main inputs, and a full suite of wireless streaming. It is available at Vinyl Sound in Toronto, Canada.

How does the Onkyo TX-NR7100 compare to the Denon AVR-X3800H or Yamaha RX-A4A?

The TX-NR7100 differentiates itself from the Denon AVR-X3800H and Yamaha RX-A4A primarily through its inclusion of Dirac Live Room Correction in the box, which both Denon and Yamaha do not include at this tier, instead relying on their proprietary Audyssey MultEQ XT32 and YPAO RSC systems. The TX-NR7100 also provides three HDMI outputs including a dedicated Zone 2 HDMI port, enabling independent 8K video distribution to a second room, a capability not standard on the Denon X3800H. THX Certified Select accreditation, IMAX Enhanced certification, and Works with Sonos compatibility with three-zone support are additional advantages the TX-NR7100 holds over many rivals at the same price level.

Can the Onkyo TX-NR7100 support a 5.1.4 or 7.1.2 Dolby Atmos layout?

Yes, the TX-NR7100 fully supports both 5.1.4 and 7.1.2 Dolby Atmos speaker configurations. With nine amplified channels available, the receiver provides enough channel capacity to drive a seven-speaker surround base plus two height or overhead speakers simultaneously, or a five-speaker base plus four height speakers in a 5.1.4 configuration, both with dual subwoofer outputs active.

What is the difference between the 40 Gbps and 24 Gbps HDMI inputs on the TX-NR7100?

The TX-NR7100's HDMI inputs 1 through 3 operate at 40 Gbps full bandwidth, which supports uncompressed 8K/60 and 4K/120 video without Display Stream Compression. Inputs 4 through 6 operate at 24 Gbps and use DSC compression to achieve 4K/120 passthrough. For PlayStation 5 and Xbox Series X gaming at 4K/120 without any compression, connecting the console to inputs 1, 2, or 3 is recommended. All six inputs support VRR, ALLM, QFT, HDR10+, Dolby Vision, and HDCP 2.3 regardless of bandwidth tier.

Does the Onkyo TX-NR7100 work with a turntable?

Yes, the TX-NR7100 includes a dedicated phono MM input (3.5 mV rms / 47k ohms) that connects directly to a moving magnet turntable without requiring a separate phono preamplifier. This makes it straightforward to integrate vinyl playback into a full home theater setup alongside digital sources.

What streaming platforms are built into the TX-NR7100?

The TX-NR7100 has AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Tested certification, Spotify Connect, Tidal Connect, Deezer, TuneIn, and Pandora built in. Works with Sonos compatibility with Volume Pass-Through extends support to up to three independent Sonos zones, each capable of playing a different streaming service. Voice control is available via Amazon Alexa and Google Assistant with a compatible third-party smart speaker.

Where can I buy the Onkyo TX-NR7100 in Toronto or Canada?

The Onkyo TX-NR7100 is available at Vinyl Sound, an authorised Onkyo dealer in Toronto, Canada. Vinyl Sound carries the full Onkyo TX-NR Series lineup and offers in-store demonstration, Dirac Live setup guidance, and expert advice on speaker pairing and multi-zone configuration.
