Castle Windsor Duke Bookshelf Speakers with Stands at Vinyl Sound Toronto Canada

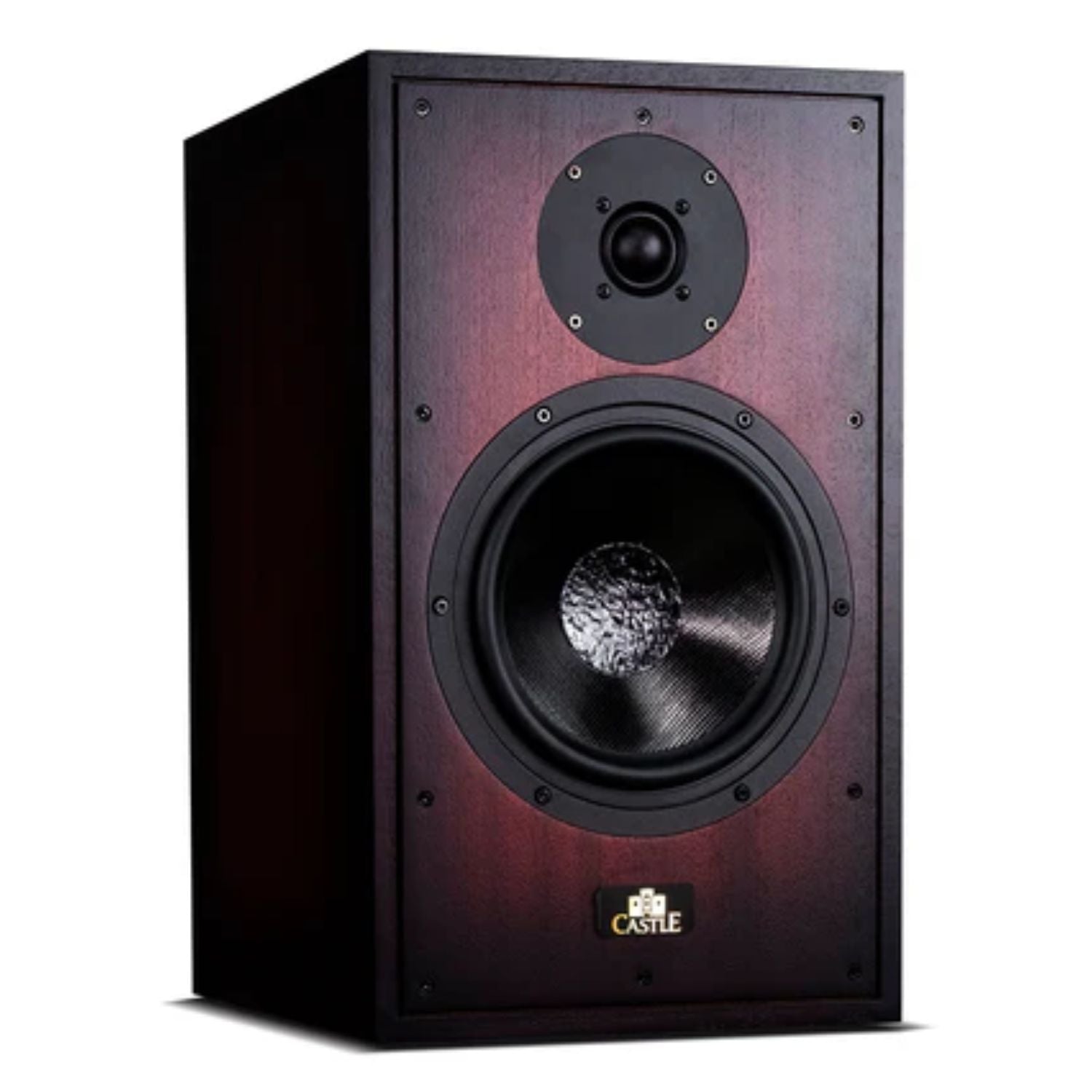

The Windsor Duke is a 2-way bass reflex bookshelf loudspeaker from Castle Acoustics (England, UK), available at Vinyl Sound in Toronto, Canada. Designed in collaboration with Karl-Heinz Fink of Fink Audio, recipient of the What Hi-Fi? Outstanding Contribution Award 2022 and described as "today's most influential speaker designer," the Windsor Duke combines an 8-inch woven polypropylene cone woofer with a 28mm micro-fibre dome tweeter in a hand-built, hand-finished mahogany veneer cabinet. With a sensitivity of 90dB (2.83V/1m), nominal impedance of 8 ohms, and frequency response extending from 52Hz to 22kHz (+/-3dB), the Windsor Duke is supplied with stands and is manufactured in England to the furniture-grade craftsmanship standard that has defined Castle Acoustics since its founding in 1973.

Karl-Heinz Fink and the Return to UK Manufacturing

The Castle Windsor Series represents the brand's return to UK manufacturing, with every pair hand-built and hand-finished by loudspeaker production specialists in England. To ensure the Windsor Series achieved a standard worthy of Castle's restored ambitions, the company engaged Karl-Heinz Fink and his Fink Audio consultancy as collaborative development partners. Fink's decades-long track record of exceptional loudspeaker design spans numerous internationally recognized brands, and his recognition with the What Hi-Fi? Outstanding Contribution Award in 2022 reflects the breadth and influence of his engineering contribution to the industry. The Windsor Duke's driver engineering, crossover design, and cabinet acoustics all bear the influence of this collaboration, grounding the speaker's performance in some of the most sophisticated loudspeaker development expertise available anywhere in the world.

Woven Polypropylene Cone: The Royal Weave

The 8-inch woofer in the Windsor Duke uses a cone material that goes well beyond standard injection-moulded polypropylene. Polypropylene is precision-cut into thin strips, woven into a fabric structure, and then pressed and formed into the final cone shape before being cut to size. This complex manufacturing process creates a cone material with deliberately differentiated rigidity properties in different directions between the voice coil and the surround. The anisotropic stiffness profile that results actively suppresses cone breakup resonances, producing a flatter frequency response curve in the critical midrange and upper bass frequencies where conventional polypropylene cones can exhibit coloration. The 200mm cone diameter is paired with a low-hysteresis rubber surround that maintains its mechanical properties over decades of use without the deterioration associated with foam surrounds. Glass-fibre voice coils bonded with high-temperature resin complete the woofer's signal purity credentials: glass fibre's stiffness and rigidity closely match aluminium without generating the eddy currents that aluminium coils produce, maintaining a purer signal path from amplifier input to acoustic output.

Aluminium Compensation Ring and Midrange Performance

The Windsor Duke's mid-bass driver magnet system incorporates an aluminium compensation ring that minimizes impedance variation during driver operation. Impedance variation in the magnetic circuit is a source of harmonic and intermodulation distortion that degrades midrange clarity and openness in many conventional loudspeaker designs. By stabilizing impedance across the operating range, the aluminium compensation ring reduces both harmonic and intermodulation distortion, contributing directly to the Windsor Duke's characteristically open and expressive midrange presentation. The 28mm micro-fibre dome tweeter is crossed over at 2.1kHz, a frequency chosen to ensure the woofer hands over to the tweeter well within both drivers' linear operating ranges for seamless integration through the critical upper midrange.

Hand-Selected Book-Matched Veneers and Furniture-Grade Finish

Castle sources its mahogany veneers from the original suppliers that have supplied the brand throughout its history, ensuring continuity of material character and visual consistency with the Castle legacy. Each pair of Windsor Duke cabinets uses hand-selected, book-matched veneers, meaning the natural grain pattern of the wood is mirrored across the two cabinets of a stereo pair for visual symmetry. A dedicated hand-finishing team applies and polishes the furniture-grade finish to a standard that Castle explicitly describes as equivalent to fine furniture construction. Because each veneer is a natural material, no two pairs of Windsor Duke speakers are identical, making each pair genuinely unique.

Key Features

• Collaborative Design with Karl-Heinz Fink: Developed in partnership with Fink Audio, whose principal received the What Hi-Fi? Outstanding Contribution Award 2022 for decades of internationally recognized loudspeaker engineering excellence.
• 8-Inch Woven Polypropylene Woofer: Precision-woven polypropylene cone with anisotropic stiffness properties that suppress resonances and produce a flatter frequency response than conventional injection-moulded polypropylene cones, with a low-hysteresis rubber surround for long-term durability.
• Glass-Fibre Voice Coils: Bonded with high-temperature resin for aluminium-equivalent stiffness without eddy current generation, maintaining signal purity throughout the driver's operating range.
• Aluminium Compensation Ring: Minimizes impedance variation in the magnetic circuit to reduce harmonic and intermodulation distortion, delivering an open and expressive midrange performance.
• 28mm Micro-Fibre Dome Tweeter: Purpose-developed to integrate seamlessly with the woofer at the 2.1kHz crossover point for coherent, detailed high-frequency reproduction.
• 90dB Sensitivity: High sensitivity ensures the Windsor Duke performs at its best with a wide range of amplifiers from 30W upward, without requiring exceptional power to reach satisfying listening levels.
• 52Hz-22kHz Frequency Response: Wide frequency range with -6dB bass extension to 39Hz from a 26-litre bass reflex cabinet, providing genuine low-frequency authority for a bookshelf-format loudspeaker.
• Hand-Built in England: Every Windsor Duke is hand-built and hand-finished in England, continuing the Castle tradition established in 1973 and restored with the Windsor Series relaunch.
• Hand-Selected Book-Matched Mahogany Veneers: Sourced from Castle's original veneer suppliers for material continuity, with hand-finished furniture-grade surface treatment applied by a dedicated finishing team.

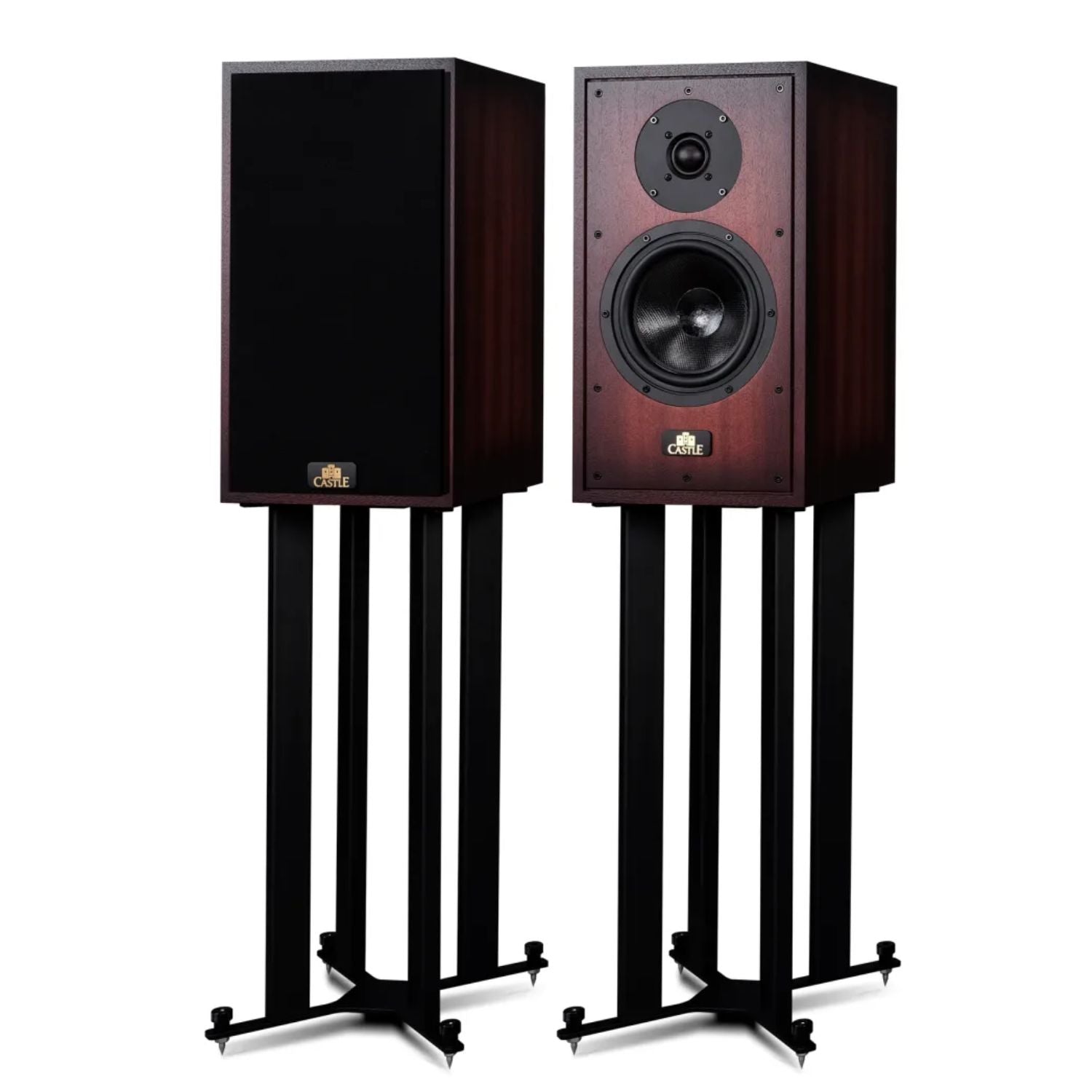

• Supplied with Stands: Speaker stands are included with the Windsor Duke at Vinyl Sound, enabling optimal tweeter height alignment and speaker placement from the outset.

Technical Specifications

Frequently Asked Questions

What is the Castle Windsor Duke?

The Castle Windsor Duke is a 2-way bass reflex bookshelf loudspeaker hand-built in England by Castle Acoustics, featuring an 8-inch woven polypropylene woofer with glass-fibre voice coil and aluminium compensation ring, a 28mm micro-fibre dome tweeter, 90dB sensitivity, 8-ohm nominal impedance, and a 52Hz-22kHz frequency response in a hand-finished mahogany veneer cabinet. Designed in collaboration with Karl-Heinz Fink of Fink Audio, it is available with stands at Vinyl Sound in Toronto, Canada.

How does the Castle Windsor Duke compare to the Wharfedale Denton 85th and Harbeth P3ESR?

The Castle Windsor Duke competes in the hand-crafted British bookshelf loudspeaker category alongside the Wharfedale Denton 85th Anniversary and Harbeth P3ESR. The Windsor Duke's 8-inch woofer and 26-litre cabinet are substantially larger than both the Denton 85th and the P3ESR, giving it a meaningful advantage in bass extension and dynamic scale, with a -6dB point of 39Hz compared to the P3ESR's approximate 75Hz and the Denton's approximately 60Hz. The Windsor Duke's 90dB sensitivity is higher than the Harbeth P3ESR's 83.5dB, making it considerably easier to drive to satisfying levels. The Karl-Heinz Fink collaborative design and the woven polypropylene cone technology distinguish the Windsor Duke's engineering approach from the Denton's more conventional cone construction, while Harbeth's proprietary RADIAL cone material represents a different philosophy to the same goal of resonance suppression.

What amplifier power does the Castle Windsor Duke require?

The Castle Windsor Duke is rated for use with amplifiers delivering between 30W and 150W, and its 90dB sensitivity means it reaches satisfying listening levels from relatively modest amplifier power. Its nominal 8-ohm impedance with a minimum of 4.2 ohms makes it a stable and easy load for the vast majority of integrated amplifiers. At Vinyl Sound in Toronto, the Windsor Duke pairs naturally with integrated amplifiers such as the Cambridge Audio CXA81 MK2 or Yamaha A-S501, both of which operate comfortably within the Windsor Duke's recommended power window.

What makes the woven polypropylene cone different from a standard polypropylene cone?

A standard polypropylene cone is injection-moulded as a single homogeneous piece, with uniform stiffness properties in all directions. The Castle Windsor Duke's woven polypropylene cone is manufactured by precision-cutting polypropylene into thin strips, weaving those strips into a fabric structure, pressing the fabric into the cone shape, and then cutting it to final size. This process creates deliberately different stiffness properties in different directions across the cone surface, a characteristic known as anisotropy. The anisotropic stiffness actively suppresses the resonance modes that cause conventional cones to break up and produce coloration, resulting in a measurably flatter frequency response in the upper bass and midrange where these resonances would otherwise be audible.

Are the Castle Windsor Duke stands included or sold separately at Vinyl Sound?

The Castle Windsor Duke is supplied with stands at Vinyl Sound in Toronto, giving you a complete, optimally placed speaker system from the moment of purchase. The stands position the Windsor Duke's tweeter at the correct ear height for a seated listening position and provide the mechanical isolation and stability that a bookshelf speaker of the Windsor Duke's size and bass output requires for best performance.

Where can I buy the Castle Windsor Duke in Toronto or Canada?

The Castle Windsor Duke with stands is available at Vinyl Sound in Toronto, Canada. Vinyl Sound carries Castle Acoustics' Windsor Series alongside a curated selection of compatible British and European amplifiers and source components, and can provide in-store demonstration and system matching advice. Purchasing from an authorized Canadian dealer ensures full Castle Acoustics manufacturer warranty coverage.

Is the Castle Windsor Duke truly hand-built and are any two pairs identical?

Yes, every Castle Windsor Duke is genuinely hand-built and hand-finished in England by Castle's loudspeaker production team, and no two pairs are identical. The mahogany veneers are natural wood sourced from Castle's original suppliers, and each veneer has its own unique grain pattern, color variation, and character. While book-matching ensures the two cabinets within a stereo pair mirror each other visually, the pair you receive will differ in fine veneer detail from every other pair produced, making the Windsor Duke a genuinely individual object in the tradition of fine British craftsmanship.
