Dali PHANTOM OW Frame S-180

$650.00

Product Details

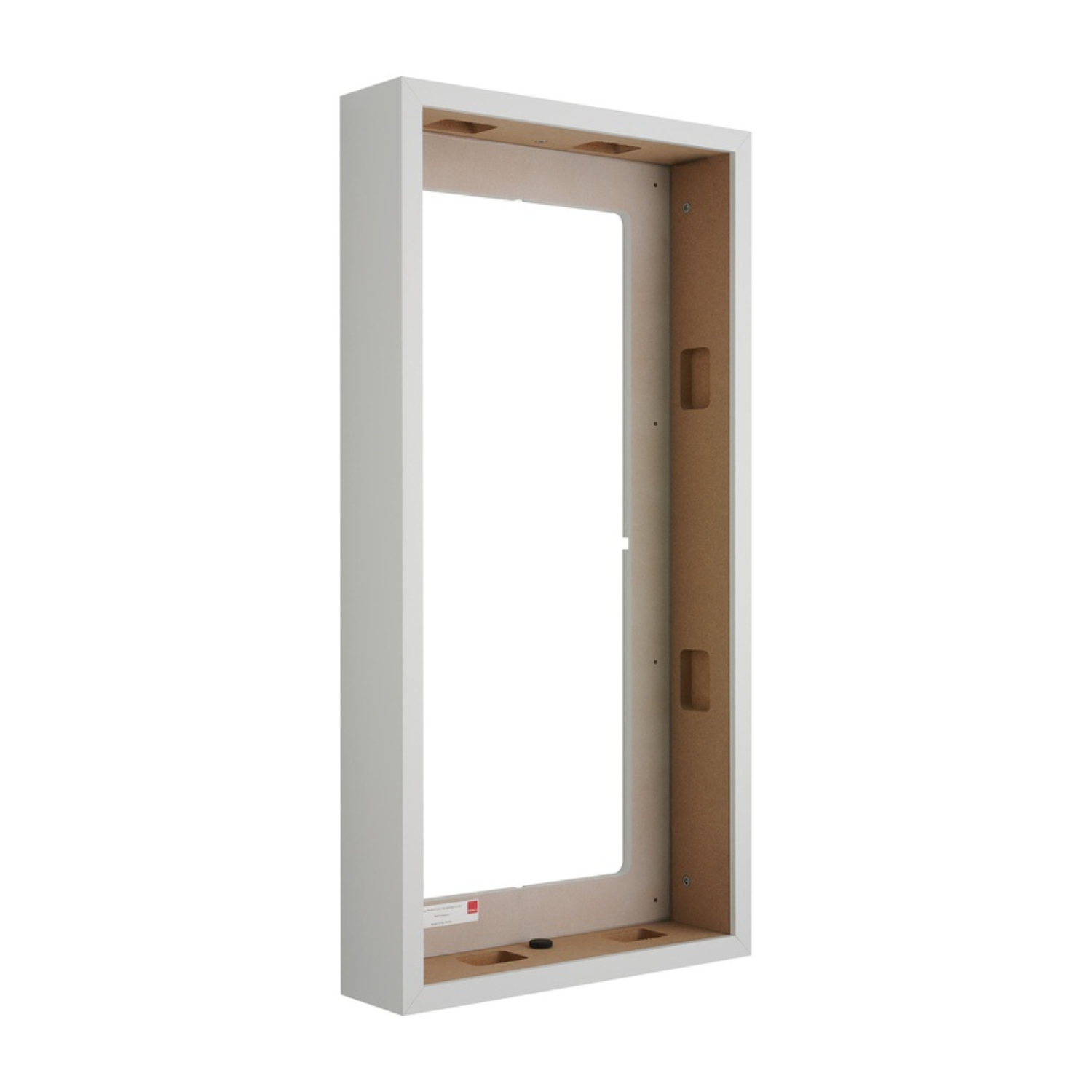

Dali PHANTOM OW Frame S-180

Reluctant to make cut-outs in the wall? With the DALI PHANTOM OW frames, the DALI PHANTOM S-Series, can also be used as an on-wall solution.

A series of three models, made to fit the DALI PHANTOM S-218, PHANTOM S-180 and the PHANTOM S-80. The new on-wall frames can be mounted on any type of wall and fitting the PHANTOM S speakers into these is done in just a few steps. The on-wall frames can be positioned into standard Left/Right mode (vertical) or in vocal mode (horizontal) having inlets for wiring in all frame sides. They come in a white finish that easily fits into any room.

It is possible to make some finer adjustments to set the position of your DALI PHANTOM S loudspeaker within the frame, which will ensure a perfect geometrical fit.

DALI PHANTOM OW Frame Specifications
Mounting Depth	PHANTOM S Series: 103 mm (4.06 inches) PHANTOM M Series: 100 mm (3.94 inches)
Weight (including grille)	PHANTOM S-80: 14 kg (30.86 lb) PHANTOM S-180: 19.5 kg (43 lb) PHANTOM S-280: 36.5 kg (80.46 lb) PHANTOM M-250: 8.5 kg (18.73 lb) PHANTOM M-375: 9 kg (19.84 lb) PHANTOM M-675: 15 kg (33 lb)
Cut-out Dimensions (H x W)	PHANTOM S-80: 615 x 370 mm (24.21 x 14.57 inches) PHANTOM S-180: 865 x 420 mm (34.06 x 16.54 inches) PHANTOM S-280: 1495 x 495 mm (58.86 x 19.49 inches) PHANTOM M-250/M-375: 751 x 226 mm (29.6 x 8.9 inches) PHANTOM M-675: 1298 x 226 mm (51.1 x 8.9 inches)
Wall Thickness (total dog-leg span)	PHANTOM S Series: 10 - 70 mm (0.39 - 2.76 inches) PHANTOM M Series: 8 - 68 mm (0.3 - 2.7 inches)
