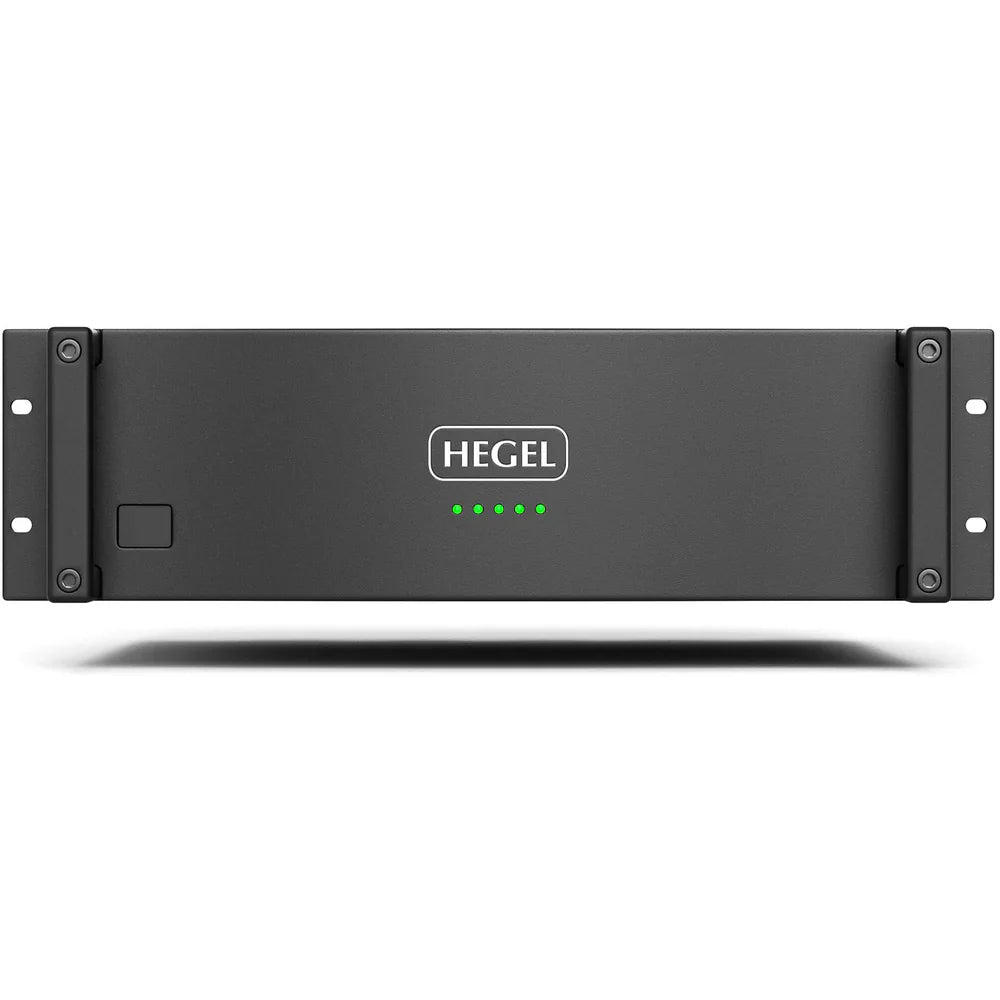

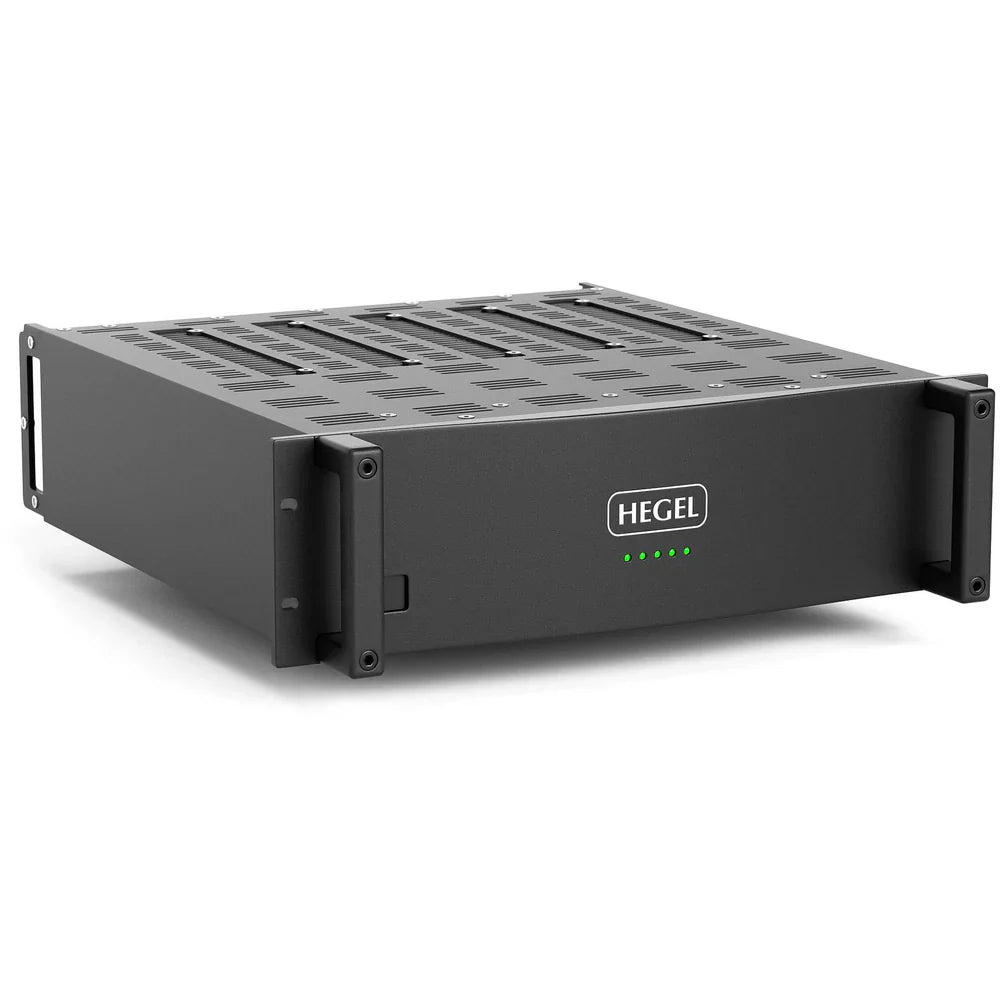

Hegel C53 Custom Installation Amplifier

The Hegel C53 is the three-channel variant of the Hegel C5 series, a range of rack-mountable multi-channel power amplifiers from Hegel Music Systems (Oslo, Norway), available at Vinyl Sound in Toronto, Canada. Delivering 150 watts per channel into 8 ohms across three channels, doubling to 300 watts into 4 ohms and 600 watts into 2 ohms, the C53 brings the full Hegel sound including patented SoundEngine2 distortion correction and a damping factor exceeding 2,000 to home theater front-stage, tri-amplification, multi-zone, and commercial audio installations. For integrators who need three channels of genuine Hegel performance in a compact, lightweight 3U rack unit, the C53 is the most accessible entry point into the C5 series.

Full Hegel Performance in Three Channels

The C53 carries over every core element of Hegel's amplifier philosophy into a purpose-built installation chassis. SoundEngine2 feed-forward distortion correction actively cancels all distortion generated within the amplifier circuits by replaying it in negative phase, functioning analogously to active noise cancellation. THD is held below 0.01% at 100 watts per channel, and the presentation remains natural, smooth, and dynamically engaging at any volume level. The low-bias Class AB operating point enabled by SoundEngine2 means the C53 runs significantly cooler than conventional multi-channel amplifiers of equivalent output, making closed-rack installation safe and practical without forced ventilation in most applications. At 28.5 kg net, the C53 is also the lightest unit in the C5 series, easing transport and installation in challenging rack environments.

Designed for Flexible System Integration

Each of the C53's three channels has individually switchable gain (23 dB or 29 dB) and individually switchable phase (0 or 180 degrees), simplifying integration into tri-amplified, LCR front-stage, or asymmetric multi-zone systems where per-channel level and polarity control is essential. A trigger input accepts 5 to 12V signals from any automation processor, and a daisy-chainable 11.9V trigger output allows multiple C5 units or compatible components to be powered on and off together from a single command. The C53 shares its 3U chassis with the C54 and C55, with integrated rack ears, adjustable detachable rear mount ears, and supplied feet for free-standing placement outside a rack.

Key Features

• Three Channels at 150 Wpc (8 Ω) / 300 Wpc (4 Ω) / 600 Wpc (2 Ω): High-headroom power for LCR front-stage, tri-amplification, or three-zone audio distribution
• SoundEngine2 Distortion Correction: Hegel's patented feed-forward technology dynamically cancels all amplifier-generated distortion in real time for a natural, smooth, and fatigue-free sound
• Damping Factor Greater Than 2,000: Deep, controlled bass and complete loudspeaker driver authority across all three channels simultaneously
• Stable to 2-Ohm Loads: Drives any loudspeaker system regardless of impedance, including passive crossover designs with demanding bass sections
• Low-Bias Class AB Operation: SoundEngine2 enables significantly reduced idle heat for safe, practical closed-rack installation in most environments
• Individual Per-Channel Gain Switching: Switchable between 23 dB and 29 dB per channel for precise level matching across any multi-channel system
• Individual Per-Channel Phase Switching: 0 or 180 degrees per channel to correct polarity at the amplifier without upstream signal processing

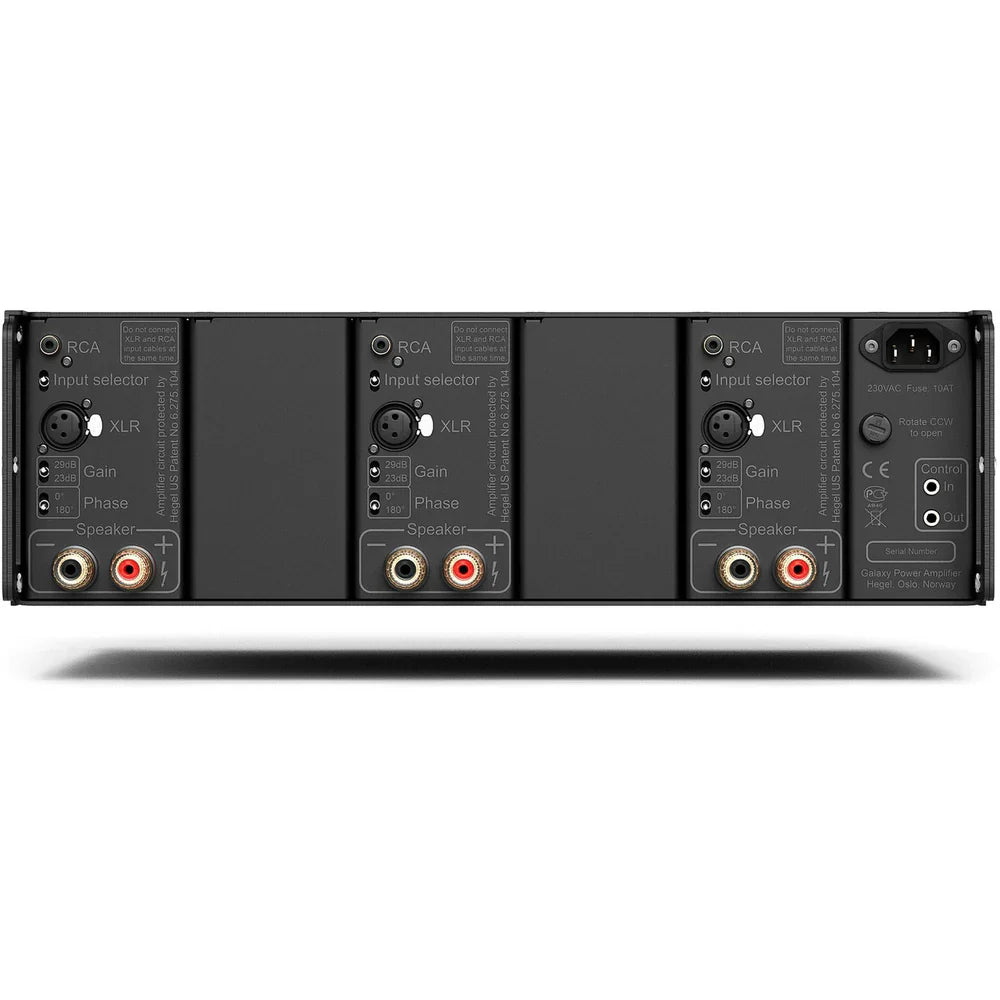

• 3 x Balanced XLR and 3 x Unbalanced RCA Inputs: Full balanced and unbalanced connectivity on every channel for compatibility with any processor, preamplifier, or DSP platform
• Trigger Input and Daisy-Chain Trigger Output: 5 to 12V trigger in; 11.9V trigger out for chaining multiple units; enables fully automated system power management
• 3U 19-Inch Rack-Mount with Integrated Ears: Adjustable and detachable rear rack ears; supplied feet for free-standing use when rack installation is not required
• Lightest in the C5 Series: 28.5 kg net weight makes the C53 the easiest C5 unit to transport and position during installation
• THD Below 0.01% at 100W: Vanishingly low distortion maintained across all three channels under full operating conditions

Typical Applications

• Home theater left, centre, and right front-stage amplification in any 3.x or larger configuration
• Tri-amplification of a single high-performance loudspeaker with active crossover
• Three-zone whole-home audio distribution
• Paired with a C54 or C55 for larger Dolby Atmos or multi-zone installations
• Commercial installations in restaurants, hotels, studios, and retail environments requiring three independent channels
• Custom integration with Control4, Crestron, Savant, and other automation platforms via trigger control

Technical Specifications

Frequently Asked Questions

What is the Hegel C53?

The Hegel C53 is a three-channel rack-mount power amplifier delivering 150 watts per channel into 8 ohms, part of the Hegel C5 series. It features SoundEngine2 distortion correction, a damping factor exceeding 2,000, individual per-channel gain and phase switching, balanced and unbalanced inputs on every channel, and daisy-chainable trigger control. It is designed for home theater LCR front-stage, tri-amplification, three-zone audio distribution, and commercial installation applications.

What is the difference between the Hegel C53, C54, and C55?

All three models share the same 3U chassis, SoundEngine2 technology, power output per channel, per-channel gain and phase control, trigger input and output, and balanced and unbalanced inputs. The only difference is channel count: the C53 has three channels, the C54 has four, and the C55 has five. The C53 is also the lightest of the three at 28.5 kg net, making it the easiest to handle and install. Multiple units can be combined and daisy-chained for larger Atmos or multi-zone systems.

Can the Hegel C53 power a complete home theater front stage?

Yes. The C53's three channels are ideally suited to driving the left, centre, and right speakers in any home theater configuration. Paired with a C54 or C55 for surround and height channels, the C53 can anchor a complete Dolby Atmos or DTS:X installation with full Hegel sound quality across every channel.

Can the Hegel C53 be used for tri-amplification?

Yes. With three independent channels each offering individual gain and phase control, the C53 is well suited to tri-amplifying a single high-performance loudspeaker using an active crossover, with dedicated amplifier channels for bass, midrange, and treble drivers. Per-channel gain adjustment allows precise level matching without passive attenuation.

Does the Hegel C53 run hot in a closed rack?

No. SoundEngine2 enables a low-bias Class AB operating point that significantly reduces idle heat compared to conventional high-power multi-channel amplifiers. The C53 is designed for rack installation and is cool enough for closed or semi-closed rack environments in most applications. Hegel recommends 1U of clear space above and below for airflow.

Does the Hegel C53 work with Control4, Crestron, or Savant?

Yes. The C53's 5 to 12V trigger input and daisy-chainable 11.9V trigger output integrate directly with Control4, Crestron, Savant, and any automation platform that supports voltage trigger control, enabling fully automated and remotely managed power sequencing across the entire installation.

Where can I buy the Hegel C53 in Toronto or Canada?

The Hegel C53 is available at Vinyl Sound in Toronto, Canada, an authorised Hegel dealer. Contact us to discuss system design, channel configuration, rack layout, and integration with your home theater or custom installation project.
