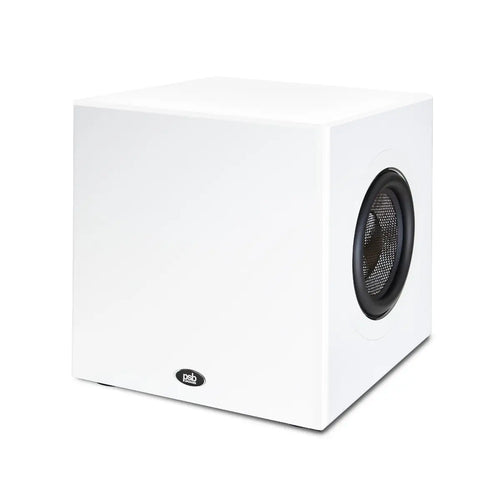

PSB SubSeries BP8 Bipolar Dual 8" 500W Powered Subwoofer at Vinyl Sound Toronto Canada

The SubSeries BP8 is a compact bipolar dual-driver powered subwoofer from PSB Speakers (Lenbrook Industries, Ontario, Canada), available at Vinyl Sound in Toronto, Canada. Launched in 2024 as the first model in a new generation of PSB SubSeries subwoofers, the BP8 is built around a proprietary bipolar dual 8" woven carbon fibre cone driver array in a sealed acoustically inert enclosure, driven by a 500-watt HybridDigital amplifier with Hypex nCore technology. With a verified frequency response of 25Hz to 150Hz (±3dB), integrated IsoAcoustics isolation feet, and driver engineering inspired by PSB's flagship Synchrony and Passif 50 speaker series, the BP8 delivers precise, distortion-free bass performance in a compact 14 x 13 x 13" cabinet available in Satin Black or Satin White for Toronto, Canada and North American home theatre and two-channel audiophile systems.

Bipolar Dual 8" Carbon Fibre Driver Array: Force-Cancelling Precision

The BP8's defining engineering feature is its bipolar driver configuration: two proprietary 8" (203mm) woven carbon fibre cone woofers mounted in opposition on opposite faces of a sealed enclosure, wired and operating in phase. When both drivers move outward simultaneously, their reaction forces cancel inside the enclosure rather than exciting the cabinet walls. This force-cancelling mechanism reduces cabinet resonance to near zero, allowing the sealed enclosure to remain acoustically inert and neutral under high excursion conditions. The result is distortion-free bass reproduction at output levels where conventional single-driver sealed subwoofers begin to introduce cabinet coloration. Two 8" drivers together provide approximately the same radiating surface area as a single 11.25" driver, while the bipolar configuration delivers the added benefits of reduced subwoofer localization in the listening room and more even bass distribution across the listening space. Each driver uses a woven carbon fibre cone for high rigidity and low mass, a filleted high-density rubber surround for consistent linearity at extreme excursion, a 2.5" ultra-high-powered voice coil, and a robust 45-ounce magnet structure. The driver design was inspired directly by the engineering principles behind PSB's Synchrony and Passif 50 speaker series, translating flagship-level driver precision into a subwoofer application.

500-Watt HybridDigital Amplifier with Hypex nCore Technology

The BP8 is powered by a HybridDigital amplifier built on Hypex nCore technology, one of the most widely respected and lowest-distortion Class D amplifier architectures available to audio product developers. Conservatively rated at 500 watts continuous, the amplifier provides the current headroom and damping factor needed to control the dual 8" carbon fibre drivers with precision across the full operating bandwidth from 25Hz to 150Hz. The nCore platform delivers near-immeasurable distortion at rated power, exceptional damping factor for tight bass transient control, and efficient energy conversion that keeps cabinet heat generation low. The variable crossover (continuously adjustable from 50Hz to 150Hz) allows precise acoustic blending with any main speaker system, and a variable phase control enables acoustic time-alignment of the BP8 with the main speakers from any placement position in the room. A 12V trigger input synchronizes the BP8's power state with the rest of the system. LFE and line-level inputs via gold-plated RCA jacks cover both home theatre AV receiver connections and two-channel preamplifier integration.

Integrated IsoAcoustics Isolation and Compact Cabinet

The BP8's sealed enclosure is engineered with an emphasis on rigidity and acoustic neutrality: the cabinet walls add no coloration to the bass output, and the bipolar driver configuration cancels any residual mechanical vibrations before they can reach the enclosure panels. To further decouple the subwoofer from floor-coupled room resonances, PSB integrated IsoAcoustics isolation feet directly into the BP8's cabinet base. These feet, developed in the same engineering tradition as IsoAcoustics' standalone isolation products, reduce the transmission of low-frequency vibrations from the subwoofer to the floor and back, resulting in cleaner, better-defined bass especially in the 20Hz to 60Hz range where room modes are most disruptive. At 14" H x 13" W x 13" D (355 x 330 x 330mm) and 42 lb (19.1 kg), the BP8 is notably compact for a subwoofer delivering this level of driver specification and amplifier power, and its Satin Black or Satin White finish integrates cleanly into any listening room or home theatre environment.

Key Features

• Bipolar Dual 8" Carbon Fibre Driver Array: Two proprietary 8" woven carbon fibre cone woofers in opposing bipolar configuration, cancelling cabinet vibrations and delivering distortion-free bass with reduced room localization and even bass distribution.
• Synchrony and Passif 50-Inspired Driver Design: Each driver uses a woven carbon fibre cone, filleted high-density rubber surround, 2.5" voice coil, and 45 oz magnet, derived from engineering principles applied in PSB's flagship speaker lines.
• 500-Watt HybridDigital Amplifier (Hypex nCore): Near-zero distortion, high damping factor, and 500W continuous power for precise driver control and dynamic headroom across the 25Hz to 150Hz operating range.
• Sealed Acoustic Suspension Enclosure: No ports, no passive radiators, and no port plugs required. Clean, accurate bass without port chuffing or passive radiator resonance artifacts.
• Integrated IsoAcoustics Isolation Feet: Built-in decoupling feet minimize floor-coupled room vibrations, improving bass clarity especially in the lowest octaves where room modes are most disruptive.
• Variable Crossover (50Hz to 150Hz): Continuously adjustable low-pass filter for precise acoustic blending with any main speaker system in two-channel or home theatre configurations.
• Variable Phase Control: Enables acoustic time-alignment of the BP8 with the main speakers from any room placement position.
• LFE and Line-Level Inputs (Gold-Plated RCA): Accepts AV receiver subwoofer/LFE output and two-channel preamplifier line-level outputs for flexible system integration.
• 12V Trigger Input: Synchronizes BP8 power state with the AV receiver or preamplifier for automatic on/off with the system.
• Compact 14 x 13 x 13" Cabinet: At 42 lb (19.1 kg), the BP8 delivers flagship-level bipolar driver performance in a cabinet small enough to be positioned discreetly in any listening room.
• Available in Satin Black or Satin White: Both finishes suit residential home theatre and dedicated two-channel listening room environments.

Technical Specifications

Connections at a Glance

• LFE Input (Gold-Plated RCA): For AV receiver subwoofer/LFE output connection; internal crossover can be bypassed for receiver-managed bass management
• Line-Level Input (Gold-Plated RCA): For two-channel preamplifier connection; use with internal variable crossover (50Hz to 150Hz)
• High-Level Speaker Input: For amplifiers without preamp or LFE outputs
• 12V Trigger Input: Synchronizes power on/off with AV receiver or preamplifier
• Variable Crossover and Phase Controls: Accessible on the rear panel for precise system integration

Frequently Asked Questions

What is the PSB SubSeries BP8?

The PSB SubSeries BP8 is a compact bipolar dual 8" powered subwoofer featuring woven carbon fibre cone drivers, a 500-watt HybridDigital amplifier with Hypex nCore technology, a sealed acoustic suspension enclosure, integrated IsoAcoustics isolation feet, and a frequency response of 25Hz to 150Hz (±3dB). It is available in Satin Black or Satin White in a 14 x 13 x 13" cabinet and launched in 2024 as the first model in PSB's new-generation SubSeries subwoofer lineup.

How does the PSB BP8 compare to the SVS SB-3000 or KEF KC62?

The PSB BP8, SVS SB-3000, and KEF KC62 are all compact sealed subwoofers targeting audiophile and home theatre buyers who prioritize accuracy over maximum output. The SVS SB-3000 uses a single 13" driver with a 800W RMS amplifier and DSP-based app control, claiming a -3dB point at 18Hz in a larger 15.6 x 15.2 x 18.9" cabinet. The KEF KC62 uses a unique 6.5" force-cancelling coaxial driver design with a 1000W amplifier and KEF's iBX technology, achieving 11Hz (-6dB) in a very compact 9.7 x 9.4 x 10" cabinet. The BP8 differentiates through its standard bipolar 8" dual-driver configuration, Hypex nCore amplification, and Synchrony-inspired driver engineering, in a cabinet that strikes a balance between the KC62's extreme compactness and the SB-3000's larger form. For Toronto audiophiles seeking a PSB-voiced subwoofer with proven nCore amplification and IsoAcoustics integration, the BP8 is a compelling and well-engineered choice in the compact sealed subwoofer category.

What is the difference between the PSB BP8 and the PSB SubSeries 450?

The PSB SubSeries 450 is an older design using a single 12" active driver with two 10" passive radiators, DSP linearization, and a 400W RMS NAD-designed Hypex nCore amplifier. It achieves a flat response to 20Hz (±3dB) but in a larger 16" near-cubic cabinet weighing 45 lb. The BP8 uses a newer bipolar dual 8" sealed design with a 500W HybridDigital nCore amplifier, achieving 25Hz (±3dB) in a significantly smaller 14 x 13 x 13" cabinet of the same weight. The SubSeries 450 has deeper bass extension and higher maximum SPL; the BP8 is the more compact solution where room or placement constraints are a factor, and its force-cancelling bipolar design eliminates cabinet resonance without requiring DSP linearization.

Why does the BP8 use two 8" drivers instead of a single larger driver?

Two 8" drivers in a bipolar opposing configuration provide approximately the same combined radiating surface area as a single 11.25" driver. The bipolar arrangement cancels cabinet vibrations through opposing mechanical forces, which reduces distortion and cabinet coloration that a single large driver in a conventional enclosure cannot eliminate without the cabinet walls vibrating sympathetically. The dual-driver design also allows each driver to operate over a shorter excursion distance for a given output level, reducing distortion at high output, and the bipolar configuration distributes bass energy more evenly in the listening room than a single-driver design, improving placement flexibility and bass uniformity across the listening area.

What amplifier or AV receiver works with the PSB BP8?

The BP8 connects to any AV receiver with a dedicated subwoofer or LFE output via its gold-plated RCA LFE input. For two-channel integration, it connects to any stereo preamplifier with a line-level preamp output via the stereo RCA inputs, with the internal variable crossover (50Hz to 150Hz) engaged. The 12V trigger input enables automatic power synchronization with any AV receiver or preamplifier that provides a 12V trigger output. The BP8 is compatible with receivers and processors from NAD Electronics, Anthem, Denon, Yamaha, Marantz, and any other brand with standard subwoofer output connectivity.

Where can I buy the PSB SubSeries BP8 in Toronto or Canada?

The PSB SubSeries BP8 is available at Vinyl Sound, an authorized PSB dealer in Toronto, Canada. Vinyl Sound carries the full PSB SubSeries subwoofer lineup alongside PSB's Synchrony, Alpha, and architectural speaker series, and can advise on subwoofer placement, crossover and phase integration with main speakers, and system configuration for home theatre and two-channel audiophile applications throughout the Greater Toronto Area and across Canada.

Is the PSB BP8 sold as a single unit or in pairs?

The BP8 is sold as a single unit. One BP8 is the standard configuration for most home theatre and two-channel stereo systems. Using a pair of BP8 subwoofers — one at each front corner or on opposite sides of the listening room — can improve bass smoothness and uniformity across the listening area by distributing multiple bass sources throughout the room and reducing the impact of room mode peaks and nulls at the primary listening position.
