TEAC NT-507T Network Transport at Vinyl Sound Toronto Canada

The NT-507T is a dedicated network streaming transport from TEAC (Tokyo, Japan), available at Vinyl Sound in Toronto, Canada. Part of TEAC's prestigious Reference 500 Series, this audiophile-grade component is built on the proprietary TEAC Network Engine G4 platform and outputs exclusively via USB digital, supporting up to DSD 22.5 MHz and PCM 768 kHz/32-bit. With no internal DAC and no analog outputs, the NT-507T is purpose-engineered to deliver bit-perfect digital audio to your external converter, whether that is the TEAC UD-507 or any USB-equipped DAC in a high-end system. Roon Ready certification, Tidal Connect, Qobuz Connect, and Spotify Connect are all supported, making the NT-507T a reference-class streaming source for serious listeners in Canada.

TEAC Network Engine G4: A Proprietary Streaming Platform Built for Audio

At the core of the NT-507T is the TEAC Network Engine G4, a fourth-generation proprietary streaming platform developed entirely in-house for audio applications. Unlike mass-market streaming solutions that prioritize convenience over signal integrity, the G4 engine is engineered around timing accuracy and low-noise signal delivery. A high-speed CPU and generous RAM ensure stable, uninterrupted handling of even the most demanding high-resolution formats, including DSD 22.5 MHz and 32-bit PCM at 768 kHz. The result is a transport that functions as a precision digital source component, not simply a connected device, placing it in a distinct category from consumer-grade streamers.

Linear Power Supply with Toroidal Transformer: Eliminating Noise at the Source

The NT-507T's power architecture is one of its most significant engineering distinctions. A large linear power supply built around a toroidal core transformer features four independent windings, each dedicated to a separate internal section: network, USB output, Wi-Fi, and LED. This isolated power delivery eliminates the crosstalk and high-frequency interference that are inherent to switching power supplies, providing each circuit with clean, stable DC current. The USB digital output additionally benefits from its own independent power supply circuit, ensuring that the signal path to your DAC remains free from noise that could degrade timing or dynamic performance. For audiophiles who have invested in a premium external DAC, the NT-507T's power design ensures the transport itself is never a limiting factor.

Key Features

• TEAC Network Engine G4: A proprietary fourth-generation streaming platform built specifically for audio applications, prioritizing timing accuracy, signal purity, and stable high-resolution format handling up to DSD 22.5 MHz and PCM 768 kHz/32-bit.
• Pure Digital USB Output: A single dedicated USB Type-A output with its own independent power supply circuit delivers bit-perfect audio to any compatible external DAC, with no analog conversion or internal DAC stage to introduce coloration.
• Toroidal Linear Power Supply: A large toroidal core transformer with four independent windings powers the network, USB, Wi-Fi, and LED circuits separately, replacing noisy switching supplies with clean, stable DC current.
• Dual Network Interface with Integrated Switch: RJ45 Ethernet and SFP optical ports share an integrated network switch, with Wi-Fi 6 (IEEE 802.11ax) also available for wireless integration, offering flexibility for any room or rack configuration.
• Roon Ready Certified: Full Roon Ready certification enables seamless integration with Roon Core for gapless playback, DSP, and full library management across the network.
• Comprehensive Streaming Service Support: Tidal Connect, Qobuz Connect, Spotify Connect, and TuneIn are natively supported alongside full OpenHome compatibility, enabling control via a wide range of third-party apps.
• TEAC HR Streamer App with USB Volume Function: The dedicated iOS and Android app provides intuitive control, and the USB Volume Function allows direct volume adjustment of a connected DAC or preamp from the app interface.
• Dual USB Drive Ports: A Type-A port on the rear and a Type-C port on the front enable direct playback from flash drives, hard drives, and SSDs, adding basic music server functionality without additional hardware.
• Reference 500 Series Half-Width Format: The NT-507T shares the compact half-width form factor and modular design philosophy of the Reference 500 Series, pairing visually and functionally with the TEAC UD-507 DAC/preamp.
• Semi-Floating Aluminum Top Panel and Isolation Feet: A vibration-damping top panel and stress-less isolation feet reduce mechanical interference, supporting the transport's goal of clean, stable digital output.

Technical Specifications

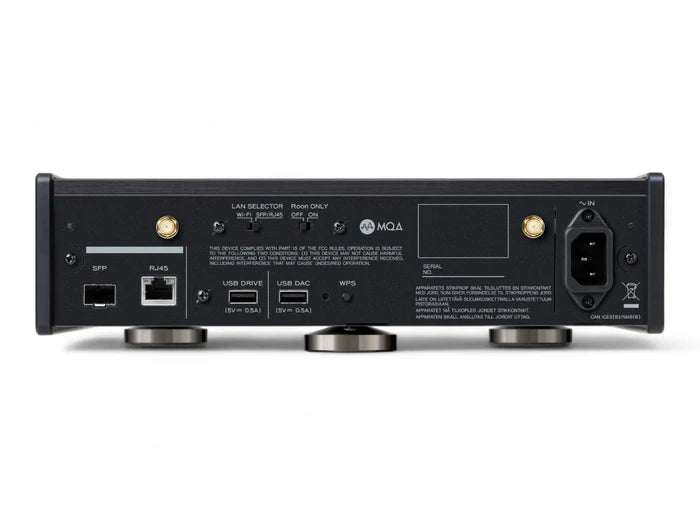

Connections at a Glance

• USB Type-A Output (Rear): digital audio output to external DAC
• USB Type-A (Rear): storage drive playback port
• USB Type-C (Front): storage drive playback port
• RJ45 Ethernet (Rear): wired network connection
• SFP Optical Port (Rear): noiseless optical network connection via integrated switch
• Wi-Fi 6 (Internal): wireless LAN, 2.4 GHz and 5 GHz dual-band

What's in the Box

• TEAC NT-507T Network Transport
• Power cable
• Quick start guide and owner's manual

Frequently Asked Questions

What is the TEAC NT-507T?

The TEAC NT-507T is a dedicated network streaming transport from TEAC's Reference 500 Series, built to deliver bit-perfect USB digital audio to an external DAC. It supports PCM up to 768 kHz/32-bit and DSD up to 22.5 MHz, and is Roon Ready certified with native support for Tidal Connect, Qobuz Connect, and Spotify Connect. It contains no internal DAC and no analog outputs, making it a purpose-built digital source component for audiophile systems.

How does the TEAC NT-507T compare to the Innuos Pulse Mini or the Lumin U2 Mini?

The TEAC NT-507T occupies the same category as the Innuos Pulse Mini and the Lumin U2 Mini as a DAC-less network transport, but distinguishes itself through its proprietary Network Engine G4, a toroidal linear power supply with four independently wound circuits, and a dual network interface that adds an SFP optical input alongside standard Ethernet. The Lumin U2 Mini outputs via USB and S/PDIF, while the NT-507T focuses exclusively on a single high-quality USB output with its own independent power circuit. For buyers who already own a high-end USB DAC and want a transport engineered from the ground up for audio-specific timing and noise control, the NT-507T offers a strong competitive position at its price point.

Does the TEAC NT-507T have a built-in DAC or analog outputs?

No. The NT-507T has no built-in DAC and no analog outputs of any kind. It outputs exclusively via a USB Type-A digital connection, and must be paired with a compatible external DAC to produce sound. This is by design: by removing all analog circuitry, TEAC eliminates potential sources of internal interference and dedicates every component to delivering the cleanest possible digital signal to your converter.

What is the TEAC Network Engine G4?

The TEAC Network Engine G4 is a proprietary fourth-generation streaming platform developed by TEAC specifically for high-fidelity audio applications. It pairs a high-speed CPU with generous RAM to handle demanding formats such as DSD 22.5 MHz and PCM 768 kHz/32-bit without dropouts or timing errors. Unlike general-purpose streaming chipsets, the G4 is optimized for signal integrity and timing accuracy, and is powered by a dedicated section of the NT-507T's linear power supply to keep noise out of the streaming engine entirely.

Can the TEAC NT-507T work with any DAC, or only the TEAC UD-507?

The NT-507T works with any DAC that accepts USB audio input, not only the TEAC UD-507. TEAC designed the NT-507T as the natural partner for the UD-507 and its proprietary TRDD5 discrete DAC circuit, but the transport's USB output follows standard USB Audio Class protocols, making it fully compatible with DACs from brands such as Chord Electronics, dCS, Benchmark, RME, and others. The TEAC HR Streamer app's USB Volume Function is available when paired with USB DACs that support this feature.

Is the TEAC NT-507T Roon Ready?

Yes. The NT-507T carries full Roon Ready certification, meaning it is recognized as a Roon endpoint and can be controlled directly from Roon Core without any additional configuration. Roon users gain access to gapless playback, Roon DSP, metadata browsing, and full integration with their Roon library, all streamed to the NT-507T and passed to the connected DAC as a bit-perfect USB audio signal.

What streaming services does the TEAC NT-507T support?

The NT-507T natively supports Tidal and Tidal Connect, Qobuz and Qobuz Connect, Spotify and Spotify Connect, and TuneIn internet radio. Full OpenHome compatibility means it can also be controlled by a wide range of third-party control apps. The TEAC HR Streamer app for iOS and Android provides the primary interface for service browsing, NAS playback, and USB drive access.

Where can I buy the TEAC NT-507T in Toronto or Canada?

The TEAC NT-507T is available at Vinyl Sound, an authorized TEAC dealer located in Toronto, Canada. Vinyl Sound's team specializes in high-end audio and can assist with system matching, DAC pairing recommendations, and setup guidance for the NT-507T. Contact Vinyl Sound Toronto directly or visit in store to audition the Reference 500 Series.
