DESCRIPTION

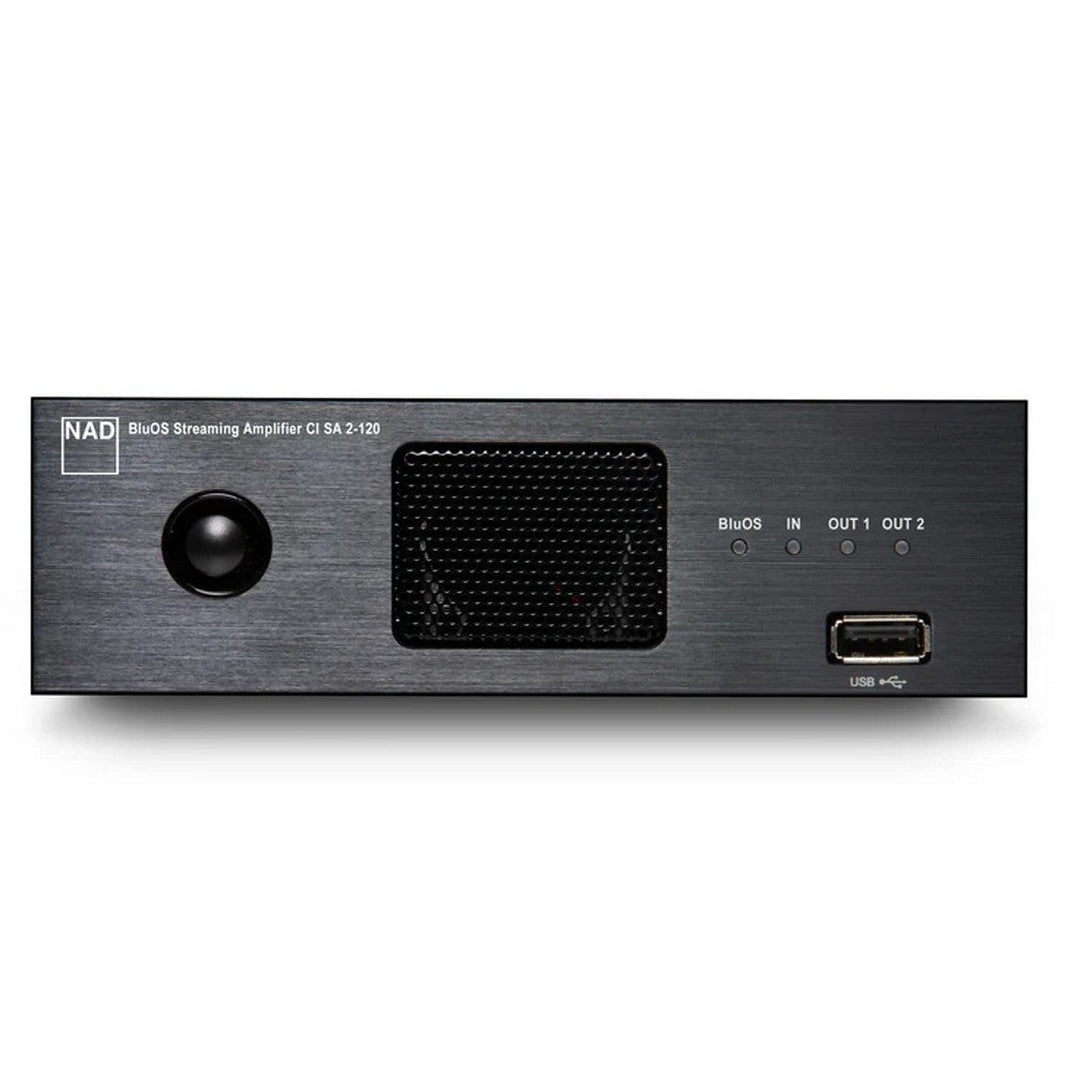

The NAD CI SA2-120 BluOS Streaming Amplifier Module is a compact, rack-friendly powerhouse for custom installations, delivering flexible high-performance amplification and multi-room streaming. With NAD’s DirectDigital™ technology, it provides 2 × 120W or 4 × 60W of clean, detailed power, optimized by Dynamic Power Management for any speaker load or cable run. BluOS integration unlocks 20+ streaming services, internet radio, and high-res playback, while automation compatibility ensures seamless control with Control4, Crestron, Lutron, and more. Features include HDMI eARC, Ethernet, Wi-Fi, aptX HD Bluetooth, Dirac Live readiness, and Domotz remote monitoring. A slim 1U/3-width chassis with ChassisLink, Phoenix connectors, thermostatic cooling, and versatile mounting options makes the CI SA2-120 the ultimate choice for scalable, reliable, custom audio installs.
FEATURES
- 2 x 120 W or 4 x 60 W DirectDigital™ amplification
- Dynamic Power Management automatically optimises power distribution
- BluOS Enabled multi-room streaming with access to 20+ services and internet radio
- Dirac Live Ready for room correction
- Main Zone/Sub Zone configuration with independent volume control

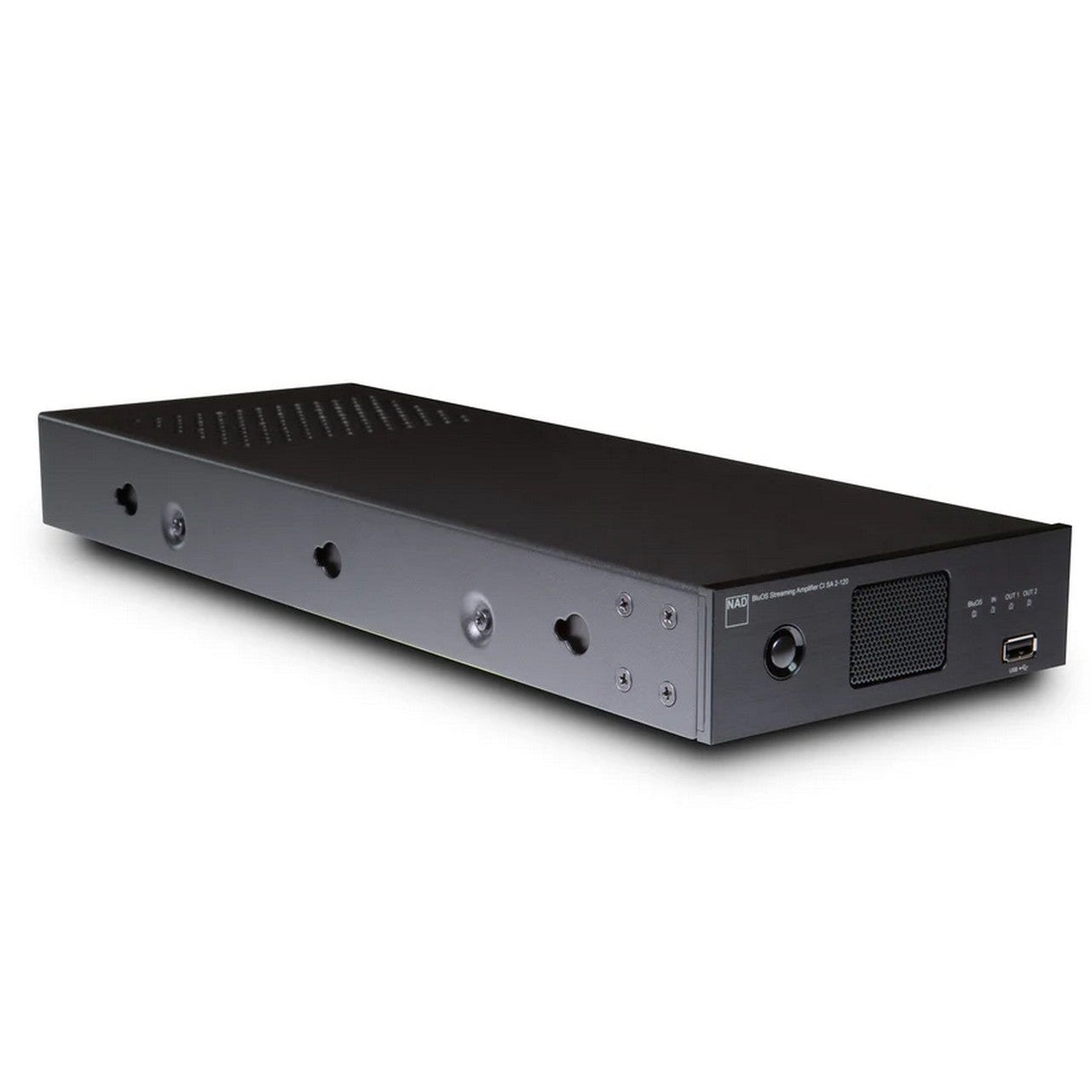

- Compact 1/3 width x 1U height with ChassisLink
- aptX HD two-way Bluetooth, AirPlay 2, Spotify Connect, and Tidal Connect

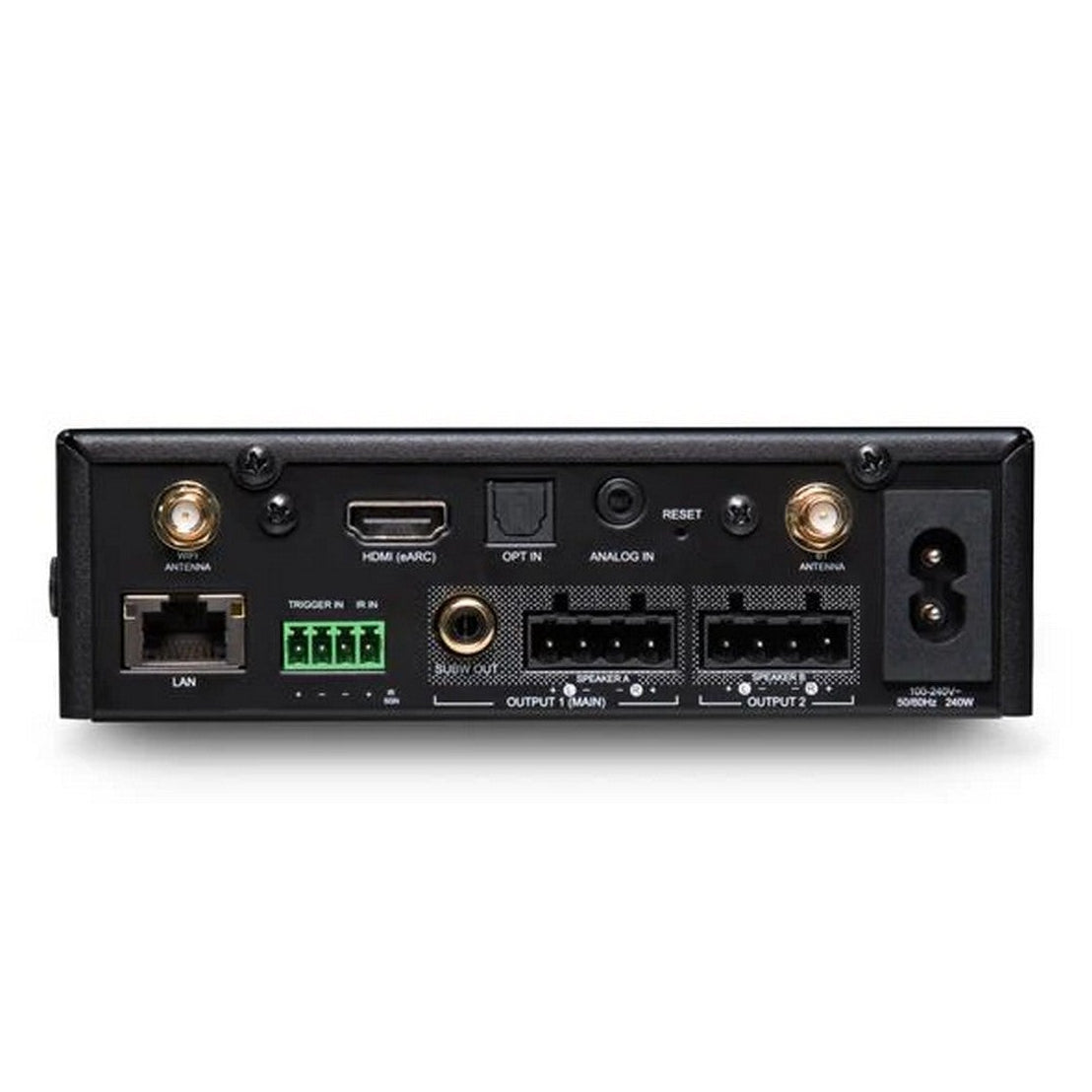

- Inputs: HDMI eARC, combo analogue/ digital input
- Outputs: Subwoofer output, snap-on Phoenix speaker connection blocks
- Dual-band Wi-Fi and Gigabit Ethernet
- Programmable 12 V Trigger In
- IR input with learning via BluOS (IR extender kit required)
- Universal AC power supply
- Thermostatic fan cooling with front-to-rear airflow for reliable stacking
- Flexible rack and surface placement options
- Robust drivers for Control4, Crestron, URC, RTI, NICE, Lutron, and KNX
- Remote monitoring via Domotz
Included Accessories
- 120V AC Power Cord
- 230V AC Power Cord
- 2 x Short rack ears (also used as wall mount brackets)
- 2 x Long Rack ears/
- Blacnking plates
- 2 x Shoulder Bolts + 2 x Rubber Washers (already attached for ChassisLink)
- 2 x 4-PIN Snap On PHX 5.08mm Speaker Connectors
- 1 x 4-PIN PHX Connector for 12v trigger + IR In
- 4x optional stick on rubber feet
- Wi Fi Antenna
- BT Antenna
TECHNICAL SPECS
- Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
- Supported High-Quality Audio File Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
- Supported Multi-Channel Audio Formats: Dolby Digital® Downmixing to stereo PCM
- Native Sampling Rates: up to 192 KHz
- Bit Depth: 16-24
- Audio Controls & EQ: BluOS Control App
- Signal-to-Noise Ratio: -102dBA
- Distortion: THD+N, 0.005%
- Amplification: DirectDigital™
- Rated Power Output: Dynamic Power Management - 120W x 2 or 60W x 4 (8 Ohms)
- IHF Dynamic Power: 300W (4ohm)/200w (8ohm)
- Operating System: BluOS
- App Controller Operating System: iOS, Android, Windows, macOS
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Supported Network File Sharing: Server Messsage Block (SMB) up to 200,000 files
- Album Art Supported: JPG, PNG
- Music Services & Internet Radio: 23+
- 3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect
- Room Correction Software: Dirac Live Ready (In 2.1 configuration only, calibration mic not included)
- Control System Integrations: Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
- Voice Control Integrations: Amazon Alexa Skills
- Power Supply: Universal 2-pin AC cord input (100-240AC)
- Ethernet/LAN: Ethernet RJ45, Gigabit 1000Mbps
- Wi-Fi Built In: WiFi 5 (802.11ac), dual-band
- Bluetooth Quality: Bluetooth 5.2 aptX HD
