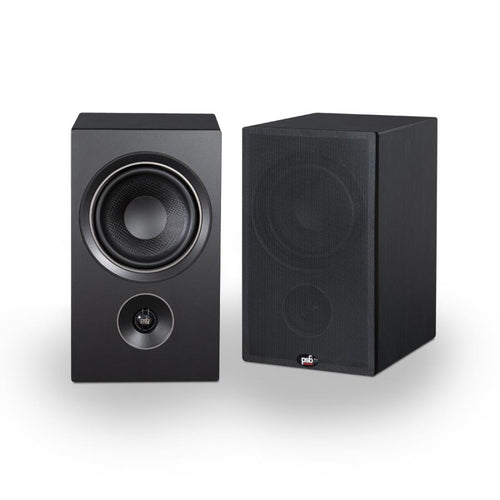

The Alpha P5 is a 2-way bookshelf loudspeaker from PSB Speakers (Pickering, Ontario, Canada), available at Vinyl Sound in Toronto, Canada. The fifth generation of PSB's legendary Alpha series, which began in a small Canadian town in 1991, the P5 represents a complete redesign built around advanced driver technologies developed alongside NAD Electronics and informed by decades of acoustic research at Canada's National Research Council. It features a 0.75" black anodized aluminum dome tweeter with ferrofluid cooling and neodymium magnet, a 5.25" textured polypropylene woofer with dual-layer voice coil, and a frequency response of 55 Hz to 21,000 Hz (±3dB). The Alpha P5 is one of the most decorated bookshelf speakers in its class, earning the Stereophile Budget Component of the Year (2019), SoundStage! Network Product of the Year for Exceptional Value (2019), and a SoundStage! Access Reviewers' Choice Award (2019). Available in Black Ash and Walnut woodgrain finishes.

Woofer-Above-Tweeter Design and Linkwitz-Riley Crossover Engineering

The PSB Alpha P5 adopts the same inverted driver arrangement used throughout PSB's higher-end Imagine and Synchrony series: the woofer sits above the tweeter. This placement works in concert with the P5's fourth-order Linkwitz-Riley crossover network at 2,500 Hz to keep the outputs of both drivers in phase across the listening window. When the tweeter is positioned below the woofer and the crossover is correctly implemented, the in-phase lobe of the combined drivers tilts upward, optimizing the listening window for a seated listener on stands at typical ear height. The 0.75" black anodized aluminum dome tweeter extends high-frequency response beyond any previous Alpha model, with ferrofluid cooling that prevents dynamic compression at sustained high volumes and a neodymium magnet that raises sensitivity and power handling. A front-mounted waveguide shapes the tweeter's directivity to smooth the frequency response at the crossover transition and improve on-axis and off-axis performance simultaneously. All final voicing of the Alpha P5 was conducted by PSB founder and chief designer Paul Barton in the anechoic chambers of Canada's acoustic research facilities for a measured, flat frequency response that translates directly into natural, non-fatiguing playback.

Custom Woofer, Bass-Reflex Cabinet, and Flagship-Grade Damping

The 5.25" textured polypropylene woofer in the Alpha P5 was designed specifically for this speaker rather than adapted from an off-the-shelf component. Its dual-layer voice coil lowers distortion at high excursion levels and improves power handling without thermal compression. The rubber surround and textured cone compound work together to suppress cone breakup at the high end of the woofer's operating range, protecting midrange clarity in the critical frequency band where both drivers are active. A rear-firing bass-reflex port, tuned at 53 Hz, extends low-frequency output well below what the cabinet volume alone would suggest. Real-world listening tests at SoundStage! Access and HomeTheaterHiFi confirmed in-room bass output extending to approximately 37 to 40 Hz, a remarkable achievement for a compact stand-mount speaker. Cabinet construction uses a combination of MDF wall thicknesses and internal bracing to control panel resonances, and the damping material placed inside is drawn directly from PSB's flagship speaker lines, positioned precisely for optimal effectiveness at the locations most prone to coloration.

Key Features

• 0.75" Black Anodized Aluminum Dome Tweeter: Ferrofluid cooling prevents dynamic compression, neodymium magnet delivers high sensitivity, and a front waveguide smooths on-axis and off-axis response through the crossover region.
• 5.25" Textured Polypropylene Woofer with Dual-Layer Voice Coil: Custom-designed driver with rubber surround, dual-layer voice coil for low distortion at full excursion, and a textured cone compound that suppresses breakup modes in the upper woofer range.
• 4th-Order Linkwitz-Riley Crossover at 2,500 Hz: High-order acoustic filter found in far more expensive speaker designs, minimizing phase error and distortion at the crossover point for seamless driver integration.
• Woofer-Above-Tweeter Driver Layout: Tilts the combined in-phase lobe upward for optimal dispersion and listening-window performance when the speaker is placed on stands at standard seated ear height.
• Bass-Reflex Cabinet with Rear-Firing Port: Port tuned at 53 Hz extends low-frequency output to 55 Hz (±3dB) on-axis with in-room bass extension reaching approximately 37 to 40 Hz.
• NRC Anechoic Chamber Voicing: Final tuning conducted by Paul Barton at Canada's National Research Council acoustic research facilities, targeting a measured flat frequency response for accurate, listener-preferred sound.
• Flagship-Grade Internal Damping Material: Damping material drawn from PSB's top-tier speaker lines and positioned precisely inside the cabinet to control resonances and reduce midrange coloration.
• Acoustically Transparent Magnetic Grilles: Micro-perforated metal grilles attach magnetically to the baffle and are designed to be left in place without sonic penalty.
• Five-Way Gold-Plated Binding Posts: Accepts bare wire, banana plugs, and spade connectors for reliable, low-resistance connection to any amplifier or AV receiver.

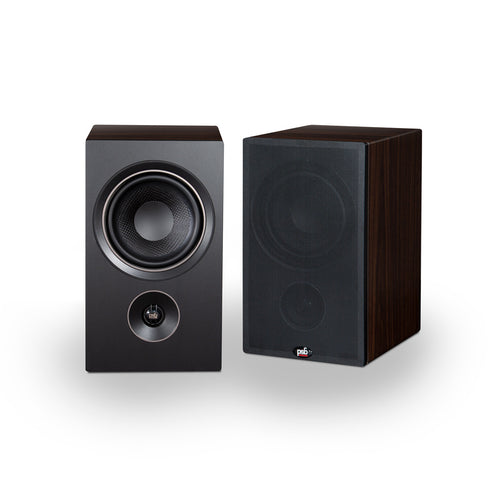

• Available in Black Ash and Walnut Woodgrain Vinyl: Two finish options with clean, contemporary lines that integrate into any listening room or home décor without visual distraction.

Technical Specifications

Awards and Critical Recognition

• Stereophile Budget Component of the Year, 2019
• SoundStage! Network Product of the Year, Exceptional Value, 2019
• SoundStage! Access Reviewers' Choice Award, March 2019
• SoundStage! Hi-Fi Recommended Reference Component, 2020

Frequently Asked Questions

What is the PSB Alpha P5?

The PSB Alpha P5 is the fifth generation of PSB's legendary Alpha bookshelf speaker series, a 2-way bass-reflex stand-mount loudspeaker from PSB Speakers, a Canadian brand based in Pickering, Ontario. It features a 0.75" black anodized aluminum dome tweeter with ferrofluid and a neodymium magnet, a 5.25" textured polypropylene woofer with dual-layer voice coil, and a fourth-order Linkwitz-Riley crossover at 2,500 Hz. With a frequency response of 55 Hz to 21,000 Hz (±3dB) and a listening-room sensitivity of 89 dB, it is widely regarded as a benchmark for entry-level hi-fi speaker performance and is available at Vinyl Sound in Toronto, Canada.

How does the PSB Alpha P5 compare to the KEF Q150 and Elac Debut B6.2?

The PSB Alpha P5 competes directly with the KEF Q150 and the Elac Debut B6.2 at its price point. In a direct comparison conducted by SoundStage! Access, the P5 outperformed the KEF LS50 in bass extension and slam despite the LS50 carrying a considerably higher price tag, which speaks to the Alpha P5's overachieving design. The KEF Q150 uses a Uni-Q coincident driver array for excellent point-source imaging, while the P5's inverted driver layout with Linkwitz-Riley crossover prioritizes even off-axis dispersion and a natural, wide listening window. The Elac Debut B6.2 uses a larger 6.5" woofer for more low-frequency output but lacks the P5's dual-layer voice coil construction and flagship-grade internal damping material. Reviewers at Stereophile, SoundStage!, and The Absolute Sound consistently placed the Alpha P5 above its measured price class in sonic performance.

Can the PSB Alpha P5 work without a subwoofer?

Yes, the PSB Alpha P5 performs convincingly as a standalone stereo speaker in small to medium-sized rooms. Its bass-reflex port is tuned at 53 Hz, and real-world listening tests by SoundStage! Access and HomeTheaterHiFi confirmed in-room bass extension reaching approximately 37 to 40 Hz, which covers the fundamental range of most acoustic instruments, electric bass, and vocal music without subwoofer assistance. For home theatre use in larger rooms or for genres with sub-40 Hz content, pairing the P5 with a subwoofer such as the PSB Alpha S8 or an SVS SB-1000 Pro will extend dynamic range and low-frequency output significantly.

What is the woofer-above-tweeter design and why does PSB use it?

The woofer-above-tweeter layout places the midrange woofer at the top of the speaker baffle and the tweeter below it, which is the reverse of the arrangement used in most bookshelf speakers. PSB uses this configuration because, when combined with a fourth-order Linkwitz-Riley crossover, it keeps the outputs of both drivers in phase through the critical crossover region and tilts the combined in-phase lobe upward. This means the region of best phase coherence is aimed directly at a seated listener's ears when the speaker is placed on a stand at typical ear height, improving tonal accuracy, imaging stability, and off-axis consistency throughout the listening room.

What amplifier power does the PSB Alpha P5 require?

The PSB Alpha P5 is rated for 10 to 90 watts from a compatible stereo amplifier or AV receiver. With a listening-room sensitivity of 89 dB and a nominal impedance of 8 ohms, the P5 is an easy and efficient load that performs well with entry-level integrated amplifiers from brands such as NAD Electronics, Cambridge Audio, Yamaha, and Rega. Stereophile reviewer John Atkinson noted excellent performance when paired with a NAD C 328 integrated amplifier. The 4-ohm minimum impedance should be considered when matching with amplifiers rated exclusively for 8-ohm loads at minimum.

Is the PSB Alpha P5 good for vinyl playback?

Yes, the PSB Alpha P5 is well suited to vinyl-based systems. Its neutral tonal balance, low midrange coloration, and accurate treble response make it an honest monitor for analogue sources, revealing the warmth and texture of vinyl without adding artificial brightness or veiling detail. It pairs naturally with turntables connected to any stereo integrated amplifier that includes a built-in phono stage, or with a standalone phono preamplifier in a separates system. PSB founder Paul Barton's Alpha series has been associated with accurate, natural sound reproduction since 1991, making the P5 a natural match for the analogue listening experience.

Where can I buy the PSB Alpha P5 in Toronto or Canada?

The PSB Alpha P5 2-Way Bookshelf Speaker (Pair) is available at Vinyl Sound in Toronto, Canada. Vinyl Sound is an authorized PSB dealer offering the Alpha P5 in both Black Ash and Walnut woodgrain finishes, with expert guidance on amplifier pairing, stand selection, and optional subwoofer integration. Visit Vinyl Sound in Toronto or shop online through the Vinyl Sound Canada store.
