HiFi Rose RA180 Reference Integrated Amplifier

HiFi Rose RA180 Reference Integrated Amplifier at Vinyl Sound Toronto, Canada

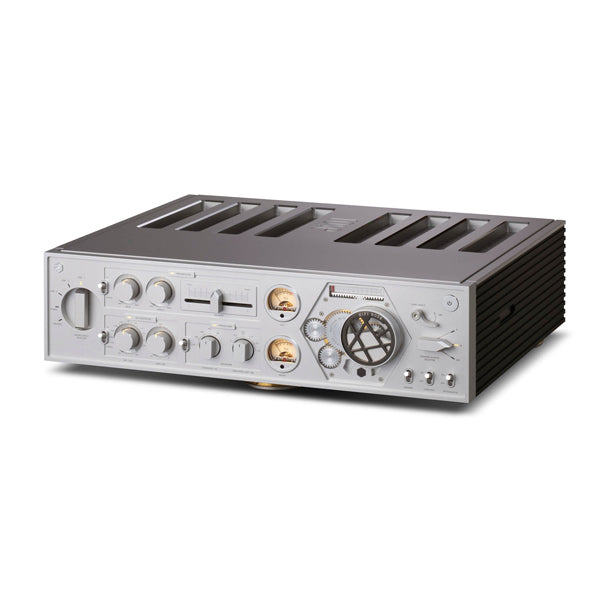

The RA180 is a reference integrated amplifier from HiFi Rose (Seoul, South Korea), available at Vinyl Sound in Toronto, Canada. Built around a proprietary Class AD GaN FET topology, the RA180 houses four independent mono amplifier modules delivering 200 W per channel into 8 ohms in standard mode and 400 W per channel in BTL mode, with a THD of just 0.005% at 50 W and a signal-to-noise ratio of 107 dB. Combining the linearity of Class A with the efficiency of Class D, the RA180 is engineered for audiophiles who demand both technical precision and analog-like musicality from a single chassis.

SiC FET Power Supply with Power Factor Correction

The power supply in the RA180 was developed exclusively for this amplifier. It uses fourth-generation Silicon Carbide FET (SiC FET) technology to deliver high current output with substantially reduced heat generation compared to conventional MOSFET topologies. A self-developed Power Factor Correction (PFC) circuit prevents performance degradation under sudden load changes, which is essential when driving low-impedance or dynamically demanding loudspeakers at full output. The supply is rated at 800 W continuous with a peak capacity of 1,100 W, supports a damping factor in excess of 200, and operates on universal mains voltage from AC 100 V to 230 V at 50 or 60 Hz. FURUTECH pure copper AC terminals at the rear panel preserve signal integrity from the wall socket inward.

Extended Frequency Response: Engineered for High-Resolution Sources

The RA180 is specified with a bandwidth of 10 Hz to 90 kHz at +/-3 dB, extending usably to 100 kHz at -3 dB and 200 kHz at -6 dB. While human hearing typically rolls off between 15 kHz and 20 kHz, high-resolution audio formats such as 88.2 kHz and 192 kHz PCM and DSD carry program content well beyond 40 kHz, and acoustic instruments such as trumpets produce harmonic content reaching 100 kHz. HiFi Rose's position is that faithful amplification of this extended range contributes to a wider and more naturally proportioned soundstage, even when the frequencies themselves are above the threshold of conscious hearing. The RA180's high-frequency output terminals and adjustable active crossover are built with this philosophy in mind, making the amplifier a natural partner for high-resolution digital sources and extended-bandwidth speaker systems.

Frequently Asked Questions

Q: What is the HiFi Rose RA180?
A: The HiFi Rose RA180 is a reference integrated amplifier from HiFi Rose of Seoul, South Korea, rated at 200 W per channel into 8 ohms across four independent mono modules, with a Class AD GaN FET topology, built-in MM/MC phono stage, and BTL capability delivering 400 W per channel. It is available in Canada through authorized dealers including Vinyl Sound in Toronto.

Q: How does the HiFi Rose RA180 compare to the Hegel H590 and Gryphon Diablo 300?
A: The RA180 occupies a distinct technical position relative to competitors like the Hegel H590 and Gryphon Diablo 300. Where the Hegel H590 uses a proprietary Class AB topology rated at 301 W per channel and the Gryphon Diablo 300 uses a biased Class A/AB design with 300 W per channel, the RA180 deploys a Class AD GaN FET switching architecture with four independent mono modules and a modular bi-amp output configuration not offered by either competitor. The RA180 also includes a variable EQ phono stage with pre-RIAA curve support, which neither the H590 nor the Diablo 300 provides at the same depth of adjustability.

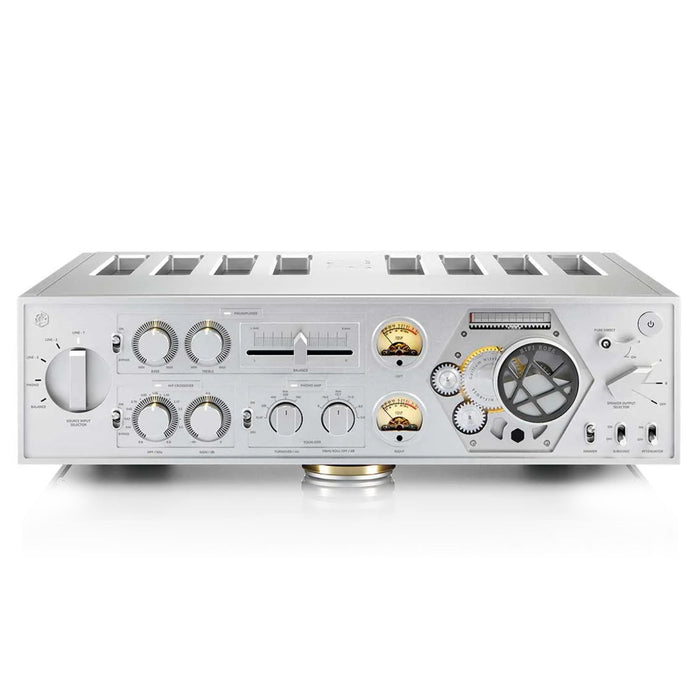

Q: What is Class AD amplification and how is it different from Class D?
A: Class AD is HiFi Rose's proprietary amplifier topology that replaces the silicon FET switching devices used in conventional Class D amplifiers with Gallium Nitride FET (GaN FET). GaN FET switches far faster and more accurately than silicon FET, reducing the dead time between switching transitions to 1/10 or less of what is achievable with silicon. This reduction in dead time is the key to linearity: it allows the RA180 to approach the smooth, natural output characteristic of Class A amplifiers while retaining the high efficiency and output power of Class D.

Q: Can the HiFi Rose RA180 bi-amp speakers directly without an external crossover?
A: Yes, the RA180 can bi-amp speakers using its four internal mono modules without any external crossover hardware. The amplifier's H/F speaker output includes a built-in active crossover with an adjustable high-pass filter set anywhere between 600 Hz and 6 kHz at -3 dB. The mid-bass modules drive the low-frequency terminals of the speaker while the high-frequency modules, filtered by the internal crossover, drive the tweeter or super-tweeter terminals. This eliminates counter electromotive force interaction between driver sections and improves overall drive capability.

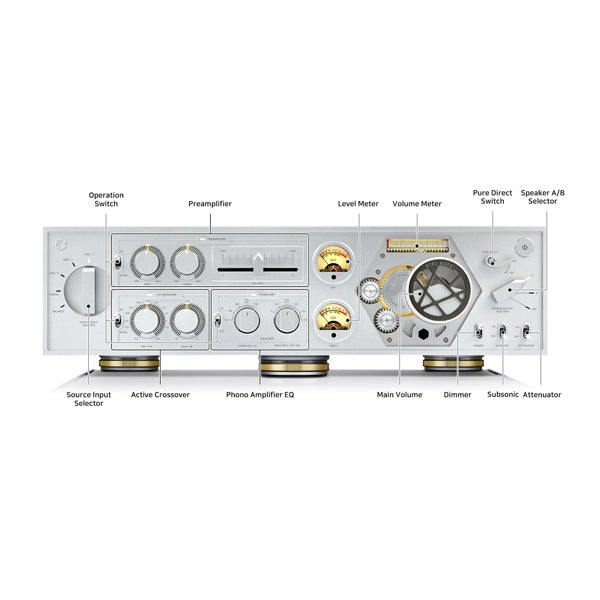

Q: Is the phono stage in the RA180 suitable for shellac and pre-RIAA records?
A: Yes, the RA180's phono stage supports multiple turnover and roll-off EQ settings that go beyond the standard RIAA curve. Turnover can be set to Flat, 300 Hz, 400 Hz, 500 Hz, or 700 Hz, and roll-off can be set to Flat, 1.6 kHz, 2.1 kHz, 3.18 kHz, 3.4 kHz, or 6.36 kHz. These settings allow accurate reproduction of shellac records and early vinyl pressed before RIAA standardization in 1954, when different record labels used their own proprietary equalization curves. All EQ components are built to 0.1% tolerance for precise curve accuracy.

Q: Where can I buy the HiFi Rose RA180 in Toronto or Canada?
A: The HiFi Rose RA180 is available at Vinyl Sound, an authorized HiFi Rose dealer located in Toronto, Canada. Vinyl Sound carries the full HiFi Rose lineup and provides in-store demonstrations, expert guidance, and authorized after-sales support for Canadian customers.

Q: What speakers work well with the HiFi Rose RA180?
A: The RA180's four-module architecture, high damping factor exceeding 150, and output power up to 400 W per channel in BTL mode make it well suited to a wide range of loudspeakers, including large floorstanders, low-sensitivity designs, and multi-way systems with separate high and low-frequency terminals for bi-amping. Its extended frequency response to 200 kHz at -6 dB and dedicated H/F output with active crossover also make it an ideal match for speakers equipped with external super-tweeters such as those from TAOC, Townshend, or Murata.

Q: Does the HiFi Rose RA180 support system automation and external triggering?
A: Yes, the RA180 includes a trigger input that accepts voltages between 3.3 V and 12 V, allowing it to be switched on and off automatically as part of an integrated home audio system. It also features a 38 kHz infrared remote control receiver with an operating distance of up to 10 metres, and a motorized volume control that can be adjusted from the supplied remote handset.
