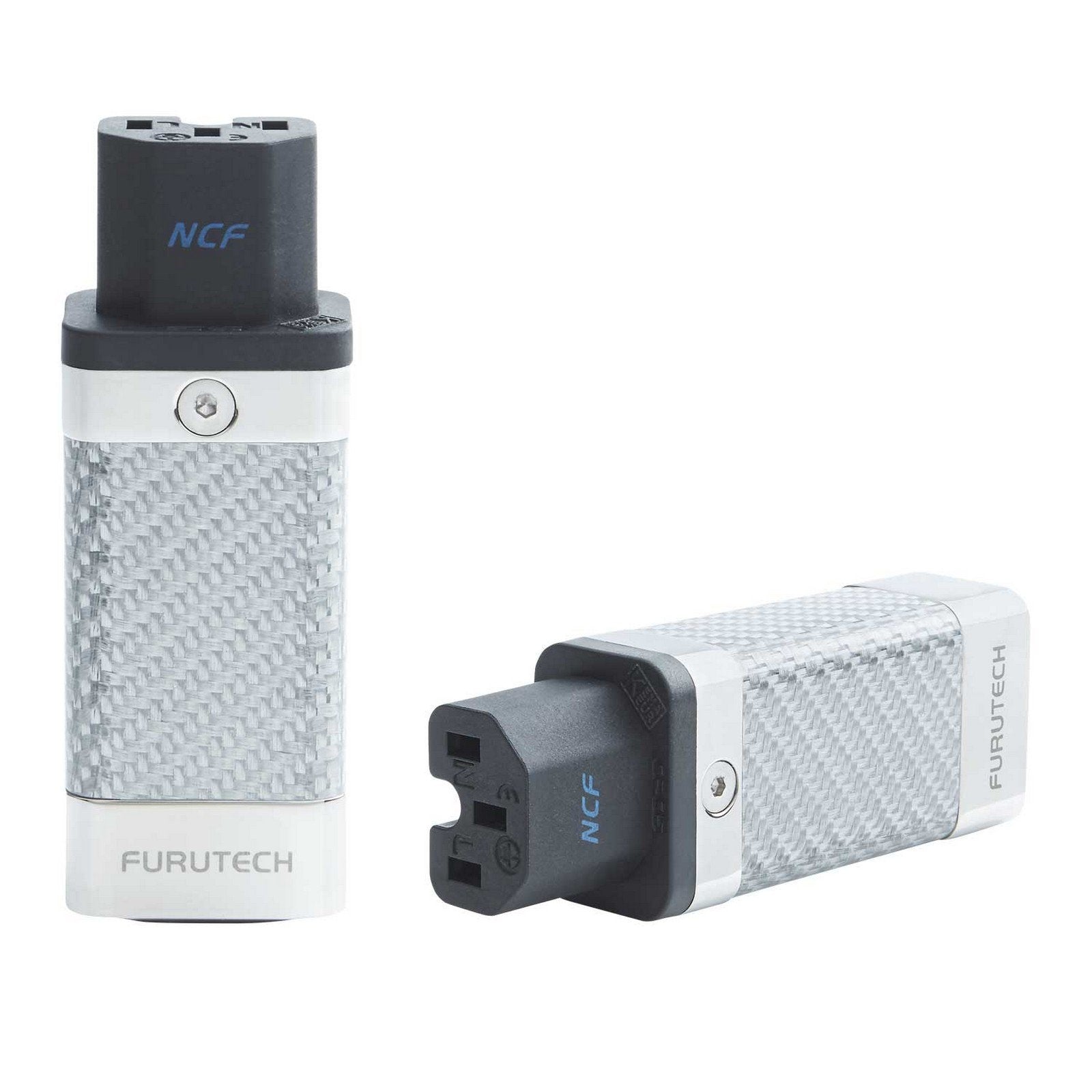

Furutech CF-C15 NCF(R) High End Slimline IEC connector

Furutech CF-C15 NCF(R) High End Slimline IEC connector

FEATURES

Slimline form for tight spaces
NCF-enhanced body with nano-ceramic and carbon-based damping materials
Rhodium-plated α (Alpha) pure copper conductors
Stainless steel and silicone cable clamps for secure, distortion-free grip
Suitable for cables 6.6mm to 16.0mm Ø (Wire size of 3.5 sq.mm (≒12AWG) max.)
Additionally, the CF-C15 NCF(R) has been developed with an eye toward upcoming changes in UL certification standards. Furutech is committed to maintaining full compliance, and this connector is structured to meet evolving international safety and performance requirements.
Whether you’re building a compact high-end audio system or retrofitting a space-sensitive setup, the CF-C15 NCF(R) delivers uncompromising performance in a refined, compact design—setting a new benchmark in premium power delivery solutions.
The CF-C15 NCF(R) is specially engineered for direct connection to slim-profile video equipment, including 4K and 8K TVs.
SPECIFICATIONS

Nylon/fiberglass with special “NCF” anti-resonance damping material – nano-sized crystalline, piezo ceramic particles and carbon powder main body / inner cover / insulation inner frame / cable damping clamp / fixing ring.
Rhodium-plated α (Alpha) Pure copper Conductor.
Housing: Multilayer hybrid NCF carbon housing composed of a hard clear coat over with another layer of hybrid NCF silver plated 3k carbon fiber on a nonmagnetic stainless-steel housing including NCF insulation inner frame. The best of damping and insulation materials improve frequency extension and tonal balance.
Specially Engineered Pressure Plate and Wire Clamp.
Nonmagnetic Stainless Steel Main cable fixing clamp improves grip and reduces mechanically and electrically induced distortion.
Nonmagnetic Stainless Steel Cable clamp fixing screws / Polished Hex Head Screws.
Special formula Silicone Sleeve for tensile strength.
Specified for cable diameters of 6.6mm to 16.0mm (Wire size of 3.5mm (≒12AWG) max.)
Connection: Set screw
Safity certification:
