HiFiROSE RS130 Network Transport at Vinyl Sound Toronto Canada

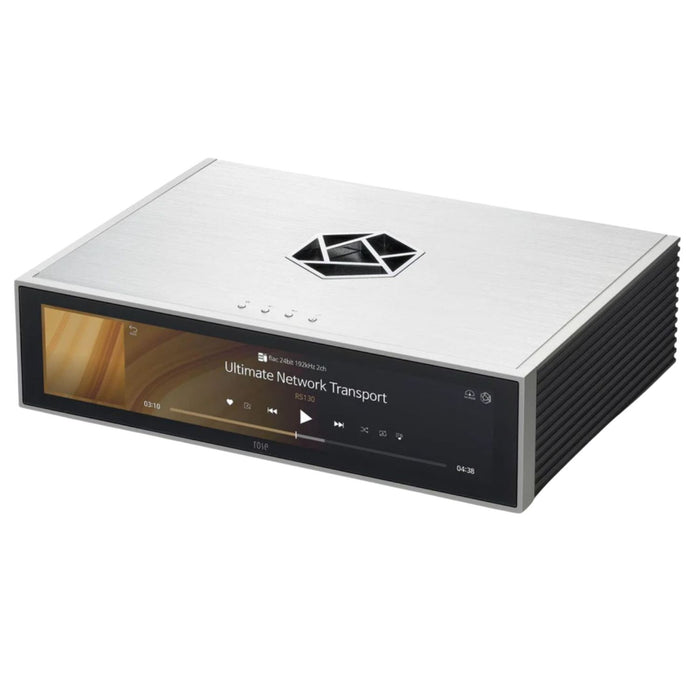

The RS130 is a reference network transport from HiFi ROSE (Seoul, South Korea), available at Vinyl Sound in Toronto, Canada. Designed as a streamer-only source component, the RS130 pairs a high-precision OCXO (Oven-Controlled Crystal Oscillator) clock with fiber optic Ethernet and USB isolation, a 15.4-inch LCD touchscreen, and a comprehensive suite of digital outputs including SPDIF, AES/EBU, I2S, and USB. Roon Ready certified and compatible with master clock inputs via dual BNC connectors, the RS130 is engineered to extract the maximum performance from any outboard DAC in an ultra-high-end digital audio system.

OCXO Clock and Fiber Optic Isolation: The Foundation of Low-Jitter Performance

Jitter — timing errors in the digital audio signal — is the primary enemy of sound quality in any network transport. The RS130 addresses jitter at every point in the signal chain. At its heart is an OCXO (Oven-Controlled Crystal Oscillator), a precision clock that maintains a stable, temperature-compensated reference frequency far more accurately than the standard crystal oscillators found in conventional streamers. To prevent network-borne noise from contaminating the audio circuits, the RS130 uses fiber optic Ethernet and fiber optic USB connections, converting electrical signals to light and back again to create a complete galvanic isolation barrier between the network and the audio output stage. A built-in SSD caches music files locally during playback, allowing connected hard drives to spin down and eliminating rotational noise as a jitter source. Together, these measures place the RS130 among the most rigorously engineered digital transports available at any price point.

Master Clock Input: Unlocking Ultra-High-End Performance

For listeners who wish to take digital performance further, the RS130 provides two BNC clock inputs supporting 50 ohm and 75 ohm master clocks. When connected to an external master clock such as those from Mutec, Antelope Audio, or Cybershaft, the RS130's SPDIF, AES/EBU, and I2S outputs are governed by the external reference, subordinating the internal OCXO to an even more precise timing source. This architecture allows the RS130 to grow with a system over time, functioning first as a self-contained high-performance transport and later as the digital heart of a full master-clock-referenced playback chain. Few network transports at this level offer this degree of scalability in a single chassis.

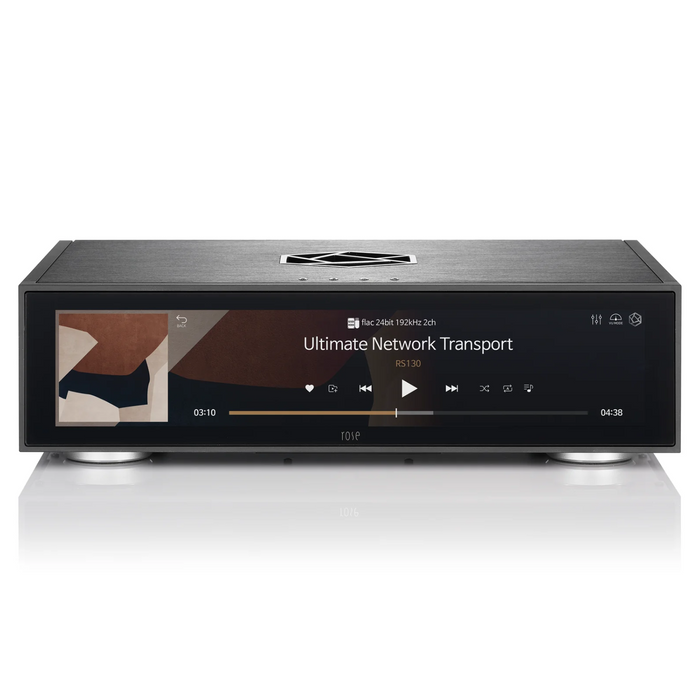

15.4-Inch Touchscreen and HiFi ROSE Interface

HiFi ROSE is widely recognized in the audio press for the quality of its user interface, and the RS130 brings that experience to a dedicated transport. The 15.4-inch TFT LCD capacitive touchscreen displays high-definition album artwork, browsing menus, and playback information with wide viewing angle and rich color reproduction. The display is capable of video playback at up to 60 FPS via HDMI 2.0 output at resolutions up to 3840 x 2160, making the RS130 equally at home as a media display device. Top-panel hardware controls provide mute, play/pause, a favorites shortcut, and power. A physical Bluetooth remote control is included, and the full feature set is accessible via the ROSE Connect app for iOS and Android.

Comprehensive Digital Output Suite

The RS130 is equipped with a complete set of digital outputs to connect to virtually any DAC on the market. Outputs include coaxial SPDIF RCA, AES/EBU XLR, optical TosLink, USB, HDMI ARC, and two I2S outputs in both HDMI and RJ45 formats. I2S is a native digital audio interface that carries clock and data signals separately, avoiding the clock recovery process required by SPDIF and AES/EBU and providing the lowest possible jitter at the DAC input. The availability of both I2S HDMI and I2S RJ45 outputs ensures compatibility with a wide range of DACs from manufacturers including PS Audio, Denafrips, and Jay's Audio that support I2S connectivity. Network input is handled via standard Giga-Ethernet and a fiber optic SFP Ethernet module, with Wi-Fi and Bluetooth also supported.

Key Features

• OCXO Precision Clock: Oven-Controlled Crystal Oscillator provides a stable, temperature-compensated low-jitter reference clock for all digital outputs, significantly outperforming standard crystal oscillators used in conventional network streamers.
• Fiber Optic Ethernet and USB: Galvanic isolation via fiber optic conversion eliminates network-borne electrical noise from the audio signal path before it reaches the output stage.
• Dual BNC Master Clock Inputs: Accepts 50 ohm and 75 ohm external master clock references to govern the SPDIF, AES/EBU, and I2S outputs for ultra-high-end system integration.
• Built-in SSD Cache: Internal SSD caches music files during playback, allowing connected hard drives to spin down and removing rotational vibration and electrical noise as jitter contributors.
• Roon Ready Certified: Full Roon endpoint functionality for seamless integration into Roon-based library management and playback systems.
• 15.4-Inch LCD Touchscreen: Capacitive TFT LCD display with wide viewing angle, rich color, high-definition album art display, and video playback at up to 60 FPS.
• Complete Digital Output Suite: Coaxial SPDIF RCA, AES/EBU XLR, optical TosLink, USB, HDMI ARC, I2S HDMI, and I2S RJ45 outputs for compatibility with virtually any outboard DAC.
• HDMI 2.0 Video Output: Supports video output up to 3840 x 2160 at 60 Hz for high-resolution media display.
• Wi-Fi, Giga-Ethernet, and Bluetooth: Multiple network connectivity options including fiber optic SFP Ethernet for ultimate noise isolation.
• AirPlay and DLNA Support: Compatible with AirPlay for Apple device streaming and DLNA for NAS drive access, in addition to SMBv2, FTP, and WebDAV network protocols.
• ROSE Connect App: Full remote control via the ROSE Connect app for iOS and Android, plus a physical Bluetooth remote control included in the box.
• Top-Panel Hardware Controls: Physical buttons for mute, play/pause, favorites, and power for direct unit operation without a remote or app.
• Special Processed Aluminium Chassis: Vibration-minimizing enclosure finish available in Black or Silver, measuring 16.9 x 12.4 x 4.9 inches and weighing 26.46 lbs.
• Internal Storage Expansion: SATA SSD slot for internal storage installation, plus two USB 3.0 ports for external drive connection.

Technical Specifications

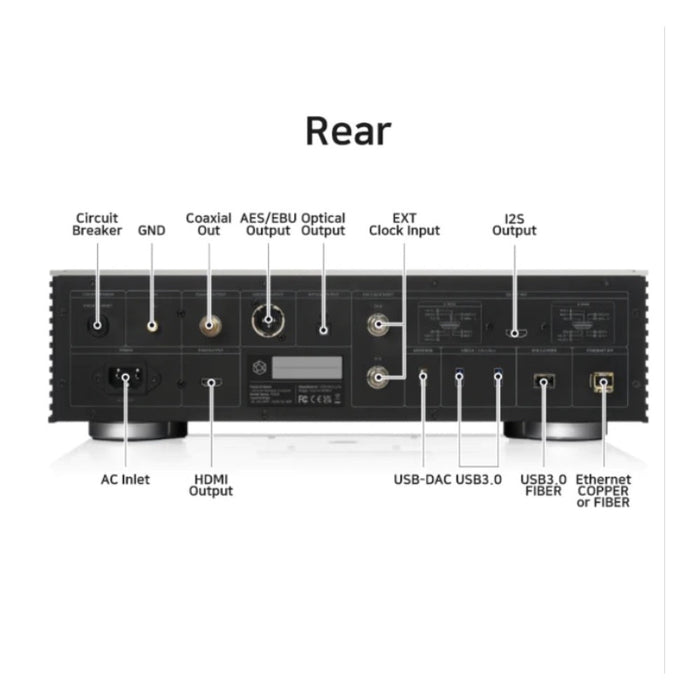

Connections at a Glance

• Coaxial SPDIF RCA output
• AES/EBU XLR output
• Optical TosLink output
• HDMI ARC output
• USB digital audio output
• I2S HDMI output
• I2S RJ45 output
• HDMI 2.0 video output (up to 4K/60Hz)
• BNC master clock input x2 (50 ohm and 75 ohm)
• Giga-Ethernet input
• Fiber optic SFP Ethernet input
• USB 3.0 Fiber input
• USB 3.0 ports x2 (external storage)
• SATA slot (internal SSD expansion)
• Wi-Fi (via included dongle)
• Bluetooth (remote and streaming)

Frequently Asked Questions

What is the HiFiROSE RS130?

The HiFiROSE RS130 is a reference network transport from HiFi ROSE of Seoul, South Korea, featuring an OCXO precision clock, fiber optic Ethernet and USB isolation, dual BNC master clock inputs, a 15.4-inch LCD touchscreen, and a full suite of digital outputs including I2S, AES/EBU, SPDIF, optical, and USB. It is Roon Ready and available in Canada through authorized dealers including Vinyl Sound in Toronto.

How does the HiFiROSE RS130 compare to the Aurender N200 and Lumin U2?

The RS130 occupies similar territory to the Aurender N200 and Lumin U2 Mini but brings several differentiating capabilities. The Aurender N200 uses a high-quality TCXO clock and offers USB and SPDIF outputs but does not include I2S output or master clock input. The Lumin U2 Mini provides fiber network input and Roon Ready certification but lacks an onboard precision OCXO clock and master clock input. The RS130 distinguishes itself with its OCXO clock, dual BNC master clock inputs for external reference synchronization, both I2S HDMI and I2S RJ45 outputs, fiber optic USB isolation, and a significantly larger 15.4-inch touchscreen interface that none of its direct competitors match.

What is an OCXO clock and why does it matter in a network transport?

An OCXO, or Oven-Controlled Crystal Oscillator, is a precision timing reference that keeps the crystal oscillator inside a temperature-stabilized enclosure to eliminate frequency drift caused by ambient temperature changes. In a network transport, the clock governs the timing of every digital audio sample sent to the DAC. Even tiny timing errors — measured in picoseconds — are perceived by the ear as a subtle smearing of fine musical detail, a phenomenon called jitter. The OCXO in the RS130 maintains far greater frequency stability than the standard crystal oscillators or TCXO clocks used in most competing streamers, reducing jitter at the source before the signal ever reaches the DAC.

Can the HiFiROSE RS130 connect to an external master clock?

Yes, the RS130 includes two BNC master clock inputs supporting both 50 ohm and 75 ohm clock references. When an external master clock is connected, the RS130's SPDIF, AES/EBU, and I2S outputs are synchronized to that external reference rather than the internal OCXO. This allows integration with dedicated master clock generators from manufacturers such as Mutec, Antelope Audio, and Cybershaft, enabling the RS130 to serve as the digital transport in a fully externally clocked reference-level playback system.

Is the HiFiROSE RS130 Roon Ready?

Yes, the RS130 is Roon Ready certified, meaning it functions as a fully integrated Roon endpoint that can be discovered, controlled, and managed directly within the Roon application. Roon Ready certification requires the device to pass Roon Labs' own qualification testing, ensuring reliable gapless playback, bit-perfect output, and stable network integration within a Roon core environment.

Where can I buy the HiFiROSE RS130 in Toronto or Canada?

The HiFiROSE RS130 is available at Vinyl Sound, an authorized HiFi ROSE dealer in Toronto, Canada. Vinyl Sound carries the complete HiFi ROSE lineup and provides in-store demonstrations, expert system advice, and authorized Canadian warranty support for all HiFi ROSE products.

What DACs are compatible with the I2S output on the HiFiROSE RS130?

The RS130 provides I2S output in both HDMI and RJ45 formats, covering the two most common I2S pinout conventions used by high-end DAC manufacturers. I2S HDMI is compatible with DACs from PS Audio, Jay's Audio, and Matrix Audio among others, while I2S RJ45 is used by certain models from Denafrips and other Asian manufacturers. Because I2S carries clock and data on separate lines, it avoids the clock recovery process required by SPDIF and AES/EBU inputs, delivering the lowest possible jitter at the DAC's digital input stage. Users should confirm their DAC's specific I2S pinout before connecting.
