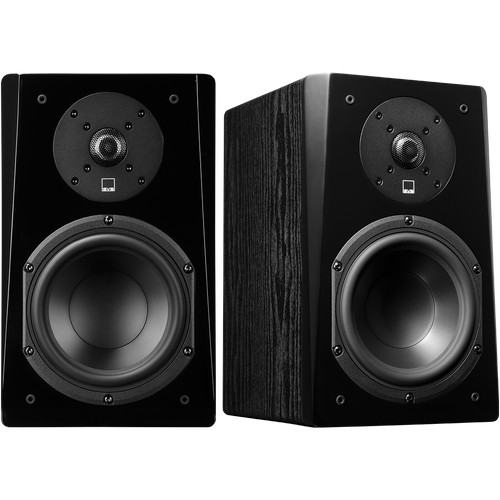

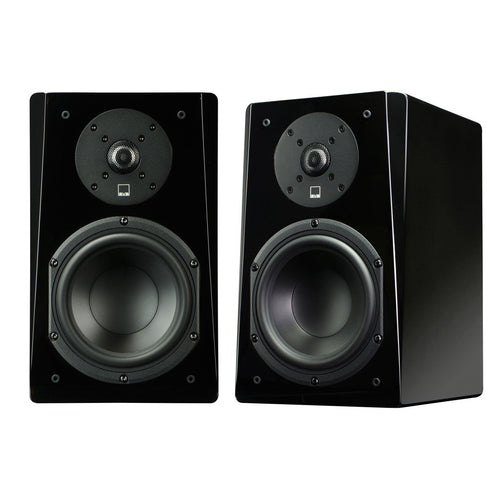

SVS Sound Prime Bookshelf Speaker at Vinyl Sound Toronto Canada

The Prime Bookshelf is a 2-way bookshelf loudspeaker from SVS (Youngstown, Ohio, USA), available at Vinyl Sound in Toronto, Canada. Borrowing engineering and design cues from the acclaimed SVS Ultra Series, the Prime Bookshelf features a 1-inch aluminum dome tweeter with FEA-optimized diffuser, a 6.5-inch polypropylene cone woofer with aluminum shorting ring mounted in its own dedicated sealed compartment, and a proprietary SVS SoundMatch 2-way crossover with premium air-core inductors, delivering a frequency response of 48 Hz to 25 kHz at plus or minus 3 dB. With a chamfered front baffle, flush-mounted drivers, FEA-optimized cabinet bracing, and a sensitivity of 87 dB at 8 ohms nominal impedance, the Prime Bookshelf delivers stunningly dynamic, pinpoint-accurate, and utterly transparent sound as a stereo two-channel pair, a home theater front channel, or a surround speaker in a multi-channel system.

1-Inch Aluminum Dome Tweeter, Dedicated Woofer Compartment, and SoundMatch Crossover

The Prime Bookshelf's 1-inch aluminum dome tweeter is light, efficient, and rigid, delivering crystal-clear high-frequency reproduction at all volume levels with an FEA-optimized diffuser that provides an airy, unveiled presentation and consistent off-axis dispersion. Below the tweeter, the 6.5-inch woofer is mounted in its own dedicated sealed compartment within the cabinet, a design principle that isolates the woofer's back-wave from the tweeter housing and eliminates the acoustic modulation that degrades midrange clarity in conventionally vented enclosures. The polypropylene cone maintains a flat frequency response and excellent pistonic behavior across the foundational midrange frequencies, while the cast ABS-fiberglass composite basket ensures precision component alignment and effective thermal transfer. An aluminum shorting ring on the woofer reduces gap inductance, lowers distortion, and extends high-frequency response near the crossover handoff point. A vented voice coil former minimizes air compression artifacts at high drive levels for sustained clean output at reference volumes. Tying the two drivers together is the proprietary SVS SoundMatch 2-way crossover, built with premium-grade capacitors, air-core inductors, and a heavy-trace printed circuit board, with a crossover point set at 2.3 kHz at 12 dB per octave slopes for phase-coherent driver transitions and outstanding time-domain behavior.

Cabinet Design, Geometry, and Placement Flexibility

The Prime Bookshelf cabinet uses FEA-optimized construction with extensive internal bracing to eliminate acoustic and structural resonances at all drive levels. A chamfered front baffle and flush-mounted drivers reduce edge diffraction for improved on-axis and off-axis high-frequency response, contributing to the precise, stable soundstage image and wide listening window the Prime Bookshelf projects in both stereo and multichannel configurations. A 1.7-inch wide-flared rear-firing port provides optimized bass extension down to 48 Hz, and acoustically transparent FEA-optimized grilles minimize diffraction for clean grille-on performance. The compact 13.2 x 8 x 9.4-inch cabinet is easily mountable in virtually any room configuration and is available in Black Ash and Piano Gloss Black finishes. The Prime Bookshelf competes directly with speakers such as the Polk Audio Reserve R100, the Klipsch R-51M, and the Wharfedale Diamond 12.2, while its dedicated woofer compartment, SoundMatch air-core crossover, and aluminum shorting ring deliver measurably superior midrange clarity and driver control at this price tier.

Key Features

• 1-Inch Aluminum Dome Tweeter with FEA-Optimized Diffuser: Light, efficient, and rigid aluminum dome delivers crystal-clear, airy highs at all volume levels with an FEA-optimized diffuser for consistent on-axis and off-axis response.
• 6.5-Inch Woofer in a Dedicated Sealed Compartment: The woofer operates in its own isolated sealed enclosure within the main cabinet, preventing acoustic modulation from the woofer's back-wave from contaminating midrange and vocal output.
• Aluminum Shorting Ring on Woofer: Reduces gap inductance, lowers distortion, and enhances high-frequency response near the crossover handoff point for cleaner driver integration across the entire audible bandwidth.
• Proprietary SVS SoundMatch 2-Way Crossover: Premium-grade capacitors, air-core inductors, and heavy-trace PCB with a 2.3 kHz crossover point at 12 dB per octave slopes for outstanding phase coherency and time-domain behavior.
• Cast ABS-Fiberglass Composite Woofer Basket: Precision component alignment and excellent thermal transfer for sustained clean output at reference drive levels without driver fatigue or thermal compression.
• Chamfered Front Baffle with Flush-Mounted Drivers: Reduces edge diffraction for improved on-axis and off-axis high-frequency response and a more precise, stable soundstage image.
• FEA-Optimized Cabinet and Bracing: Internally braced MDF construction eliminates acoustic and structural resonances for an uncolored response at all drive levels.
• Rear-Firing Port at 1.7 Inches: Wide-flared port optimizes bass loading and extension down to 48 Hz without port noise at high output levels.
• Acoustically Transparent FEA-Optimized Grilles: Minimize diffraction for clean on-axis response with the cloth grille installed, maintained by a pin-and-cup retention system.
• Single Set of 5-Way Binding Posts: Accepts bare wire, spade connectors, banana plugs, and pin connectors for flexible, secure amplifier connection.

Technical Specifications

Connections at a Glance

• Single set of 5-way binding posts per speaker (accepts bare wire, spade, banana, and pin connectors)
• 1.7-inch wide-flared rear-firing port
• Elastomer stick-on bumper feet included (add 3mm to height)

Frequently Asked Questions

What is the SVS Prime Bookshelf speaker?

The SVS Prime Bookshelf is a 2-way bookshelf loudspeaker with a 1-inch aluminum dome tweeter, a 6.5-inch polypropylene cone woofer in a dedicated sealed compartment, and a SoundMatch crossover with air-core inductors, delivering a frequency response of 48 Hz to 25 kHz at plus or minus 3 dB and 87 dB sensitivity at 8 ohms nominal impedance. It is part of the SVS Prime Series and incorporates technology and design principles from the SVS Ultra Series, including a chamfered front baffle, flush-mounted drivers, aluminum shorting ring, and FEA-optimized cabinet construction. The Prime Bookshelf is available at Vinyl Sound in Toronto, Canada.

How does the SVS Prime Bookshelf compare to the Polk Audio Reserve R100 and the Klipsch R-51M?

The SVS Prime Bookshelf delivers a measurable engineering advantage over both competitors through its dedicated sealed woofer compartment, air-core crossover inductors, and aluminum shorting ring. The Polk Audio Reserve R100 uses a 5.25-inch woofer without a dedicated sub-enclosure, while the Klipsch R-51M pairs a 5.25-inch driver with a Tractrix horn tweeter in a conventional undivided cabinet. The Prime Bookshelf responds with a larger 6.5-inch woofer for deeper 48 Hz bass extension, an isolated woofer compartment to prevent back-wave contamination of the midrange, and air-core crossover inductors that eliminate the magnetic saturation distortion introduced by iron-core types used in most competing designs at this price tier. The result is a cleaner, more transparent midrange and vocal reproduction that directly reflects the Prime Bookshelf's Ultra Series design heritage.

Why does the SVS Prime Bookshelf use a dedicated sealed woofer compartment?

The dedicated sealed woofer compartment isolates the 6.5-inch woofer's back-wave from the tweeter housing inside the cabinet. In a conventional single-cavity bookshelf speaker, pressure generated by the woofer's back-wave modulates the space behind the tweeter, introducing acoustic coloration in the midrange frequencies most critical to vocal intelligibility and instrument clarity. The Prime Bookshelf's sealed woofer compartment keeps this modulation away from the tweeter and ensures the woofer operates against a controlled, consistent acoustic load, contributing to the flat frequency response and low-coloration midrange that SVS highlights as central to the Prime Bookshelf's performance character.

What is the SVS SoundMatch crossover and why does it use air-core inductors?

The SVS SoundMatch crossover is a proprietary 2-way network built with premium-grade capacitors, air-core inductors, and a heavy-trace printed circuit board, setting the tweeter-to-woofer crossover at 2.3 kHz at 12 dB per octave slopes. Air-core inductors are preferred over iron-core types because they introduce no magnetic hysteresis distortion at any drive level, providing a cleaner signal path through the crossover network. This directly contributes to the Prime Bookshelf's phase coherency and time-domain behavior, which SVS identifies as the primary reason the speaker delivers accurate spatial imaging and a precisely focused soundstage at all listening positions in the room.

Can the SVS Prime Bookshelf be used as surround speakers in a home theater system?

Yes, the Prime Bookshelf is well suited for use as surround speakers in a 5.1 or larger multichannel home theater. Its 87 dB sensitivity and 8-ohm nominal impedance are compatible with all home theater AV receivers at power levels from 20 to 150 watts per channel, and its frequency response from 48 Hz to 25 kHz covers the full range of surround channel content in Dolby Atmos and DTS:X soundtracks. SVS voices the Prime Bookshelf to match directly with the Prime Center and Prime Tower speakers for consistent timbre across all channels, and the compact 13.2 x 8-inch cabinet is easily mounted on a wall bracket in side-surround or rear-surround positions.

Is the SVS Prime Bookshelf suitable for two-channel stereo listening?

Yes, the Prime Bookshelf performs well as a standalone stereo pair. Its 48 Hz bass extension, dedicated woofer compartment, and air-core SoundMatch crossover deliver the transparency, accuracy, and three-dimensional soundstage that two-channel audiophile listening demands. Recommended amplifier power between 20 and 150 watts per channel makes the Prime Bookshelf compatible with a wide range of integrated amplifiers and stereo receivers from brands such as NAD, Audiolab, Bluesound, and Cambridge Audio. For listeners who want deeper bass extension, the Prime Bookshelf integrates naturally with any SVS subwoofer as a 2.1 stereo system.

Where can I buy the SVS Prime Bookshelf speaker in Toronto or Canada?

The SVS Prime Bookshelf is available as a pair at Vinyl Sound, an authorized SVS dealer in Toronto, Canada. Vinyl Sound carries the full SVS Prime Series speaker lineup and can assist with amplifier pairing, system configuration, and placement recommendations for your specific room and listening preferences. Contact Vinyl Sound Toronto to confirm current availability in Black Ash and Piano Gloss Black finishes.
