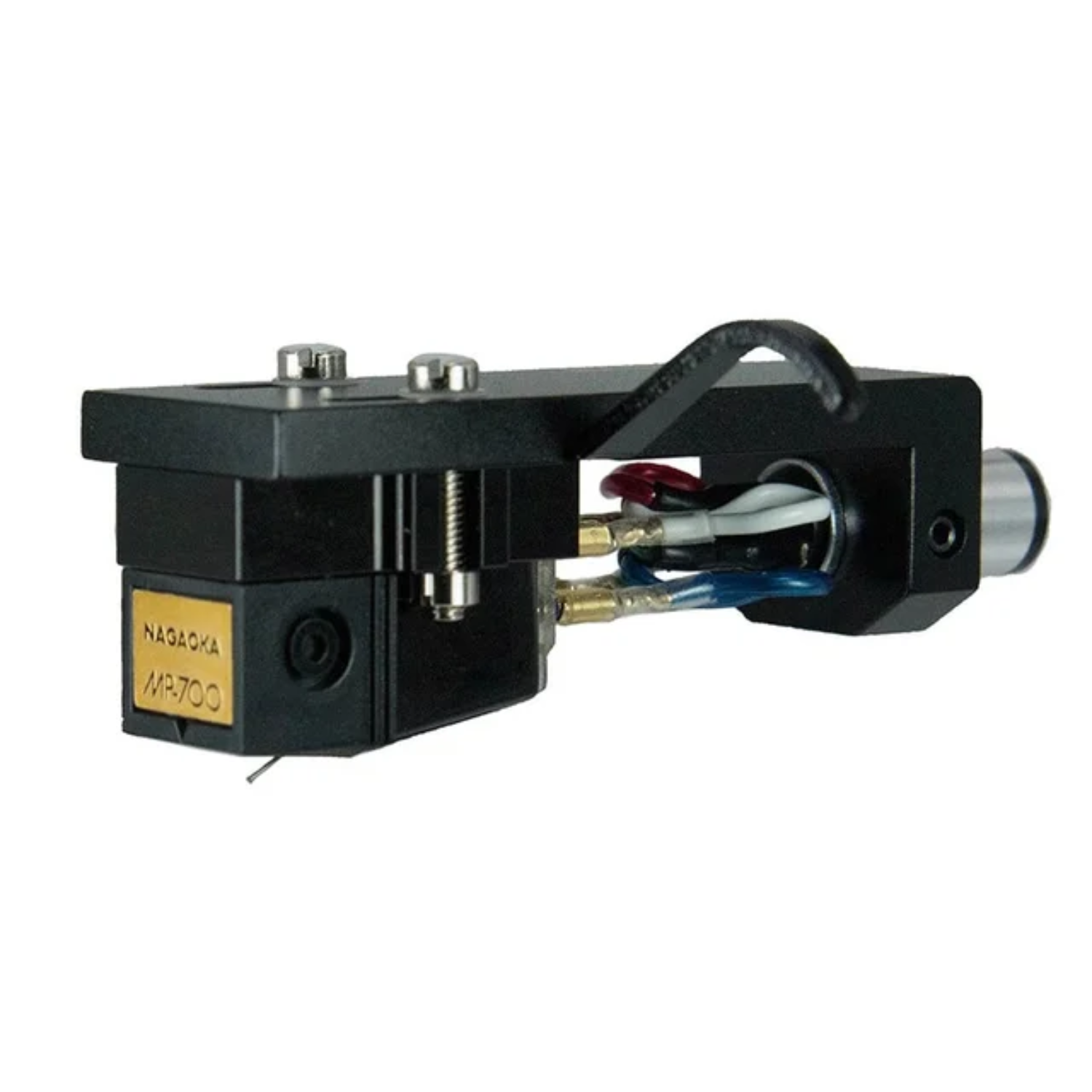

Nagaoka MP-700H Cartridge

$1,799.95

Quantity

Product Details

Nagaoka MP-700H Cartridge

Key Features

  • The use of lightweight permalloy on the cantilever to reduces mass for more precise stylus movement

  • Enhanced sound accuracy for more refined and lifelike audio reproduction

  • Boron cantilever and micro-ridge nude diamond stylus (0.12 x 3.0 mil) improve sound detail and tracking

  • Lower distortion and better groove retrieval for a more immersive listening experience

  • Integration of a soft damper for better optimisation of cantilever and stylus

  • For greater stability, NAGAOKA has designed a new suspension wire in the pivot system.

  • New suspension system controls both the cantilever and stylus for better clarity, superior frequency separation, bass accuracy, and timbral realism.

  • Duralumin shielded case and cartridge frame with triple-layer finish with nickel plating, black tin plating and an insulating coating

  • Enhanced durability, resistance to static and heat, and reduction in noise for quieter and more stable performance during high-quality playback





Technical Stuff

Type: Moving Permalloy
Cantilever: High-strength boron
Stylus type:
Micro-Ridge nude diamond
Weight: 8 g
Output Voltage @ 1kHz, 5cm/sec: 4mV
Frequency response: 20Hz-27kHz
Channel balance @ 1kHz: > 1dB
Channel separation @ 1kHz: 30dB
Recommended load impedance: 47k ohms
Recommended load capacitance: 100 pF
Tracking force range: 1.4 g
Break-in period: 30 hours
Stylus replacement: Nagaoka JN-P700
