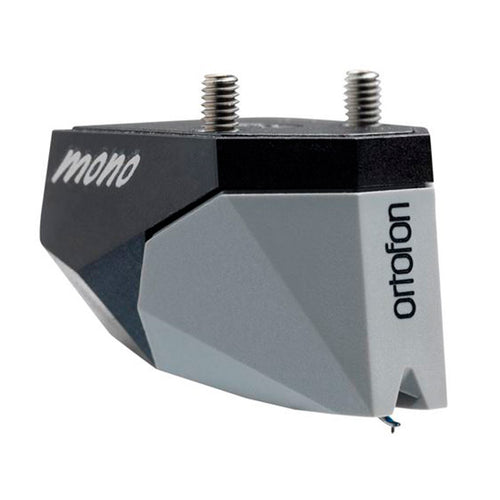

2M 78 VERSO CARTRIDGE
$255.00
Product Details
Product Specifications:
- Output voltage at 1000 Hz, 5cm/sec. - 4 mV
- Channel balance at 1 kHz -
- Channel separation at 1 kHz -
- Channel separation at 15 kHz -
- Frequency range at - 3dB - 20-20.000 Hz
- Frequency response - 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force - 70 µm
- Compliance, dynamic, lateral - 18 µm/mN
- Stylus type - Spherical
- Stylus tip radius - R 65 µm
- Tracking force range - 1,6-2,0g (16-20 mN)
- Tracking force, recommended - 1,8 g (18 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 700 Ohm
- Internal inductance - 350 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Grey
- Cartridge weight without screws - 7,2 g
- 2M PnP MkII cartridge with integrated headshell weight - 20 g
- 2M PnP MkII cartridge with integrated headshell length - 52 mm
- Replacement stylus unit - 2M 78 (interchangeable with 2M Mono)
