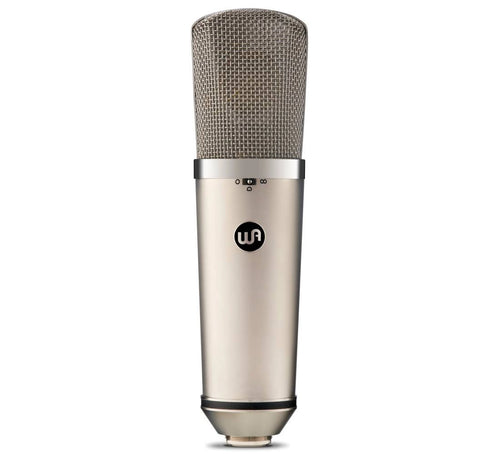

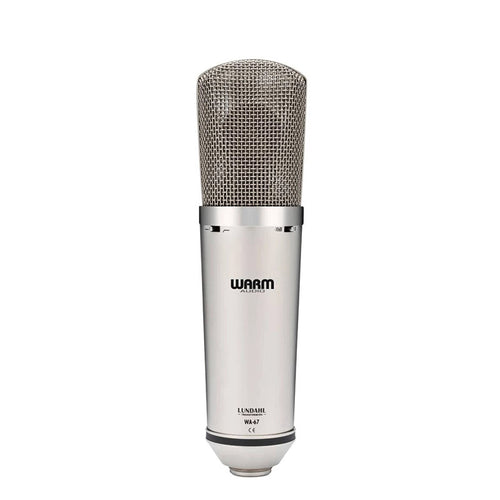

WARM AUDIO - WA-67 TUBE CONDENSER MICROPHONE

Proper Recreation That Captures The Sound Of Legendary, Analog-Era Vocals

Analog Warmth & Clarity

The WA-67 is a proper recreation of a microphone that famously captured the sound of numerous legendary vocal performances in the height of the analog-era and continues to be a coveted sound today. The WA-67 delivers rich vocal recordings with smooth top end, just like the original as heard on recordings by artists like The Beatles, David Bowie, Bob Dylan, The Beach Boys, Radiohead and many more.

The Perfect Balance Of Vintage Meets Modern

Having the same smooth and creamy tone of the original, the WA-67 excels at recording just about anything that you put in front of it. The original blends chewy midrange warmth associated with vintage tube mics with pristine top-end from the all-brass capsule. This recipe provides the unmistakable “vintage meets modern” tone found only in the most prized original mics of the early 1960s. While 67-style mics are best known for vocals, you may find that the WA-67 can become a fast favorite for rich acoustic guitar, warm guitar cabs, and intimate room tones.

The all-brass K67-style capsule provides the performance of the original by adding top-end brilliance without sacrificing warmth in the lower mids and presence in the upper-mids. This mic was made to stand out!

Three polar patterns (cardioid, omni, and figure-8) give you a variety of options to choose how you want to capture stereo sounds and reject noise.

The -10 pad provides more headroom to record loud sources with the impressive detail of a large-diaphragm condenser.

The switchable 80 Hz high pass filter makes it easy to remove unruly bass noise from sources before you even hit record.

Technical Specifications

Product Description & External Specs

• Large-Diaphragm Tube Condenser Microphone

• Nickel-Plated Brass Microphone Body And Headbasket For Ultimate Acoustic Performance

• Premium 7-Pin Tube Cable From Gotham Switzerland

• Polar Patterns: Cardioid, Omni, Figure-8

• Switchable High Pass Filter & 10dB Pad

• Package Includes: Wood Display Box, Shockmount, Hardmount, Power Supply, 7-Pin Mic Cable

• 5-Year Warranty

Components & Internal Specs

• EF86 Pentode Tube For Creamy Smooth Clarity & Brilliance

• Custom Large-Core Transformer From Lundahl Sweden

• Custom All-Brass Large K67-Style Vintage Capsule Recreation

• Gold-Sputtered Mylar Diaphragm, 6 Microns Thick

• High-Bandwidth Polystyrene Capacitors

• Boutique Film Capacitors From Wima And Solen

Performance Specs

• Frequency Response: 20 Hz - 20 kHz

• Rated Impedance: 200 Ohms

• Rated Load Impedance: 1k Ohms

• Equivalent Noise Level (A-Weighted): 17 dB-A

• Maximum Spl For Thd 0.5%: 138 dB

• Signal To Noise Ratio (A-Weighted): 78 d



Polar Patterns

WA-67 Frequency Chart - Cardioid

WA-67 Frequency Chart - Omni

WA-67 Frequency Chart - Figure of Eight

Components

Premium Components - Elite Build Quality - Superior Sound

Custom K67-Style Capsule

The all-brass K67-style capsule inside the award-winning WA-67 microphone provides the performance of the original by adding clear midrange and smooth top end to the rich tone of the tube-based circuit.

Hand Selected Vacuum Tube

The EF68 pentode tube inside the WA-67 was chosen to preserve top-end clarity without sacrificing warmth and richness associated with vintage tube microphone tone.

Premium Analog Circuitry

The WA-67 uses a premium EF86 vacuum tube that perfectly balances warmth and clarity in the microphone’s signal. Like all Warm Audio products, we use premium capacitors. In the case of the WA-67 - WIMA, Solen, and high-bandwidth polystyrene caps are used in the circuit for ideal signal transfer.

Hand-Tested, Elite Build Quality

Every single WA-67 is meticulously hand-inspected at Warm HQ in Austin,TX by real musicians and engineers with a passion for superior sound.
