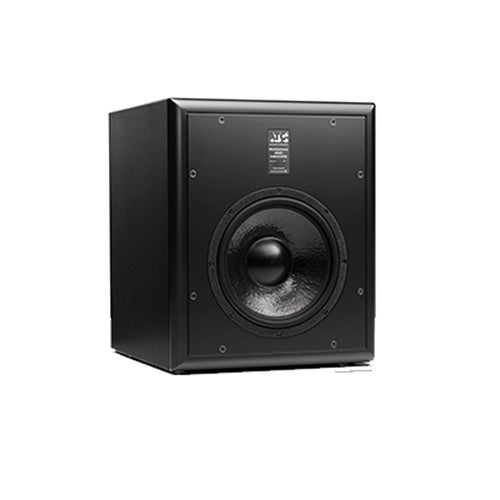

  • Front view of ATC SCS70 Pro 12” Active Subwoofer showcasing its design and controls.

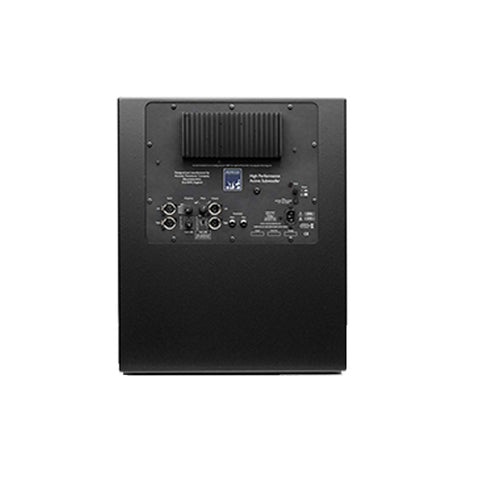

  • ATC SCS70 Pro 12” Active Subwoofer showcasing its design and controls.

ATC SCS70 Pro 12”/300mm Professional Active Subwoofer

$5,599.00

Quantity

Product Details

Special Order

The ATC SCS70 Pro is a 12”/300mm active subwoofer, designed to deliver the exceptional levels of performance required by audio and music professionals and integral to partnering with ATCs range of active monitors. It’s performance and features make it ideally suited to stereo, multi-channel surround and immersive audio formats such as Dolby Atmos.

KEY FEATURES

ATC HAND-BUILT HIGH-EXCURSION 12”/300MM SS75-314SC SUBWOOFER DRIVER

EXCEPTIONAL BALANCE OF HIGH SPL CAPABILITY, LOW CUT-OFF AND LOW DISTORTION

ATC DISCRETE MOSFET CLASS AB POWER AMPLIFIER

STEREO BALANCED INPUTS & STEREO 'LINK' BALANCED OUTPUTS

LEVEL, LOW-PASS FREQUENCY & PHASE USER CONTROLS

REMOTE MUTING VIA FOOTSWITCH*

HAND-BUILT IN ENGLAND AND COVERED BY A 6 YEAR WARRANTY

*FOOTSWITCH SUPPLIED SEPARATELY, LATCHING TYPE, 1/4”/6.35MM JACK CONNECTION

SPECIFICATION

ACOUSTIC SPECIFICATIONS

Drive Unit - Bass: 1 x SS75-314SC 8Ω

Low Frequency Cut-of f: 22Hz (-6dB, half space, low pass filter @ 80Hz)

Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley)

MaxSPL: 110dB continuous, 116dB peak (IEC Weighted Pink Noise, @ 1m, half space, low pass filter @ 80Hz)

Sensitivity: +4dBu ref 88dBC (single input driven, @ 1m, Gain +6dB, Level 0dB, pink noise, low pass filter @ 80Hz)

ELECTRONIC SPECIFICATIONS

Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled

Output Power: 300W into 8Ω

THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth

Balanced Inputs: 2 x Rear Panel Mounted Female XLR, pin 2 hot

Balanced Outputs: 2 x Rear Panel Mounted Male XLR, pin 2 hot

Frequency Response: <2Hz (-3dB) - 320Hz (-6dB, set by panel -controlled LP filter)

Gain Control: 0 , +6dB, +10dB

Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch

Phase Control: 0 -180° ref. Input

Polarity Control: In-phase/Out-of-phase ref. Input

Power Consumption: Idle 8W/14VA. 1/8th Power 170W/230VA. Full Power 500W/600VA

Additional: Mute via 1/4”/ 6 .35mm Jack socket , controlled via latching footswitch (supplied separately)

PHYSICAL SPECIFICATIONS

Net Weight: 44kg / 97lbs

Dimensions: (H x W x D): 568 x 464 x 500mm / 22 5/16 x 18 1/4 x 19 11/16 inches (heatsink protrudes a fur ther 40mm / 1 9/16 inches from rear). See data sheet for a detailed drawing.
