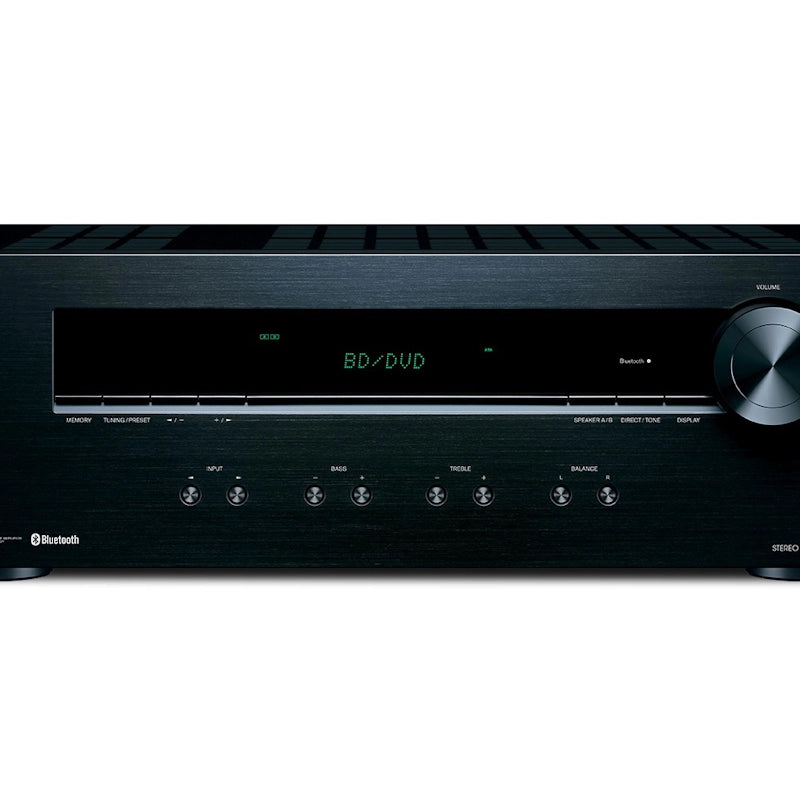

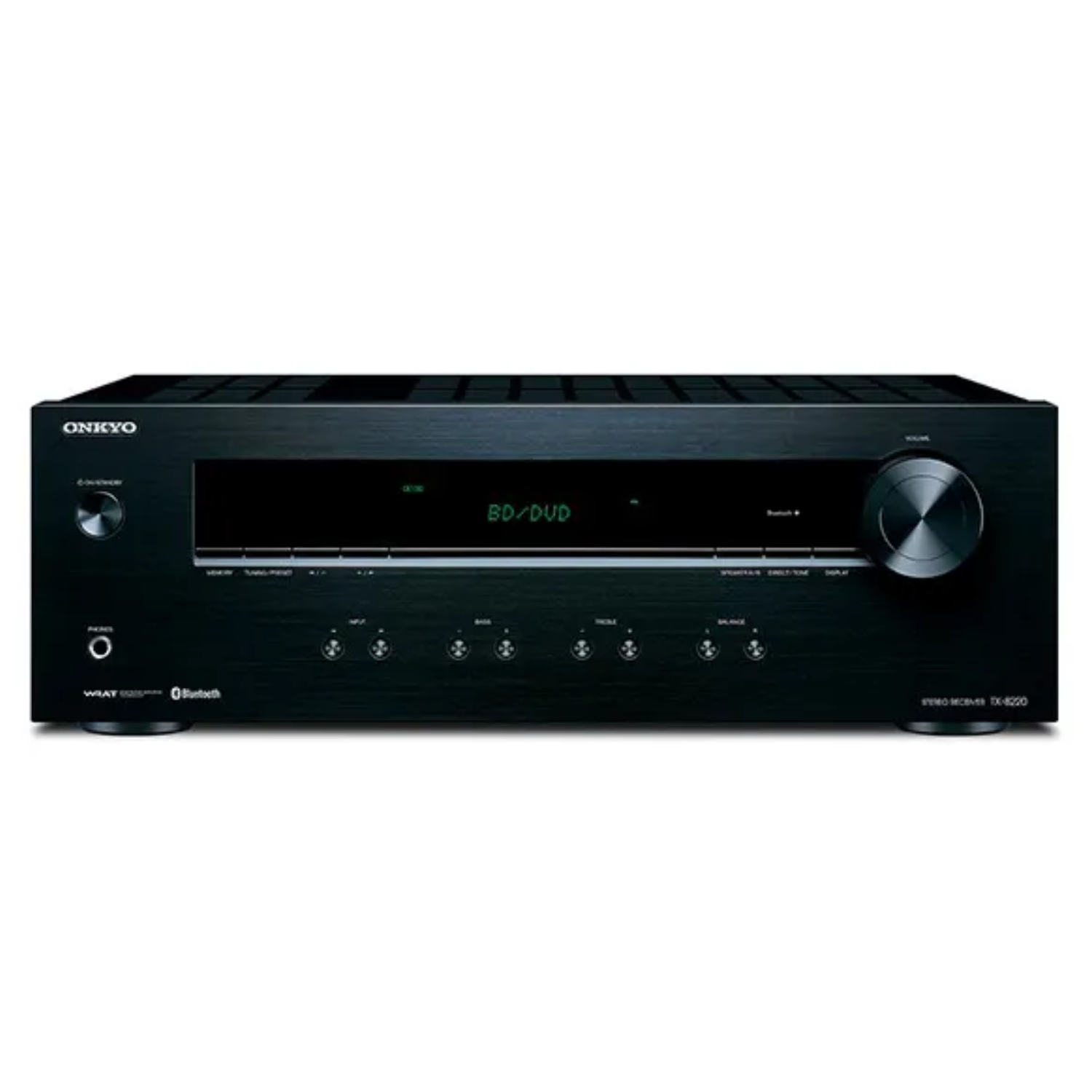

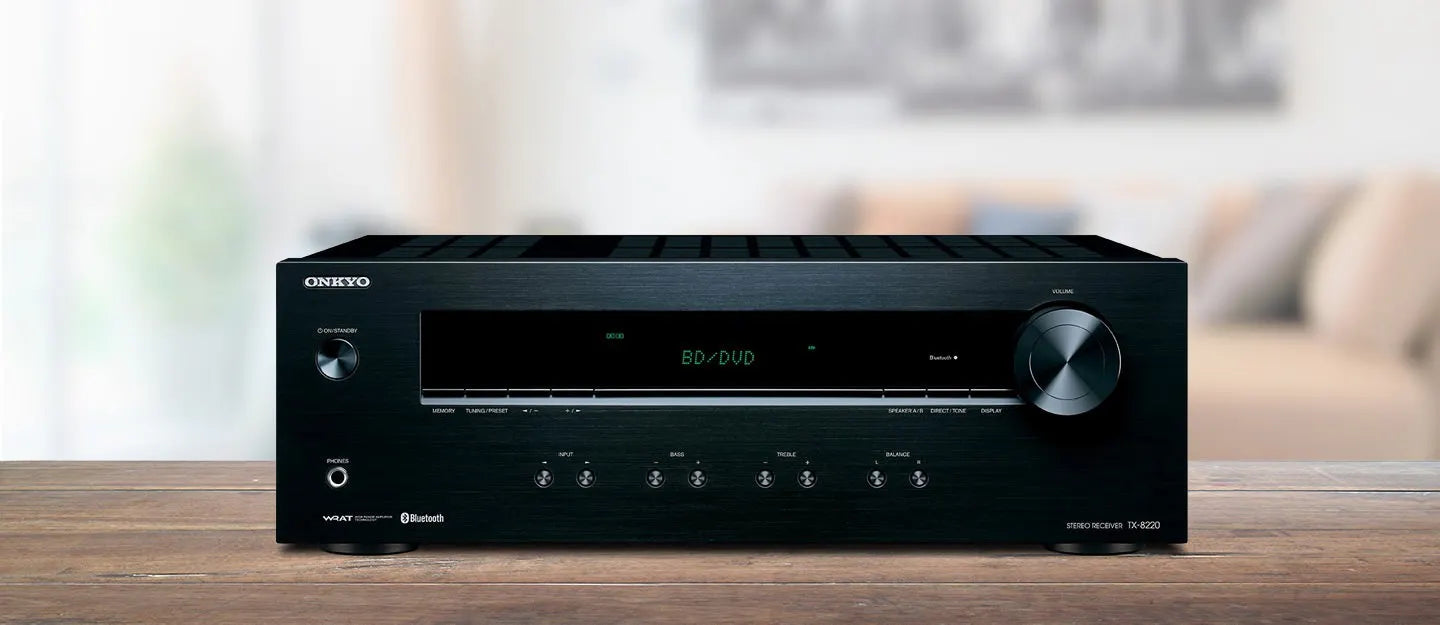

Onkyo TX-8220 Stereo Receiver with Built-In Bluetooth at Vinyl Sound Toronto Canada

The TX-8220 is a two-channel stereo receiver with built-in Bluetooth from Onkyo (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Combining pure analogue amplification with practical modern connectivity, it is rated at 100 W per channel (6 ohms, 1 kHz, 2-ch driven, FTC) and 45 W per channel (8 ohms, 20 Hz to 20 kHz, 0.08% THD, 2-ch driven, FTC) through Onkyo's Wide Range Amplifier Technology (WRAT) circuit. A built-in PCM1754 24-bit / 192 kHz DAC handles optical and coaxial digital sources, while a dedicated MM phono equaliser supports direct turntable connection. With Bluetooth 4.1 for wireless streaming, four analogue line inputs, digital audio inputs for TV and disc player connection, A/B speaker switching, a subwoofer pre-output, and a 40-station FM/AM tuner, the TX-8220 delivers everything a two-channel music system needs in a compact, well-built chassis.

Pure Analogue Amplification with WRAT and Non-Phase-Shift Design

The TX-8220's amplifier section is built around two core Onkyo technologies refined over decades of stereo receiver design. Wide Range Amplifier Technology (WRAT) extends the amplifier's operating frequency response to 10 Hz at the bottom and 100 kHz at the top in Direct Mode, with a +1 dB / -3 dB tolerance across the full range. This wide bandwidth ensures that no phase shift or group delay is introduced within the audible spectrum, preserving the timing and transient accuracy of music. The Non-Phase-Shift Amplifier design further eliminates the subtle phase errors that conventional feedback topologies introduce at high frequencies, resulting in a more accurate stereo image and a more natural presentation of instrument timbre and spatial depth. Dynamic power headroom extends to 140 W into 3 ohms and 120 W into 4 ohms for demanding speaker loads. The signal-to-noise ratio measures 100 dB on line inputs and 93 dB on the phono input, both excellent figures at this price level. Optimum Gain Volume Circuitry manages the volume control without introducing interference or distortion into the signal at any position.

Bluetooth Streaming, Phono Stage, and Analogue Connectivity

Bluetooth 4.1 with A2DP and AVRCP profiles provides wireless audio streaming from any smartphone, tablet, or computer. Once paired, the TX-8220 remembers the connected device and resumes playback automatically whenever an incoming Bluetooth audio stream is detected, eliminating the need to manually reconnect on each listening session. The built-in MM phono equaliser applies the RIAA correction curve for moving magnet cartridges, allowing direct connection from any standard turntable without a separate phono preamplifier. Four analogue RCA line inputs accommodate a CD player, cassette deck, media player, or any other analogue source, while one optical and one coaxial digital input connect a TV, Blu-ray player, or other digital source through the onboard PCM1754 24-bit/192 kHz DAC. A 6.35 mm headphone output on the front panel serves private listening. A/B speaker switching allows the TX-8220 to drive two pairs of speakers simultaneously or to select between two listening positions, with single-pair operation covering 4 to 16 ohm loads and two-pair operation requiring 8 to 16 ohms per pair. A subwoofer RCA pre-output integrates an active subwoofer for extended bass.

Key Features

• WRAT Amplification: Wide Range Amplifier Technology extending frequency response to 10 Hz to 100 kHz in Direct Mode, rated at 100 W per channel (6 ohms) and 45 W per channel (8 ohms, FTC) with dynamic headroom to 140 W at 3 ohms.
• Non-Phase-Shift Amplifier Design: Eliminates high-frequency phase errors for accurate stereo imaging, natural instrument timbre, and a more lifelike listening experience.
• PCM1754 24-bit / 192 kHz DAC: High-resolution digital-to-analogue conversion for optical and coaxial digital inputs, preserving the full detail of CD and hi-res digital sources.
• Bluetooth 4.1 with Auto-Reconnect: A2DP and AVRCP wireless streaming from smartphones, tablets, and computers; device memory ensures automatic playback resumption on reconnection.
• MM Phono Equaliser: Dedicated RIAA phono stage for direct connection from a moving magnet turntable without a separate phono preamplifier.
• A/B Speaker Switching: Drive two pairs of speakers simultaneously or independently; supports 4 to 16 ohm loads (single pair) or 8 to 16 ohm loads (two pairs).
• Subwoofer Pre-Output: Dedicated RCA subwoofer output for active subwoofer integration.
• Direct Mode: Bypasses tone controls and any additional signal processing for the purest possible signal path from source to speaker.
• FM/AM Tuner with 40 Presets: Built-in FM (87.5 MHz to 107.9 MHz) and AM (530 kHz to 1,710 kHz) tuner with 40 station presets and preset station naming.
• Optical and Coaxial Digital Inputs: One optical and one coaxial digital input for TV, Blu-ray player, and digital source connection through the onboard 24-bit DAC.
• 6.35 mm Headphone Output: Front panel headphone jack for private listening at any volume.
• RI-Compatible Remote Control: Included remote control with RI (Remote Interactive) bus compatibility for linked control of other Onkyo RI-compatible components.

Technical Specifications

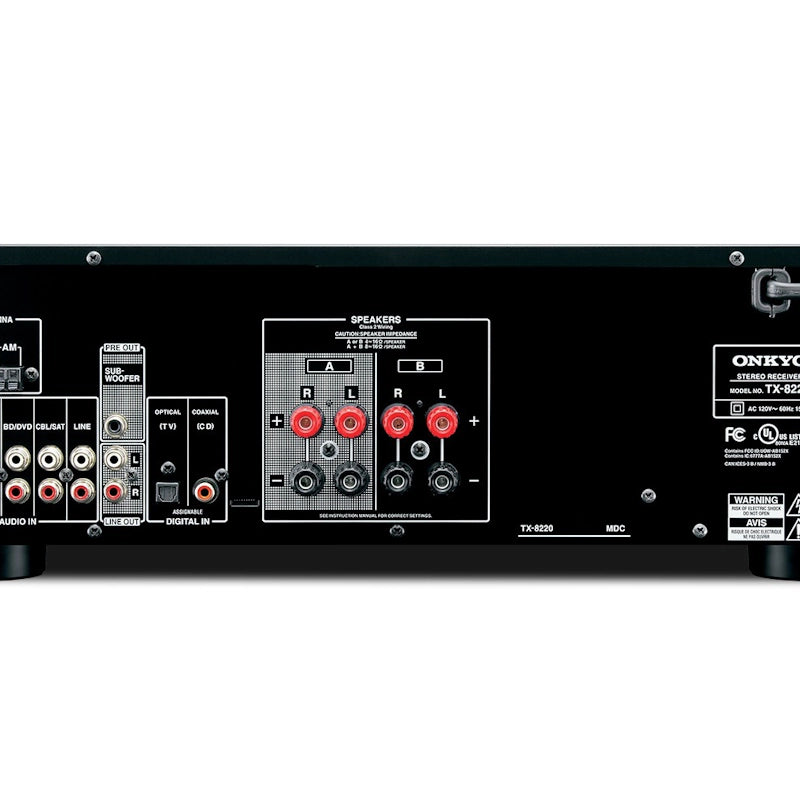

Connections at a Glance

• 4 x RCA analogue line inputs
• 1 x MM Phono input (RIAA equalised)
• 1 x Optical digital input
• 1 x Coaxial digital input
• Speaker outputs A and B
• 1 x Subwoofer RCA pre-output
• 1 x 6.35 mm headphone output (front panel)
• Bluetooth 4.1 (A2DP / AVRCP)
• FM / AM tuner

Frequently Asked Questions

What is the Onkyo TX-8220?

The Onkyo TX-8220 is a two-channel stereo receiver with built-in Bluetooth from Onkyo's stereo lineup, rated at 100 W per channel (6 ohms) and 45 W per channel (8 ohms, FTC) through a Wide Range Amplifier Technology circuit with a Non-Phase-Shift design. It includes a PCM1754 24-bit/192 kHz DAC, a dedicated MM phono stage, four analogue RCA inputs, optical and coaxial digital inputs, A/B speaker switching, and a subwoofer output. It is available at Vinyl Sound in Toronto, Canada.

How does the Onkyo TX-8220 compare to the Cambridge Audio AXR85 or Yamaha R-S202?

The TX-8220 stands out against the Cambridge Audio AXR85 and Yamaha R-S202 through its Non-Phase-Shift amplifier design and WRAT wide-bandwidth circuit, which together deliver a more accurate stereo image and lower phase error than the conventional topologies used in the AXR85 and R-S202. The TX-8220's dynamic power headroom of 140 W into 3 ohms also exceeds what either competitor can manage with low-impedance speaker loads. With four analogue line inputs, two digital inputs, a built-in MM phono stage, and A/B speaker switching, the TX-8220 offers a more complete input complement than the Yamaha R-S202, which lacks digital inputs entirely.

Can the Onkyo TX-8220 connect to a turntable?

Yes, the TX-8220 includes a dedicated MM phono input with built-in RIAA equalisation, allowing direct connection from any moving magnet turntable without requiring a separate phono preamplifier. The phono stage has a 40 mV overload headroom at 1 kHz, providing comfortable headroom for standard MM cartridges. The onboard signal-to-noise ratio on the phono input measures 93 dB, which is well above average for a receiver at this price level.

What is WRAT and the Non-Phase-Shift amplifier design?

WRAT, or Wide Range Amplifier Technology, is Onkyo's amplifier circuit design that extends the usable frequency response from 10 Hz to 100 kHz, far beyond the audible range. This wide bandwidth prevents any roll-off or phase shift within the music band, ensuring that the complete timing and harmonic content of the signal reaches the speakers unchanged. The Non-Phase-Shift Amplifier design works alongside WRAT to eliminate the phase rotation that standard high-feedback amplifier designs introduce at higher frequencies, resulting in a more stable and precisely focused stereo image and a more natural rendering of acoustic instruments.

Does the Onkyo TX-8220 support wireless network streaming or services like Spotify?

No, the TX-8220 does not include Wi-Fi, network streaming, or built-in access to services like Spotify, Tidal, or AirPlay. Wireless audio is limited to Bluetooth 4.1, which streams audio from a paired smartphone, tablet, or computer via A2DP. For users who want full network streaming and hi-res audio platform integration in a stereo receiver, the Onkyo TX-8470 at Vinyl Sound Toronto offers Roon Ready certification, AirPlay 2, Chromecast built-in, and DTS Play-Fi alongside a Class G amplifier and MM/MC phono stage.

Can the TX-8220 drive two pairs of speakers?

Yes, the TX-8220 supports A and B speaker outputs for simultaneous or independent operation of two pairs of speakers. When both A and B are active simultaneously, each pair should have an impedance of 8 to 16 ohms to stay within the receiver's safe operating range. A single pair of speakers can operate at 4 to 16 ohms, allowing the TX-8220 to drive lower-impedance speaker loads in single-pair mode.

Where can I buy the Onkyo TX-8220 in Toronto or Canada?

The Onkyo TX-8220 is available at Vinyl Sound, an authorised Onkyo dealer in Toronto, Canada. Vinyl Sound carries the complete Onkyo stereo receiver lineup and offers expert advice on matching the TX-8220 to speakers, turntables, and source components for a complete two-channel music system.
