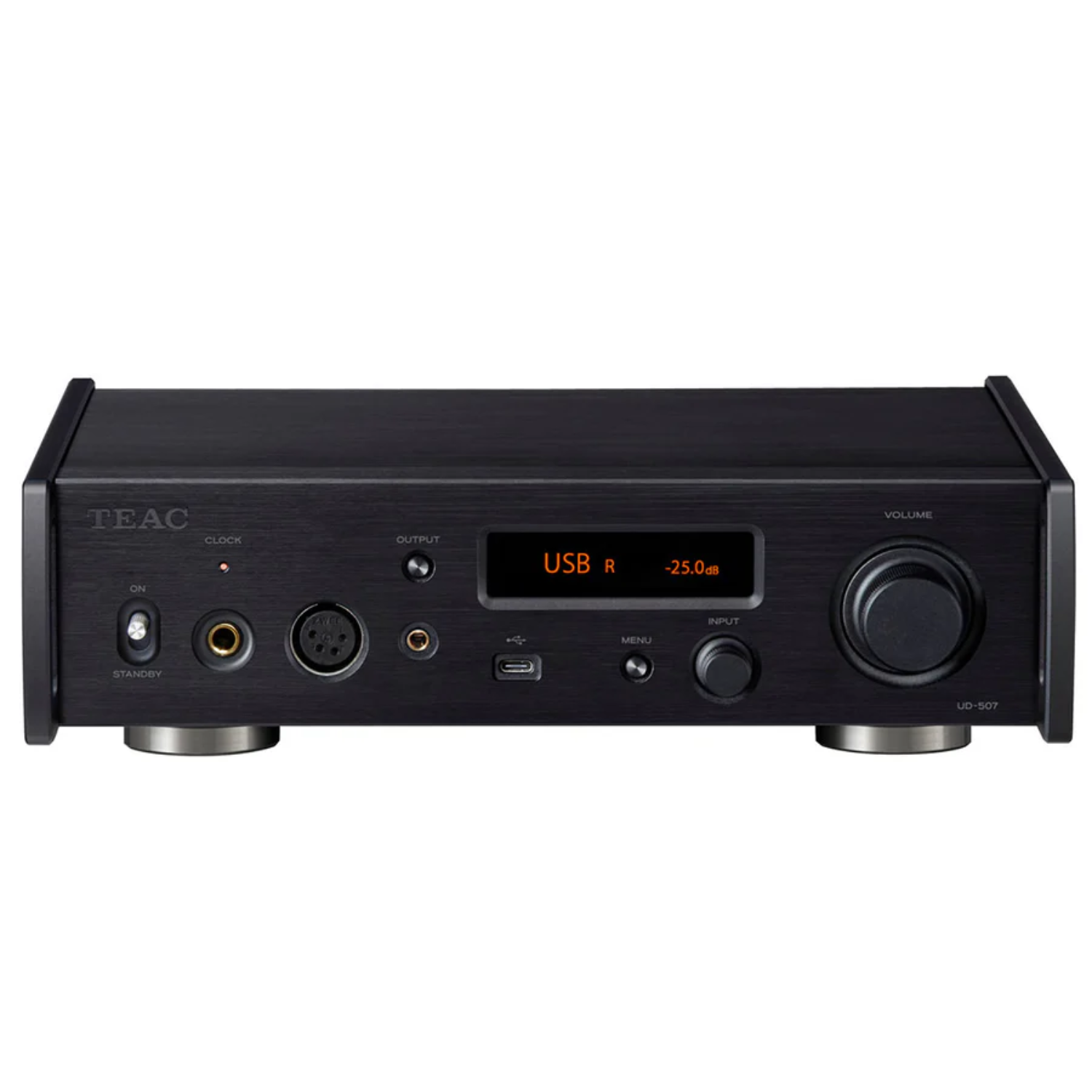

Teac UD507B USB DAC Headphone Amplifier Preamp - Black

Teac UD507B USB DAC Headphone Amplifier Preamp - Black

Teac UD507B USB DAC Headphone Amplifier Preamp - Black

Looking for a high-performance DAC, headphone amp, and preamp all in one sleek unit? The Teac UD507B delivers exactly that—and then some. Built on the premium design foundation of TEAC’s 700 Series, this A4-sized beast brings high-end sound straight to your desktop, without eating up your space.

Next-Level Sound With TEAC’s Discrete DAC

Let’s talk about the magic behind the music. The Teac UD507B comes loaded with TEAC’s in-house “TRDD 5” discrete DAC, a direct descendent of the tech found in their flagship 701 series. What does that mean for you? Crystal-clear imaging, an open and spacious soundstage, and a musicality that makes every note hit just right. It's like hearing your favorite tracks for the first time—again.

Beefy Headphone Amp That Means Business

You know what’s frustrating? A headphone amp that just can’t keep up. That’s not a problem here. Thanks to the fully balanced dual monaural design and TEAC-HCLD2 high current line driver, the Teac UD507B pushes out 1,200mW + 1,200mW at 100 ohms (balanced). That’s power on par with dedicated headphone amps—and this one’s got a DAC baked in.

And guess what? You’re in control. With three adjustable gain settings (Low, Mid, High), you can tailor the output to suit your headphones perfectly, whether you’re rocking sensitive IEMs or power-hungry cans.

Versatile Preamp That Plays Well With Others

Connectivity? Nailed it. The Teac UD507B acts as a high-quality preamp, equipped with the TEAC-QVCS analog volume attenuator and that same powerful HCLD2 line buffer circuit. It doesn’t just sound good—it plays nice with pretty much everything.

Five digital inputs and two analog options (yep, both unbalanced and balanced) make this a true hub for your setup. Whether you're streaming high-res audio from your PC, plugging in your CD player, or lining up your analog gear, it’s all good.

All That Power, Packed Into a Compact Frame

Who says great sound has to come in giant boxes? TEAC’s design team pulled off something impressive here. They crammed the performance of their high-end 700 Series into a compact A4 footprint. It looks slick, feels premium, and fits just about anywhere—your desk, media station, or shelf.

Features at a glance

• Highly Musical Discrete DAC Designed and Developed In-House
• Fully Balanced Dual Monaural Headphone Amplifier
• High-Quality Preamplifier with Multiple Analog/Digital Inputs
• Full-stage dual monaural/balanced circuit configuration for excellent channel separation
• 22.5MHz DSD and 384kHz/32bit PCM playback as USB DAC
• Preamplifier with 5 digital inputs (USB Type-B (rear), USB Type-C (front), Coaxial, Optical, Bluetooth) and 2 analog inputs (RCA, XLR)
• Full MQA decoder, supporting all digital inputs except Bluetooth®
• “RDOT-NEO” up-conversion function (2xFs/4xFs/8xFs)
• Bluetooth® receiver supporting high quality audio codecs including LDAC and aptX™ HD
• Proprietary “TEAC-HCLD2” output buffer circuit for powerful current transmission
• "TEAC-QVCS" high-resolution analog preamplifier circuit

Audiophile Gear That Speaks Your Language

The Teac UD507B isn’t trying to be flashy—it’s here to do one thing: make your music sound incredible. It’s the kind of gear that doesn’t just improve your audio; it transforms the way you listen.

You get the precision of discrete circuitry, the raw power of a beefy headphone amp, and the flexibility of a fully equipped preamp—all in one beautifully built unit. If you're serious about sound, this is the upgrade your setup's been waiting for.

FAQs

1. Is the Teac UD507B compatible with balanced headphones?
Yes, it features a fully balanced dual monaural headphone amp with balanced output support.

2. What kind of digital inputs does the UD507B offer?
It includes five digital inputs, allowing easy connection to a variety of sources.

3. Can I use the Teac UD507B as a standalone preamp?
It functions as a high-end preamp with both analog and digital input options.

4. Does the UD507B have adjustable gain for headphones?
Yes, you can select from Low, Mid, or High gain to match your headphones' sensitivity and impedance.

5. How powerful is the headphone output on the Teac UD507B?
It delivers up to 1,200mW + 1,200mW (balanced at 100 ohms), which rivals standalone headphone amps.

Spec description

• Supported formats
  USB input
  - PCM : 16/24/32 bit44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k Hz
  - DSD : 2.8M/5.6M/11.2M/22.5M Hz
• Coaxial digital input
  PCM : 16/24 bit32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
  DSD : 2.8MHz (supported with 176.4kHz/24-bit DoP format)
• Optical digital input
  PCM : 16/24 bit32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
  DSD : 2.8MHz (supported with 176.4kHz/24-bit DoP format)
• DAC section
  USB DAC : In-house designed Discrete DAC TRDD5
  Up-conversion : up to 384kHz/32-bit PCM
• Audio inputs
  USB
  - USB Type-C port × 1
  - USB Type-B port × 1
  USB version : 2.0
  Transfer Mode : Asynchronous mode transfer, Bulk Pet
  Compatible Software : TEAC HR Audio Player (Windows, Macintosh)
• COAXIAL digital (rear) : RCA pin ×1 (gold-plated)
  Input level : 0.5Vp-p
  Input impedance : 75Ω
• Optical digital (rear) : TOS-link ×1
  Input level : -24.0 to -14.5dBm peak
• Analog (Balanced) : XLR ×1 pair (gold-plated)
  Input impedance : 50kΩ
  Input sensitivity : 5Vrms
• Analog (Unbalanced) : RCA pin ×1 pair (gold-plated)
  Input impedance : 24kΩ
  Input sensitivity : 2.5Vrms
• Bluetooth®
  Bluetooth® version : 4.2
  Output class : Class2 (Range: approx. 33ft/10m)
  Supported profiles : A2DP, AVRCP
  Content protection : SCMS-T
  Supported codec : LDAC™, LHDC, Qualcomm® aptX™ HD, aptX™, AAC, SBC
  No. of paired device : maximum 8 devices
  No. of multipoint connection device : maximum 2 devices
• Audio outputs
  XLR balanced : XLR ×1 pair (gold-plated)
  Maximum output level : 1kHz, full scale, into 10kΩ 
  0dB setting : 2.0Vrms
  +6dB setting : 4.0Vrms
  Output impedance : 40Ω
• RCA unbalanced : RCA pin ×1 pair (gold-plated)
  Maximum output level : 1kHz, full scale, into 10kΩ 
  0dB setting : 2.0Vrms
  Output impedance : 20Ω
• Headphone outputs
  Connector 1 : 1/4” (6.3mm) TRS stereo jacks × 1 (gold-plated)
  Connector 2 : XLR 4pin jack ×1 (gold-plated)
  Connector 3 : 4.4mm 5-pole Pentaconn jack ×1 (gold-plated)
• Maximum output
  Balanced : 1200mW + 1200mW (into 100Ω)
  Active Ground : 900mW + 900mW (into 32Ω)
  Unbalanced : 900mW + 900mW (into 32Ω)
• Supported impedances : 16 to 600Ω
• Clock section
  External clock input
  Connector : BNC (gold-plated)
  Input frequency : 10MHz
  Input impedance : 50Ω
  Input level : Rectangle wave: equivalent to TTL levelsSine wave: 0.5 to 1.0 Vrms
• External control
  12V Trigger out
  Conenctor : 3.5mm Monaural Mini jack × 1
  Output level : 12V
  Max. current supply : 100mA
• Audio performance : 192kHz/24bit PCM input, RCA output, DAC mode MULTIBIT
• Frequency Response : 5Hz to 70kHz (+1/–6 dB)
• Total harmonic distortion : 0.01% or less (1kHz, LPF: 20Hz to 20kHz)
• S/N ratio : 105dB or higher (A-weight, 1kHz)
• Power supply
  US/Canada : AC 120V 60Hz
  UK/Europe : AC 220 to 240V 50Hz
• Power consumption : 18W (0.4W in standby)
• Dimensions (including protrusions) : 290(W)×85(H)×249 (D) mm / 11.4”(W)×3.3”(H)×9.8”(D)
• Weight : 4.9kg / 10.8lbs
• Included accessories : Power cord, Remote control (RC-1334), AAA Batteries for remote control × 2, feet cushions × 3, Owner's Manual (with warranty)
