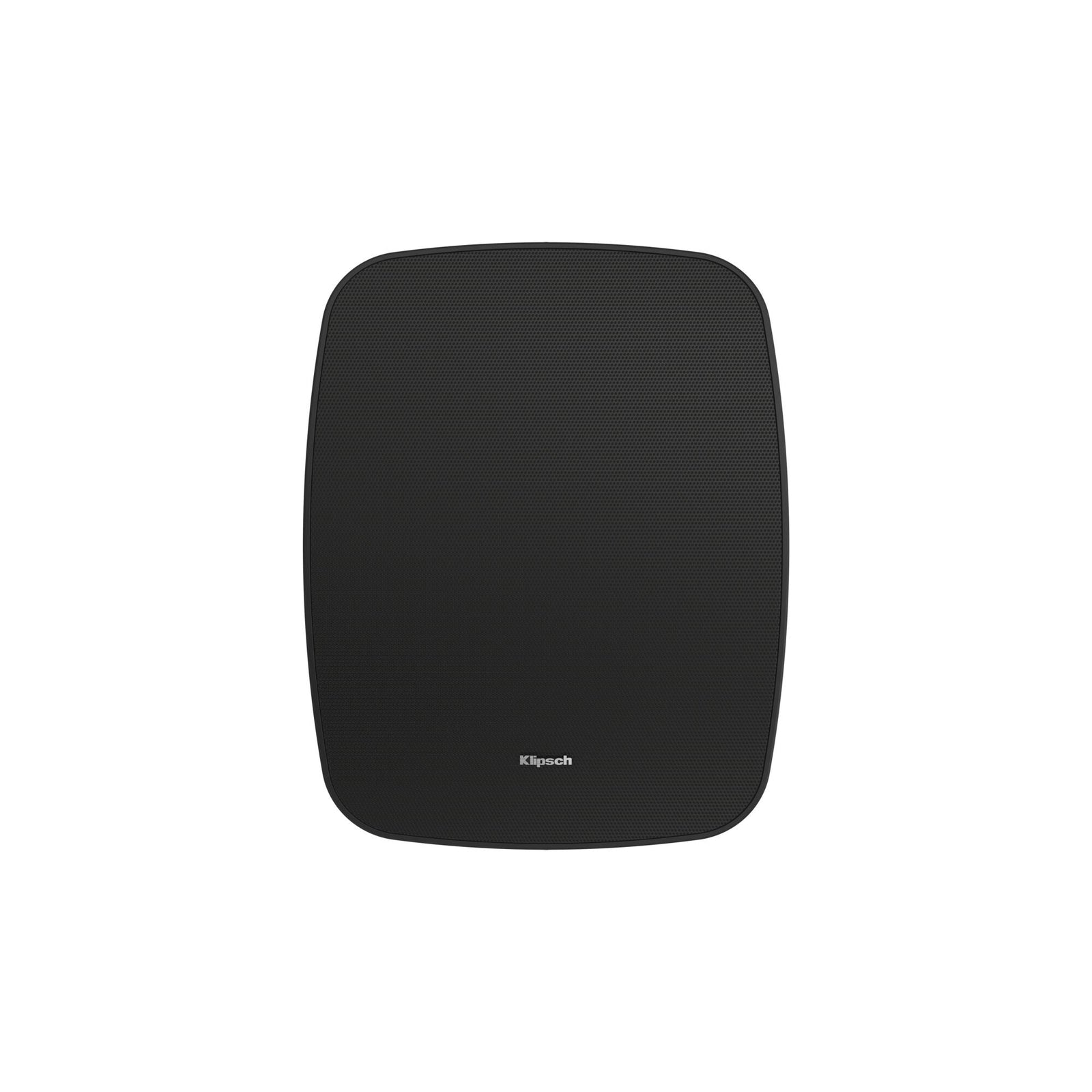

Klipsch RSM-525 5.25" Indoor/Outdoor Surface Mount Speaker (Pair) at Vinyl Sound Toronto Canada

The RSM-525 is a full-range two-way residential surface-mount loudspeaker from Klipsch (Indianapolis, Indiana, USA), available as a pair at Vinyl Sound in Toronto, Canada. The compact model of the Klipsch RSM Series, the RSM-525 combines a 5.25-inch IMG woofer and a 1-inch titanium compression driver on the K-1200M horn bridge with Klipsch's patented Tractrix® Hyperfold Port, delivering 89 dB sensitivity, a frequency response of 58 Hz to 20 kHz (+/- 4 dB), and a calculated maximum continuous output of 104 dB. The IPX5-rated all-weather ABS plastic cabinet suits permanent installation on small to medium decks, patios, soffits, pergola posts, sunrooms, garages, and interior wall surfaces where a compact, high-performance surface-mount speaker with a smaller footprint is required. Available in black or white, with a fully paintable cabinet and set-screw-secured grille. Sold as a pair.

Tractrix® Hyperfold Port: Deep Bass from a Compact Enclosure

The acoustic foundation of the RSM-525 is Klipsch's patented Tractrix® Hyperfold Port, the same proprietary five-step folded port geometry used in the larger RSM-650 and RSM-800 models. The Hyperfold Port folds the bass reflex port path five times within the RSM-525's compact ABS cabinet, achieving an acoustic port length far beyond what the small enclosure volume would conventionally support. This approach allows the RSM-525 to reach 58 Hz at +/- 4 dB and 48 Hz at the -10 dB point — bass extension that is exceptional for a 5.25-inch surface-mount speaker. The low air velocity within the folded port path eliminates the chuffing and port noise that conventional short, straight ports produce at moderate and high volume levels, maintaining clean, artifact-free bass reproduction even at the RSM-525's 65-watt continuous and 260-watt peak power handling limits. Three folded Tractrix ports are used within the enclosure, collectively providing a wider bass dispersion pattern suited to the broader listening areas that outdoor surface-mount speakers must cover.

1-Inch Titanium Compression Driver with Mumps Technology

The RSM-525 shares the same K-1200M horn and tweeter bridge used across the entire RSM Series lineup, including the larger RSM-650 and RSM-800. The 1-inch titanium diaphragm compression driver is mounted on a floating driver bridge with a wide-dispersion phase plug, delivering the crisp, fatigue-free high-frequency reproduction characteristic of titanium dome compression drivers. Klipsch's proprietary mumps technology, a controlled modification to the horn throat geometry, produces a consistent 100-degree coverage angle (+/- 20 degrees from 1 kHz to 20 kHz) that remains even and balanced across the listening area. The acoustic crossover between the woofer and compression driver occurs at 2 kHz. For a 5.25-inch speaker, having the same K-1200M compression driver assembly as the 8-inch RSM-800 means the RSM-525's high-frequency performance is not a scaled-down compromise — it provides the same wide, consistent, titanium-detailed treble reproduction regardless of the smaller woofer size.

Compact Dimensions with Maximum Mounting Flexibility

The RSM-525's smaller enclosure — 12.13 inches wide by 9.5 inches tall by 6.5 inches deep with the bracket, weighing 7.75 lbs per speaker — makes it the most compact model in the Klipsch RSM Series. This compact footprint makes the RSM-525 appropriate for installation environments where the RSM-650 or RSM-800 would be visually or physically intrusive: narrow soffits, small covered patios, balconies, apartment terraces, garages, mudrooms, and residential interior wall surfaces. The corrosion-resistant powder-coated zinc C-bracket allows the speaker to be rotated almost 180 degrees after mounting, directing the driver toward any listening area without repositioning the bracket on the wall. Horizontal mounting allows up-down swivel; vertical mounting allows side-to-side swivel. A 3/8-inch threaded insert on the rear of the cabinet is compatible with third-party mounting accessories for additional installation flexibility.

All-Weather Construction and IPX5 Rating

The RSM-525's paintable ABS plastic cabinet is engineered for year-round outdoor installation including the rain, snow, and freeze-thaw cycling of Canadian residential outdoor environments. The IPX5 water-resistance rating certifies protection against water jets from any direction, covering rain, garden irrigation overspray, and the seasonal precipitation conditions of Toronto and surrounding Ontario regions. The set-screw-secured grille stays firmly in place in high-wind conditions, across seasonal thermal expansion and contraction cycles, and in outdoor applications at elevated volume levels where clip-on grilles can loosen over time. The paintable cabinet is available in black or white, allowing color customization to match any exterior or interior wall surface for a discreet, integrated appearance.

Key Features

• 5.25-Inch IMG Woofer with Tractrix® Hyperfold Port: A compact injection-molded graphite woofer driven by three folded Tractrix ports delivers bass to 58 Hz (+/- 4 dB) and 48 Hz (-10 dB), with no chuffing or port noise, from the smallest enclosure in the Klipsch RSM Series.
• 1-Inch Titanium Compression Driver on K-1200M Horn Bridge: The same K-1200M titanium compression driver used across the RSM Series delivers high-frequency clarity with mumps technology producing a consistent 100-degree coverage pattern from 1 kHz to 20 kHz.
• 89 dB Sensitivity / 104 dB Maximum Continuous Output: Efficient enough to produce strong output from residential stereo amplifiers and multi-zone systems, with a calculated maximum of 104 dB at 1 meter from the 65-watt continuous power handling rating.
• Compact Footprint: At 12.13 inches wide and 7.75 lbs per speaker with bracket, the RSM-525 is the most compact model in the RSM Series, suited to installations where the larger RSM-650 or RSM-800 would be physically or visually too large.
• IPX5 All-Weather Rating: Certified protection against water jets from any direction for permanent outdoor installation in rain, snow, and irrigation-adjacent environments year-round.
• Corrosion-Resistant Zinc C-Bracket with Near-180-Degree Rotation: The powder-coated zinc mounting bracket allows the speaker to be aimed in almost any direction after installation, with horizontal and vertical mounting options for side-to-side or up-down swivel adjustment.
• Set-Screw Secured Paintable Aluminum Grille: Grilles attach with set screws rather than clips for weather-secure, vibration-resistant fit. The aluminum grille resists corrosion and is paintable to match any wall or ceiling color.
• Dual 5-Way Binding Posts: Accept bare wire, pin connectors, banana plugs, spade lugs, and stacking banana connectors for complete installation flexibility with any speaker wire termination format.

Technical Specifications

Frequently Asked Questions

What is the Klipsch RSM-525?

The Klipsch RSM-525 is a full-range two-way residential surface-mount loudspeaker, sold as a pair, featuring a 5.25-inch IMG woofer, a 1-inch titanium compression driver on the K-1200M horn bridge, and a patented Tractrix® Hyperfold Port. It delivers 89 dB sensitivity, a maximum continuous output of 104 dB, and a frequency response of 58 Hz to 20 kHz (+/- 4 dB). IPX5-rated for permanent indoor and outdoor installation, the RSM-525 is the compact model in the Klipsch RSM Series, suited to small patios, balconies, apartment terraces, garages, sunrooms, and interior wall surfaces where a smaller speaker footprint is needed.

How does the Klipsch RSM-525 compare to the RSM-650 and RSM-800?

The RSM-525, RSM-650, and RSM-800 share the same K-1200M titanium compression driver, Tractrix® Hyperfold Port technology, IPX5 all-weather rating, set-screw grille system, and dual 5-way binding posts. The differences are woofer size, bass extension, power handling, maximum output, and physical enclosure dimensions. The RSM-525 uses a 5.25-inch woofer reaching 58 Hz (+/- 4 dB) and produces 104 dB maximum output at 65 watts continuous. The RSM-650 steps up to a 6.5-inch woofer, 56 Hz (+/- 4 dB), 106 dB maximum, and 80 watts continuous. The RSM-800 tops the lineup with an 8-inch woofer, 52 Hz (+/- 4 dB), 109 dB maximum, and 100 watts continuous. The RSM-525 is the correct choice when installation space is limited, the deck or patio is small to medium in size, or visual minimalism is a priority. For larger outdoor areas or where deeper bass presence matters, the RSM-650 or RSM-800 is the better fit.

How does the RSM-525 compare to the Polk Audio Atrium 5 or Yamaha NS-AW150 outdoor speakers?

The RSM-525 outperforms the Polk Audio Atrium 5 and Yamaha NS-AW150 in driver technology and high-frequency performance. Both the Polk and Yamaha use conventional dome tweeters without a horn, producing less controlled and less efficient high-frequency output. The RSM-525's K-1200M titanium compression driver with mumps technology delivers a consistent 100-degree coverage pattern from 1 kHz to 20 kHz, wider and more even than what either competing model achieves. The Tractrix® Hyperfold Port also gives the RSM-525 deeper bass extension than both competitors in a comparable or smaller enclosure, while the 260-watt peak power handling significantly exceeds the typical 100 to 150-watt peak ratings of the Polk and Yamaha alternatives.

Can the Klipsch RSM-525 be mounted horizontally and vertically?

Yes, the RSM-525 and its included corrosion-resistant powder-coated zinc C-bracket support both horizontal and vertical wall mounting orientations. When mounted vertically, the bracket allows the speaker to swivel left and right to aim at the listening area. When mounted horizontally, the bracket allows the speaker to tilt up and down. In both orientations, the bracket rotation range is nearly 180 degrees, giving the installer broad flexibility to direct the driver toward any seating position without repositioning the bracket on the wall. A 3/8-inch threaded insert on the rear of the cabinet also accepts third-party mounting accessories for installations requiring custom bracket solutions.

Can the Klipsch RSM-525 handle Canadian outdoor winter conditions?

Yes, the RSM-525 is designed for year-round permanent outdoor installation including the seasonal temperature extremes, freeze-thaw cycles, rain, and snowfall typical of Toronto and the broader Canadian outdoor climate. The IPX5 certification covers water jets from any direction, protecting the enclosure and driver components from rain, snow melt, and irrigation spray. The all-weather ABS plastic cabinet resists UV fading and moisture absorption across the full Canadian seasonal temperature range. The set-screw grille attachment prevents displacement during thermal expansion and contraction cycles between Canadian summers and winters. The aluminum grille resists corrosion in wet outdoor conditions year-round.

Where can I buy the Klipsch RSM-525 in Toronto or Canada?

The Klipsch RSM-525 is available at Vinyl Sound, an authorised Klipsch dealer in Toronto, Canada. Vinyl Sound carries the complete Klipsch RSM Series outdoor speaker lineup and can assist with system design, amplifier pairing, placement recommendations, and guidance on choosing between the RSM-525, RSM-650, and RSM-800 for residential and commercial outdoor audio projects across the Greater Toronto Area and surrounding regions of Ontario.

What amplifier does the Klipsch RSM-525 need?

The RSM-525 presents an 8-ohm nominal impedance load, dropping to 4.3 ohms minimum at 175 Hz, and handles 65 watts continuous with a 260-watt peak rating. Any stereo amplifier or AV receiver rated to drive a 4-ohm load at 30 to 65 watts per channel pairs comfortably with the RSM-525 for residential outdoor and indoor use. At 89 dB sensitivity, the RSM-525 reaches comfortable listening levels in a small to medium outdoor space from modest amplifier power, making it compatible with multi-zone residential amplifiers and standard AV receivers used in whole-house audio systems.

Is the Klipsch RSM-525 sold as a pair or individually?

The RSM-525 is sold as a pair of two speakers. For a stereo outdoor or indoor listening zone, one pair provides left and right channel coverage. The compact dimensions of each RSM-525 speaker make the pair well-suited to smaller outdoor spaces, balconies, and apartment terraces where two RSM-650 or RSM-800 speakers would be physically or visually oversized.
