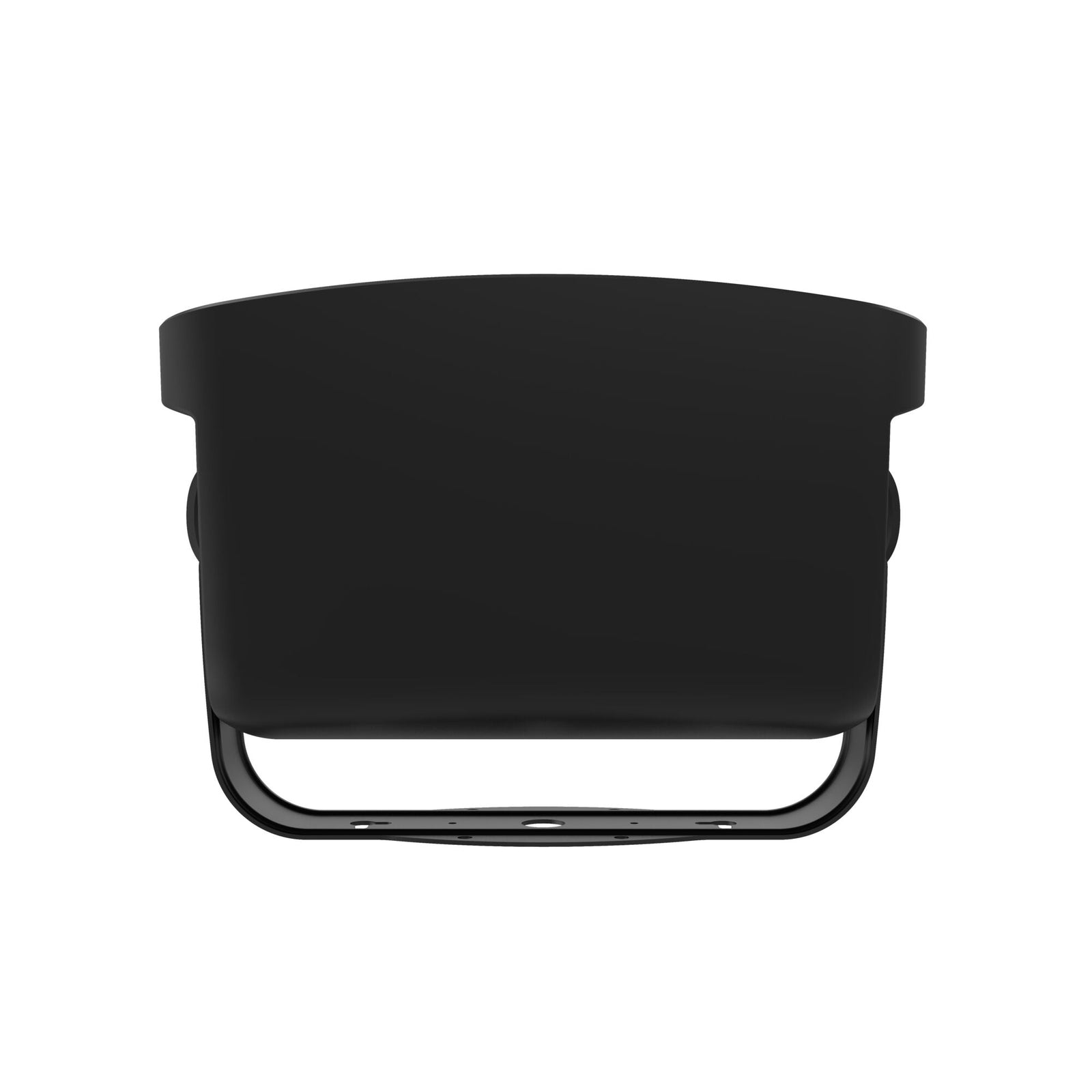

Klipsch RSM-650 6.5" Indoor/Outdoor Surface Mount Speaker (Pair) at Vinyl Sound Toronto Canada

The RSM-650 is a full-range two-way residential surface-mount loudspeaker from Klipsch (Indianapolis, Indiana, USA), available as a pair at Vinyl Sound in Toronto, Canada. The mid-size model of the Klipsch RSM Series, the RSM-650 combines a 6.5-inch IMG woofer and a 1-inch titanium compression driver on the K-1200M horn bridge with Klipsch's patented Tractrix® Hyperfold Port, delivering 90 dB sensitivity, a frequency response of 56 Hz to 20 kHz (+/- 4 dB), and a calculated maximum continuous output of 106 dB. The IPX5-rated all-weather ABS plastic cabinet is engineered for permanent installation on decks, patios, pergolas, poolsides, soffits, sunrooms, and interior wall surfaces wherever a compact, high-performance surface-mount speaker is needed. Available in black or white, with a paintable cabinet and set-screw-secured grille for secure, discreet integration into any residential environment.

Tractrix® Hyperfold Port: Extended Bass in a Compact Cabinet

The defining acoustic technology in the RSM-650 is Klipsch's patented Tractrix® Hyperfold Port, a proprietary five-step folded port geometry that multiplies the effective acoustic length of the bass reflex port without increasing the physical size of the enclosure. Bass reflex speakers depend on port length to tune the cabinet resonance at the target bass frequency, which traditionally requires large enclosures to achieve meaningful low-frequency extension. The Tractrix® Hyperfold Port folds the port path five steps within the RSM-650's compact ABS cabinet, achieving an acoustic port length far beyond what the enclosure volume would normally permit. This engineering approach extends usable bass response to 56 Hz at +/- 4 dB and 46 Hz at the -10 dB point, exceptionally deep output for a surface-mount speaker of the RSM-650's physical size. The low air velocity within the folded port path also eliminates chuffing and port noise at high volume levels, maintaining clean, distortion-free bass reproduction even at the 320-watt peak output the RSM-650 is capable of handling.

1-Inch Titanium Compression Driver with Mumps Technology

The RSM-650's high-frequency section uses a 1-inch titanium compression driver mounted on Klipsch's K-1200M horn and tweeter bridge. The titanium diaphragm's stiffness and light weight extend high-frequency transient response and reduce the coloration that softer dome materials can introduce at the top of the audible spectrum. The floating driver bridge mechanically decouples the compression driver from the horn, reducing resonance coupling between the two components. Klipsch's proprietary mumps technology — a controlled modification to the horn throat geometry — produces a 100-degree coverage angle (+/- 20 degrees from 900 Hz to 20 kHz) that is wide and consistent across the listening area. For outdoor surface-mount applications on decks and patios, where listeners are distributed across a broad area rather than positioned in a defined sweet spot, this even wide dispersion ensures balanced frequency response at every listening position. The acoustic crossover between the woofer and compression driver occurs at 2 kHz, in a frequency region where both drivers transition smoothly without artifacts.

6.5-Inch IMG Woofer

The RSM-650's low-frequency driver is a 6.5-inch injection-molded graphite (IMG) cone woofer. The IMG cone combines structural rigidity with low moving mass, minimizing cone breakup distortion at the excursion levels required to drive the Tractrix® Hyperfold Port and produce meaningful bass output in outdoor environments without room boundary reinforcement. The 6.5-inch format positions the RSM-650 between the RSM-525 (5.25-inch woofer) and RSM-800 (8-inch woofer) within the Klipsch RSM Series lineup, making it the appropriate choice for medium-sized decks, covered patios, sunrooms, and outdoor dining areas where the RSM-525's output would be insufficient and the RSM-800's larger cabinet is not required. At 80 watts continuous power handling with a 320-watt peak rating, the RSM-650 pairs with a wide range of residential stereo amplifiers, AV receivers, and multi-zone outdoor audio amplifiers.

All-Weather Construction and IPX5 Rating

The RSM-650's paintable ABS plastic cabinet is engineered for year-round outdoor installation including the seasonal temperature extremes, rain, snow, and freeze-thaw cycles of Canadian outdoor environments such as Toronto and the surrounding regions of Ontario. The IPX5 water-resistance rating certifies protection against water jets from any direction, covering rain, garden irrigation overspray, and pressure washing of adjacent surfaces. The grille is secured with set screws rather than clips, which eliminates grille displacement in high-wind environments, during thermal expansion and contraction cycles between seasons, and in high-vibration applications at elevated volume levels where clip-on grilles can loosen over time. The cabinet is available in black or white and is fully paintable to match any exterior or interior wall color for discreet integration.

Key Features

• 6.5-Inch IMG Woofer: An injection-molded graphite cone delivers clean, controlled bass and midrange response extending to 56 Hz (+/- 4 dB), driven by the Tractrix® Hyperfold Port for deep output in both indoor and outdoor installation environments.
• 1-Inch Titanium Compression Driver on K-1200M Horn Bridge: A titanium diaphragm on a floating driver bridge delivers high-frequency clarity from the 2 kHz crossover through 20 kHz, with Klipsch's mumps technology ensuring a consistent 100-degree coverage pattern across the full treble range.
• Patented Tractrix® Hyperfold Port: A five-step folded port path extends effective acoustic length within the compact enclosure, enabling 46 Hz bass extension at -10 dB while eliminating chuffing and port noise at high output levels.
• 90 dB Sensitivity / 106 dB Maximum Continuous Output: High efficiency and substantial maximum output from a compact 6.5-inch surface-mount enclosure, suited to medium-to-large outdoor listening areas and indoor rooms where wide dynamic range is desired.
• IPX5 All-Weather Rating: Certified protection against water jets from any direction for permanent outdoor installation in rain, snow, and garden irrigation environments year-round.
• Mumps Technology for Even 100-Degree Coverage: Klipsch's proprietary waveguide modification produces a controlled, wide, and consistent horizontal dispersion pattern from 900 Hz to 20 kHz, delivering balanced frequency response across the full listening area.
• Set-Screw Secured Grille: Grilles attach with set screws rather than clips, staying firmly in place in high-wind, high-vibration, and temperature-cycling outdoor environments where clip-on grilles can loosen over time.
• Dual 5-Way Binding Posts: Accept bare wire, pin connectors, banana plugs, spade lugs, and stacking banana connectors for complete installation flexibility with any speaker wire termination format.

Technical Specifications

Frequently Asked Questions

What is the Klipsch RSM-650?

The Klipsch RSM-650 is a full-range two-way residential surface-mount loudspeaker, sold as a pair, featuring a 6.5-inch IMG woofer, a 1-inch titanium compression driver on the K-1200M horn bridge, and a patented Tractrix® Hyperfold Port. It delivers 90 dB sensitivity, a maximum continuous output of 106 dB, and a frequency response of 56 Hz to 20 kHz (+/- 4 dB), making it suited for medium-sized decks, patios, pergola areas, sunrooms, poolsides, and indoor surface-mount applications where compact dimensions and high output are both required.

How does the Klipsch RSM-650 compare to the RSM-800 and RSM-525?

The RSM-650 is the mid-size model in the Klipsch RSM Series, positioned between the RSM-525 (5.25-inch woofer) and the RSM-800 (8-inch woofer). All three models share the same K-1200M titanium compression driver, mumps technology, Tractrix® Hyperfold Port design, IPX5 all-weather rating, set-screw grilles, and dual 5-way binding posts. The differences are in woofer size, bass extension, power handling, and maximum output. The RSM-650 reaches 56 Hz (+/- 4 dB) versus 52 Hz for the RSM-800, handles 80W continuous versus 100W for the RSM-800, and produces 106 dB maximum output versus 109 dB for the RSM-800. For medium outdoor spaces such as a standard residential deck or covered patio, the RSM-650 provides the best balance of size, output, and bass extension. The RSM-800 is the appropriate step-up for larger outdoor areas such as pool decks, expansive patios, or commercial installations.

How does the Klipsch RSM-650 compare to the Polk Audio Atrium 6 or Yamaha NS-AW150?

The Klipsch RSM-650 outperforms the Polk Audio Atrium 6 and Yamaha NS-AW150 in two primary areas. The RSM-650's titanium compression driver on the K-1200M horn provides 90 dB sensitivity and a controlled 100-degree dispersion pattern, while both the Polk and Yamaha use conventional dome tweeters without a horn, producing less efficient, more broadly scattered high-frequency output. The Tractrix® Hyperfold Port gives the RSM-650 a 46 Hz bass extension at -10 dB, meaningfully deeper than the Polk Atrium 6's published bass limit, from a comparably sized enclosure. The RSM-650's 320-watt peak power handling also significantly exceeds the typical 100 to 150-watt peak ratings of the Polk and Yamaha competitors.

What is the Tractrix® Hyperfold Port on the RSM-650?

The Tractrix® Hyperfold Port is a patented Klipsch technology that folds the bass reflex port path five times within the speaker enclosure using a proprietary geometry based on Klipsch's Tractrix® acoustic principles. This folding extends the effective acoustic length of the port dramatically without increasing enclosure volume, allowing the RSM-650 to reach 46 Hz bass extension at -10 dB from a compact surface-mount cabinet. The low air velocity maintained within the folded port path eliminates the chuffing and port noise that conventional short, straight ports produce at high output levels, keeping bass reproduction clean and artifact-free even near the RSM-650's maximum output capability.

Can the Klipsch RSM-650 handle Canadian outdoor winter conditions?

Yes, the RSM-650 is designed for permanent year-round outdoor installation including the seasonal conditions of Toronto and the broader Canadian climate. The IPX5 certification covers water jets from any direction, protecting the enclosure and drivers from rain, snow melt, and irrigation overspray. The all-weather ABS plastic cabinet resists UV-driven color fading and does not absorb moisture across the full seasonal temperature range. The set-screw grille attachment prevents displacement during thermal expansion and contraction cycles between Canadian summers and winters. Some outdoor audio installers choose to disconnect passive outdoor speakers during extended periods of extreme cold as an additional precaution, though the RSM-650 is rated for permanent outdoor installation.

Where can I buy the Klipsch RSM-650 in Toronto or Canada?

The Klipsch RSM-650 is available at Vinyl Sound, an authorised Klipsch dealer in Toronto, Canada. Vinyl Sound carries the complete Klipsch RSM Series outdoor speaker lineup and can assist with system design, amplifier pairing, and placement recommendations for residential and commercial outdoor audio projects across the Greater Toronto Area and surrounding regions of Ontario.

What amplifier does the Klipsch RSM-650 need?

The RSM-650 presents an 8-ohm nominal impedance load, dropping to 4.5 ohms minimum at 160 Hz, and handles 80 watts continuous with a 320-watt peak rating. Any stereo amplifier or AV receiver rated to drive a 4-ohm load at 40 to 80 watts per channel pairs comfortably with the RSM-650 for residential outdoor use. At 90 dB sensitivity, the RSM-650 reaches strong listening levels from modest amplifier power, making it compatible with multi-zone residential amplifiers as well as full-power outdoor audio amplifiers for larger coverage areas.

Is the Klipsch RSM-650 sold as a pair or individually?

The RSM-650 is sold as a pair of two speakers. For a stereo outdoor or indoor listening zone, one pair provides left and right channel coverage. For larger areas requiring multiple zones, additional pairs can be added and connected to a multi-zone amplifier, with each pair covering one zone's left and right channels.
