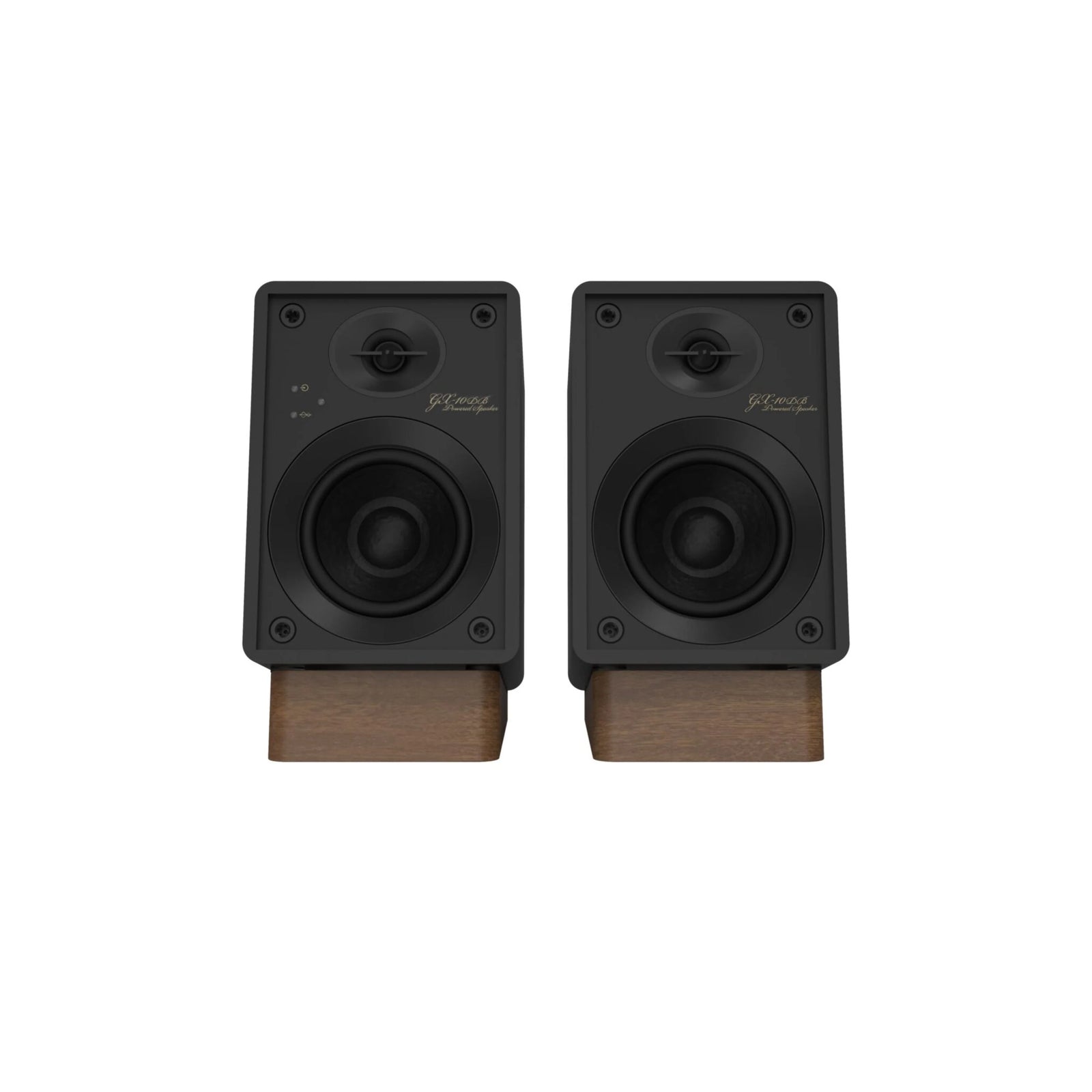

Onkyo GX-10DB Creator Series Powered Speakers (Pair) at Vinyl Sound Toronto Canada

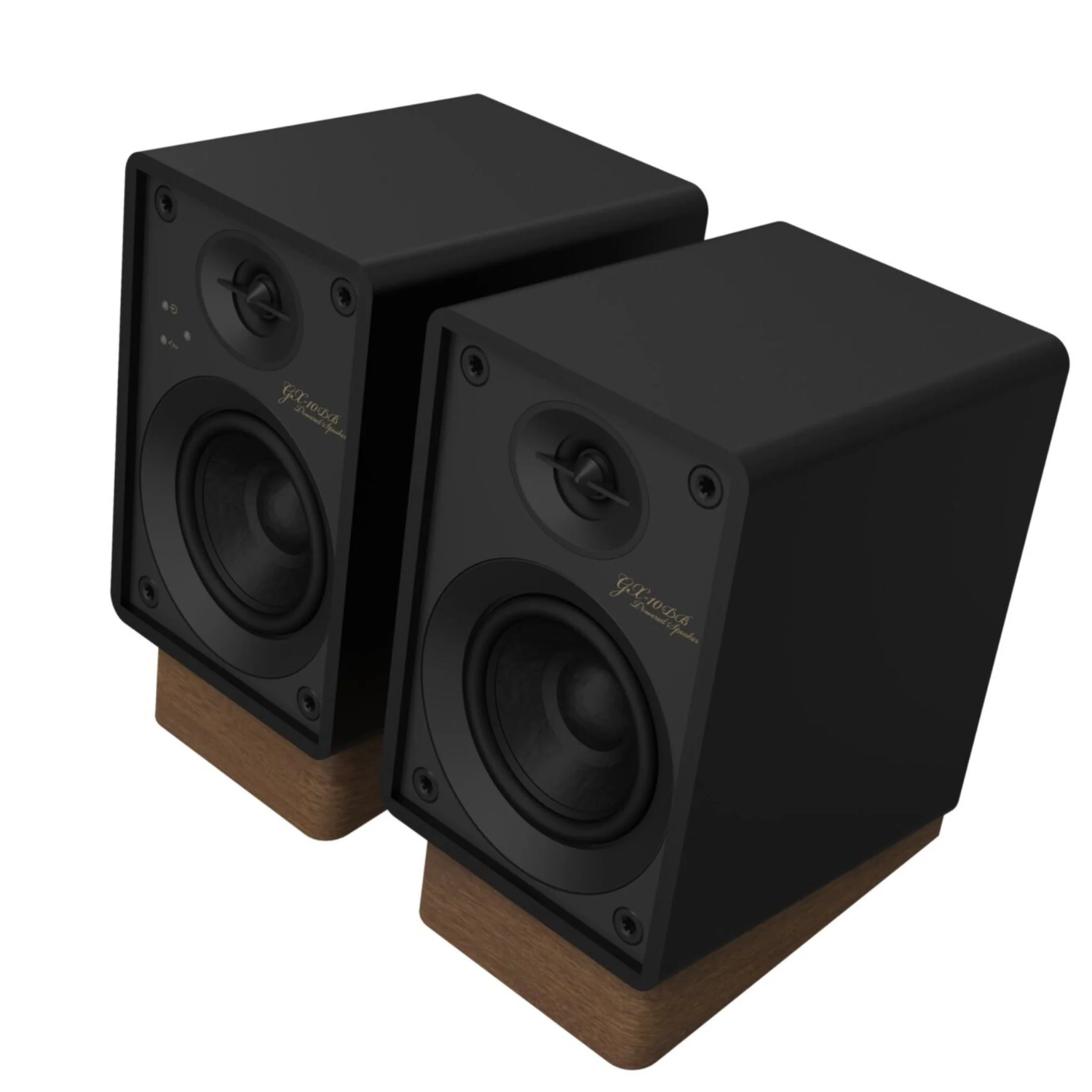

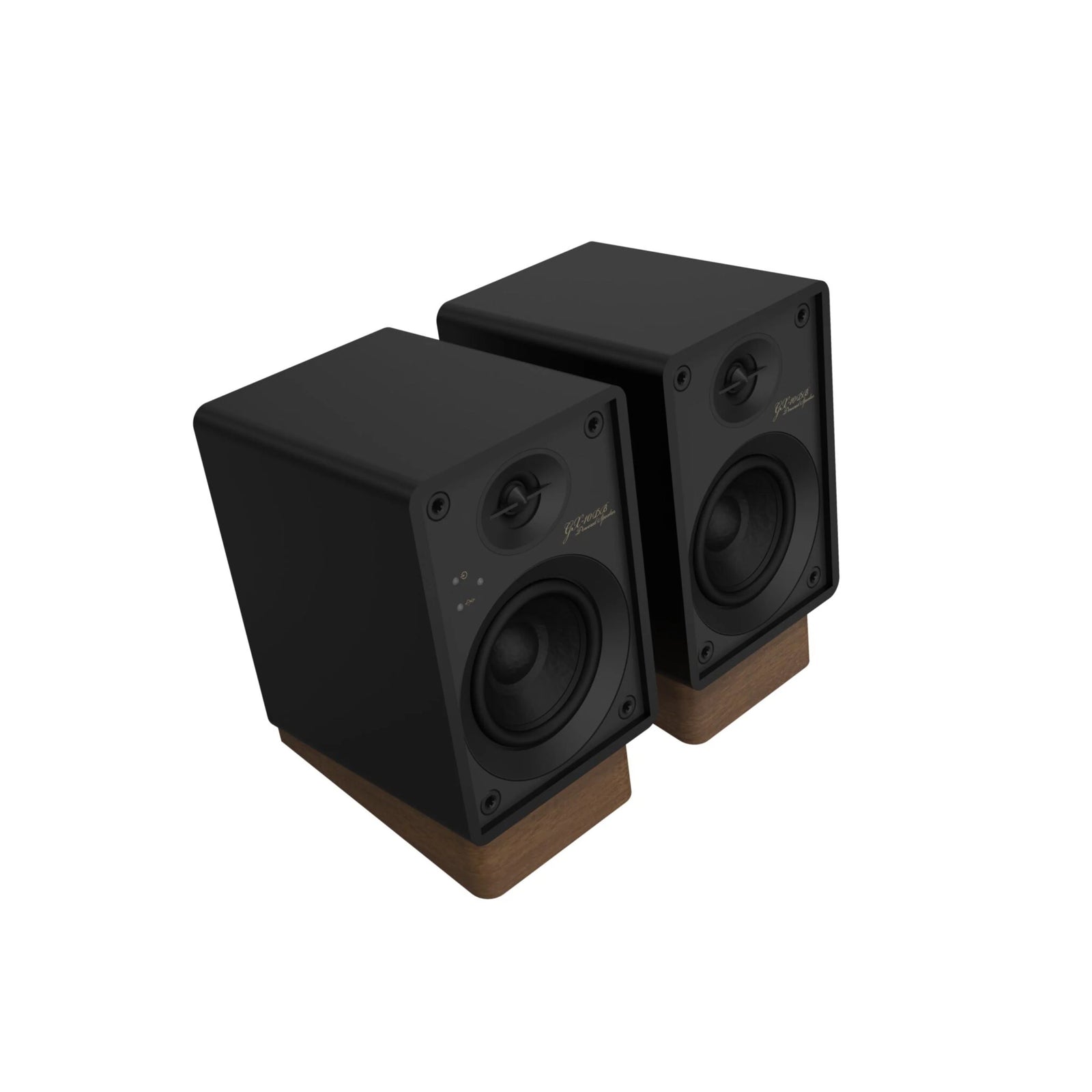

The GX-10DB is a pair of two-way powered bookshelf monitors from Onkyo's Creator Series (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Designed for content creators, work-from-home professionals, and gaming enthusiasts, the GX-10DB combines a 3-inch cone woofer and 3/4-inch tweeter in a bass-reflex cabinet with 17 W per channel Class D amplification built into the right speaker and Onkyo's original digital signal processing (DSP) for tuned, genre-faithful playback. Bluetooth 5.3 LE Audio with A2DP and AVRCP provides lag-free wireless streaming, while USB-C, optical digital, and RCA line/phono inputs cover all wired sources. A subwoofer RCA output enables easy low-frequency expansion. Angled desktop stands and a remote control are included in the box, and the MDF bass-reflex cabinet with rear slit duct tuning delivers a confident, full-bodied stereo image from a compact footprint.

Class D Amplification, DSP, and Two-Way Driver Array

The GX-10DB uses a biamplified Class D topology housed in the right speaker, driving the 3-inch woofer and 3/4-inch high-frequency driver with separate amplifier channels for clean, efficient power delivery. Class D amplification generates less heat than Class AB designs, making it particularly well suited to a sealed, compact powered speaker chassis where thermal management space is limited. Onkyo's proprietary DSP processes the digital input signal before conversion and applies speaker-specific equalisation and crossover tuning, ensuring that the frequency balance and dynamic character of the output match Onkyo's intended voicing for music, gaming, and creative work. The 3-inch cone woofer handles midrange and bass frequencies, while the 3/4-inch tweeter takes over the high-frequency range with a separate equalisation curve applied by the DSP. The bass-reflex cabinet uses a rear slit duct to extend low-frequency output and add weight and body to bass-heavy content beyond what the driver could achieve in a sealed enclosure of the same dimensions. Maximum output is 110 dB SPL measured at 1 metre from the stereo pair, and frequency response extends from 70 Hz to 20 kHz.

Bluetooth 5.3 LE Audio, USB-C, and Versatile Inputs

Bluetooth 5.3 with LE Audio provides a wireless streaming path from any smartphone, tablet, laptop, or computer. The LE Audio implementation delivers lower latency than previous Bluetooth generations, making it better suited to gaming and video playback where audio synchronisation matters. USB-C audio input accepts a direct digital connection from any USB-C equipped laptop, tablet, or computer without requiring a separate audio interface, routing the digital audio signal directly into the GX-10DB's onboard DAC. The optical digital input handles PCM two-channel audio at 32 kHz, 44.1 kHz, or 48 kHz from a television, gaming console, or CD player with an optical output. The RCA line/phono input with a dedicated ground screw terminal accepts both line-level sources and a moving magnet turntable directly, making the GX-10DB a genuine all-in-one desktop music system for vinyl listeners. The subwoofer RCA line-level output connects to any active subwoofer for bass extension when more low-frequency impact is needed for gaming, film, or music production work.

Design, Stands, and Creator Series Aesthetic

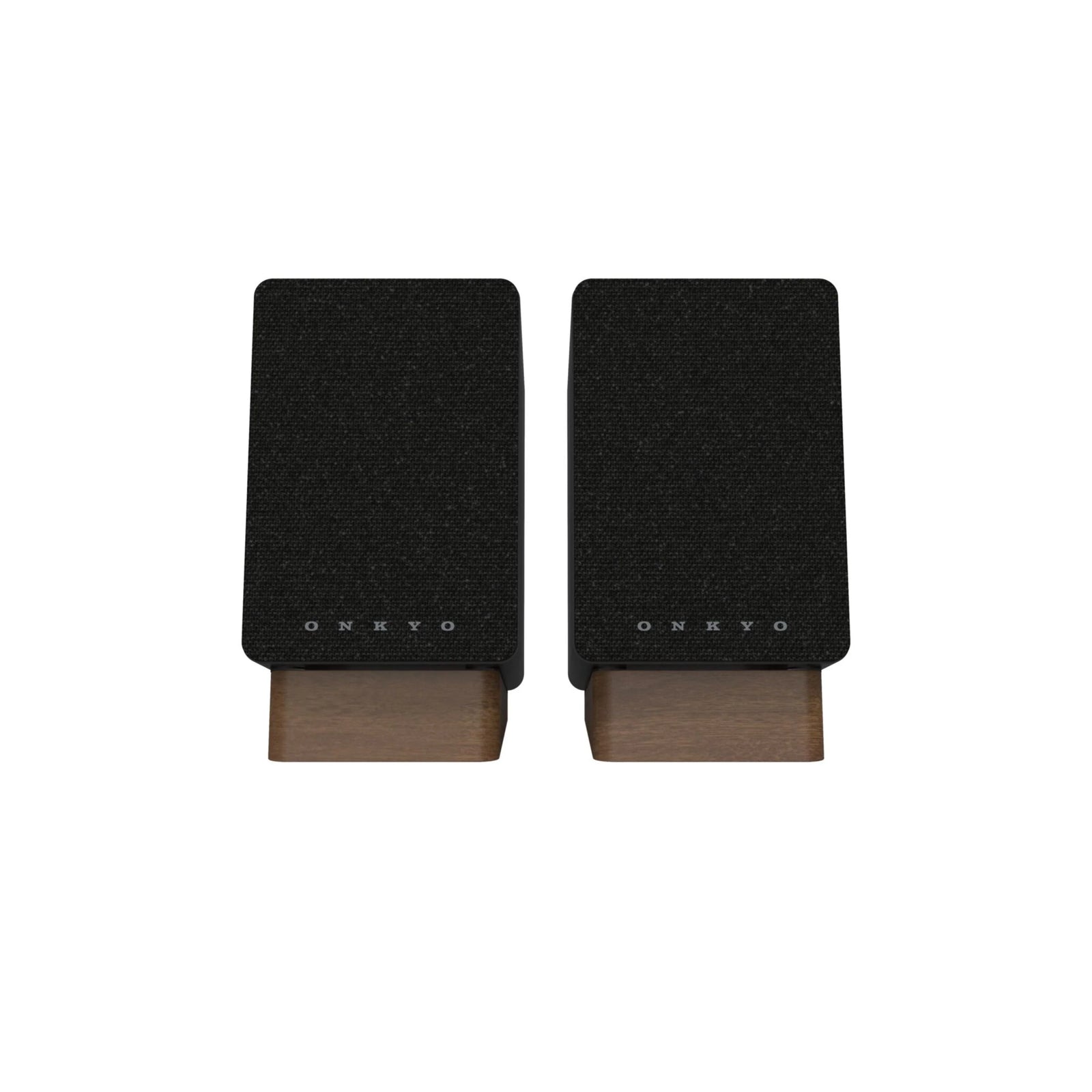

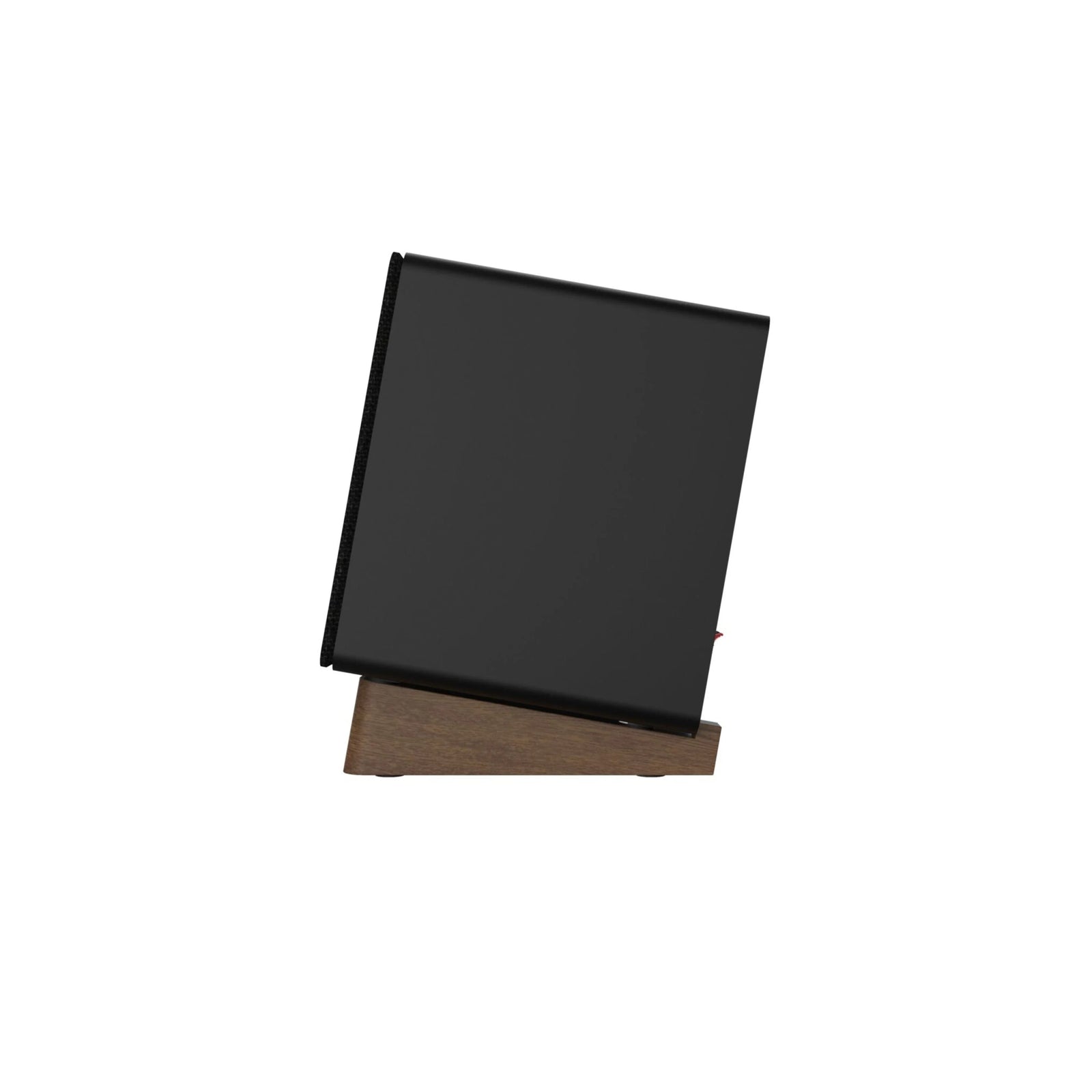

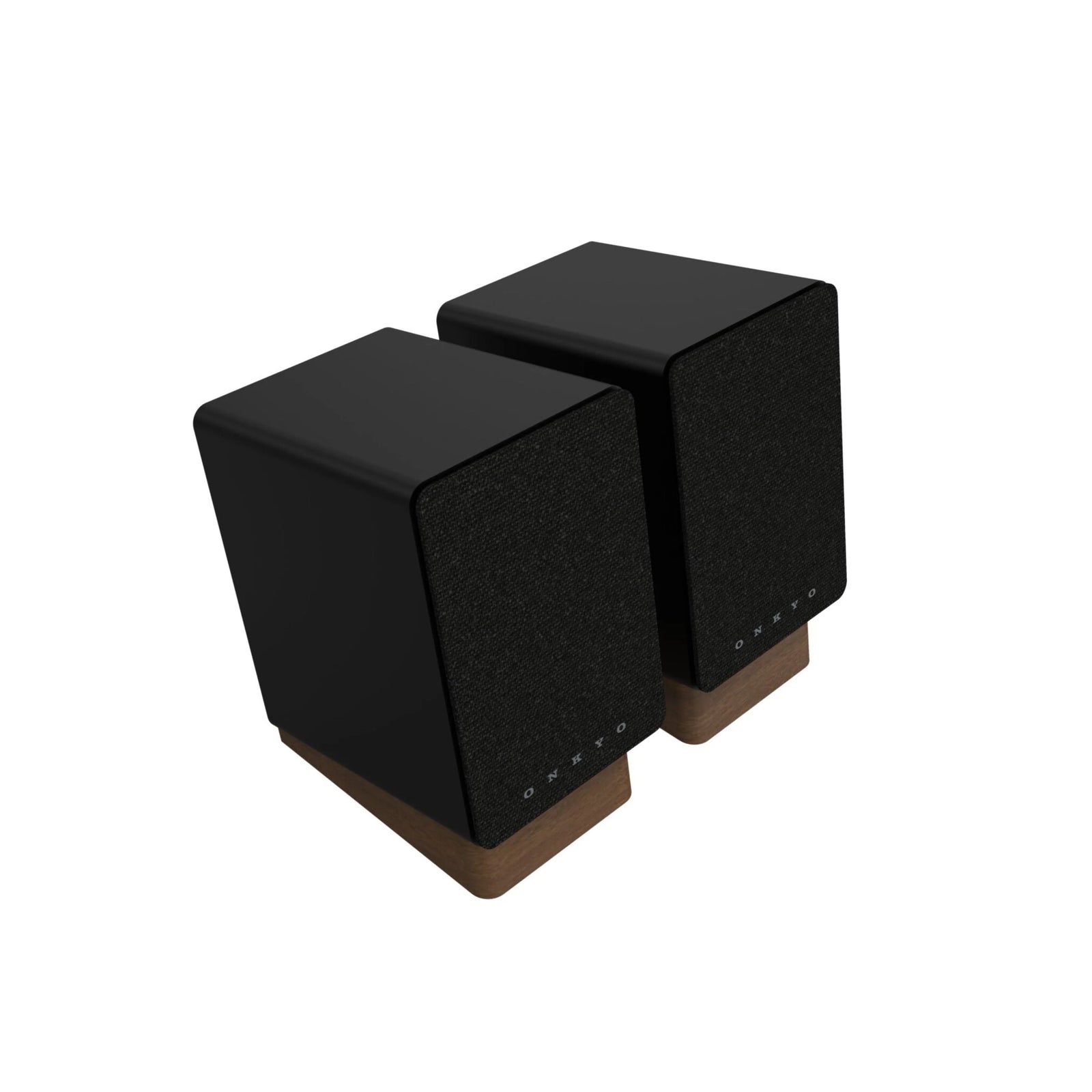

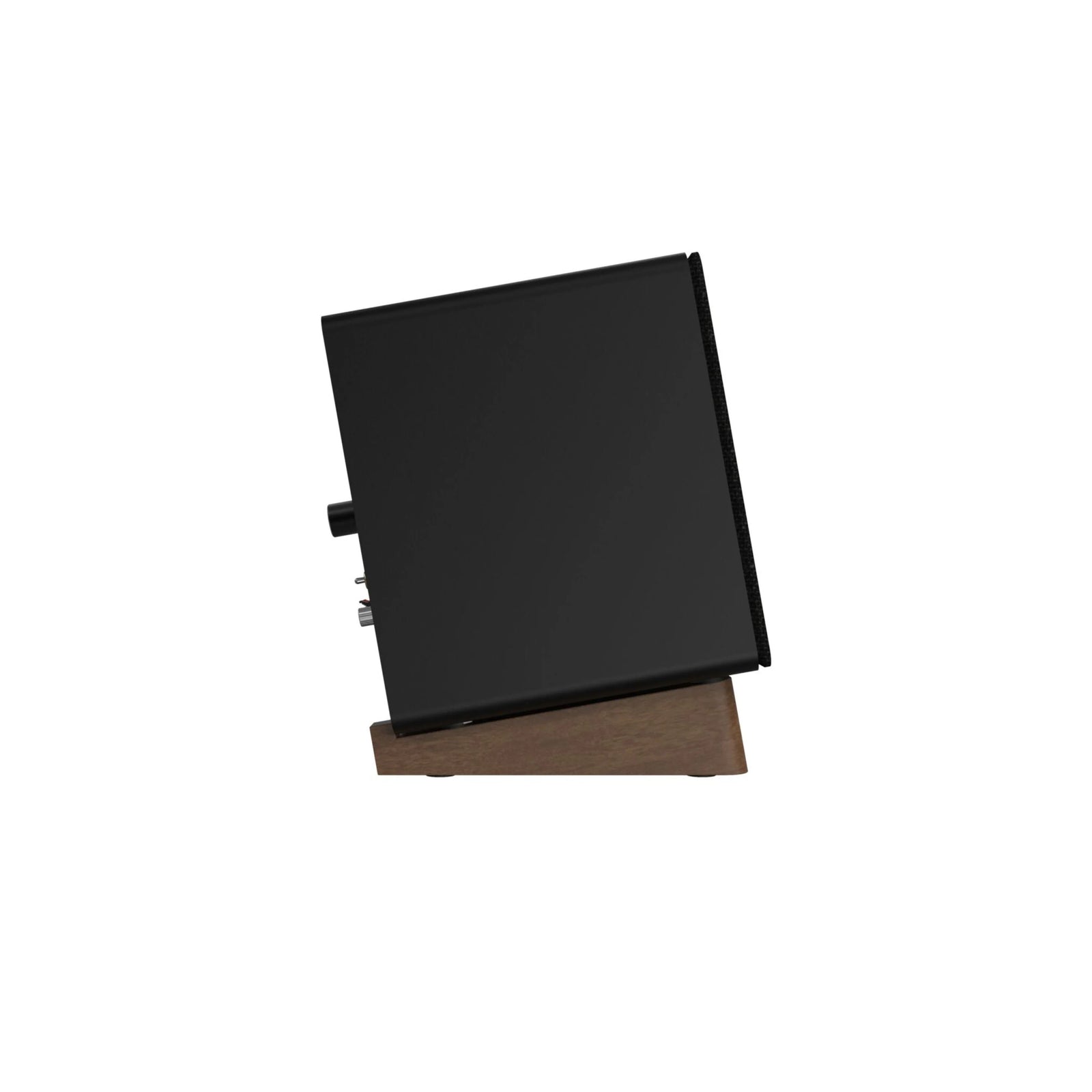

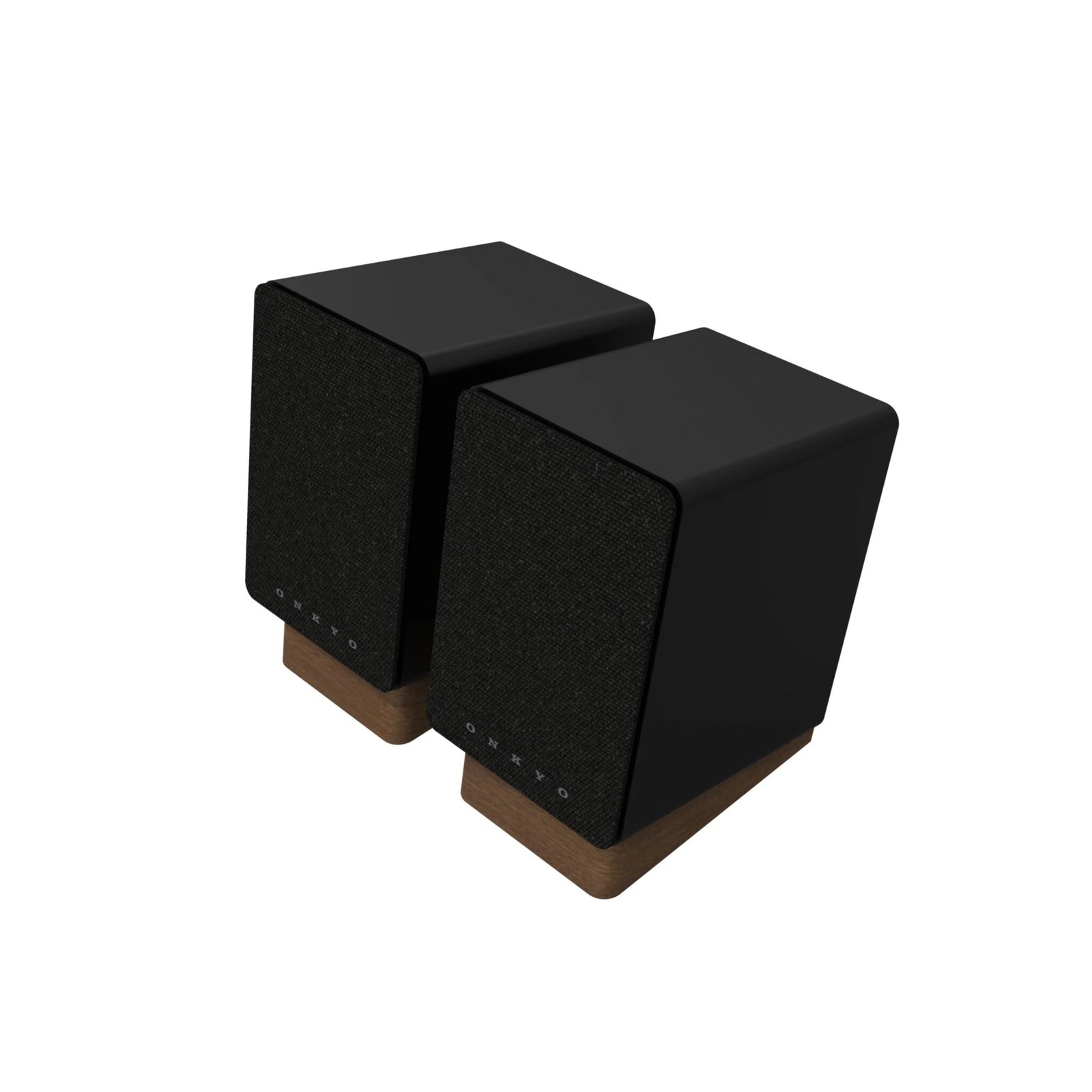

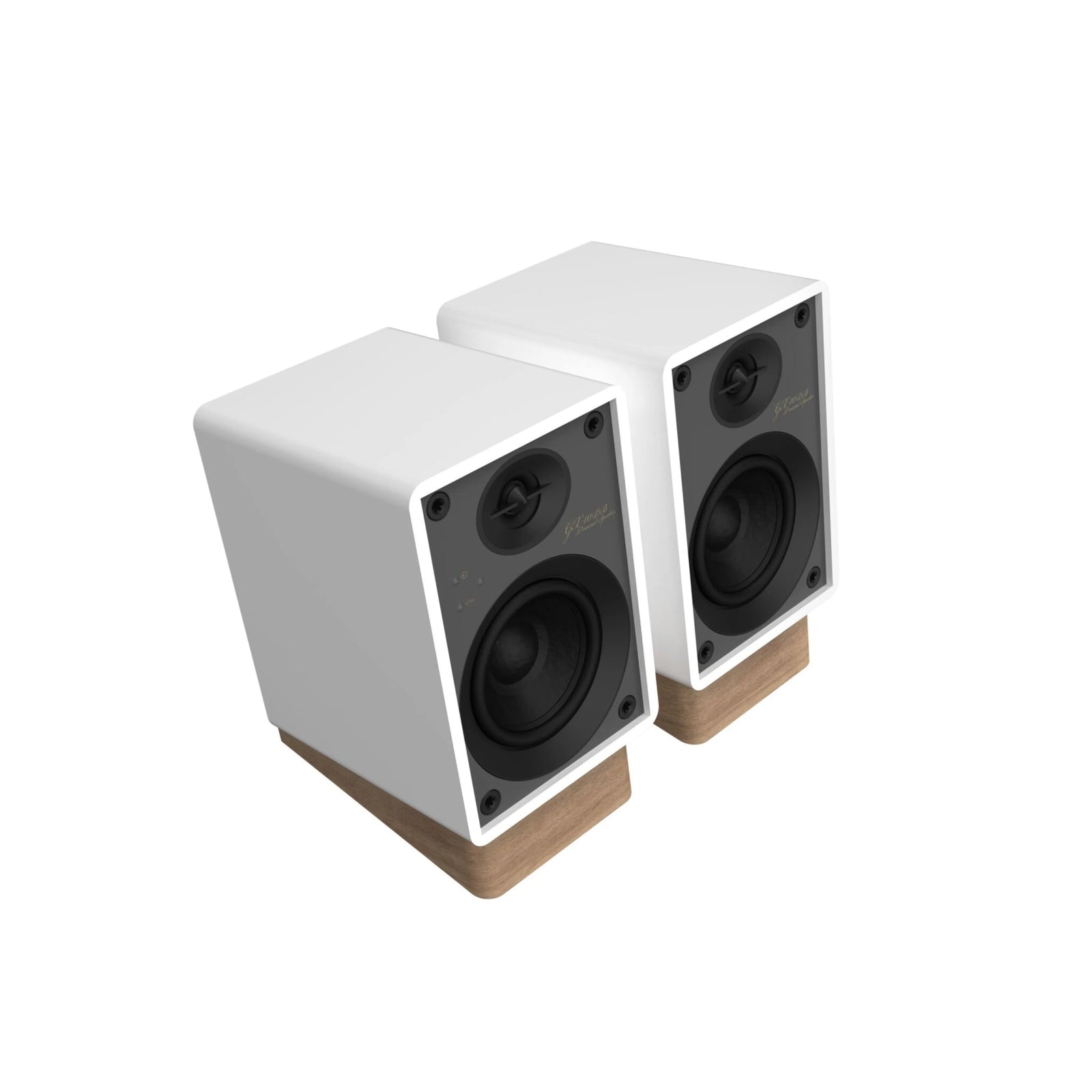

The GX-10DB follows Onkyo's Creator Series design philosophy of technical precision and Japanese minimalism: clean, uncluttered cabinet lines in an MDF enclosure with a detachable speaker grille and a compact footprint of 120 x 180 x 170 mm per speaker. The included angled desktop stands tilt the speakers 10 degrees upward to direct the tweeter axis toward the listening position at desk height, improving high-frequency dispersion and stereo imaging for a seated listener. The stands also decouple the cabinet from the desk surface, reducing mechanical vibration coupling and keeping the cabinet's bass-reflex output from interacting with the desk. Volume control is located on the rear of the right speaker, and the included remote control (RC-992S) provides convenient input selection and volume adjustment from the listening position.

Key Features

• 17 W x 2-Channel Class D Amplification: Built into the right speaker with Onkyo's proprietary DSP for speaker-optimised frequency balance and crossover tuning; 30 W total system power; 110 dB max SPL at 1 m stereo pair.
• 2-Way Bass-Reflex Drivers: 3-inch (76.2 mm) cone woofer for midrange and bass; 3/4-inch (19 mm) high-frequency driver with dedicated DSP EQ; rear slit duct tuning for extended low-frequency output.
• Bluetooth 5.3 LE Audio: A2DP 1.3.2 and AVRCP 1.6.2 with SBC codec; low-latency wireless streaming suitable for gaming and video synchronisation; up to approximately 15 m line-of-sight range.
• USB-C Audio Input: Direct digital connection from USB-C laptops, tablets, and computers; no separate audio interface required.
• Optical Digital Input: Accepts PCM two-channel audio at 32 kHz, 44.1 kHz, and 48 kHz from TV, gaming console, or digital source with optical output.
• RCA Line/Phono Input with Ground Terminal: Switchable line-level and moving magnet phono input with dedicated ground screw for direct turntable connection without a separate phono preamplifier.
• Subwoofer RCA Output: Line-level output for connection to any active powered subwoofer for bass extension.
• Angled Desktop Stands Included: 10-degree upward tilt for optimal tweeter axis at desk height; decouples cabinets from desk surface to reduce vibration coupling.
• Remote Control Included: RC-992S remote provides input selection and volume control from the listening position.
• MDF Bass-Reflex Cabinet: Detachable speaker grille; compact 120 x 180 x 170 mm per speaker; approximately 1.1 kg per speaker.

Technical Specifications

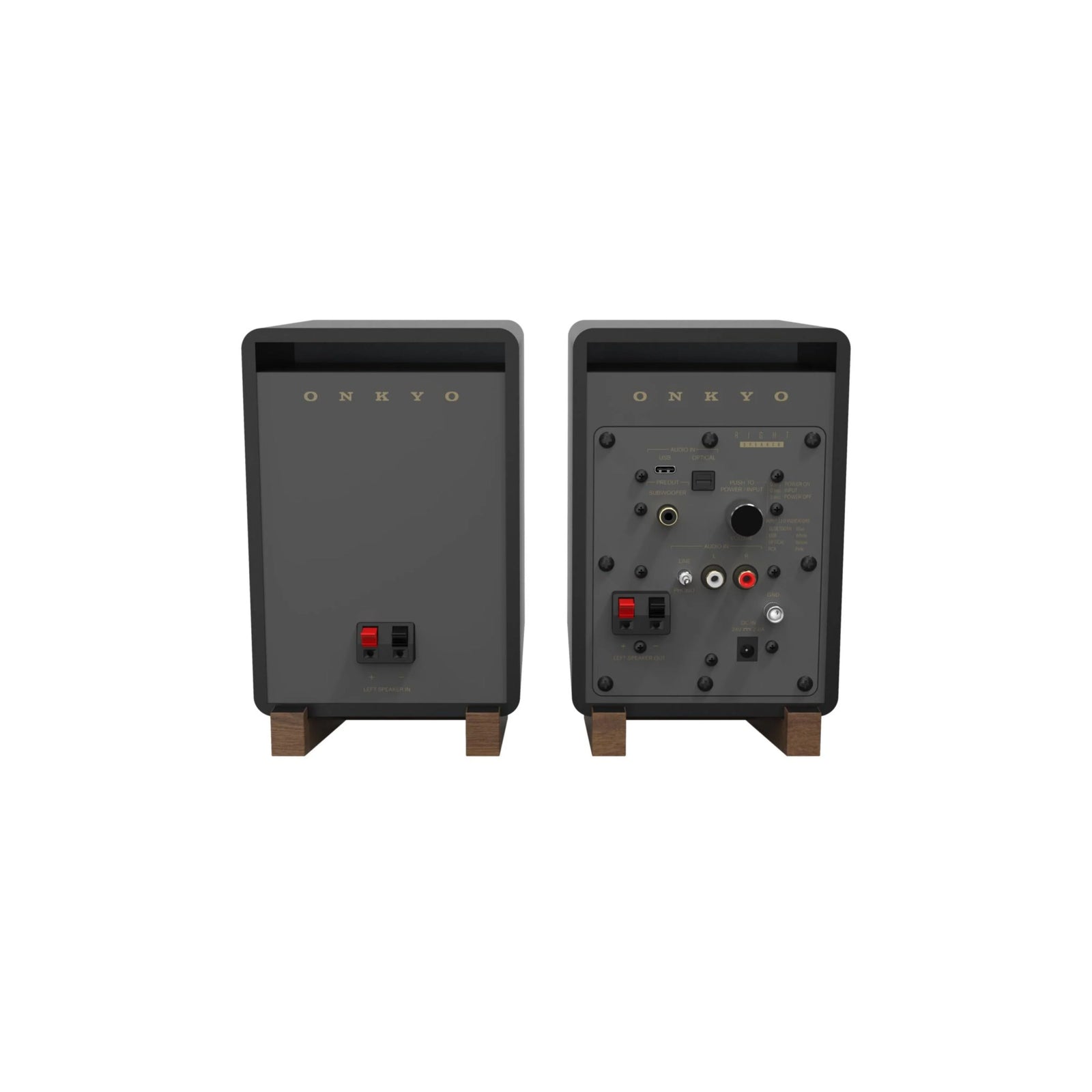

Connections at a Glance

• 1 x RCA stereo input (switchable Line/Phono MM; with ground terminal)
• 1 x Optical digital input (PCM 2ch up to 48 kHz)
• 1 x USB Type-C audio input
• 1 x RCA subwoofer line-level output
• Bluetooth 5.3 LE Audio (SBC; A2DP / AVRCP)

Frequently Asked Questions

What are the Onkyo GX-10DB speakers?

The Onkyo GX-10DB are a pair of two-way powered bookshelf monitors from the Creator Series, featuring a 3-inch woofer and 3/4-inch tweeter per speaker, 17 W per channel Class D amplification built into the right speaker, Onkyo DSP voicing, Bluetooth 5.3 LE Audio, USB-C, optical, and RCA line/phono inputs, a subwoofer output, and included angled desktop stands with remote control. They are available at Vinyl Sound in Toronto, Canada.

How do the Onkyo GX-10DB compare to the Edifier R1280DB or Audioengine A2+?

The GX-10DB stands out from the Edifier R1280DB and Audioengine A2+ through its Bluetooth 5.3 LE Audio implementation, which provides lower latency for gaming and video than the older Bluetooth versions used in both competitors. The USB-C audio input for direct laptop connection without a separate audio interface is absent from the Edifier R1280DB, and the GX-10DB's switchable line/phono RCA input with ground terminal enables direct turntable connection that the Audioengine A2+ does not offer without an add-on phono stage. Onkyo's proprietary DSP voicing, applied across the full signal chain from input to driver, provides a level of intentional speaker tuning and crossover optimisation that the Edifier R1280DB's standard analogue crossover cannot match.

Can the Onkyo GX-10DB connect to a turntable directly?

Yes, the GX-10DB includes a switchable RCA input that can be set to phono mode for direct connection from a moving magnet turntable. A dedicated ground screw terminal on the rear of the right speaker handles the turntable's ground wire to eliminate hum. No separate phono preamplifier is required. This makes the GX-10DB an unusually complete desktop speaker system for vinyl listeners at this size and price level.

What is Bluetooth LE Audio and how does it differ from standard Bluetooth?

Bluetooth LE Audio is an updated Bluetooth audio standard introduced with Bluetooth 5.3 that is built on the LE (Low Energy) radio stack rather than the Classic Bluetooth radio used by previous A2DP implementations. LE Audio delivers lower latency audio transmission, making it better suited to gaming and video playback where the gap between picture and sound must be minimised. The GX-10DB implements LE Audio alongside dual-mode operation, maintaining backward compatibility with Classic Bluetooth devices that use the standard SBC A2DP profile.

Do the GX-10DB speakers include stands?

Yes, a pair of angled desktop stands is included in the box. The stands tilt the speakers 10 degrees upward so that the tweeter axis points toward the ears of a seated listener at desk height rather than firing straight ahead, which improves high-frequency clarity and stereo imaging. The stands also physically decouple the cabinet from the desk surface, reducing transmission of desk vibration into the enclosure and preventing the cabinet's rear slit duct from interacting mechanically with the desk.

Where can I buy the Onkyo GX-10DB in Toronto or Canada?

The Onkyo GX-10DB Creator Series Powered Speakers are available at Vinyl Sound, an authorised Onkyo dealer in Toronto, Canada. Vinyl Sound carries the complete Onkyo Creator Series speaker lineup and can advise on pairing the GX-10DB with a subwoofer or integrating them into a desktop, gaming, or home office audio setup.
