Onkyo GX-30ARC Creator Series Powered Speakers (Pair) at Vinyl Sound Toronto Canada

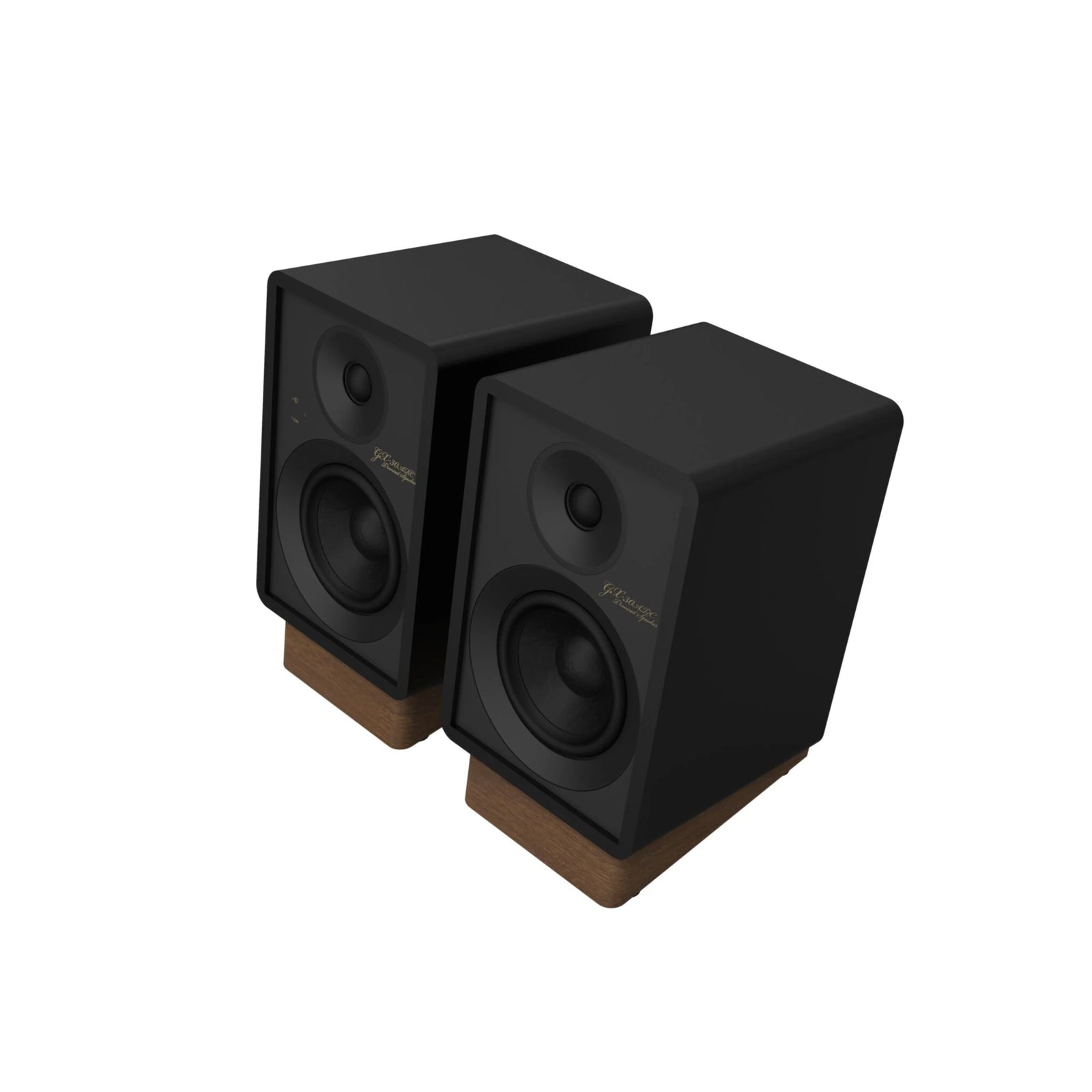

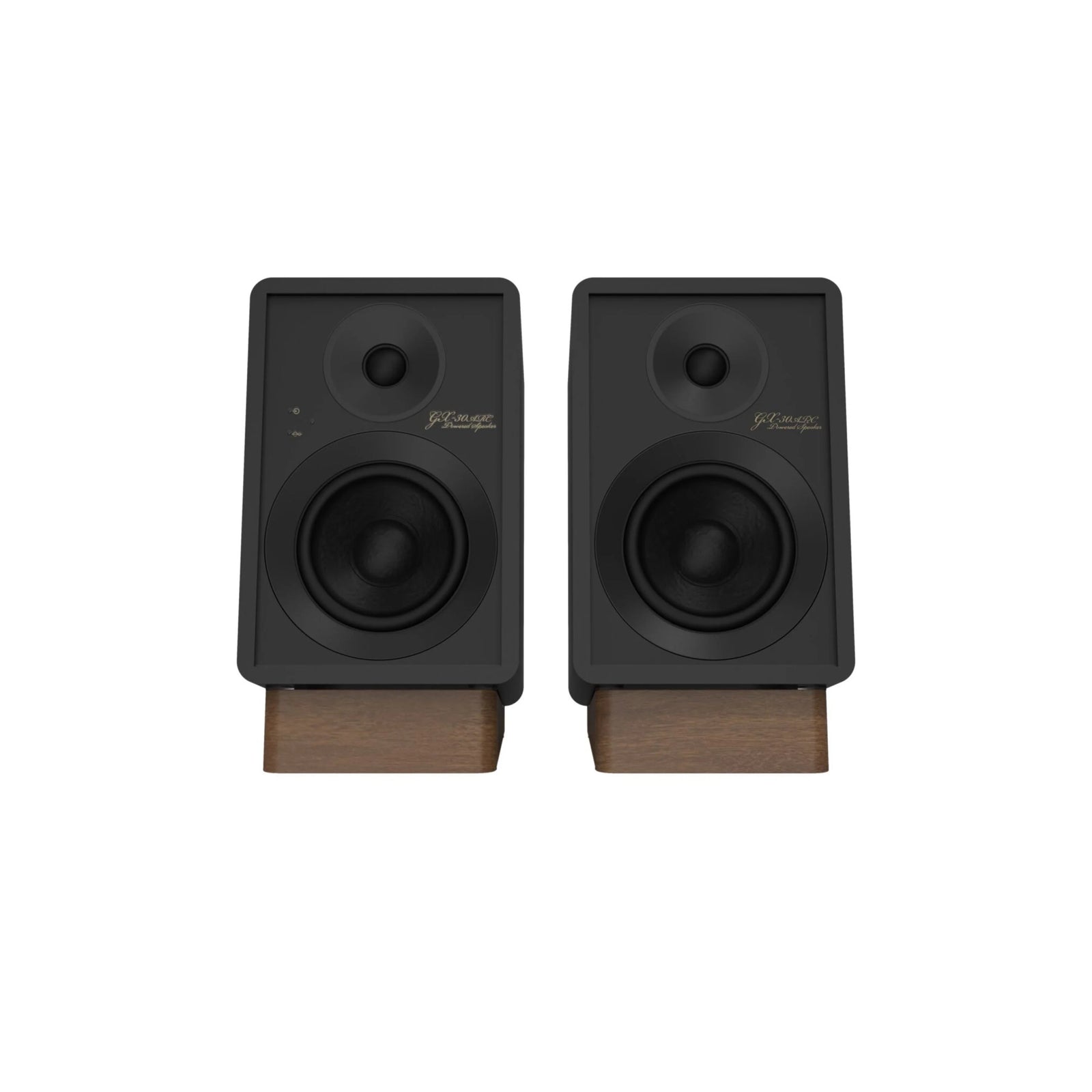

The GX-30ARC is a pair of two-way bi-amplified powered monitors from Onkyo's Creator Series (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Stepping up from the GX-10DB in the Creator Series lineup, the GX-30ARC features a larger 4-inch (101.6 mm) woofer and 3/4-inch tweeter driven by a dedicated bi-amplifier configuration delivering 17 W to the woofer and 8 W to the tweeter per channel, for 50 W total system power and a frequency response of 55 Hz to 20 kHz with 115 dB maximum SPL. The GX-30ARC adds an HDMI ARC input with CEC control and a 3.5 mm AUX input to the USB-C, optical, and RCA line/phono connectivity of the GX-10DB, covering television audio, gaming console, laptop, turntable, and wireless streaming in a single compact system. Bluetooth 5.3 LE Audio, Onkyo's proprietary DSP voicing, a subwoofer output, angled stands, and a remote control are all included.

Bi-Amplification and Class D Driver Architecture

Bi-amplification is the defining engineering step that separates the GX-30ARC from conventionally amplified powered speakers. In a standard powered speaker, a single amplifier channel drives both the woofer and tweeter, relying on a passive crossover network to divide the frequency range between them. Each driver's impedance variation with frequency interacts with the crossover components, introducing reactive load changes that the amplifier must handle simultaneously. In the GX-30ARC, a dedicated 17 W Class D amplifier drives the 4-inch woofer and a separate 8 W Class D amplifier drives the 3/4-inch tweeter, with Onkyo's proprietary DSP performing the crossover function digitally before amplification. This means each amplifier operates into a resistive load rather than a reactive crossover network, reducing intermodulation between the bass and treble amplifier channels and allowing each driver to be independently tuned for optimal efficiency and accuracy. The bass-reflex cabinet uses rear slit duct loading to extend low-frequency output beyond what the 4-inch driver could achieve in a sealed enclosure of the same size, contributing to the 55 Hz lower frequency limit.

HDMI ARC with CEC and Comprehensive Connectivity

The GX-30ARC's HDMI ARC input with Consumer Electronics Control (CEC) is the key connectivity differentiator over the GX-10DB. HDMI ARC allows a television to return audio from any of its built-in apps, streaming services, or connected sources back to the GX-30ARC over a single HDMI cable, enabling the speakers to serve as a genuine stereo TV audio upgrade without a separate soundbar or AV receiver. CEC support allows the television's remote control to adjust the GX-30ARC's volume and switch it on and off automatically when the television powers on or off. USB-C audio accepts a direct digital connection from any USB-C laptop or tablet. The optical input handles PCM two-channel audio at 32 kHz, 44.1 kHz, or 48 kHz from any source with a TOSLINK output. A 3.5 mm AUX stereo mini-jack accepts a smartphone, tablet, or analogue source directly. The switchable RCA line/phono input with dedicated ground screw connects any moving magnet turntable without a separate phono preamplifier. Bluetooth 5.3 with LE Audio and A2DP/AVRCP completes the wireless streaming path. A subwoofer RCA line-level output adds low-frequency expansion capability when paired with any active powered subwoofer.

Design, Stands, and Japanese Minimalism

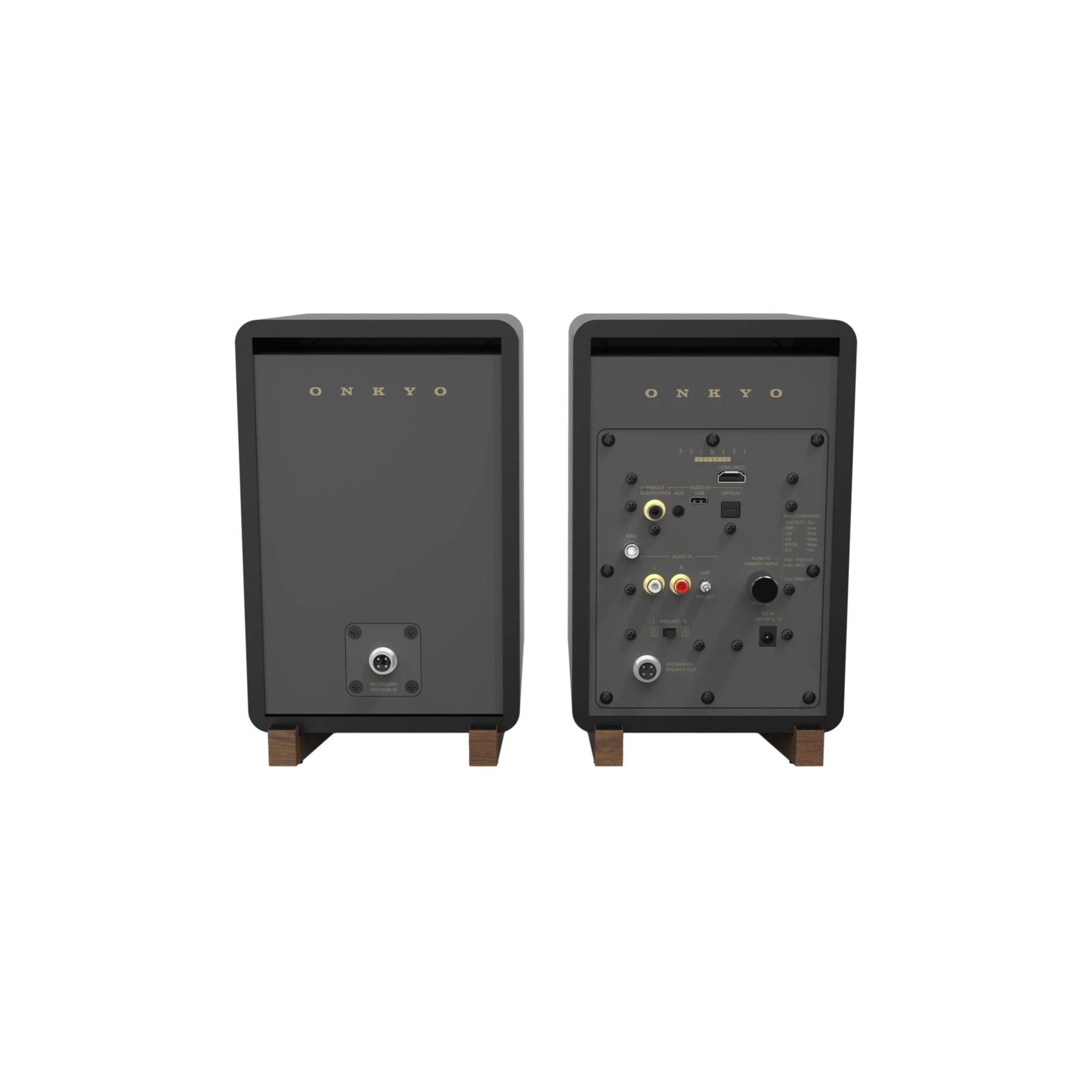

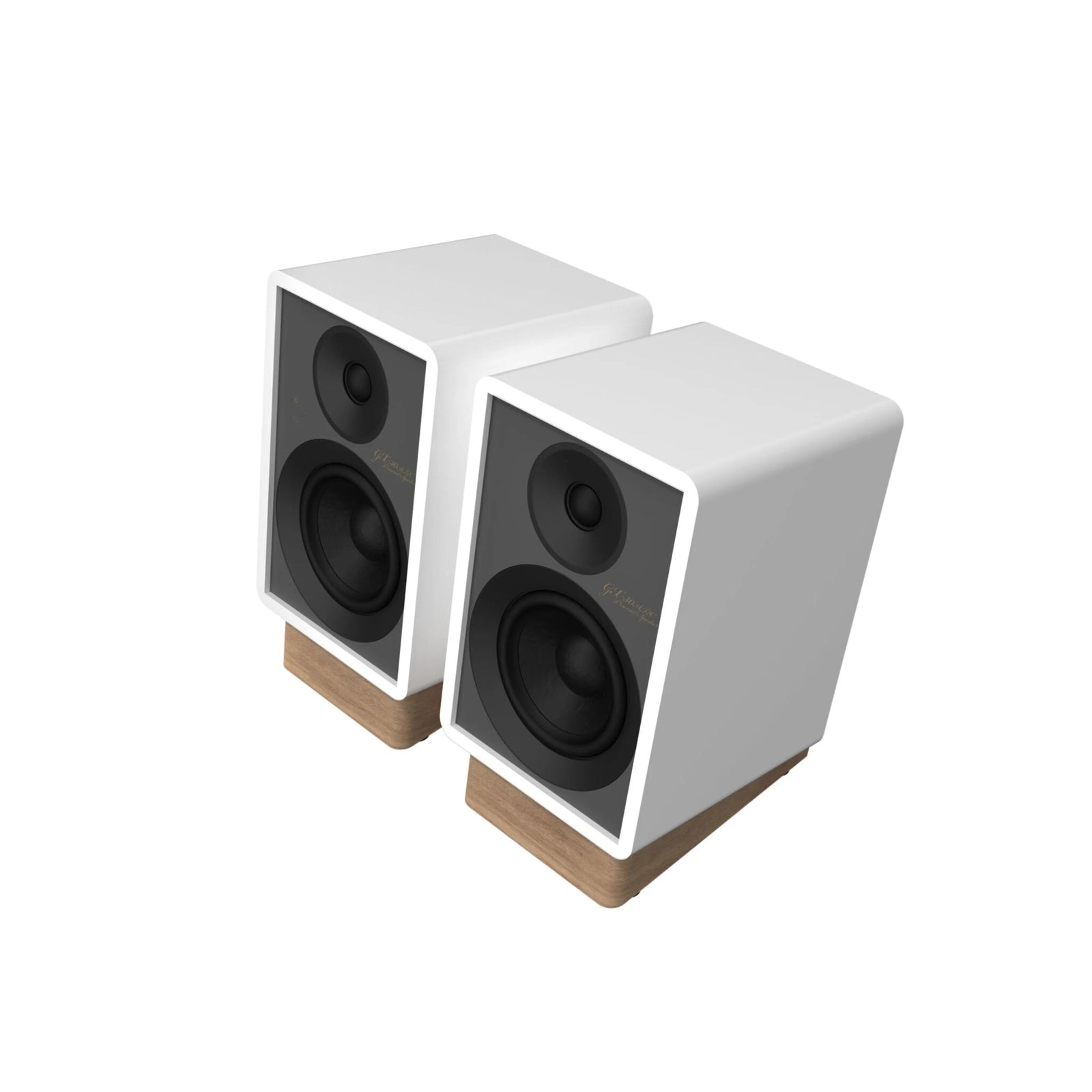

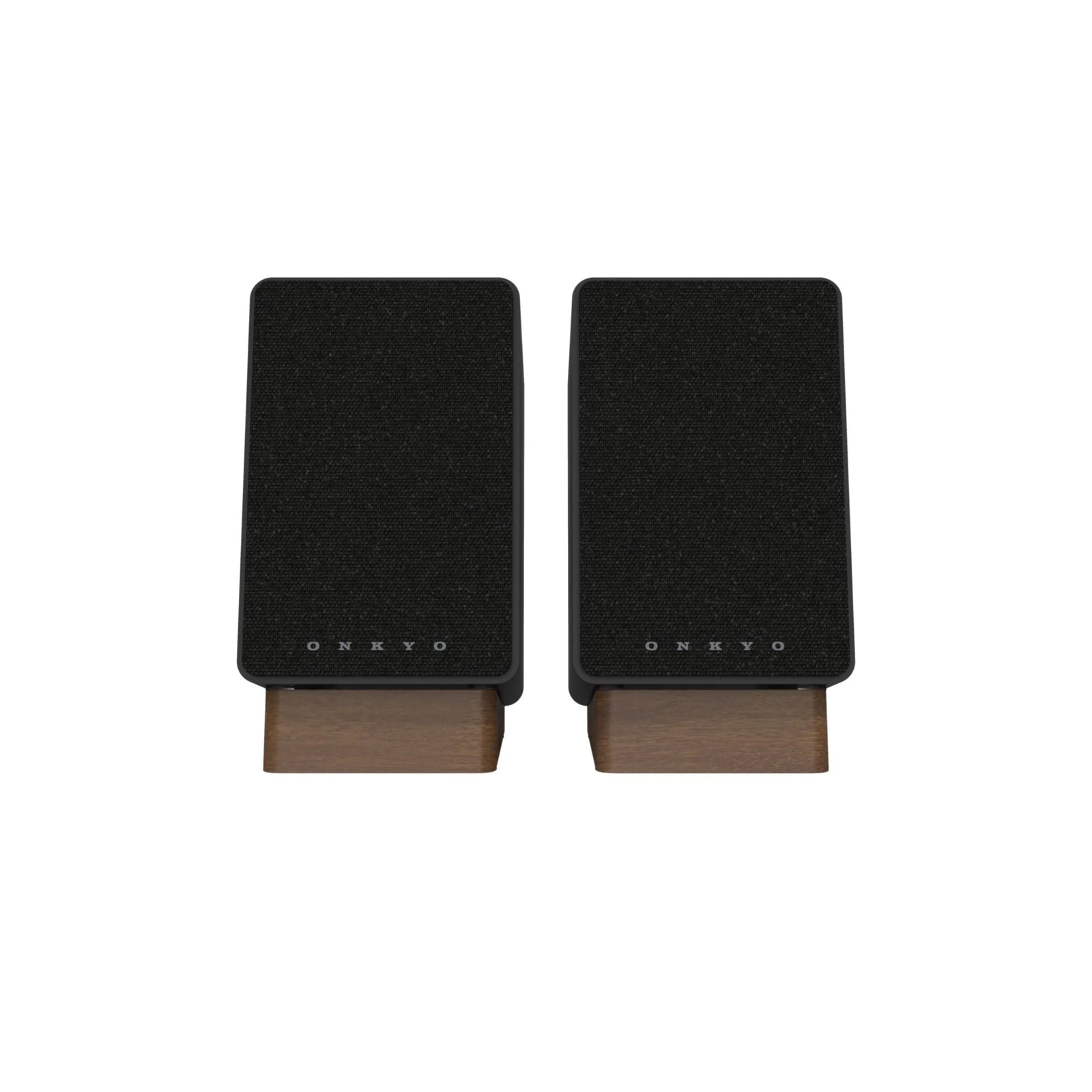

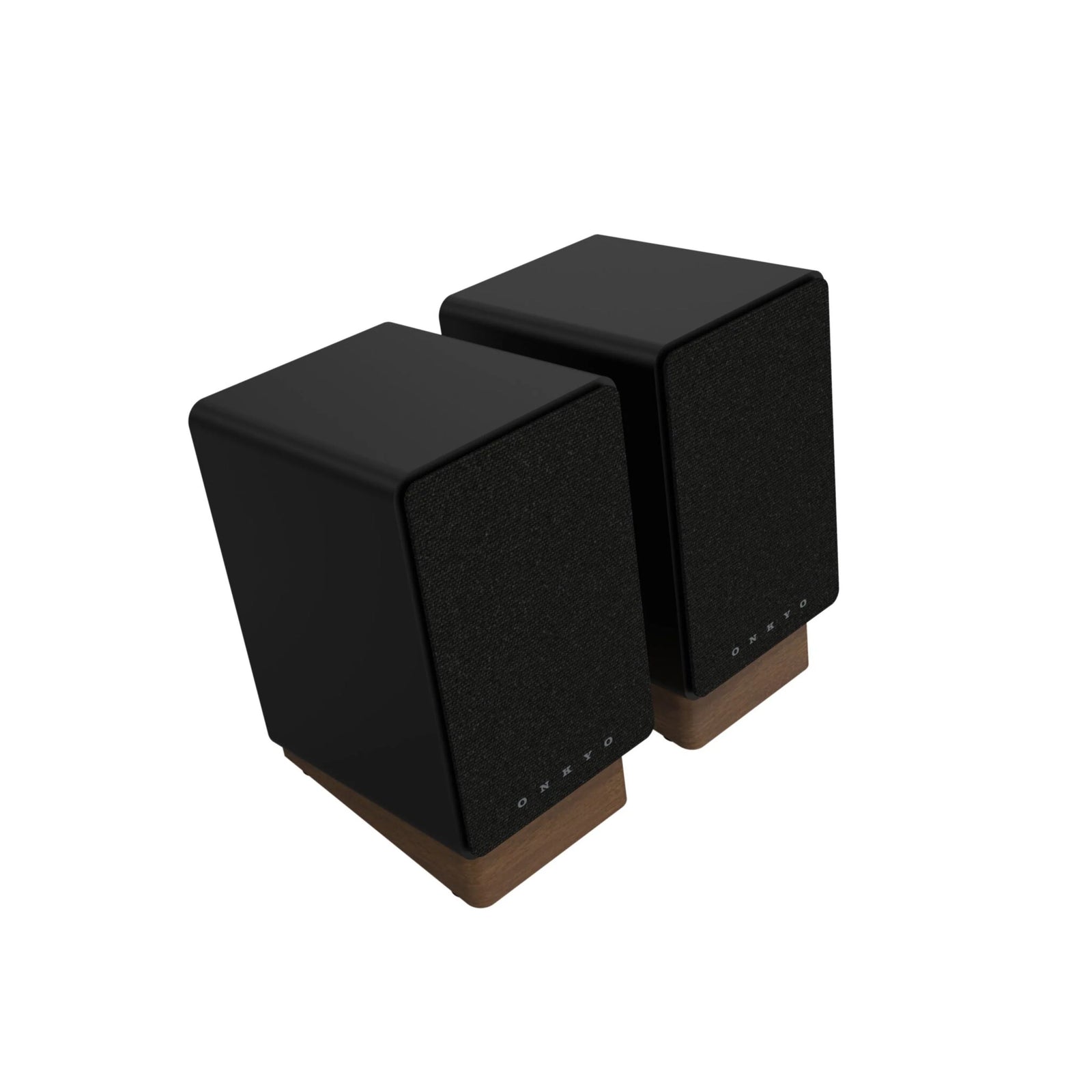

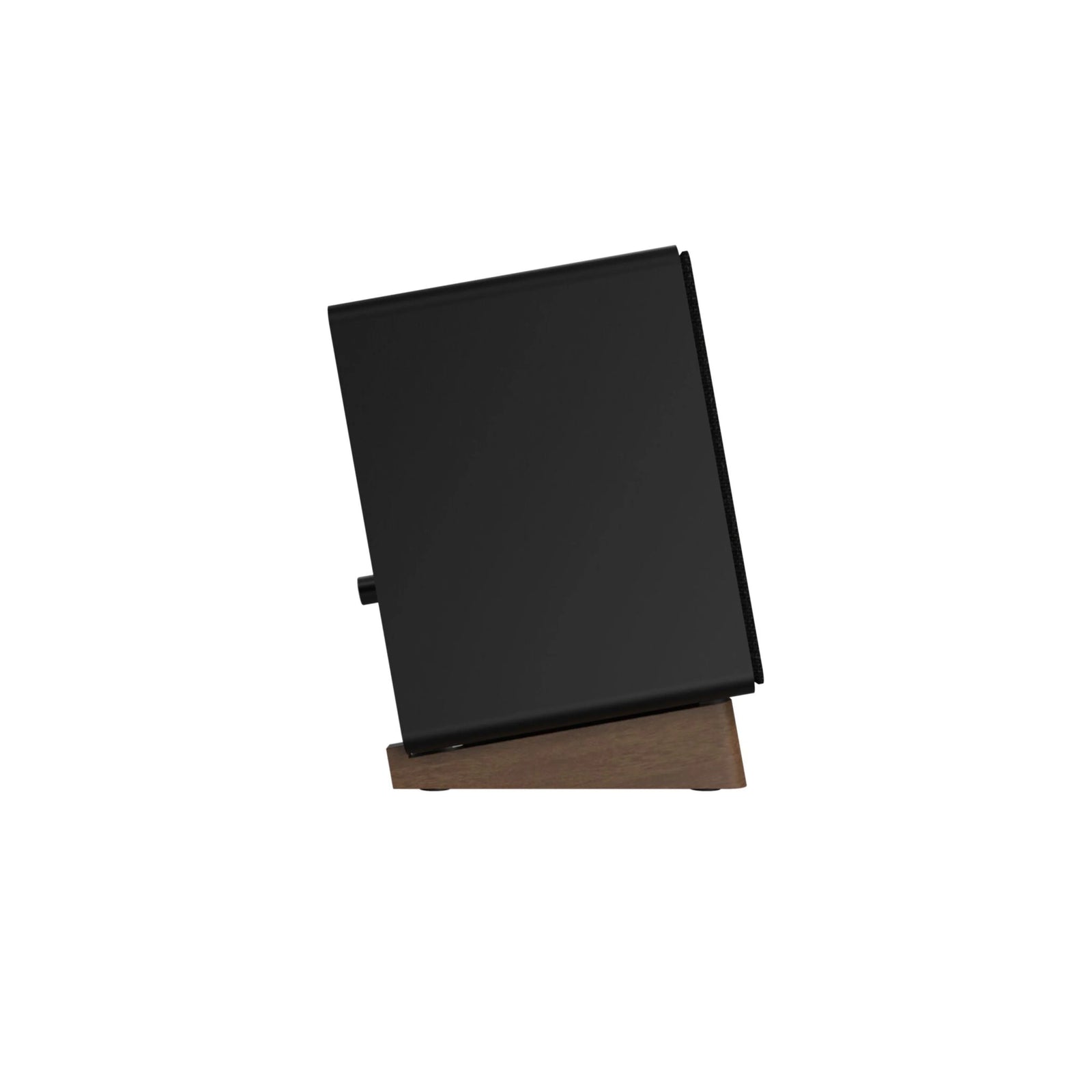

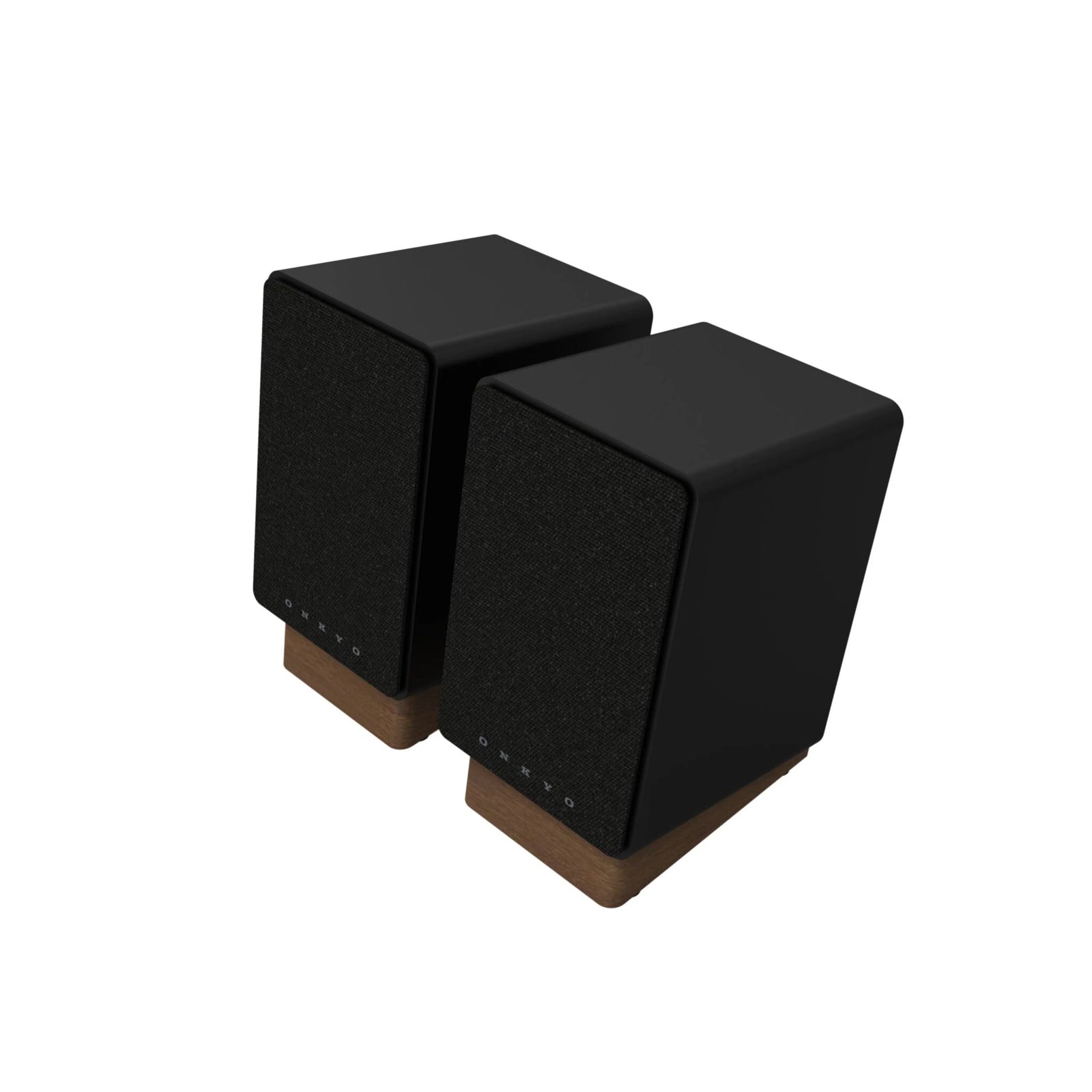

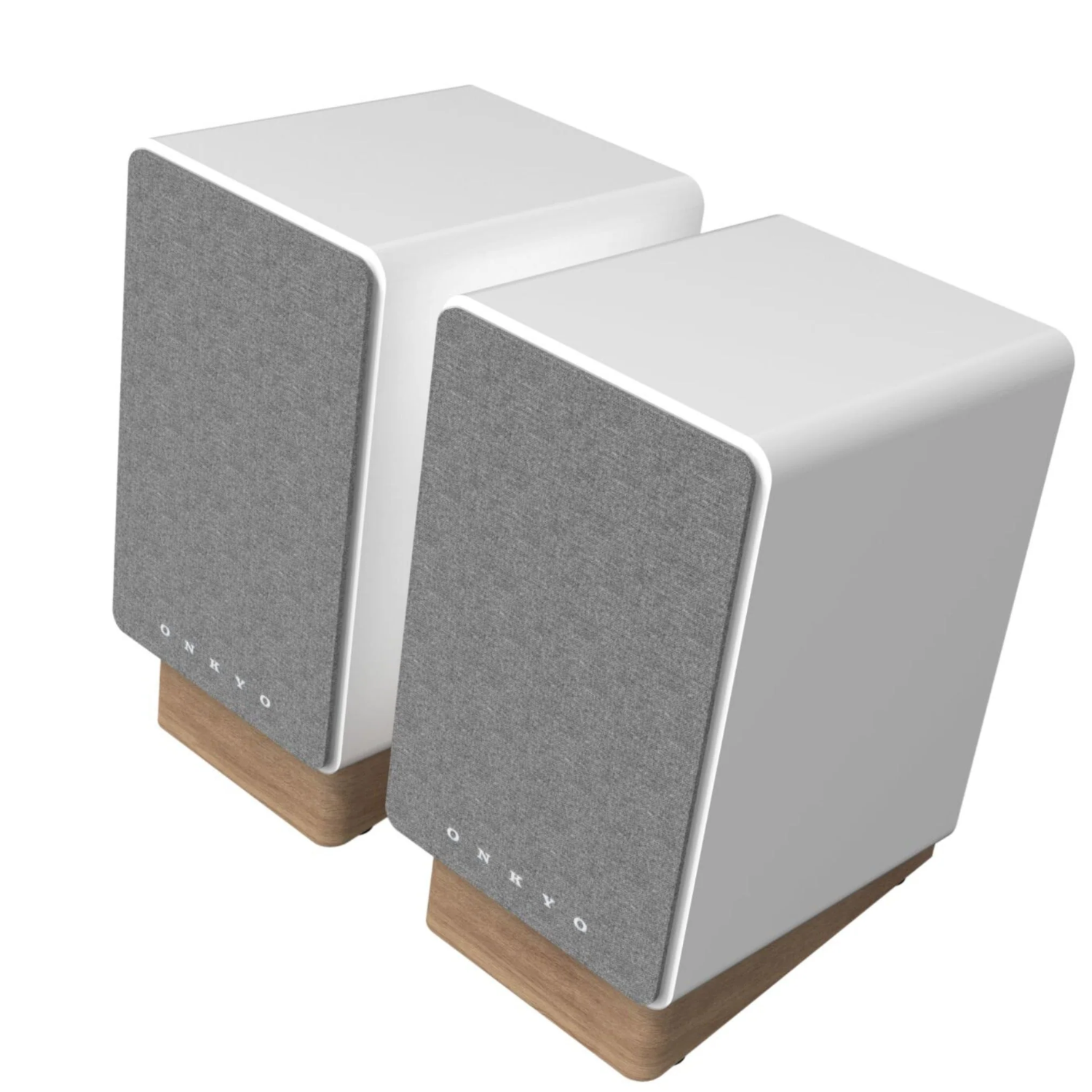

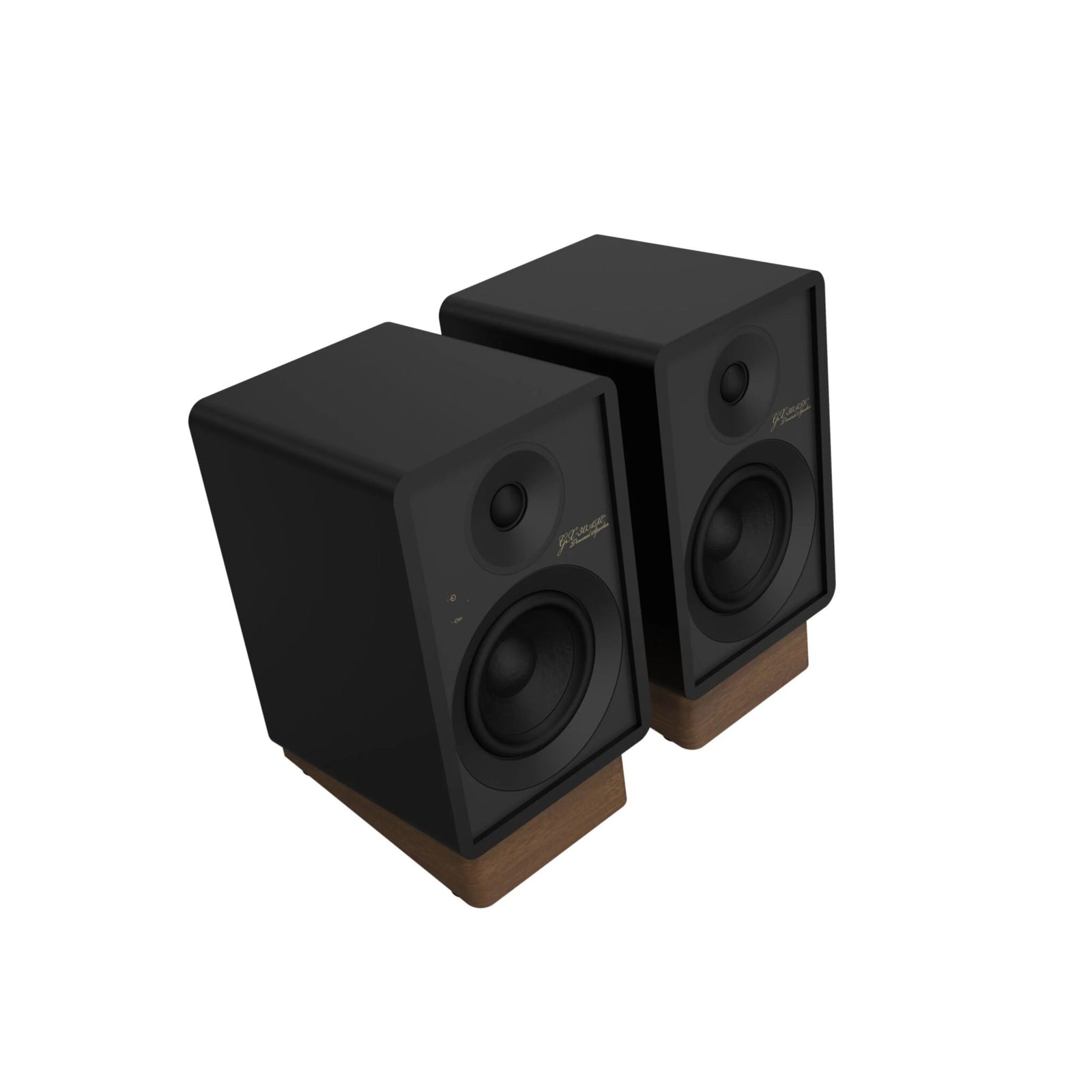

The GX-30ARC's cabinet measures 146 x 220 x 170 mm per speaker and weighs 2.7 kg (primary) and 2.4 kg (secondary), making it substantially more substantial than the GX-10DB while remaining desk-friendly. The MDF bass-reflex enclosure carries detachable speaker grilles and is finished in either black or white. The included angled desktop stands tilt the speakers upward to direct the tweeter axis toward a seated listener at desk height, and the stand geometry also decouples the cabinet from the desk surface to suppress mechanical vibration coupling. The Creator Series design language follows Onkyo's philosophy of technical precision and Japanese minimalism: clean cabinet lines, carefully selected materials, and a minimal front panel with no visible controls that are instead located on the rear of the primary speaker. The included remote control (RC-992S) adjusts volume and input selection from any seated or standing listening position.

Key Features

• Bi-Amplified Class D Design: 17 W to the 4-inch woofer and 8 W to the 3/4-inch tweeter per channel via dedicated Class D amplifiers, with DSP-based digital crossover; 50 W total system power; 115 dB max SPL at 1 m stereo pair.
• 4-Inch Woofer and 3/4-Inch Tweeter: Bass-reflex cabinet with rear slit duct tuning; frequency response 55 Hz to 20 kHz for fuller low-frequency extension than the GX-10DB.
• HDMI ARC Input with CEC: Single-cable TV audio connection; CEC enables TV remote volume control and automatic power-on/off synchronisation with the television.
• Onkyo DSP Voicing: Proprietary digital signal processing applied before amplification for speaker-optimised frequency balance, crossover, and dynamic performance.
• Bluetooth 5.3 LE Audio: A2DP 1.3.2 and AVRCP 1.6.2 with SBC codec; low-latency wireless streaming for gaming and video; up to 15 m line-of-sight range.
• USB-C Audio Input: Direct digital connection from USB-C laptops and tablets without a separate audio interface.
• Optical Digital Input: PCM two-channel audio at 32 kHz, 44.1 kHz, and 48 kHz from TV, gaming console, or digital source with TOSLINK output.
• 3.5 mm AUX Input: Stereo mini-jack for direct smartphone, tablet, or analogue source connection.
• RCA Line/Phono Input with Ground Terminal: Switchable input for line-level sources or moving magnet turntables; dedicated ground screw eliminates hum.
• Subwoofer RCA Output: Line-level output for connection to any active powered subwoofer for low-frequency expansion.
• Angled Desktop Stands and Remote Control Included: Stands tilt speakers upward and decouple them from the desk; RC-992S remote for input and volume control.
• Universal Power Supply: AC 100-240 V, 50/60 Hz for use worldwide.

Technical Specifications

Connections at a Glance

• 1 x HDMI ARC input (CEC compatible)
• 1 x RCA stereo input (switchable Line/Phono MM; with ground terminal)
• 1 x 3.5 mm AUX stereo input
• 1 x Optical digital input (PCM 2ch up to 48 kHz)
• 1 x USB Type-C audio input
• 1 x RCA subwoofer line-level output
• Bluetooth 5.3 LE Audio (SBC; A2DP / AVRCP)

Frequently Asked Questions

What are the Onkyo GX-30ARC speakers?

The Onkyo GX-30ARC are a pair of two-way bi-amplified powered bookshelf monitors from the Creator Series, featuring a 4-inch woofer and 3/4-inch tweeter per speaker with separate 17 W and 8 W Class D amplifiers for each driver, 50 W total system power, a frequency response of 55 Hz to 20 kHz, HDMI ARC with CEC, USB-C, optical, 3.5 mm AUX, and RCA line/phono inputs, a subwoofer output, Bluetooth 5.3 LE Audio, Onkyo DSP voicing, and included angled stands and remote control. They are available at Vinyl Sound in Toronto, Canada.

How does the Onkyo GX-30ARC compare to the Edifier S880DB or Klipsch The Fives?

The GX-30ARC stands apart from the Edifier S880DB and Klipsch The Fives through its bi-amplified Class D architecture with dedicated DSP-based digital crossover, which provides individual drive optimisation for each frequency range that single-amplifier designs with passive crossovers cannot match. HDMI ARC with CEC is shared with Klipsch The Fives and Edifier S880DB, but the GX-30ARC's inclusion of USB-C audio alongside HDMI ARC, optical, 3.5 mm AUX, and phono in a single compact system gives it a broader connectivity profile. Bluetooth 5.3 LE Audio is a more current Bluetooth standard than the Bluetooth 5.0 used in the Edifier S880DB, providing lower latency for gaming and video applications.

What does HDMI ARC with CEC mean for connecting a television?

HDMI ARC (Audio Return Channel) allows the television to send audio from its built-in apps, streaming services, and connected sources back to the GX-30ARC through the same HDMI cable that carries video from other devices to the TV. This simplifies cabling by eliminating the need for a separate optical or RCA cable from the television to the speakers. CEC (Consumer Electronics Control) is an HDMI protocol that allows the television's remote control to adjust the GX-30ARC's volume, mute it, and turn it on or off automatically when the television powers on or off, so no separate speaker remote is needed for basic TV audio control.

What is bi-amplification and how does it benefit the GX-30ARC?

Bi-amplification means that separate amplifier channels drive the woofer and tweeter of each speaker independently, rather than a single amplifier driving both through a passive crossover. In the GX-30ARC, the DSP performs the frequency division digitally before amplification, allowing the 17 W low-frequency amplifier and 8 W high-frequency amplifier to each operate into their respective driver without the reactive loading effects of passive crossover components. This improves efficiency for each driver's operating band, reduces intermodulation between the bass and treble output stages, and allows independent level and timing optimisation for the woofer and tweeter, resulting in more accurate frequency balance and improved stereo imaging.

What is the difference between the GX-30ARC and the GX-10DB?

The GX-30ARC steps above the GX-10DB in driver size (4-inch versus 3-inch woofer), total power (50 W versus 30 W), bi-amplification (dedicated amplifiers per driver versus a single amplifier per channel), lower frequency extension (55 Hz versus 70 Hz), and maximum SPL (115 dB versus 110 dB). The GX-30ARC adds HDMI ARC with CEC and a 3.5 mm AUX input that the GX-10DB does not include, along with the larger cabinet volume and stands that accompany the larger drivers. Both share the same USB-C, optical, RCA line/phono, Bluetooth 5.3, DSP voicing, and subwoofer output connectivity.

Where can I buy the Onkyo GX-30ARC in Toronto or Canada?

The Onkyo GX-30ARC Creator Series Powered Speakers are available at Vinyl Sound, an authorised Onkyo dealer in Toronto, Canada. Vinyl Sound carries the complete Onkyo Creator Series speaker lineup and can advise on pairing the GX-30ARC with a television, gaming setup, or desktop audio system.
