Universal Audio OX Amp Top Box

Universal Audio OX Amp Top Box at Vinyl Sound Toronto Canada

The Universal Audio OX is a premium reactive load box and guitar recording system that lets you record and practice with any tube amplifier at any volume level, delivering authentic speaker cabinet emulations, microphone simulations, and studio-quality room modeling from a single front-panel RIG knob. Developed by Universal Audio (Santa Cruz, California, USA) and available at Vinyl Sound in Toronto, Canada, the OX features UA's proprietary Dynamic Speaker Modeling to emulate speaker breakup, drive, and cone cry for reference-quality tube amp tones at any output level.

Reactive Load Box with Full Amp Dynamics

Universal Audio's engineering team designed the OX's reactive load section to present your tube amplifier with continuously variable impedance and response, so the amplifier behaves exactly as it would driving a real speaker cabinet regardless of the attenuation level selected. Output transformer loading, power tube compression, and tonal response all remain authentic from clean to fully cranked settings, preserving the playing dynamics and feel that conventional resistive load boxes eliminate.

Dynamic Speaker Modeling

UA's Dynamic Speaker Modeling faithfully emulates speaker breakup, drive, and cone cry, characteristics of authentic tube amp tones that static impulse response systems cannot reproduce. The Speaker Breakup control in the OX application adjusts the harmonics and sonic complexity that occurs at specific frequencies and volume levels on various speaker designs, delivering the same dynamic phenomena as a real speaker cabinet reacting to your playing in real time.

RIG Control and Cabinet Emulation

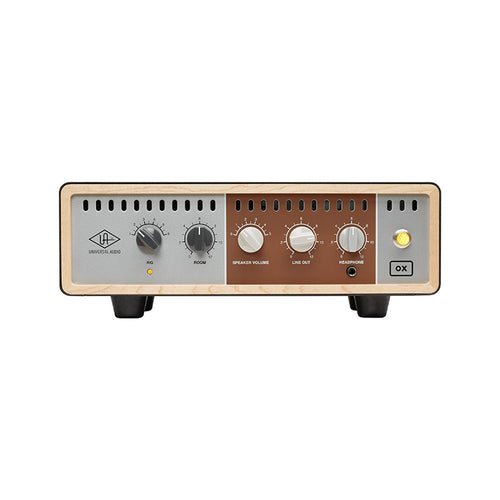

The OX's six-position front-panel RIG knob provides instant access to complete setups including emulated speaker cabinets, close microphones, ambient room microphones, and up to four simultaneous studio effects. The OX application, compatible with iPad, Mac, and Windows computers via Wi-Fi, provides access to over 100 custom Rigs with full parametric control over all cabinet, mic, and room settings. Six favorite Rigs save directly to the front-panel RIG positions for instant recall in the studio or on stage.

Connections and Recording Workflow

The OX Amp Top Box provides stereo S/PDIF digital outputs via RCA and optical TOSLINK for direct connection to any audio interface or DAW, alongside balanced TRS stereo line outputs with front-panel level control for studio monitors or live mixing console inputs. A front-panel headphone output enables silent practice with any cranked tube amplifier, and a footswitch input accepts any one, two, or three-button footswitch for hands-free effects switching during performance or recording.

Frequently Asked Questions

What is the Universal Audio OX Amp Top Box?

The Universal Audio OX is a reactive load box and guitar recording system that connects between your tube amplifier and speaker cabinet, allowing you to run your amp at full power while controlling the listening volume independently. It emulates speaker cabinets, close microphones, ambient room microphones, and studio effects via a front-panel RIG knob and the OX Wi-Fi application, and features UA's Dynamic Speaker Modeling to accurately reproduce speaker breakup, cone cry, and drive at any listening volume. Available at Vinyl Sound in Toronto, Canada.

Does the UA OX work with any tube amplifier?

The OX Amp Top Box is compatible with any tube amplifier with an output impedance of 4, 8, or 16 ohms. The reactive load section presents your amplifier with continuously variable impedance that mimics a real speaker cabinet, preserving the amplifier's tonal characteristics, output transformer behaviour, and power tube compression at all attenuation levels. Always match your amplifier's output impedance setting to the OX before connecting.

Can I use the UA OX for silent recording and practice?

Yes. The OX includes a front-panel headphone output for completely silent practice and recording at any tube amp output level. Using the OX application via Wi-Fi from an iPad, Mac, or Windows computer, you can select speaker cabinet emulations, room microphones, and effects while monitoring through headphones, making the OX suitable for apartment practice, late-night sessions, or any environment where speaker cabinet volume is not practical.

What is Dynamic Speaker Modeling and how is it different from impulse responses?

Dynamic Speaker Modeling is Universal Audio's proprietary technology for emulating the behaviour of a real guitar speaker under drive. Unlike conventional impulse response systems, which capture a static snapshot of a speaker's frequency response, Dynamic Speaker Modeling emulates the dynamic changes in speaker behaviour that occur at different volume and drive levels, including speaker breakup, cone cry, and harmonic compression. The OX Speaker Breakup control adjusts the intensity of this emulation to match your playing style and amp output.

How does the OX connect to a recording setup?

The OX provides stereo S/PDIF digital outputs via RCA and optical TOSLINK connectors, balanced TRS stereo line outputs with front-panel level control, and a front-panel headphone output. The digital outputs connect directly to any audio interface with S/PDIF input for recording into a DAW, while the balanced line outputs feed studio monitors or live mixing console inputs. A speaker output also passes signal through to a real cabinet for applications requiring both OX emulation and a live cabinet simultaneously.

What does the OX application control?

The OX application connects to the OX Amp Top Box via Wi-Fi and is compatible with iPad, Mac, and Windows computers. It provides access to over 100 factory and third-party Rigs, each comprising a speaker cabinet emulation, close microphone, ambient room microphone selection, and up to four studio effects. All parameters including speaker type, mic placement, room size, reverb, delay, chorus, and the Speaker Breakup control are adjustable from the app, with six favorites saveable directly to the front-panel RIG positions.

Where can I buy the Universal Audio OX in Toronto or Canada?

The Universal Audio OX Amp Top Box is available at Vinyl Sound, an authorized Universal Audio dealer in Toronto, Canada. Browse the full Universal Audio collection at Vinyl Sound or contact our team to discuss the OX alongside other UA hardware for your recording setup.
