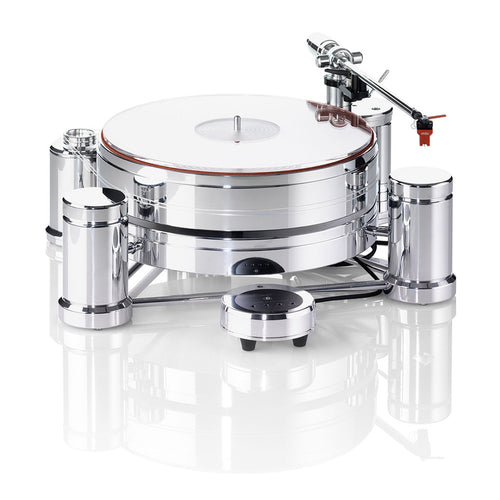

ACOUSTIC SOLID - SOLID EDITION TURNTABLE

$8,575.00

Pay as per month with Paybright

Options
Color
Polished
Aluminum Matte Finish
Quantity

Product Details

Package 1 contains WTB-370 Tonearm Only! No Cartridge! Microcontroller motor control M2 with crystal oscillator

Package 2 contains WTB-213 Tonearm Only! No Cartridge! Microcontroller motor control M2 with crystal oscillator



Edition New – A mass drive for pure hi-fi

Display with optional 9" tonearm WTB 213 and pickup system Ortofon Quintett Red



Features:



Construction principle Acoustically optimized drive shape

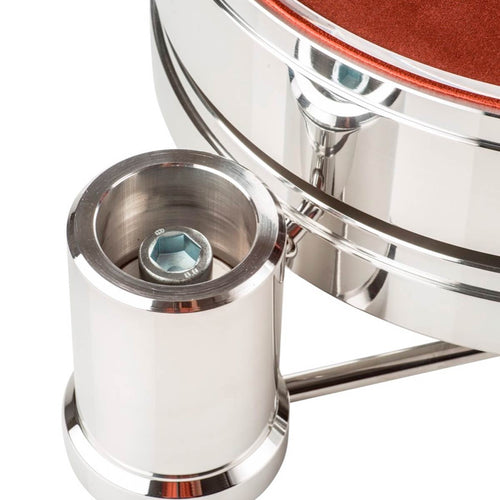

Base carrier plate 40 mm and feet made of all-aluminum
resonance optimized and decoupled via special
Teflon discs and silicone mixture dampers
Range Convenient speed switching
at the touch of a button 33.3, 45 rpm
fine adjustment + or – possible at any time at the touch of a button
Bearing Ground stainless steel axle
cast liner and cast bearing bottom
floor again dampened and decoupled with Teflon discs.
Special resonance-optimized material with polished ceramic ball
Drive Berger Lahr synchronous motor with
belt drive (2-fold)
belt made of nylon silicone mixture
microprocessor controlled electronics
Turntable Made of all aluminium 12.5 kg turntable thickness 60 mm
CNC precision turned and polished by hand
Turntable pad Mat made of genuine leather
5mm Plexiglas pad
Synchronization 0.06 % (measured with Ortofon measuring computer)
Electrical/Power Supply 240 Volt 47-63 Herz 0.4 Amper
Output 32 Volt 0.46 Amper maximum
Switching power supply with IEC plug cable
Weight 28 kg weight without tonearm
Weight 28 kg
Size 35 × 35 × 22 cm
Material

Aluminium

Drive

High-gloss aluminium

Tone arm

with tonearm WTB 370 incl. high-quality pickup system

Control

Microcontroller M2 with quartz generator and fine adjustment

Scope of delivery

1 Turntable Solid Edition
