Audio-Technica AT-CAP1 Cartridge Alignment Protractor at Vinyl Sound Toronto Canada

The AT-CAP1 is a phono cartridge alignment protractor from Audio-Technica (Tokyo, Japan), available at Vinyl Sound in Toronto, Canada. Built around the Baerwald alignment method, it provides a precise geometric reference for setting a cartridge's offset angle and null points on tonearms with an effective length between 222 mm (8.7") and 250 mm (9.8"). Correct cartridge alignment is one of the most impactful setup steps in analogue playback, directly determining how accurately the stylus tracks the record groove across the full playing surface.

Baerwald Alignment and Why It Matters

A phono cartridge mounted in a pivoting tonearm traces an arc across the record rather than a straight radial line. Because vinyl grooves are cut with a tangential relationship between the cutting stylus and the groove, a pivoting tonearm introduces tracking angle error at most points on the record. The Baerwald method is one of the most widely used mathematical solutions to this problem. It calculates an optimal cartridge offset angle and establishes two null points, the specific radii at which the stylus is perfectly tangent to the groove, in positions that minimise the peak tracking angle error across the playable surface. The AT-CAP1 translates this geometry into a physical printed protractor, giving the user a reliable template to position the cartridge correctly in the headshell.

Offset Angle, Null Points, and Tracking Distortion

The two parameters the AT-CAP1 helps set are directly responsible for tracking distortion across a record side. Offset angle is the angle between the cartridge body and the headshell slots; setting it correctly ensures the stylus approaches the groove at the intended geometry. The null points are the two radii where tracking angle error drops to zero; by aligning the stylus to these positions on the protractor grid, the user ensures that distortion is distributed as evenly and minimally as possible between the inner and outer grooves. Misalignment at either parameter results in elevated harmonic distortion, degraded stereo separation, and accelerated stylus and groove wear. The AT-CAP1 makes this process accessible and repeatable for any cartridge installed on a compatible tonearm.

Key Features

• Baerwald Alignment Method: Uses the industry-standard Baerwald geometric solution to calculate the optimal offset angle and two null points for pivoting tonearms, minimising peak tracking angle error across the record surface.

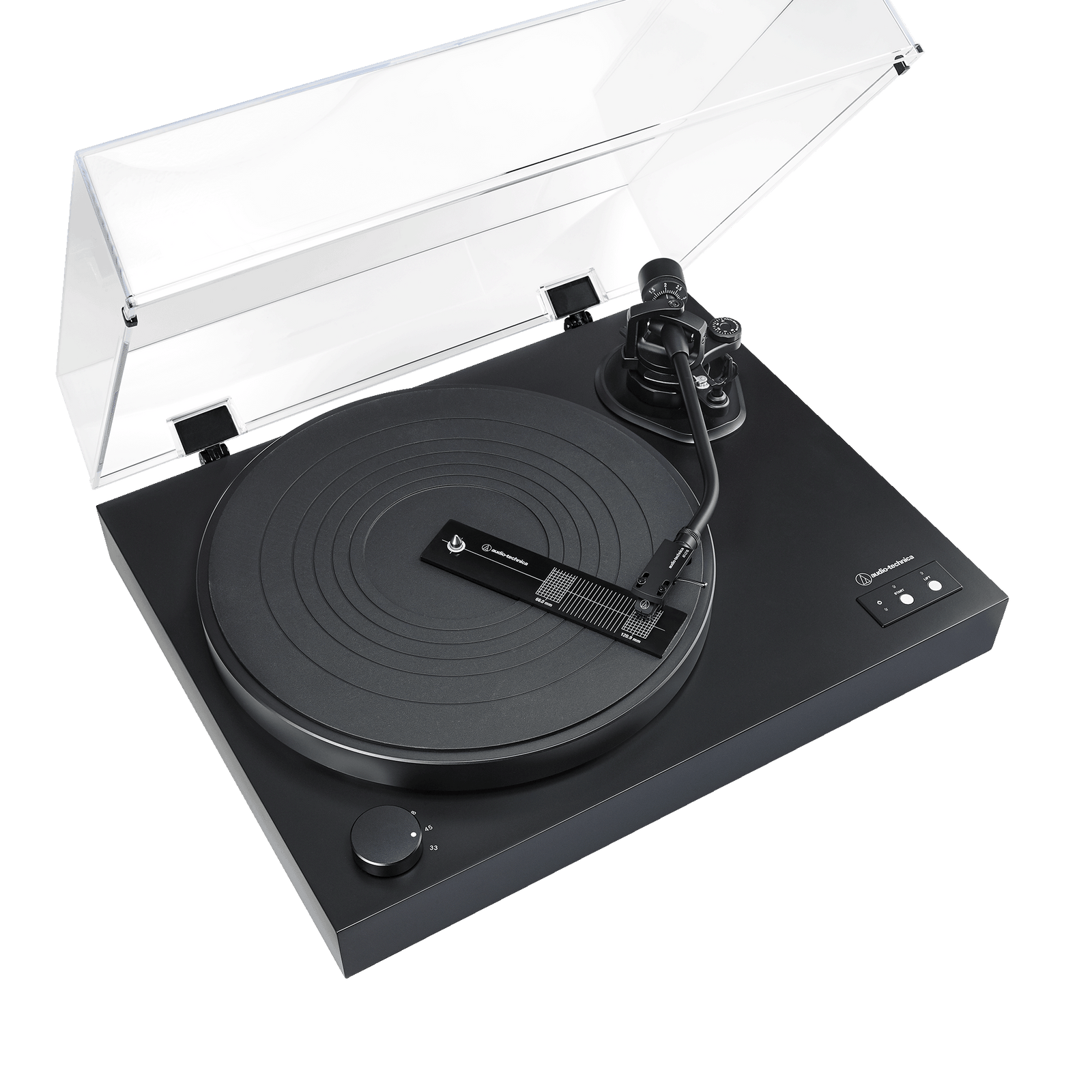

• Offset Angle and Null Point Setting: Provides a printed reference grid for accurately positioning both the cartridge offset angle and the two null point radii simultaneously during headshell alignment.
• Compatible Tonearm Range: Suited to tonearms with an effective length between 222 mm (8.7") and 250 mm (9.8"), covering the most common 9-inch tonearm geometry found on belt-drive and direct-drive turntables.
• Reduces Tracking Distortion: Proper cartridge alignment achieved with the AT-CAP1 directly lowers harmonic distortion and improves stereo separation compared to an unaligned or roughly positioned cartridge.
• Protects Stylus and Records: Correct offset angle and null point placement reduces uneven groove wall pressure, extending the working life of both the cartridge stylus and the record collection.

Technical Specifications

Frequently Asked Questions

What is the Audio-Technica AT-CAP1?

The AT-CAP1 is a printed cartridge alignment protractor from Audio-Technica that uses the Baerwald method to help set a phono cartridge's offset angle and null points. It is compatible with tonearms whose effective length falls between 222 mm and 250 mm, covering the standard 9-inch tonearm geometry common to most home turntables. Correct alignment achieved with the AT-CAP1 reduces tracking distortion, improves stereo imaging, and protects both the stylus and the record grooves.

What is the Baerwald alignment method?

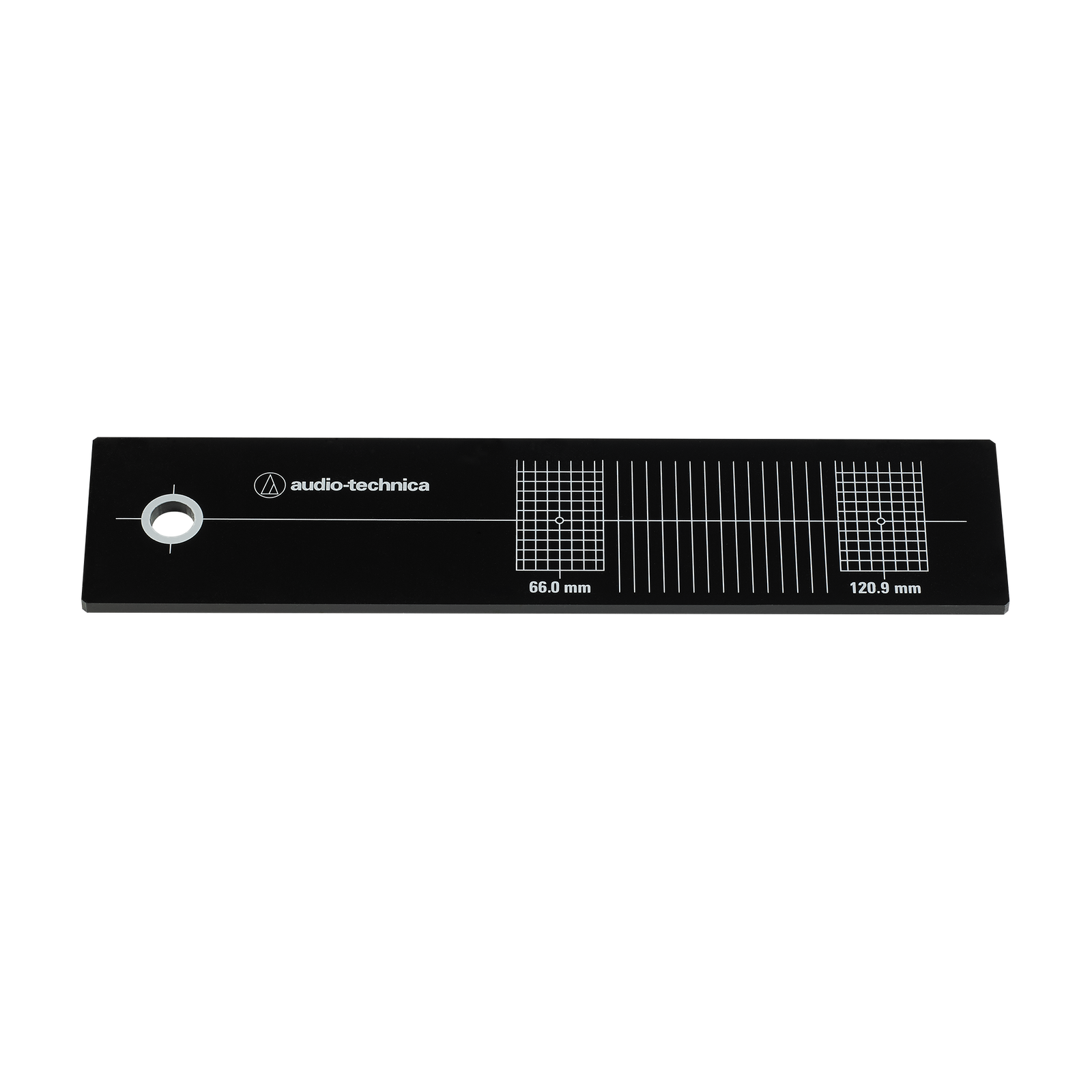

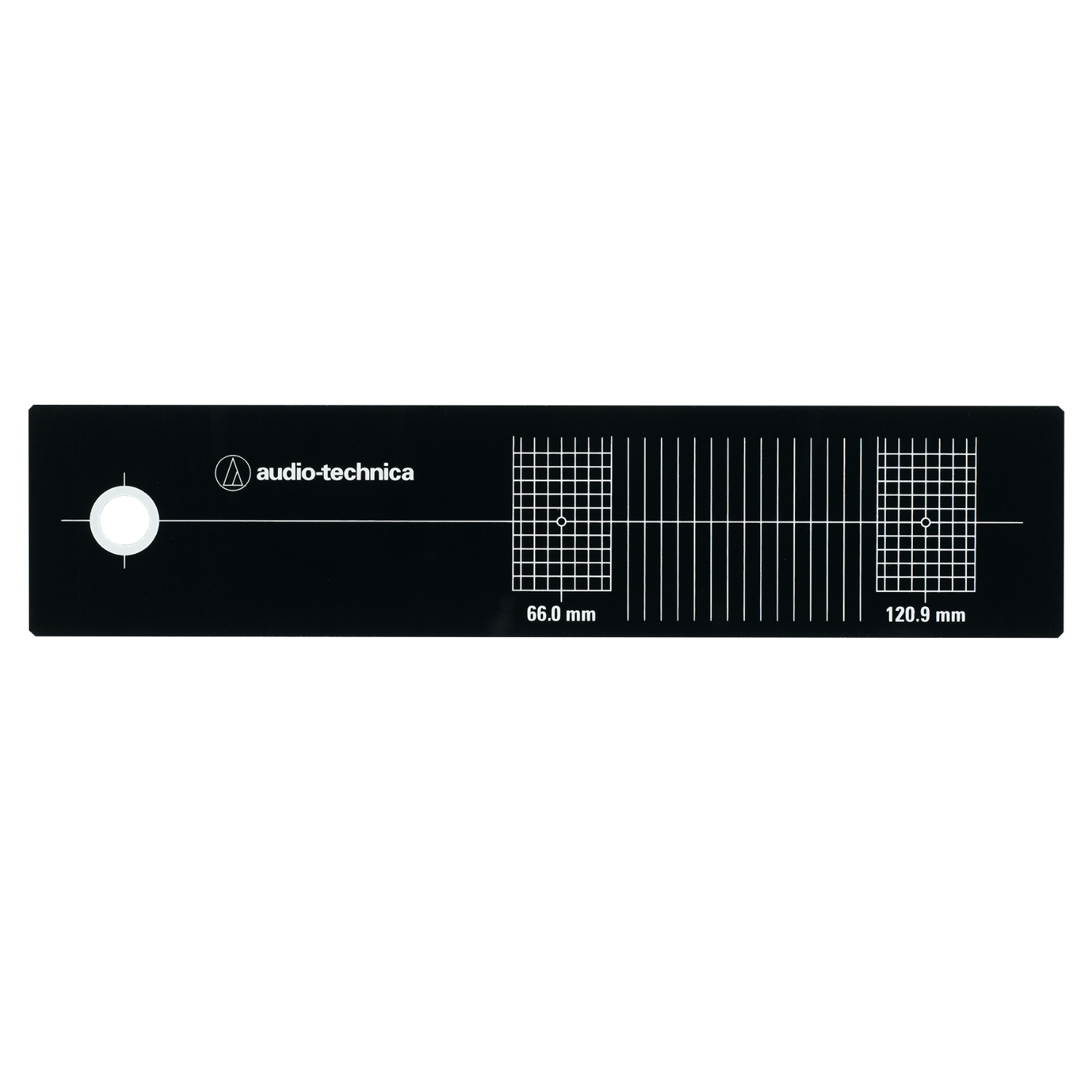

The Baerwald method is a mathematical alignment standard for pivoting tonearms that calculates the optimal cartridge offset angle and positions two null points, the radii where tracking angle error equals zero, to minimise peak distortion across the record surface. It is one of the most widely adopted alignment geometries in hi-fi, used alongside Stevenson and Löfgren B as the primary standards for cartridge setup. Baerwald places the null points at approximately 66 mm and 120.9 mm from the record centre, which distributes tracking error evenly and keeps peak distortion low across both the outer and inner groove zones.

How does the AT-CAP1 compare to other alignment protractors like the Mint LP or DB Systems DBP-10?

The AT-CAP1 is a universal Baerwald protractor suited to the broad range of 9-inch tonearms, making it a practical and accessible alignment tool for most turntable owners. The Mint LP protractor is a custom-cut arc protractor manufactured specifically for an individual tonearm model, offering higher precision at a significantly higher cost and longer lead time. The DB Systems DBP-10 is another two-point universal protractor with a similar approach to the AT-CAP1. For the majority of listeners aligning a cartridge on a standard tonearm, the AT-CAP1 delivers accurate, repeatable Baerwald alignment without requiring bespoke manufacturing.

What is tonearm effective length and how do I know if my tonearm is compatible?

Tonearm effective length is the distance measured from the tonearm pivot point to the stylus tip with the cartridge mounted. It is one of the primary geometric parameters that determines which alignment protractor and method is appropriate for a given tonearm. The AT-CAP1 is compatible with tonearms whose effective length falls between 222 mm and 250 mm. Most standard 9-inch tonearms, including those found on Pro-Ject, Rega, Audio-Technica, and many other popular turntables, fall within this range. The effective length figure is typically listed in the tonearm or turntable specification sheet.

Can I use the AT-CAP1 with a Rega or Pro-Ject tonearm?

The AT-CAP1 is compatible with most Rega and Pro-Ject tonearms in the 9-inch class. Rega tonearms such as the RB330 and RB880 have an effective length of 237 mm, and Pro-Ject 9-inch arms typically fall within the 222 mm to 250 mm window. One important consideration with Rega tonearms is that the cartridge mounting holes are fixed and do not allow fore-aft adjustment; overhang is set by cartridge body position within the headshell slot range. The AT-CAP1 still provides a useful null point and offset angle reference for these arms, though headshell slot range may limit how precisely the full Baerwald geometry can be achieved.

How often should I realign my cartridge using the AT-CAP1?

Cartridge alignment should be performed at every new cartridge installation, after any headshell removal or swap, and after any tonearm adjustment that may have altered overhang or offset. For a stable installation that has not been disturbed, periodic checking every six to twelve months is reasonable practice. Even minor headshell screw loosening over time can introduce small alignment errors, so a quick check with the AT-CAP1 as part of routine turntable maintenance is worthwhile.

Where can I buy the Audio-Technica AT-CAP1 in Toronto or Canada?

The Audio-Technica AT-CAP1 is available at Vinyl Sound, an authorised Audio-Technica dealer in Toronto, Canada. Vinyl Sound carries the complete Audio-Technica accessories and setup tools range and can assist with cartridge alignment questions for your specific turntable and tonearm combination.
