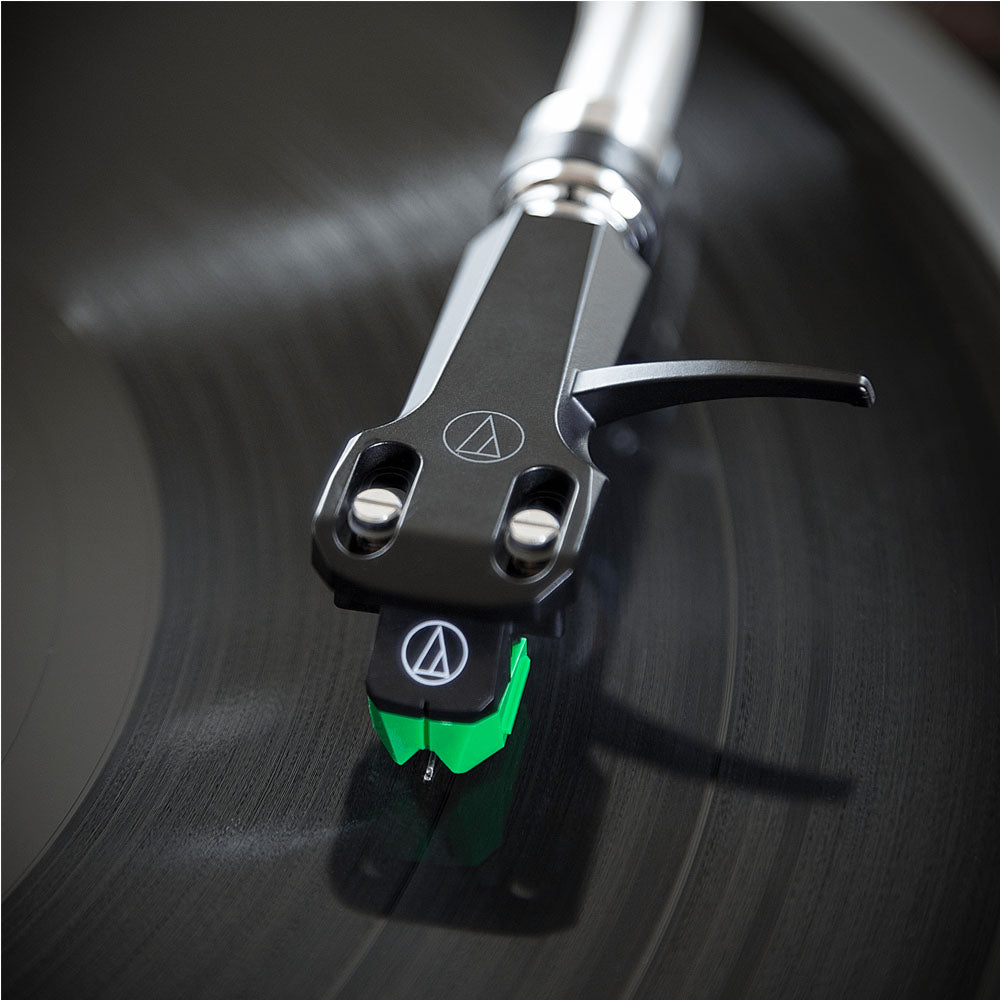

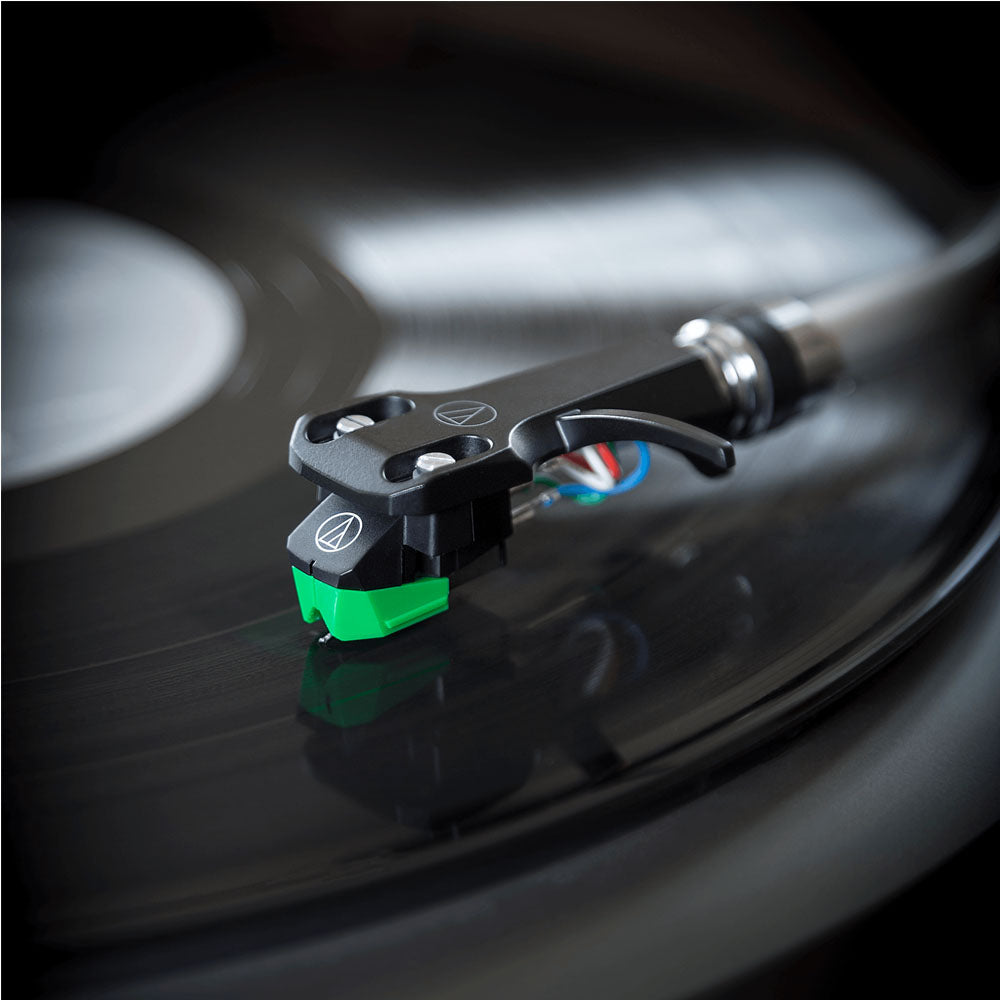

AUDIO-TECHNICA AT-VM95E/H HEADSHELL / CARTRIDGE COMBO KIT

$109.99

Pay as per month with Paybright

Quantity

Product Details


FEATURES

  • The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.



SPECIFICATIONS

Cartridge & Stylus
Frequency Response 20 - 22,000 Hz
Channel Separation 20 dB (1 kHz)
Vertical Tracking Angle 23°
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 Ω
Coil Impedance 3.3 kΩ (1 kHz)
DC Resistance 485 Ω
Coil Inductance 550 mH (1 kHz)
Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape Elliptical
Cantilever Aluminium Pipe
Static Compliance 17 x 10 – 6 cm / dyne
Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
Mounting 1/2” centres
Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm)
Model AT-VM95E/H
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95E
Stylus Size 0.3 x 0.7 mil
Type VM Stereo Dual Magnet
Weight 15.5 g
Wire Used for Coil T.P. Copper
