AUDIO-TECHNICA AT-VM95ML/H HEADSHELL / CARTRIDGE COMBO KIT

$299.99

Pay as per month with Paybright

Quantity

Product Details

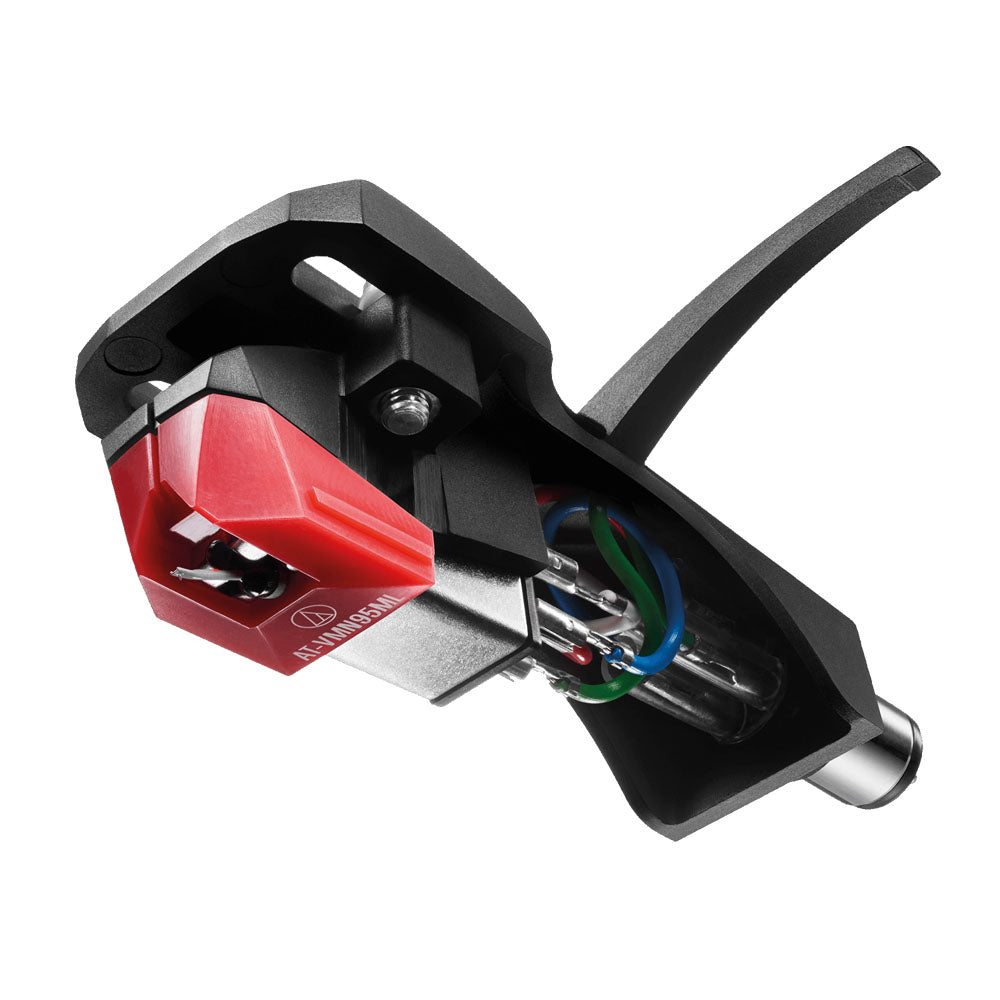

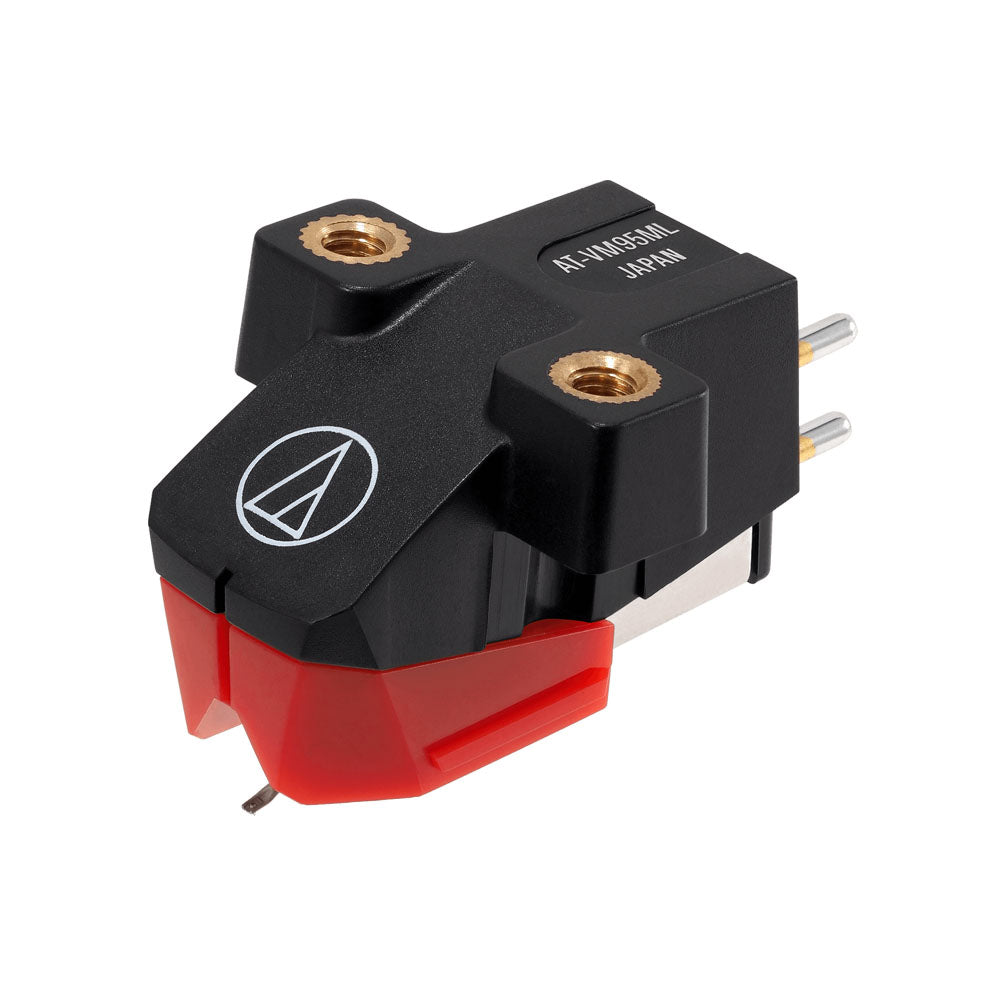

The AT-VM95ML/H combo kit includes the AT-VM95ML dual moving magnet cartridge premounted on the AT-HS6BK headshell.


FEATURES

  • VM dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus
  • Aluminum cantilever
  • Specially wound coils increase output voltage
  • Durable low-resonance polymer housing
  • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  • Compatible with any AT-VMN95 replacement stylus
  • Universal ½"-mount headshell for 4-pin turntable cartridges



SPECIFICATIONS

Cartridge & Stylus
Frequency Response 20-25,000 Hz
Channel Separation 23 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 2.2 x 0.12 mil Microlinear
Cantilever Aluminum pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Dimensions Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model AT-VM95ML/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus AT-VMN95ML
Stylus Size 2.2 x 0.12 mil
Type VM Stereo Dual Magnet
Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil T.P. Copper
