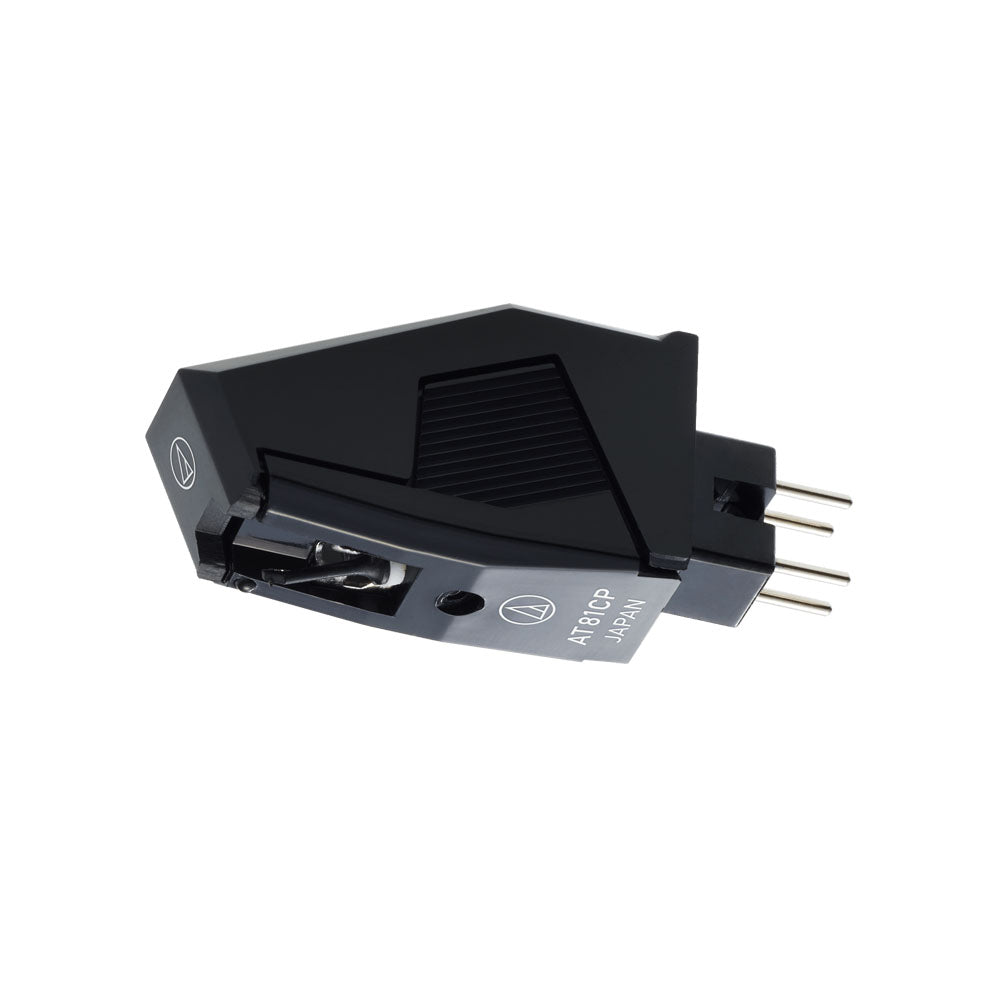

AUDIO-TECHNICA AT81CP CARTRIDGE

$39.99

Pay as per month with Paybright

Quantity

Product Details

This 0.6 mil conical cartridge fits P-mount turntables.



FEATURES

  • This 0.6 mil conical cartridge fits P-mount turntables.



SPECIFICATIONS



Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation 18 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 1.0-1.5 g (1.25 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 2.8 k ohms (1 kHz)
DC Resistance 410 ohms
Coil Inductance 400 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.5 dB (1 kHz)
Stylus Shape 0.6 mil conical
Cantilever Carbon fiber-reinforced ABS
Mounting P-mount
Dimensions 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
Mounting Feature P-mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN81CP
Stylus Size 0.6 mil
Type Dual Magnet
Weight 6.0 g (0.21 oz)
