AUDIO-TECHNICA VM510CB DUAL MOVING MAGNET CARTRIDGE

$159.99

Pay as per month with Paybright

Quantity

Product Details

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.

FEATURES

  • VM dual magnet cartridge with 0.6 mil conical stylus
  • Aluminum cantilever

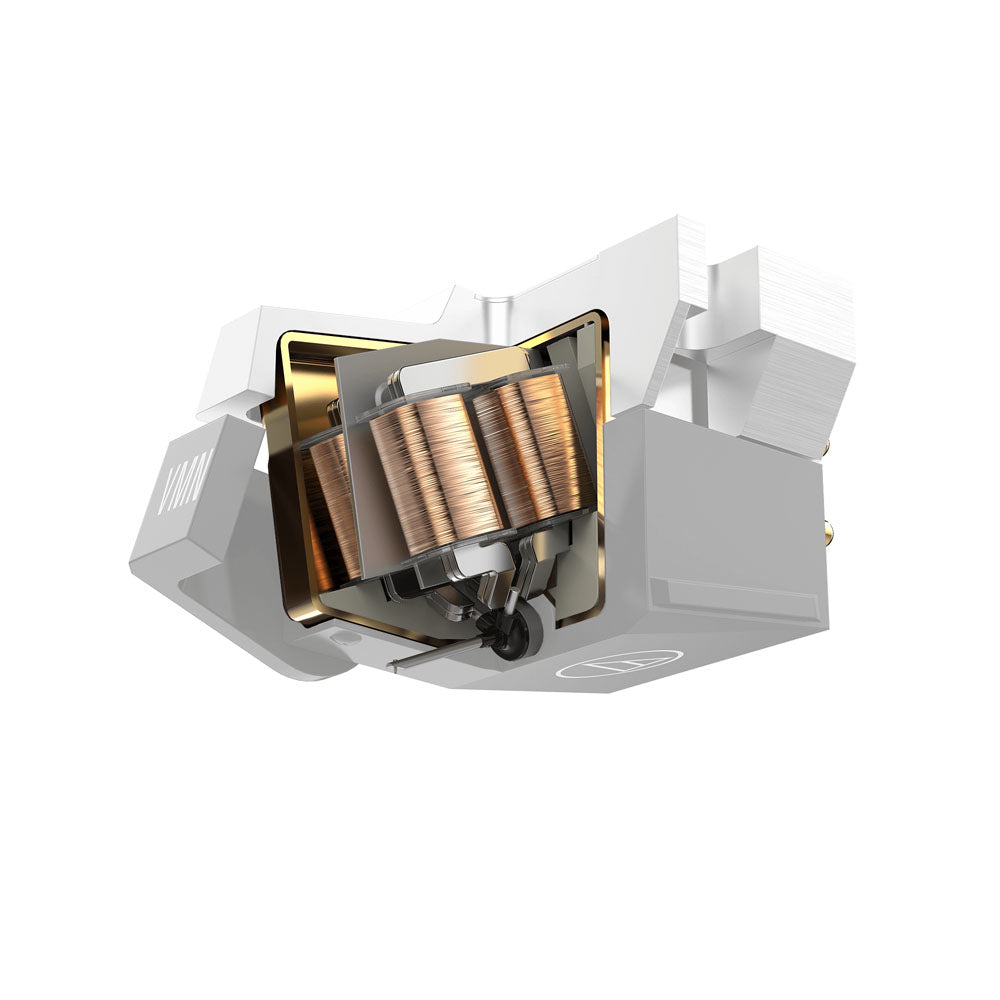

  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Durable low-resonance polymer housing



SPECIFICATIONS

Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation 25 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 2,700 ohms (1 kHz)
DC Resistance 800 ohms
Coil Inductance 460 mH (1 kHz)
Output Voltage 5.0 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 0.6 mil conical
Cantilever Aluminum pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

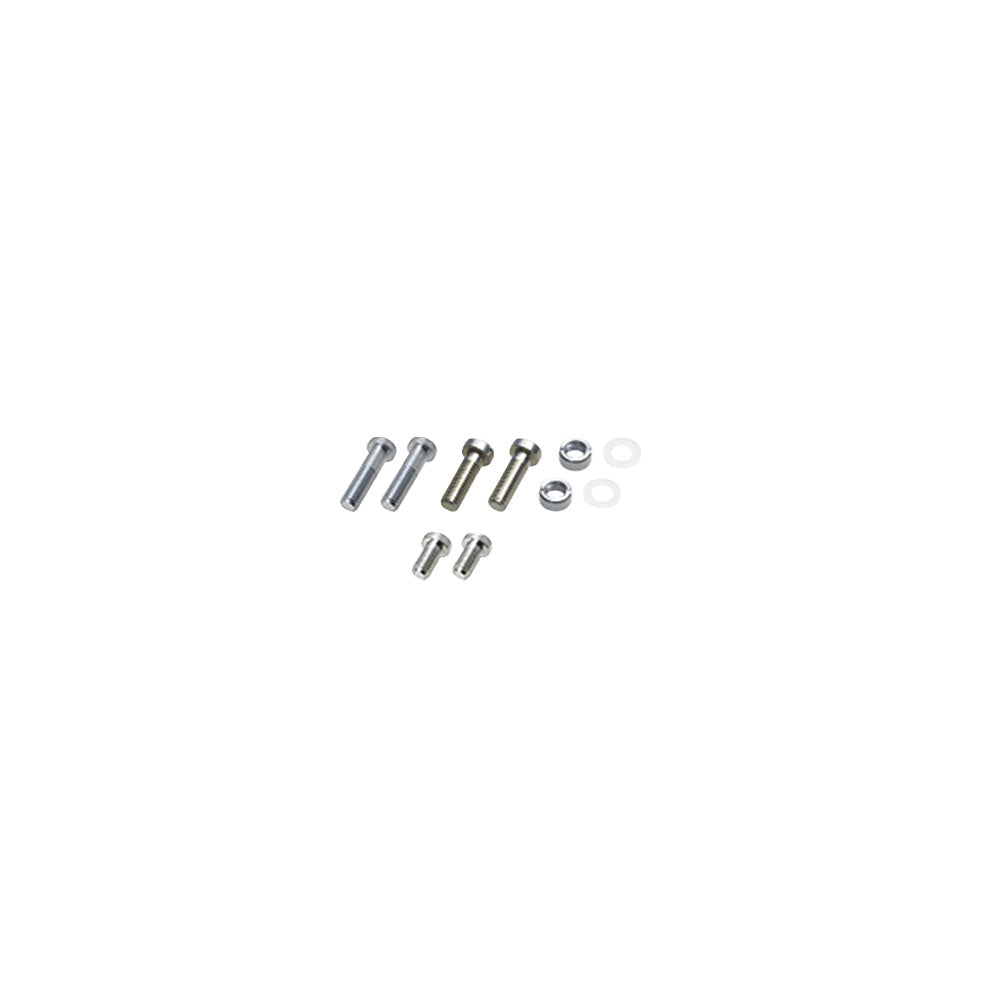

Accessories Included Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
Mounting Feature Half-inch mount
Recommended Load Capacitance 100-200 pF
Replacement Stylus VMN10CB
Stylus Size 0.6 mil
Type VM Type
Weight 6.4 g (0.2 oz)
