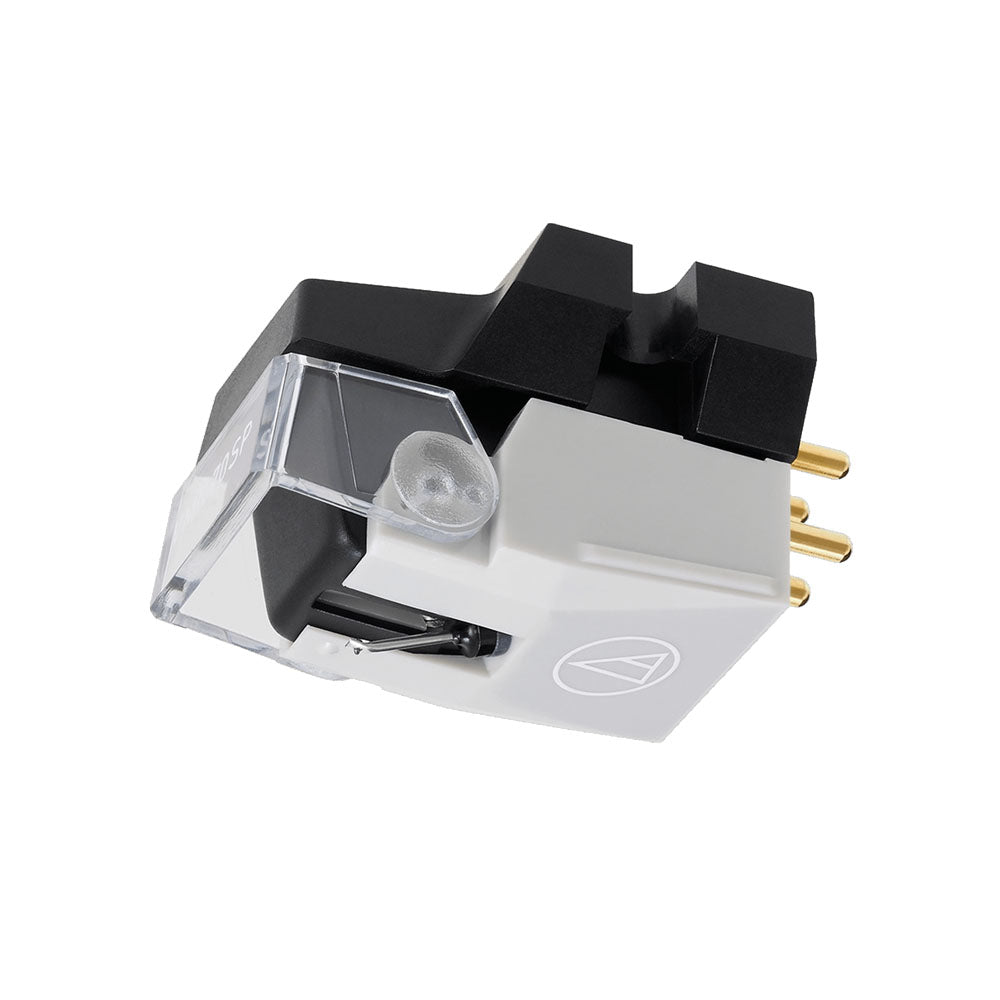

Audio-Technica AT-VM670SP Dual Moving Magnet Cartridge

$219.00

Product Details

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.

FEATURES

VM dual magnet cartridge with 3.0 mil conical stylus
Aluminum cantilever

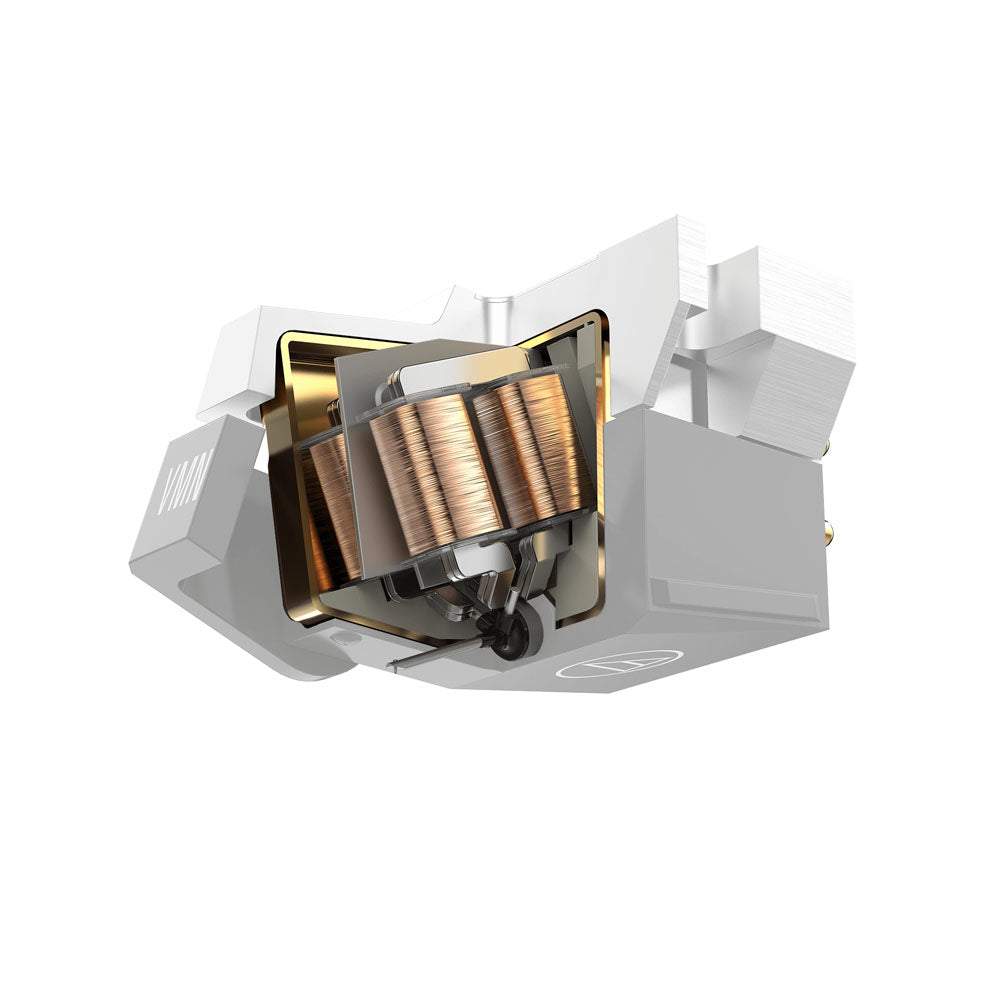

Paratoroidal coils improve generating efficiency
Mono body terminating left and right channels reduces surface noise
Durable low-resonance polymer housing

SPECIFICATIONS

Cartridge & Stylus
Frequency Response	20-20,000 Hz
Vertical Tracking Angle	23°
Vertical Tracking Force	4.5-5.5 g (5.0 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	1,400 ohms (1 kHz)
DC Resistance	400 ohms
Coil Inductance	230 mH (1 kHz)
Output Voltage	3.0 mV (at 1 kHz, 5 cm/sec)
Stylus Shape	3.0 mil conical
Cantilever	Aluminum pipe
Static Compliance	15 x 10-6 cm/dyne
Dynamic Compliance	2 x 10-6 cm/dyne (100 Hz)
Mounting	Half-inch
Dimensions	17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

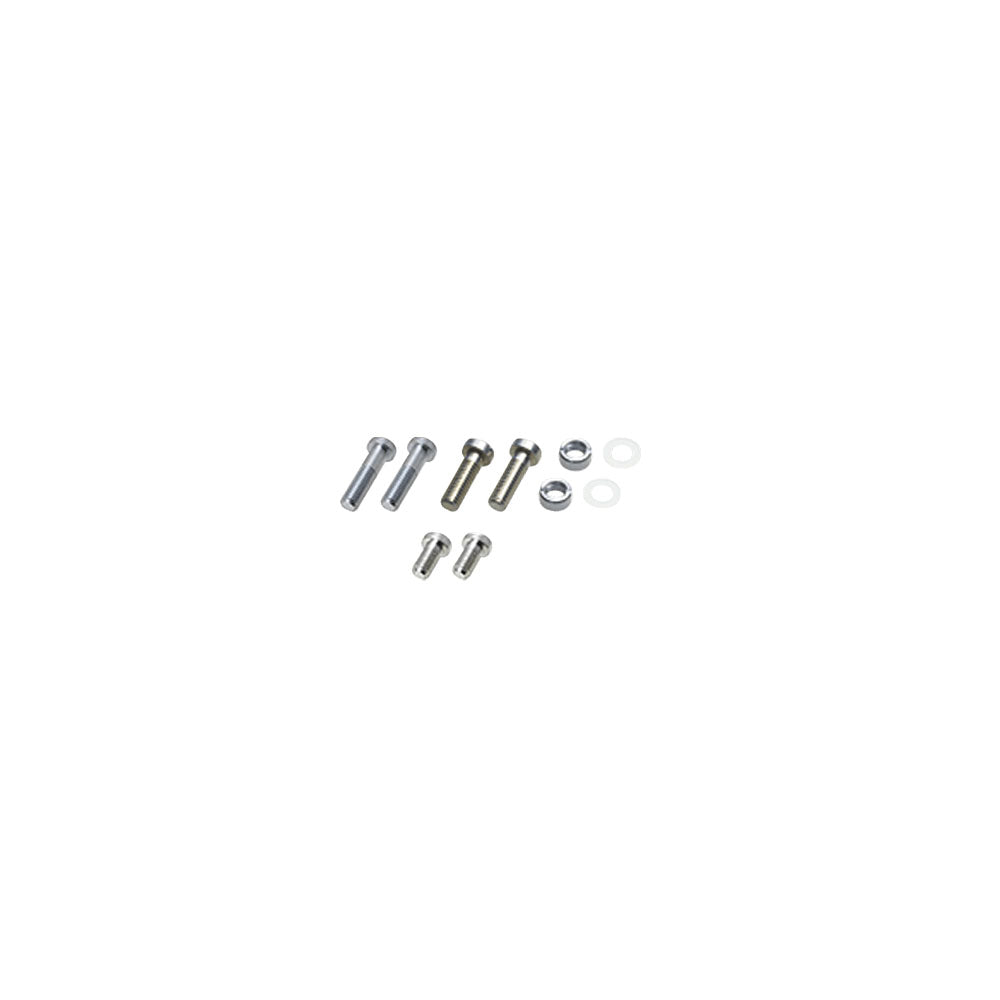

Accessories Included	Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
Mounting Feature	Half-inch mount
Recommended Load Capacitance	100-200 pF
Replacement Stylus	VMN70SP
Stylus Size	3.0 mil
Type	VM Type
Weight	6.4 g (0.2 oz)
