Castle Windsor Earl Bookshelf Speakers with Stands at Vinyl Sound Toronto Canada

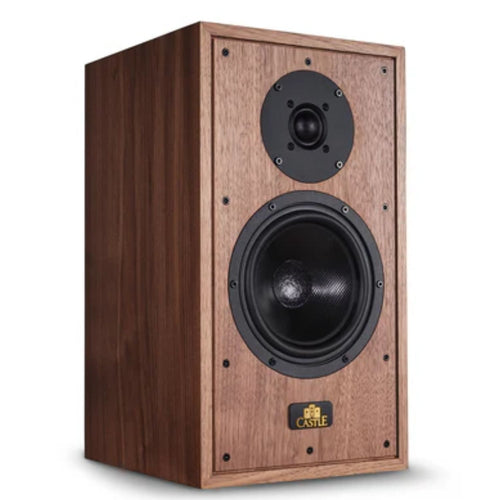

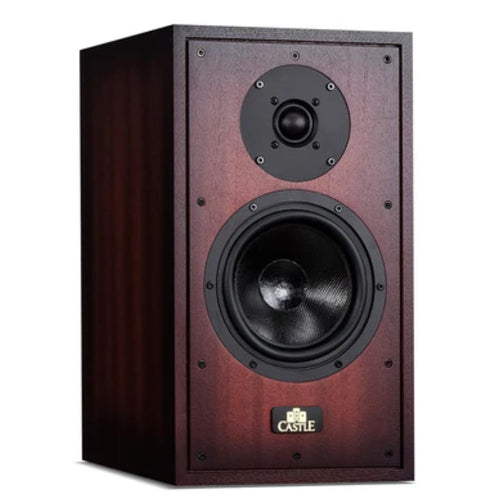

The Windsor Earl is a 2-way bass reflex bookshelf loudspeaker from Castle Acoustics (England, UK), available at Vinyl Sound in Toronto, Canada. Designed in collaboration with Karl-Heinz Fink of Fink Audio, recipient of the What Hi-Fi? Outstanding Contribution Award 2022, the Windsor Earl combines a 6.5-inch woven polypropylene woofer with a 28mm micro-fibre dome tweeter featuring a copper cap pole piece, in a hand-built, hand-finished mahogany veneer cabinet. With a sensitivity of 89dB (2.83V/1m), nominal impedance of 8 ohms, and frequency response of 58Hz to 22kHz (+/-3dB), the Windsor Earl is supplied with stands and is hand-built in England to the furniture-grade craftsmanship standard that has defined Castle Acoustics since 1973.

Karl-Heinz Fink and UK-Manufactured Castle Craftsmanship

The Castle Windsor Series marks the brand's return to UK manufacturing, with every pair hand-built and hand-finished by loudspeaker production specialists in England, echoing the origins of a brand established in 1973. Karl-Heinz Fink of Fink Audio, whose decades of internationally recognized loudspeaker design earned him the What Hi-Fi? Outstanding Contribution Award in 2022 and the description of "today's most influential speaker designer," collaborated on the Windsor Series driver engineering, crossover design, and cabinet acoustics from the ground up. The Windsor Earl's more compact 15.8-litre cabinet and 165mm woofer make it the natural choice for smaller listening rooms or systems where the Windsor Duke's larger footprint is not practical, while sharing the same fundamental driver technology and construction philosophy as its larger sibling.

Tweeter Engineering: Copper Cap, No Ferrofluid, and High Dynamic Range

The Windsor Earl's 28mm dome tweeter receives particular engineering attention that distinguishes it from conventional high-frequency units at this price level. The tweeter uses a high-consistency exposed polyester dome with a pressure-equalized ferrite magnet system and a stable metal front plate. Critically, no ferrofluid is used in the tweeter's magnet gap, a deliberate design decision that guarantees the highest possible dynamic range by eliminating the viscous damping that ferrofluid introduces. The absence of ferrofluid also keeps the tweeter's resonant frequency below 800Hz, well below the 2.2kHz crossover point, ensuring the driver operates in a fully controlled region of its response when it takes over from the woofer. A copper cap on the pole piece of the tweeter's magnet reduces distortion and intermodulation at very high frequencies, delivering a tangible increase in audible detail and air in the upper octaves.

Woven Polypropylene Cone and Glass-Fibre Voice Coils

The Windsor Earl's 6.5-inch woofer uses the same woven polypropylene cone manufacturing process developed for the entire Windsor Series. Polypropylene is precision-cut into thin strips, woven into a fabric, pressed into the final 165mm cone shape, and cut to size, creating a cone material with deliberately different stiffness properties in different radial directions between the voice coil and surround. This anisotropic construction suppresses the breakup resonances that conventional injection-moulded polypropylene cones exhibit, producing a measurably flatter response through the upper bass and midrange. Low-hysteresis rubber surrounds ensure long-term durability without the deterioration associated with foam. Glass-fibre voice coils bonded with high-temperature resin match aluminium's stiffness without generating eddy currents, maintaining signal purity throughout the woofer's operating range. An aluminium compensation ring in the magnet system minimizes impedance variation, reducing harmonic and intermodulation distortion for an open, expressive midrange presentation.

Key Features

• Collaborative Design with Karl-Heinz Fink: Developed in partnership with Fink Audio, whose principal received the What Hi-Fi? Outstanding Contribution Award 2022 for decades of internationally recognized loudspeaker engineering across numerous world-class brands.
• 6.5-Inch Woven Polypropylene Woofer: Precision-woven 165mm polypropylene cone with anisotropic stiffness properties that actively suppress resonances for a flatter frequency response, paired with a low-hysteresis rubber surround for long-term mechanical durability.
• 28mm Micro-Fibre Dome Tweeter with Copper Cap: Polyester dome tweeter with a copper cap on the pole piece to reduce distortion and intermodulation at very high frequencies, delivering increased audible detail in the upper octaves.
• No Ferrofluid Tweeter Design: The deliberate omission of ferrofluid from the tweeter's magnet gap guarantees maximum dynamic range and keeps the resonant frequency below 800Hz for optimum performance across the tweeter's full operating range.
• Glass-Fibre Voice Coils: Bonded with high-temperature resin for aluminium-equivalent stiffness without eddy current generation, maintaining signal purity throughout the driver's operating range.
• Aluminium Compensation Ring: Minimizes impedance variation in the woofer's magnetic circuit to reduce harmonic and intermodulation distortion for an open, expressive midrange character.
• 89dB Sensitivity: Works effectively with amplifiers from 25W upward, making the Windsor Earl compatible with a broad range of integrated amplifiers from entry-level to premium.
• 58Hz-22kHz Frequency Response: Bass reflex tuning extends response to -6dB at 45Hz from a 15.8-litre cabinet, providing genuine low-frequency substance for a compact bookshelf loudspeaker.
• Hand-Built in England: Every Windsor Earl is hand-built and hand-finished in England, restoring the Castle Acoustics manufacturing tradition established in 1973.
• Hand-Selected Book-Matched Mahogany Veneers: Sourced from Castle's original veneer suppliers, hand-finished to furniture-grade standard by a dedicated finishing team, with no two pairs identical.
• Supplied with Stands: Speaker stands are included at Vinyl Sound, enabling optimal tweeter height and speaker placement immediately upon installation.

Technical Specifications

Frequently Asked Questions

What is the Castle Windsor Earl?

The Castle Windsor Earl is a 2-way bass reflex bookshelf loudspeaker hand-built in England by Castle Acoustics, featuring a 6.5-inch woven polypropylene woofer with glass-fibre voice coil and aluminium compensation ring, a 28mm micro-fibre dome tweeter with copper cap pole piece and no ferrofluid, 89dB sensitivity, 8-ohm nominal impedance, and a 58Hz-22kHz frequency response in a hand-finished mahogany veneer cabinet. Designed in collaboration with Karl-Heinz Fink of Fink Audio, it is available with stands at Vinyl Sound in Toronto, Canada.

How does the Castle Windsor Earl compare to the Windsor Duke and the Wharfedale Denton 85th?

The Castle Windsor Earl and Windsor Duke share the same driver technology, cabinet construction philosophy, and Karl-Heinz Fink collaborative design heritage, differing primarily in scale. The Earl uses a 6.5-inch woofer in a 15.8-litre cabinet with a 58Hz lower limit, while the Duke uses an 8-inch woofer in a 26-litre cabinet extending to 52Hz, making the Duke the stronger choice for larger rooms and listeners who prioritize bass scale. Against the Wharfedale Denton 85th Anniversary, the Windsor Earl's copper cap tweeter, woven polypropylene cone technology, and no-ferrofluid tweeter design represent a more extensively engineered driver package, while the Denton's larger 6.5-inch woofer in a similarly sized cabinet offers a comparable low-frequency presentation. The Castle's hand-built UK manufacturing and book-matched veneer finishing represent a craftsmanship standard that the Denton, manufactured overseas, does not match.

Why does the Windsor Earl tweeter use no ferrofluid?

Ferrofluid is a magnetic liquid placed in the tweeter's voice coil gap to assist heat dissipation and add damping to the driver's resonant behavior. While it improves power handling, ferrofluid also introduces viscous damping that compresses dynamic peaks and limits the tweeter's ability to resolve fine transient detail at low listening levels. Castle's decision to omit ferrofluid from the Windsor Earl's tweeter prioritizes maximum dynamic range over power handling headroom, keeping the tweeter's resonant frequency below 800Hz and allowing it to resolve the subtle dynamic contrasts in music that ferrofluid-damped tweeters can obscure.

What amplifier power does the Castle Windsor Earl need?

The Castle Windsor Earl is rated for amplifiers delivering between 25W and 100W, and its 89dB sensitivity makes it easy to drive to satisfying levels from modest amplifier power. Its 8-ohm nominal impedance with a 4.3-ohm minimum presents a stable, amplifier-friendly load. At Vinyl Sound in Toronto, the Windsor Earl pairs naturally with integrated amplifiers such as the Yamaha A-S301, A-S501, or Cambridge Audio CXA81 MK2, all of which operate well within the Windsor Earl's recommended power window.

Is the Castle Windsor Earl better suited to smaller rooms than the Windsor Duke?

Yes, the Windsor Earl's 15.8-litre cabinet, 430mm height, and 6.5-inch woofer make it the more appropriate choice for small to medium-sized listening rooms where the Windsor Duke's larger footprint and greater bass output would be excessive or difficult to integrate without acoustic treatment. The Windsor Earl's 58Hz lower frequency limit still provides meaningful bass extension for music listening in a properly set-up room, and its 89dB sensitivity and 25-100W power range make it compatible with a wider range of compact integrated amplifiers suited to smaller system setups.

Where can I buy the Castle Windsor Earl in Toronto or Canada?

The Castle Windsor Earl with stands is available at Vinyl Sound in Toronto, Canada. Vinyl Sound carries Castle Acoustics' Windsor Series alongside compatible amplifiers and source components, and can provide in-store demonstration and system matching advice. Purchasing from an authorized Canadian dealer ensures full Castle Acoustics manufacturer warranty coverage for the Windsor Earl and its included stands.

Are any two pairs of Castle Windsor Earl speakers identical?

No, because the Windsor Earl's mahogany veneer cabinets use natural wood sourced from Castle's original veneer suppliers, each pair has its own unique grain pattern, color variation, and character. Castle's dedicated hand-finishing team applies book-matched veneers to ensure the two cabinets within a stereo pair mirror each other visually, but the specific veneer grain of your pair will differ in fine detail from every other pair produced, making each Windsor Earl genuinely individual in the tradition of Castle's furniture-grade craftsmanship.
