DALI Opticon LCR MK2 On-Wall Speaker at Vinyl Sound Toronto Canada

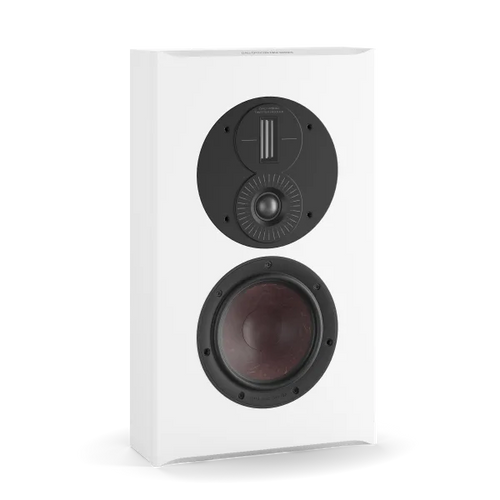

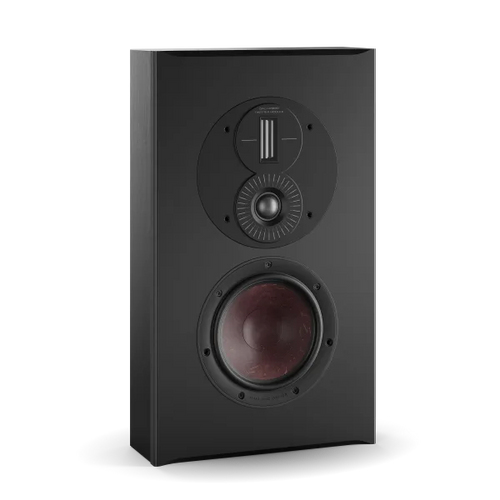

The Opticon LCR MK2 is a multipurpose on-wall loudspeaker from DALI (Hobro, Denmark), available at Vinyl Sound in Toronto, Canada. LCR stands for Left, Centre, Right, reflecting the speaker's design for use in any channel position in a stereo or multichannel system from a single wall-mounted enclosure. Incorporating the best technologies from the OPTICON MK2 series, including a 6.5-inch SMC wood fibre driver and the signature Hybrid Tweeter module pairing a Callisto-derived 29 mm soft dome with a 17 x 45 mm planar element, it covers a frequency range of 70 Hz to 30,000 Hz at 89 dB sensitivity with a 109 dB maximum SPL. A wall-assisted bass reflex port tuned to 45 Hz and a 25 mm thick front baffle with internal bracing produce a speaker that belies its compact 128 mm depth with airy high frequencies, an expressive midrange, and surprisingly extended bass. Handcrafted and tested at DALI's production facilities in central Denmark, the Opticon LCR MK2 is sold individually and is suited to on-wall stereo pairs, home cinema front channels, centre channel, and surround positions in larger listening rooms.

Patented SMC Magnet System and 6.5-inch Wood Fibre Driver

The Opticon LCR MK2's 6.5-inch woofer is built around DALI's patented SMC (Soft Magnetic Composite) magnet system. The pole piece inside the driver's large ferrite ring magnet is manufactured entirely from SMC, a coated granular material with very high magnetic permeability and very low electrical conductivity. This combination dramatically reduces two principal sources of driver distortion: magnetic hysteresis, which causes the magnetic field to lag behind the audio signal, and eddy currents, which create opposing electromagnetic forces within the motor. The result is a significant reduction in third-order harmonic distortion, producing a more relaxed and natural midrange character with greater low-level detail retrieval and reduced listening fatigue. The paper pulp and wood fibre cone is engineered for low loss, low distortion, and minimal break-up resonance, ensuring that the driver adds as little coloration as possible to the audio signal while delivering high resolution midrange and precise, coherent bass. Stereo pairs are built and tested by one technician using components from the same production batch to guarantee visual and acoustic matching between channels.

Hybrid Tweeter Module with Callisto-Derived 29 mm Soft Dome

The Opticon LCR MK2 carries DALI's signature Hybrid Tweeter module, combining a new 29 mm soft dome tweeter derived from the DALI CALLISTO active speaker series with a 17 x 45 mm planar magnetostatic element. The 29 mm dome represents a meaningful step up from the 28 mm driver used in the MK1 series: the increase in dome radiating area lowers distortion, raises power handling, and enables the driver to operate at lower frequencies without stress, allowing crossover frequencies as low as 2 kHz to be employed safely. The cast aluminium faceplate incorporates dispersion control detailing around the tweeter cutouts, optimising horizontal high-frequency delivery for off-axis listening. Both the dome and the planar element are free of resonances and high-Q peaks within their operating bandwidths. The dome handles the lower treble from 2,800 Hz upward with speed and dynamic impact, while the ribbon element takes over from 14,000 Hz with the superior horizontal dispersion and ultra-high-frequency finesse that planar drivers provide. The entire tweeter module is rotatable through 360 degrees, and the grille logo is reversible, ensuring the speaker always looks correct and performs correctly regardless of whether it is mounted vertically or horizontally.

Wall-Assisted Bass Reflex System and 25 mm Baffle Construction

The Opticon LCR MK2 uses a bass reflex port system that is specifically engineered to take advantage of its close proximity to the wall surface when mounted. The rear-firing port is tuned to 45 Hz and positioned to interact with the boundary reinforcement provided by the wall behind the speaker, extending the effective low-frequency bandwidth below what the compact 128 mm deep cabinet could achieve in free space. A 25 mm thick front baffle and strategic internal bracing throughout the enclosure virtually eliminate panel resonance, providing a stable, acoustically inert platform for the drivers. The cabinet is manufactured entirely at DALI's production facility in central Denmark, where the in-house woodworking operation handles everything from cutting and routing the MDF laminate panels to installing the drivers, crossover, and finishing. Two keyhole wall mounts on the rear panel allow straightforward installation in both vertical and horizontal orientations.

Key Features

• LCR Multipurpose Design: Engineered for use as a left, right, or centre channel speaker in stereo, home cinema, and multi-channel surround configurations from a single on-wall enclosure.
• 6.5-inch SMC Wood Fibre Driver: Patented SMC pole piece dramatically reduces third-order harmonic distortion from hysteresis and eddy currents. Paper pulp and wood fibre cone for low loss, low distortion, and high-resolution midrange performance.
• Callisto-Derived 29 mm Soft Dome Tweeter: Larger than the MK1 dome for lower distortion, higher power handling, and wider operating bandwidth. Enables crossover frequencies as low as 2 kHz without distortion risk.
• 17 x 45 mm Planar Magnetostatic Tweeter: Extends high-frequency response to 30,000 Hz with wide horizontal dispersion and smooth finesse above 14,000 Hz.
• 360-Degree Rotatable Tweeter Module: Full rotation ensures correct tweeter orientation in any mounting position. Reversible grille logo maintains a clean appearance in both portrait and landscape orientations.
• Wall-Assisted Bass Reflex Port: Port tuned to 45 Hz, engineered to use wall boundary reinforcement to extend bass response to 70 Hz from a 128 mm deep cabinet.
• 25 mm Front Baffle with Internal Bracing: Extremely rigid cabinet construction virtually eliminates panel resonance for a stable acoustic platform.
• Handcrafted in Denmark: Each speaker built and tested by one technician using components from the same batch. Assembled at DALI's production facilities in Hobro, Denmark from in-house and locally sourced components.
• Keyhole Wall Mounts: Two keyhole mounts on the rear panel for straightforward vertical or horizontal wall installation.
• Available in Multiple Finishes: Offered in Black, White, and Tobacco Oak to suit a range of listening room aesthetics.

Technical Specifications

Frequently Asked Questions

What is the DALI Opticon LCR MK2?

The DALI Opticon LCR MK2 is a multipurpose on-wall loudspeaker from DALI, designed and manufactured in Hobro, Denmark. LCR denotes its suitability for Left, Centre, and Right channel roles in a single wall-mounted enclosure. It is a two-and-a-half-way bass reflex speaker featuring a 6.5-inch SMC wood fibre driver and a Hybrid Tweeter module combining a 29 mm soft dome with a 17 x 45 mm planar ribbon element, crossing over at 2,800 Hz and 14,000 Hz. It covers 70 Hz to 30,000 Hz at 89 dB sensitivity with a 109 dB maximum SPL from a 128 mm deep cabinet. The tweeter module rotates 360 degrees for correct orientation in any mounting position. Sold individually, it suits stereo pairs, home cinema front, centre, and surround roles in larger rooms.

How does the DALI Opticon LCR MK2 compare to the DALI Rubikore On-Wall and Phantom M-375?

The Opticon LCR MK2 sits between the Phantom M-375 and the Rubikore On-Wall in DALI's on-wall and LCR product hierarchy. Compared to the Phantom M-375, the Opticon LCR MK2 is a surface-mounted on-wall speaker rather than an in-wall speaker, and uses the OPTICON MK2's Callisto-derived 29 mm soft dome and SMC pole piece in a cabinet with a 25 mm front baffle and wall-assisted reflex port. Compared to the Rubikore On-Wall, the Opticon LCR MK2 sits below it in DALI's range, using the OPTICON MK2 driver technology rather than the higher-specification Clarity Cone and dual-magnet SMC system of the Rubikore. The Rubikore On-Wall also features the ferrofluid-free dome from the KORE-inspired Rubikore series and adds SMC material to its crossover inductors, representing a step up in driver and crossover technology.

Can the DALI Opticon LCR MK2 be mounted horizontally as a centre channel speaker?

Yes, the DALI Opticon LCR MK2 is specifically designed for both vertical and horizontal wall mounting. The Hybrid Tweeter module rotates through 360 degrees, so when the speaker is installed in landscape orientation as a centre channel below a screen, the tweeter module can be rotated to keep the planar ribbon element in its correct position relative to the dome. The grille logo is also reversible so the speaker always presents a clean appearance regardless of orientation. Keyhole wall mounts on the rear panel facilitate horizontal installation directly below or above a television in the most common centre channel position.

What is the wall-assisted bass reflex system in the Opticon LCR MK2?

The Opticon LCR MK2's bass reflex port is engineered to work in conjunction with the acoustic boundary reinforcement that the wall behind the speaker provides when it is mounted in its intended on-wall position. When a speaker is placed flush against a wall, the wall surface acts as a boundary that reinforces low-frequency output, effectively extending the bass response below what the cabinet would achieve in free space. DALI's port design in the LCR MK2 takes this boundary loading into account, tuning the port to 45 Hz so that the combination of the port's acoustic output and the wall boundary reinforcement work together to produce the rated 70 Hz lower limit from a cabinet that is only 128 mm deep. This is meaningfully deeper bass than a rear-ported speaker of this depth could achieve mounted away from a wall.

Where can I buy the DALI Opticon LCR MK2 in Toronto or Canada?

The DALI Opticon LCR MK2 is available at Vinyl Sound, an authorised DALI dealer in Toronto, Canada. Vinyl Sound carries the full DALI OPTICON MK2 series and can assist with system matching, home cinema configuration, amplifier pairing, and multi-channel layout planning. Purchasing from an authorised Canadian dealer ensures full DALI manufacturer warranty coverage and access to knowledgeable local support.

What amplifier suits the DALI Opticon LCR MK2?

The DALI Opticon LCR MK2 is rated for 30 to 150 watts at a 4-ohm nominal impedance. A 4-ohm load requires an amplifier or AV receiver rated for stable 4-ohm current delivery, as some AV receivers may struggle below this impedance level. Stereo integrated amplifiers from brands such as Hegel, NAD, Rotel, and Arcam in the 80 to 150 watt per channel range at 4 ohms are well matched for stereo on-wall use. For home cinema multi-channel configurations, AV receivers and multi-channel power amplifiers with 4-ohm rated outputs from brands such as Anthem, Arcam, and Denon provide the current delivery the LCR MK2 benefits from, particularly when used as front channel speakers in larger rooms.

Does the DALI Opticon LCR MK2 require a subwoofer?

For home cinema use, a subwoofer is recommended to complement the Opticon LCR MK2. Its 70 Hz lower limit covers dialogue, music, and most mid-range cinematic content well, but does not extend into the deep sub-bass frequencies present in modern film soundtracks. In a home cinema system, bass management on the AV processor routes low-frequency content to the dedicated subwoofer channel, allowing the LCR MK2 to operate within its optimal bandwidth. For stereo music listening in smaller to medium rooms, the LCR MK2's wall-assisted bass extension and 70 Hz lower limit are adequate for most musical genres without supplemental bass support.
