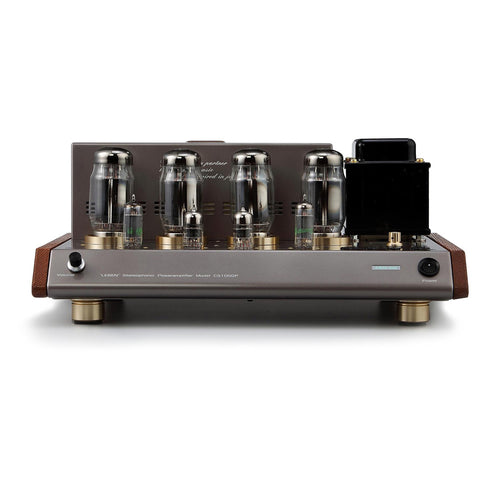

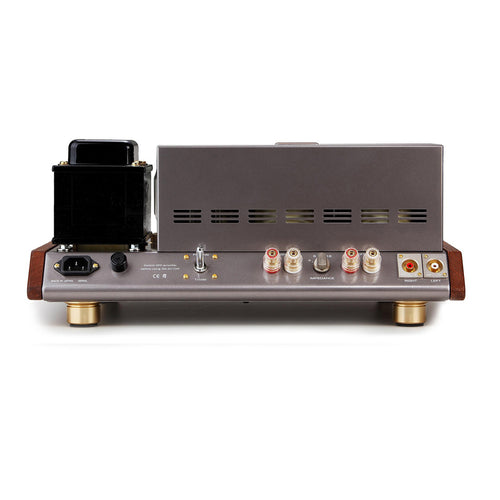

LEBEN CS-1000P STEREO POWER AMPLIFIER

$20,295.00

Quantity

Product Details

High power output tube KT120(Super KT88)

100W/ch(1KHz) at Pentode circuit (70W/ch at Triode).

Bias adjustment with a Cathode-direct meter

Several type of output tubes are applicable by adjusting the cathodal electric current.

Newly developed Orient-core output transformer

A minimum loss and a Superior high-frequency response.


Flat and wide Frequency Response

A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.

High rigidity solid aluminum insulators

OTHER FEATURES

CS-1000P SPECIFICATIONS

TUBES COMPLIMENT KT120 x 4
6922/6DJ8(ECC88) x 2
6CG7/6FQ7 x 2
OUTPUT POWER 100W x 2 at 1KHz.
FREQUENCY RESPONSE 10Hz - 150KHz. (-3dB)
INPUT SENSITIVITY 0.4V at 50W
INPUT IMPEDANCE 100K Ohms.
OUTPUT IMPEDANCE 4/6/8/16 Ohms (Selectable)
POWER CONSUMPTION
WEIGHT 23.5 Kgs.
DIMENSIONS 455 (W) X 200 (H) X 335 (D) mm
ATTACHMENT Detachable AC Power Cable x 1
