MUSIC HALL MMF-1.3 TURNTABLE
$499.00 CAD
Product Details

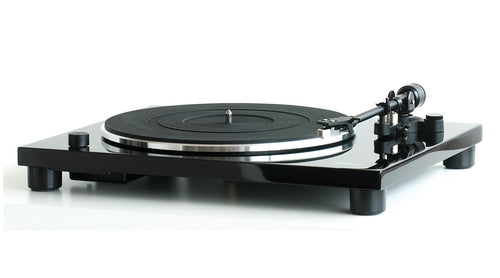

The music hall mmf-1.3 turntable sets a new benchmark for affordable audiophile turntables. With a built-in phono preamplifier and a quality, pre-mounted cartridge, the mmf-1.3 is everything you need to start listening to vinyl right out of the box!
Focus on components
Our new entry-level turntable provides a feature set that is unrivaled at its price. The construction of the mmf-1.3 has been simplified to focus on the critical components; the bearing, the motor, and the tonearm.
A complete package
A 3-speed belt driven turntable that comes complete with a tonearm, mounted cartridge, and built-in phono amp.
—
The included Audio Technica AT3600L cartridge has been precision aligned.
Pre-mounted cartridge
A quality Audio-Technica cartridge is pre-mounted and precision-aligned.
Speed control
A built-in speed control circuit ensures the accuracy of the mmf-1.3’s 3 speeds.
Built-in phono preamplifier
A built-in phono preamplifier allows you to connect directly to your current system.
Dust cover
A hinged dust cover keeps your mmf-1.3 protected when not in use.
Mmf-1.3 feature list
- belt drive
- electronic speed controlled motor
- 33 1⁄3, 45, and 78 rpm
- aluminum tonearm with removable headshell
- piano black MDF plinth
- vibration-damping rubber platter mat
- Audio Technica AT3600L cartridge ($50 value)
- aluminum platter
- dust cover
- built-in phono pre-amp
- removable RCA cables
- vibration damping feet
GENERAL SECTION
| power supply | DC12V，2.0A universal power supply |
| consumption | 4W |
| dimensions | 17.1(W) x 14.5(D) x 4.2(H) in. 435(W) x 367(D) x 106(H) mm |
| weight | 11lbs. | 5Kg |
TURNTABLE SECTION
| type | 3-speed full manual |
| motor | DC motor |
| driving method | belt drive |
| turntable platter | 296mm dia. aluminum die-cast |
| speeds | 33 1/3, 45, and 78rpm |
| wow and flutter | typical: less than 0.1% WTD at 3KHz RMS(CD-4005) limit: Less than 0.15% WTD at 3KHz RMS(CD-4005) |
| S/N ratio | more than 62dB (DIN-B) (SS-4242) |
| speed tolerance | 3000Hz +/-1%(CD-4005) |
CARTRIDGE SECTION
| type | moving magnetic cartridge |
| stylus | diamond stylus |
| height of arm lifter | 7.5mm (the distance between the record and the stylus when the lifter lever is pulled up) |
| channel separation | within 2.5 dB at 1KHz (CD-4005) |
| channel balance | within 2.5 dB at 1KHz (CD-4005) |
| phono output level | 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005) |
| line output | 90-216 mV at 1KHz 5cm/sec (CD-4005) |
| RIAA | 20Hz~20KHz: +1/-3 dB |
CARTRIDGE
| cartridge | AT3600L |
| output voltage | 2.5mV +/- 3dB at 1KHz 3.54cm/sec (AT6606A) |
| channel separation | more than 18dB (AT6606A) |
| channel balance | within 2dB at 1KHz (AT6606A) |
| frequency response | 0 +/-3dB at 10KHz (AT6606A)(Value at 10KHz based on value at 1KHz) |
| tracking force | 3.5 ± 0.5 g |
TONEARM SECTION
| type | dynamic balanced straight shaped w/soft damping control |
| effective arm length | 221.5mm |
| overhang | 19mm |
| offset angle | 25.61 |
| tracking error angle | 3 degree or less |
| stylus pressure adjustment method | rotation movability |
| arm lifter | oil damper type |
