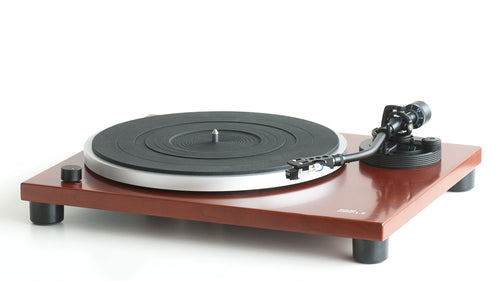

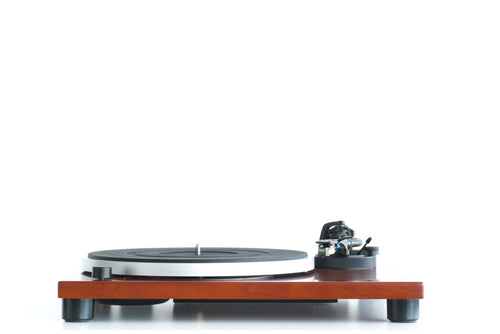

MUSIC HALL MMF-1.5 TURNTABLE

$579.00 $649.00

Quantity

Product Details

The stunning mmf-1.5, with its superior s-shaped alloy tonearm, music hall melody cartridge, 3-speed belt drive design, and built-in phono pre-amp, is a beautifully refined piece.

In the groove

From the first music note to the final fade-out, the music hall mmf-1.5 sets your world to groove and your feet to dance.

The complete package

A built-in phono preamplifier allows you to connect directly to your current system.

A top-quality music hall melody cartridge comes pre-mounted and precision-aligned.
—

Melody cartridge

A top-quality music hall melody cartridge comes pre-mounted and precision-aligned.


Speed control

A built-in speed control circuit ensures the accuracy of the mmf-1.5’s 3 speeds.


Built-in phono preamplifier

A built-in phono preamplifier allows you to connect directly to your current system.


Dust cover

The included hinged dust cover keeps your mmf-1.5 protected when not in us

mmf-1.5 feature list

  • mmf-1.5 feature list
  • gorgeous real cherry wood veneer
  • built-in phono pre-amplifier which is by-passable if plugging into an existing phono pre-amp
  • S-shaped aluminum tonearm, 9″
  • removable headshell for easy cartridge changing
  • low noise belt-drive design
  • stiff and solid MDF plinth
  • separately isolated DC synchronous motor for superior speed stability
  • three-speed motor provides 33⅓, 45, and 78 rpm
  • properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge
  • adjustable electronic speed control
  • special vibration damping feet
  • high quality gold RCA connectors with detachable phono cable included
  • full-size aluminum platter and special vibration damping platter mat
  • worldwide compatibility
  • excellent instruction manual
  • dust cover and 45 rpm adaptor
  • quick and easy to assemble

GENERAL SECTION

power supply DC12V，2.0A
universal power supply
consumption 4W
dimensions 17.1(W) x 14.5(D) x 5(H) in.
435(W) x 367(D) x 127(H) mm
weight 12lbs. | 5.4Kg



TURNTABLE SECTION
type 3-speed full manual
motor DC motor
driving method belt drive
turntable platter 305mm dia. aluminum die-cast
speeds 33 1/3, 45, and 78rpm
wow and flutter typical: less than 0.1% WTD
at 3KHz RMS(CD-4005)
limit: Less than 0.15% WTD
at 3KHz RMS(CD-4005)
S/N ratio TYPICAL: More than 65dB (DIN-B) (SS-4242)
LIMIT: More than 62dB (DIN-B) (SS-4242
speed tolerance 3000Hz +/-1%(CD-4005)
CARTRIDGE SECTION
type moving magnetic cartridge
stylus diamond stylus
channel separation more than 15 dB at 1KHz (CD-4005)
channel balance within 2.5 dB at 1KHz (CD-4005)
phono output level 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
line output 90-216 mV at 1KHz 5cm/sec (CD-4005)
RIAA 20Hz~20KHz: +1/-3 dB



CARTRIDGE
cartridge music hall melody
output voltage 2.5mV +/- 3dB at 1KHz 3.54cm/sec
channel separation measurement point 1KHz over 18dB
channel balance 25 dB or less at 1KHz
frequency response measurement point 10KHz / 1KHz 0 +/- 3dB
tracking force 2.0 +/- 0.5 grams

TONEARM SECTION
type static balanced S-shaped
effective arm length 230mm
overhang 15mm
offset angle 22 degrees
tracking error angle 3 degrees or less
stylus pressure adjustment method rotation movability (1-rotation 4g)
applicable cartridge weight 5~8.5g (including headshell 15~18.5g)
anti-skating adjustment range 0~3g
arm lifter oil damper type
height of stylus 8~10.5mm
lifter descent time 1.5~3 sec (stylus pressure: 2g)
horizontal sensitivity less than 0.2g
vertical sensitivity less than 0.2g
