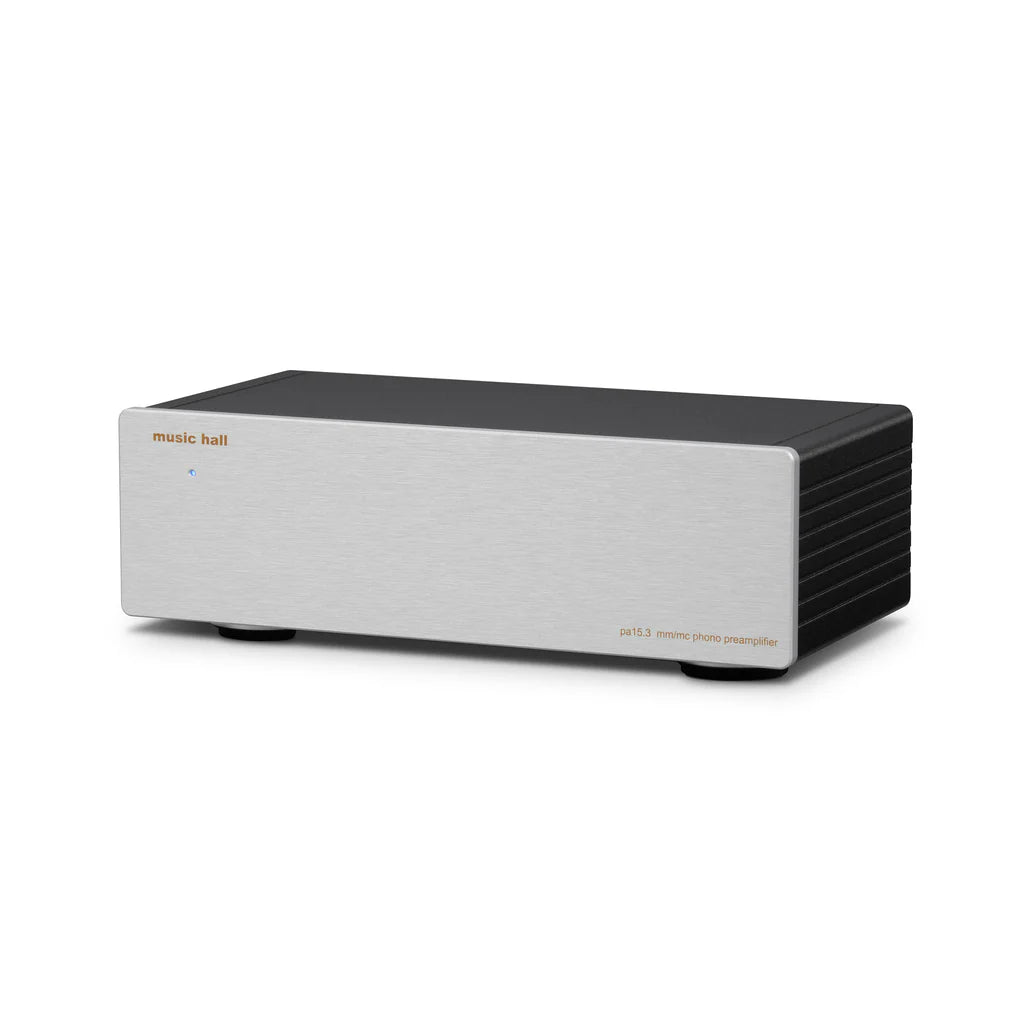

MUSIC HALL MPA 15.3 MM/MC PHONO AMP

$349.00

Quantity

Product Details

No one creates turntables and phono amps like music hall, and the pa15.3 is no exception.

Fully adjustable

The pa15.3 is fully adjustable for gain and loading allowing you to really dial in and maximize the performance of your cartridge.

Unrivaled performance

A real stand-out product that provides the functionality and sound quality of units easily costing 5 times the pa15.3’s modest price point.

Feature list

  • phono MM & MC capability
  • adjustable gain & cartridge loading
  • superior low noise design
  • excellent RIAA linearity
  • subsonic filter on/off
  • gold plated RCA connectors
  • outboard power supply / worldwide compatibility

Technical Specifications

THD <0,001% at SmV at 40dB gain, <0.005% at lmV at 60dB gain
Gain Gain, 40dB / 43dB / 60dB /63dB
Input Impedance 10ohm / 100 ohm / 1kohm / 47kohm
Input Capacitance lOOpF / 200 pF / 320pF / 420pF
Noise Floor 92dBV (A weighted), 87dBV (20Hz·20kHz)
Max. Output Voltage 10Vrms (THD <1%)
RIAA-Equalization Curve Accuracy Max. O.5dB / 20Hz – 20KHz
Outboard Power Supply 18V/500m DC , suitable for your country’s mains supply
Crosstalk >98dB at 5mV, 10kHz , 40dB gain
Power Consumption 30mA DC
Dimensions (H x W x D) 57mm x 100mm x 170mm
Weight (without Power Supply) 550g
