Musical Fidelity BPC3 Power Conditioner

Musical Fidelity BPC3 Power Conditioner

The power supplied to every device in your system contributes to sonic quality just as much as your amplifiers, DACs, and sources. Musical Fidelity's BPC (Balanced Power Conditioner) series is designed to improve on that power. BPC3 is typically used for digital or analogue source devices or very low-powered amplifiers, offering 4 power outlets split into 2 isolated 300VA power zones, so you can isolate devices with switch-mode power supplies from devices with linear power supplies for maximum performance — separating modern digital sources from analogue sources like phono preamps or turntables reduces interference between them. Musical Fidelity states the result is cleaner power, more dynamics, and a larger soundstage. As an authorized Musical Fidelity dealer in Toronto, Canada, Vinyl Sound can help you plan a power conditioning setup for your system.

Key Features

• 4 power outlets across 2 isolated power zones (300VA each)
• Super-silent, low-noise balanced toroidal isolating power transformer
• RFI attenuation greater than 57dB @ 235kHz, greater than 40dB up to 1MHz
• Series-mode surge suppression and DC blocker (≥2V), designed to avoid raising ground voltage
• Over-voltage and under-voltage protection
• Overload protection with resettable No-Fuse-Breaker
• Front panel status LEDs (green = normal operation, red = check input voltage)
• Massive aluminium front plate and heavy steel case

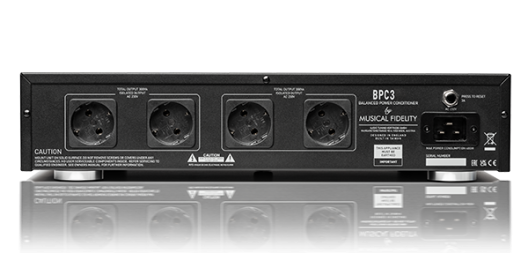

Two Isolated Power Zones

BPC3 splits its output into two 300VA zones to avoid differential-mode cross-contamination between connected electronics. Musical Fidelity recommends connecting devices with switch-mode power supplies to one zone and devices with linear power supplies to the other. A power strip can be added to either zone as long as its combined output doesn't exceed that zone's maximum rating.

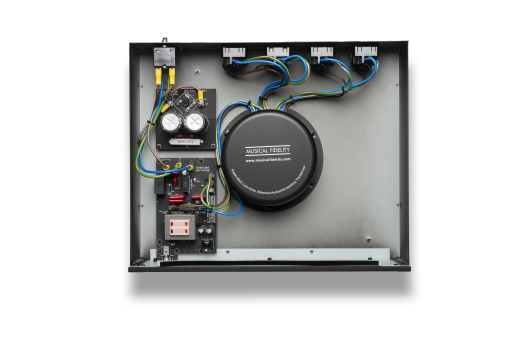

Toroidal Transformer

BPC3 uses a toroidal transformer, wound from a continuous strip of grain-oriented silicon steel with no air gap, typically reaching around 90% efficiency versus a standard EI transformer. Musical Fidelity states this design radiates roughly one-tenth the magnetic field of an EI transformer and, combined with Common Mode Rejection, helps eliminate noise for cleaner power delivery.

Surge and Overload Protection

BPC3 uses series-mode surge suppression rather than the more common shunt-mode design, which shunts excess voltage to ground and can raise ground voltage enough to contaminate audio and video signals. Musical Fidelity's design absorbs surges more than 2V above peak line voltage without affecting ground. If the unit detects an overload, its No-Fuse-Breaker switches to protection mode and can be manually reset once the overload is resolved; under-voltage and over-voltage protection are also built in, with front-panel LEDs showing current status.

Technical Specifications

Frequently Asked Questions

What equipment should I connect to this?
BPC3 is typically used for digital or analogue source devices or very low-powered amplifiers — phono preamps, preamplifiers, CD players, turntables, TVs, and similar equipment. It's not intended for high-power amplifiers.

Why does it have two power zones instead of one?
Separating devices with switch-mode power supplies from devices with linear power supplies avoids cross-contamination between them, reducing interference — particularly useful for keeping digital sources isolated from sensitive analogue gear like a phono preamp or turntable.

Can I connect a power strip to add more outlets?
Yes, as long as the combined output of everything plugged into that zone doesn't exceed the zone's 300VA rating.
