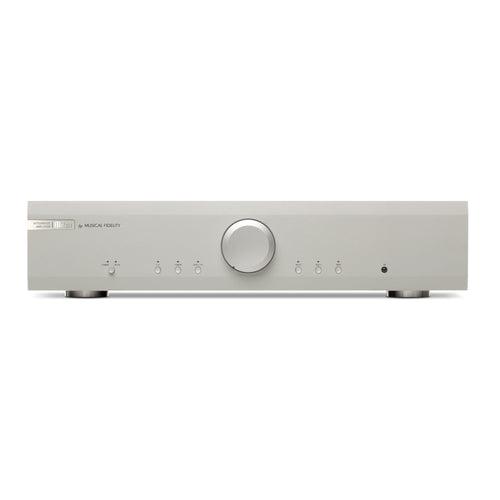

The M2si integrated amplifier takes our peerless premium-amp experience and applies it to a more affordable price point. It boasts trickle-down technology from our mighty and legendary Titan flagship, plus other high-end touches such as solid metal controls. The M2si delivers 72 watts per channel into 8 ohms and 137 watts into 4 ohms. This means the M2si will drive a wide range of speakers, even power-hungry models.

Further flexibility is provided by the M2si's excellent connectivity, which includes six line-level inputs and switchable home-theatre throughput. It features a Class A preamp stage with its own, independant power supply, coupled with a discrete pair of power amps. In effect, this means the M2si offers the performance benefits of a pre/power configuration with the compact convenience of a one-box design.

Its performance is rock-solid, it's sonically well-rounded and it's comfortable with a wide array of speakers. And it's all served up in an elegant, no-nonsense package.

M2si - Specifications

Output

• Power 72 Watts per channel into 8 Ohms (18dBW)

• Voltage 22 Volts RMS, 20Hz to 20 kHz; onset of clipping

• 62 Volts peak to peak

• Current 25 Amps peak to peak

• Damping factor 36

• Output devices 1 pair per channel


Line input

• THD+N < 0.014 % typical, 20Hz to 20 kHz

• Signal / noise ratio > 96dB ‘A’-weighted

• Input impedance 40 k Ohms

• Frequency response +0, –0.1dB, 10Hz to 20 kHz


Connections

• Line level inputs 6 pairs line level RCA connectors
• Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
• 1 pair line level RCA connectors, preamp outputs for e.g. bi-amping
• Speaker outputs 2 pairs 4mm banana plug/binding posts

Power requirement

• Mains voltages 115/230VAC 50/60Hz (factory pre-set)

• 100VAC 50/60Hz (alternative)

• Consumption 320 Watts maximum


Weight

• Unit only, unboxed 9.2 kg (20¼ lbs)

• In shipping carton 13 kg (30⅔ lbs)


Dimensions

• Wide 440 mm (17⅓”)

• High, including feet 100 mm (4”)

• Deep (front to back) including terminals 400 mm (15¾”)
