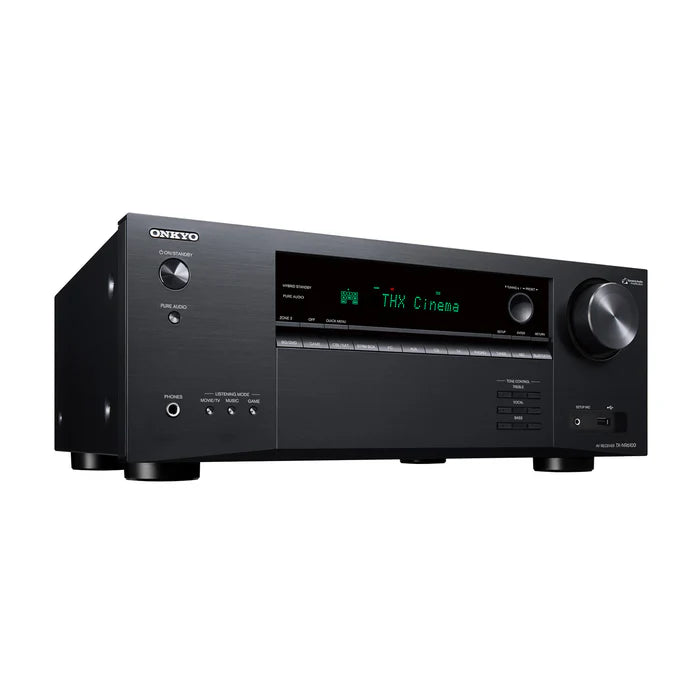

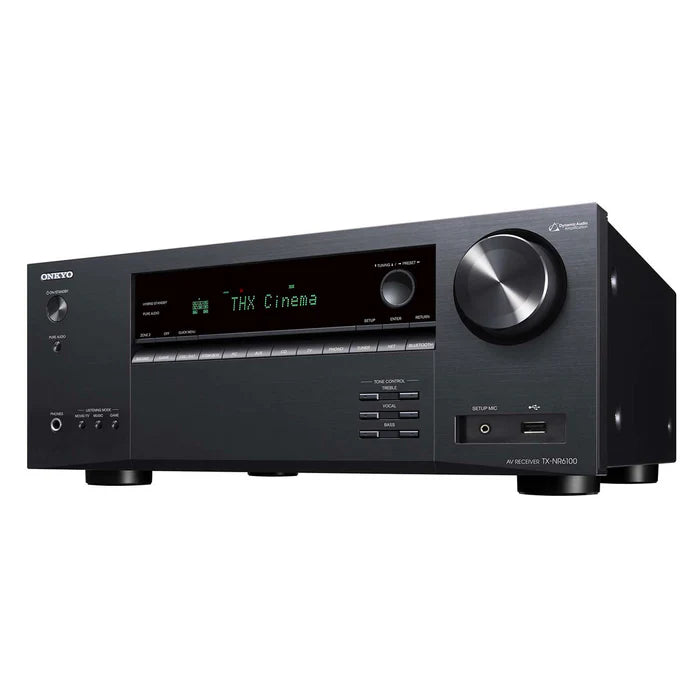

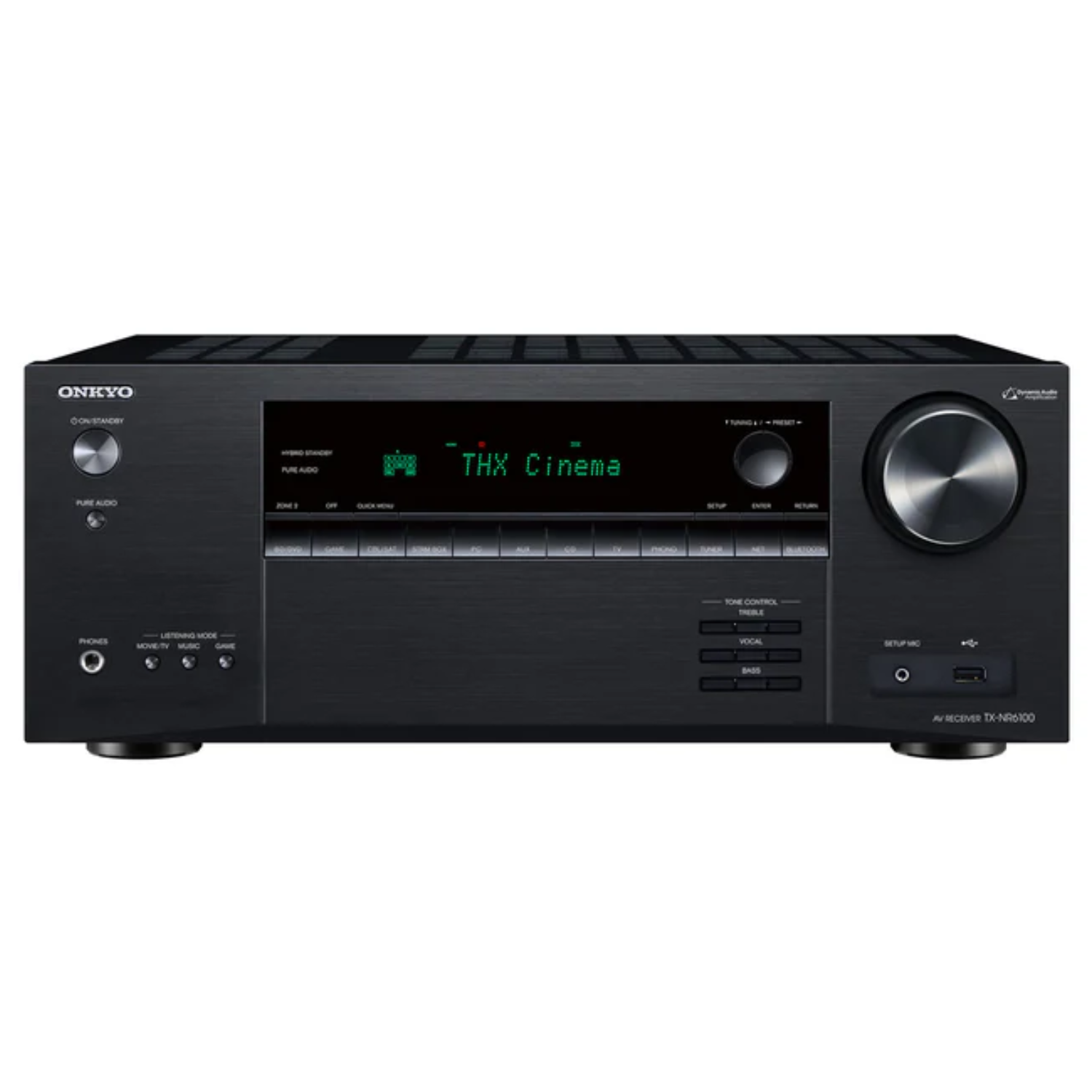

Onkyo TX-NR6100 7.2-Channel THX Certified AV Receiver at Vinyl Sound Toronto Canada

The TX-NR6100 is a 7.2-channel THX Certified AV receiver from Onkyo (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Positioned in the TX-NR Series, it is rated at 210 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) and 100 W per channel (8 ohms, 20 Hz to 20 kHz, 0.08% THD, 2-ch driven, FTC), with a frequency response of 10 Hz to 100 kHz in Direct and Pure Audio modes. The TX-NR6100 supports Dolby Atmos, DTS:X, and IMAX Enhanced for 5.2.2-channel immersive layouts, delivers HDMI 2.1 with 8K/60 and 4K/120 on its three primary inputs, and integrates AccuEQ room correction alongside AirPlay 2, Chromecast built-in, DTS Play-Fi, and Works with Sonos for comprehensive wireless streaming. It is THX Certified Select and Klipsch Optimised Mode ready for seamless speaker integration.

Seven-Channel THX Certified Amplification

The TX-NR6100 is built around Onkyo's Dynamic Audio Amplification circuitry with seven discrete Class AB amplifier channels, each rated at 210 W into 6 ohms and 100 W into 8 ohms at FTC standard with 0.08% THD. Dynamic power headroom extends to 240 W into 3 ohms and 210 W into 4 ohms for demanding front channel loads. The signal-to-noise ratio measures 106 dB on line inputs, and VLSC (Vector Linear Shaping Circuit) technology is applied throughout the signal path to suppress high-frequency pulse noise generated by digital-to-analogue conversion, preserving the analogue character of the output. DAC duties are handled by a TI PCM1690 32-bit 8-channel chip for the primary channels, supported by PCM5101A two-channel DACs for secondary channels. THX Certified Select accreditation means every input and operating mode combination has been independently verified to add nothing to and remove nothing from the source material.

AccuEQ Room Correction and Immersive Surround Formats

The TX-NR6100 ships with AccuEQ room calibration, which uses the included puck-shaped measurement microphone to automatically detect speaker presence and impedance, measure distances to the listening position, set optimal channel levels, select crossover frequencies, and apply frequency response equalisation based on the room's acoustic signature. AccuReflex phase-matching technology is also included, correcting phase misalignment between Atmos-enabled up-firing speakers and the rest of the surround array for coherent overhead sound. A Subwoofer EQ function further tailors bass response. For users who want more advanced calibration depth, Dirac Live is accessible on the TX-NR6100 as an optional upgrade, enabling full-frequency digital room correction across 20 Hz to 20 kHz. The TX-NR6100 supports Dolby Atmos, Dolby Surround, DTS:X, Neural:X, and IMAX Enhanced, with up to 5.2.2-channel immersive layouts placing sound precisely in three-dimensional space above and around the listener.

HDMI 2.1, Gaming, and Multi-Zone Distribution

Three of the TX-NR6100's six HDMI inputs are HDMI 2.1 compliant, delivering the full 40 Gbps bandwidth required for uncompressed 8K/60 and 4K/120 passthrough with VRR, ALLM, QFT, DSC, QMS, HDCP 2.3, HDR10+, Dolby Vision, and HLG. Inputs 4 through 6 are HDMI 2.0. The main HDMI output supports eARC and 8K passthrough, while a Sub/Zone 2 HDMI output enables independent video distribution to a second room. VRR eliminates frame tearing and ALLM automatically switches the display into low-latency mode for PlayStation 5 and Xbox Series X gaming. A Zone 2/Zone B RCA stereo line-out with an onboard Zone 2 DAC allows independent or synchronised audio playback on a compatible audio system in a second room.

Streaming, Connectivity, and Klipsch Optimised Mode

The TX-NR6100 integrates AirPlay 2, Chromecast built-in, DTS Play-Fi, and Works with Sonos with Volume Pass-Through for wireless multiroom audio. Built-in streaming services include Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, TuneIn, and Pandora, with Roon Tested certification for networked hi-res playback. Bidirectional Bluetooth 4.2 with Wi-Fi 802.11ac dual-band (2.4 GHz and 5 GHz) covers both incoming streaming and wireless headphone output via aptX and aptX HD. Four RCA analogue inputs, a phono MM input, optical and coaxial digital inputs, a USB Type-A port for local music file playback up to 24-bit/192 kHz, and a front panel HDMI input for quick source connections round out the connectivity. Klipsch Optimised Mode stores factory crossover values for Klipsch Reference and Reference Premiere speakers, applying the correct settings per channel automatically during setup.

Key Features

• 7.2-Channel Class AB Amplification: 210 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) and 100 W per channel (8 ohms, FTC) with dynamic headroom to 240 W at 3 ohms, VLSC noise suppression, and 32-bit TI PCM1690 DAC.
• THX Certified Select: Independently verified across thousands of tests for cinema reference output level, distortion, and noise across all inputs and operating modes.
• AccuEQ with AccuReflex and Subwoofer EQ: Automatic room calibration detecting speaker size, distance, level, and crossover; AccuReflex corrects phase for Atmos-enabled up-firing speakers. Dirac Live available as optional upgrade.
• 5.2.2-Channel Dolby Atmos and DTS:X: Full object-based surround decoding for height-enabled layouts with Neural:X upmixing, IMAX Enhanced video optimisation, and Dolby Surround.
• HDMI 2.1 on Three Inputs (40 Gbps): Inputs 1-3 deliver uncompressed 8K/60 and 4K/120 with VRR, ALLM, QFT, DSC, QMS, HDCP 2.3, HDR10+, and Dolby Vision; inputs 4-6 are HDMI 2.0.
• Three HDMI Outputs with Zone 2 HDMI: Main output with eARC and 8K support, Sub/Zone 2 HDMI output for independent second-room video distribution.
• Works with Sonos and Full Streaming Suite: AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Tested, Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, TuneIn, and Pandora built in; Sonos Volume Pass-Through for unified multiroom control.
• Bidirectional Bluetooth with aptX HD: Receive audio via SBC or AAC; transmit 24-bit hi-res audio wirelessly to compatible headphones via aptX HD.
• Phono MM Input: Dedicated phono stage (3.5 mV rms / 47k ohms) for direct turntable connection without a separate phono preamplifier.
• Klipsch Optimised Mode: Factory crossover values for Klipsch Reference and Reference Premiere speakers applied automatically per channel for accurate out-of-the-box integration.
• Zone 2 with Onboard DAC: Zone 2/Zone B RCA stereo line-out with built-in Zone 2 DAC for independent or synchronised audio playback from digital sources in a second room.

Technical Specifications

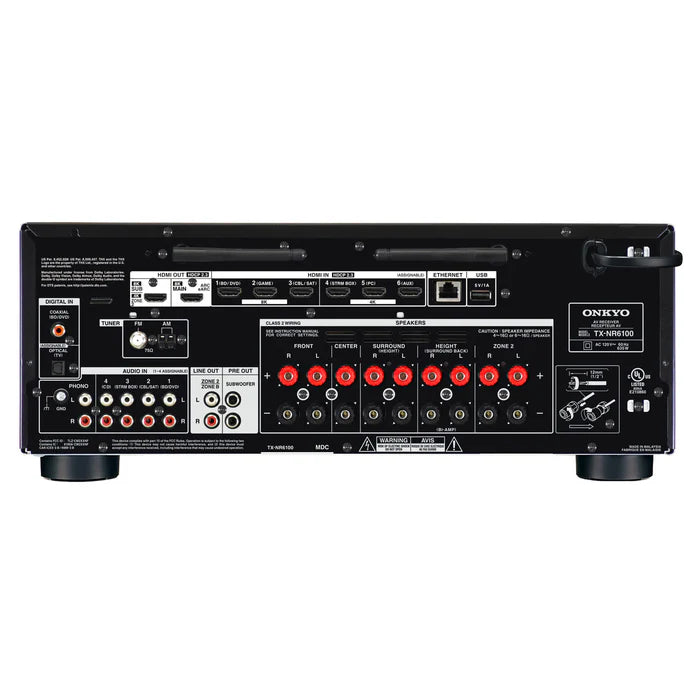

Connections at a Glance

• 3 x HDMI 2.1 inputs rear panel (40 Gbps, 8K/60, 4K/120)
• 3 x HDMI 2.0 inputs rear panel
• 1 x HDMI input front panel
• 3 x HDMI outputs (Main with eARC and 8K, Sub/Zone 2, Zone 2)
• 1 x Component video input
• 2 x Composite video inputs
• 4 x RCA analogue inputs
• 1 x RCA Phono MM input (turntable)
• 1 x Optical digital input
• 1 x Coaxial digital input
• 1 x USB Type-A (local music playback up to 24-bit/192 kHz)
• 2 x mono subwoofer pre-outputs
• Zone 2 / Zone B RCA stereo line-out (with onboard Zone 2 DAC)
• Dual-band Wi-Fi 802.11ac (2.4 GHz / 5 GHz)
• Bluetooth 4.2 bidirectional (aptX HD TX)
• Ethernet, RS-232, 12V trigger output, IR input

Frequently Asked Questions

What is the Onkyo TX-NR6100?

The Onkyo TX-NR6100 is a 7.2-channel THX Certified AV receiver rated at 210 W per channel (6 ohms) and 100 W per channel (8 ohms, FTC). It supports Dolby Atmos, DTS:X, and IMAX Enhanced in 5.2.2-channel immersive layouts, includes AccuEQ with AccuReflex room correction, provides HDMI 2.1 with 8K/60 and 4K/120 on three inputs, and integrates a full wireless streaming suite with Works with Sonos and AirPlay 2. It is available at Vinyl Sound in Toronto, Canada.

How does the Onkyo TX-NR6100 compare to the Denon AVR-X2800H or Yamaha RX-V6A?

The TX-NR6100 holds clear advantages over the Denon AVR-X2800H and Yamaha RX-V6A in several areas. It is THX Certified Select, which neither the X2800H nor the RX-V6A carries, offering independently verified cinema reference performance standards. The TX-NR6100 also provides three HDMI outputs including a Zone 2 HDMI port for independent second-room Ultra HD video distribution, while the Denon X2800H and Yamaha RX-V6A have fewer HDMI output options. VLSC noise reduction circuitry and 32-bit TI PCM1690 DACs give the Onkyo a refined digital signal path, and the optional Dirac Live upgrade path adds room correction depth beyond what Denon's Audyssey MultEQ X or Yamaha's YPAO can provide at this tier.

Can the Onkyo TX-NR6100 support a Dolby Atmos speaker layout?

Yes, the TX-NR6100 supports Dolby Atmos in a 5.2.2-channel configuration, combining five listener-level speakers, two subwoofers, and two overhead or height speakers for a fully immersive three-dimensional sound field. For rooms without ceiling speakers, Atmos-enabled up-firing speakers are also compatible, and the included AccuReflex phase correction ensures the reflected overhead sound integrates cleanly with the rest of the surround array.

What is the difference between AccuEQ and Dirac Live on the TX-NR6100?

AccuEQ is Onkyo's bundled automatic room calibration system, which detects speakers, measures distances, sets levels, and applies frequency response equalisation in a straightforward single-point measurement process. It also includes AccuReflex for Atmos speaker phase correction and a Subwoofer EQ function. Dirac Live is an optional paid upgrade available on the TX-NR6100 that provides a more advanced full-frequency correction across 20 Hz to 20 kHz, using multiple measurement positions and a more sophisticated target curve algorithm for greater accuracy in challenging rooms. Both systems store correction profiles that can be recalled and compared.

Is the Onkyo TX-NR6100 compatible with next-generation gaming consoles?

Yes, the TX-NR6100 is fully compatible with PlayStation 5 and Xbox Series X. Its three HDMI 2.1 inputs (inputs 1 through 3) support 4K at 120 Hz with Variable Refresh Rate (VRR) to eliminate frame tearing, Auto Low Latency Mode (ALLM) for automatic low-latency switching, and Quick Frame Transport (QFT) to reduce input lag. Connecting the console to one of the first three HDMI inputs is recommended to access all HDMI 2.1 gaming features.

What streaming services are built into the TX-NR6100?

The TX-NR6100 has AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Tested certification, Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, TuneIn, and Pandora built in. Works with Sonos compatibility with Volume Pass-Through allows the receiver to integrate into an existing Sonos wireless multiroom network. Voice control via Amazon Alexa and Google Assistant is supported with a compatible third-party smart speaker.

Where can I buy the Onkyo TX-NR6100 in Toronto or Canada?

The Onkyo TX-NR6100 is available at Vinyl Sound, an authorised Onkyo dealer in Toronto, Canada. Vinyl Sound carries the full Onkyo TX-NR Series lineup and offers in-store demonstration, room correction setup guidance, and expert advice on speaker pairing and home theater configuration.
