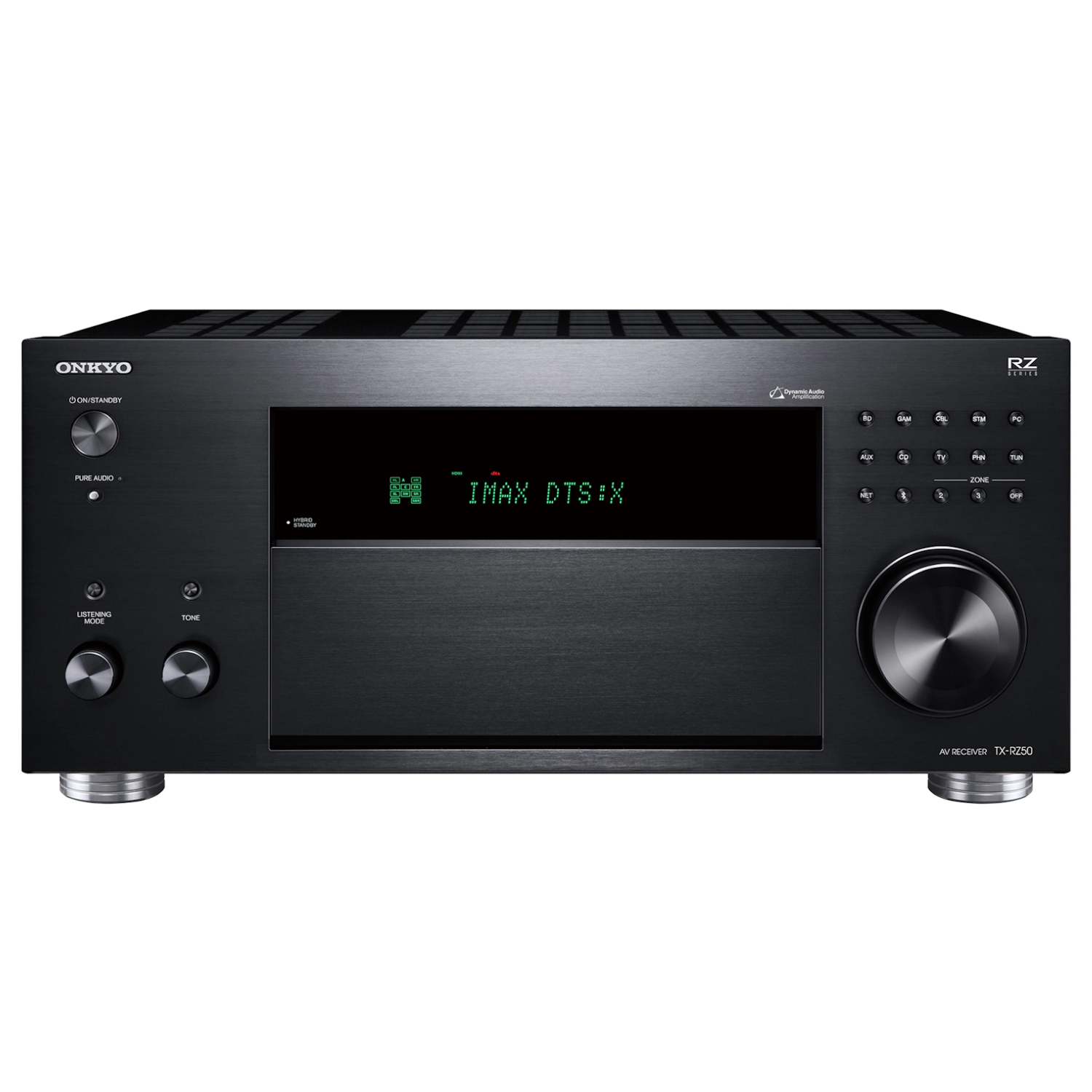

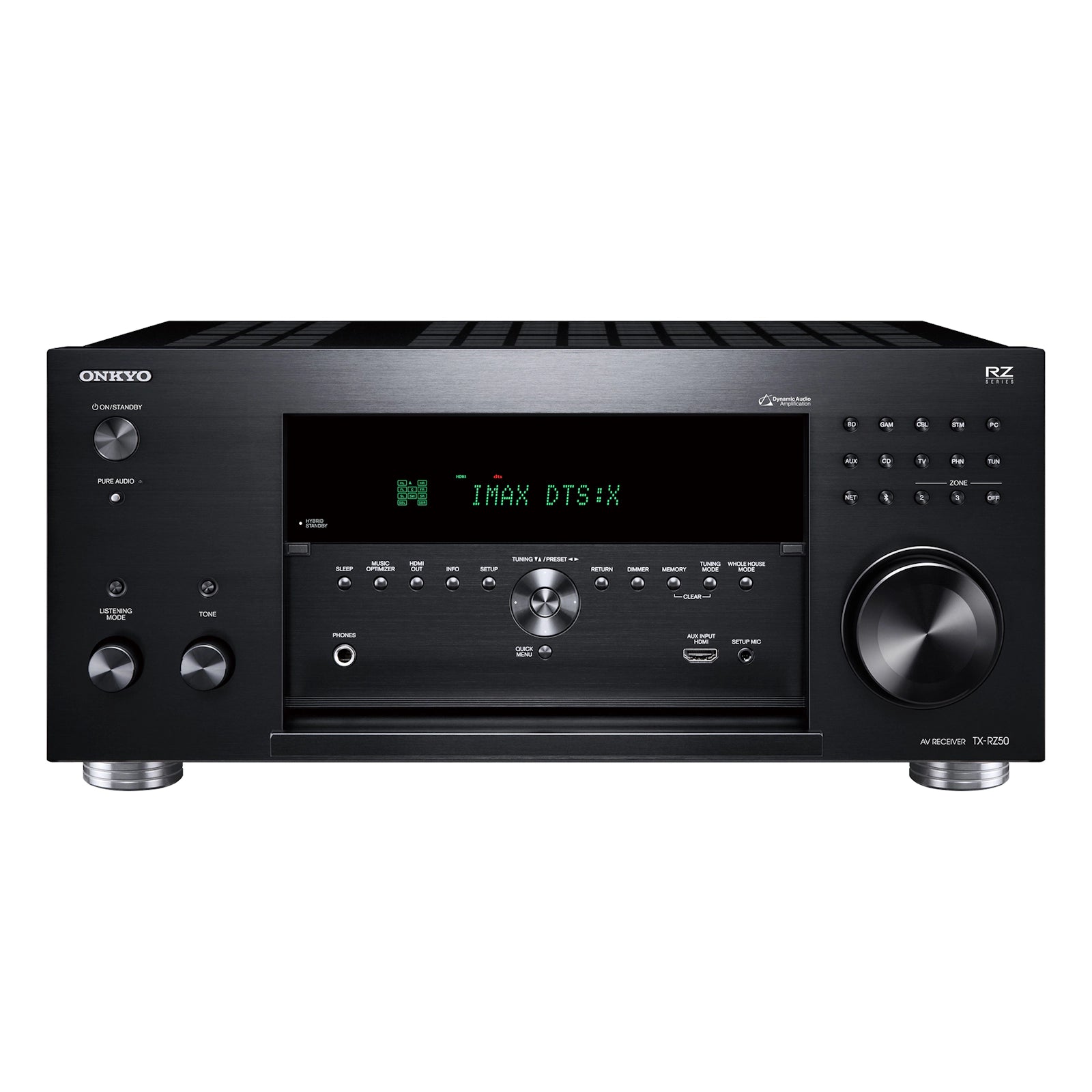

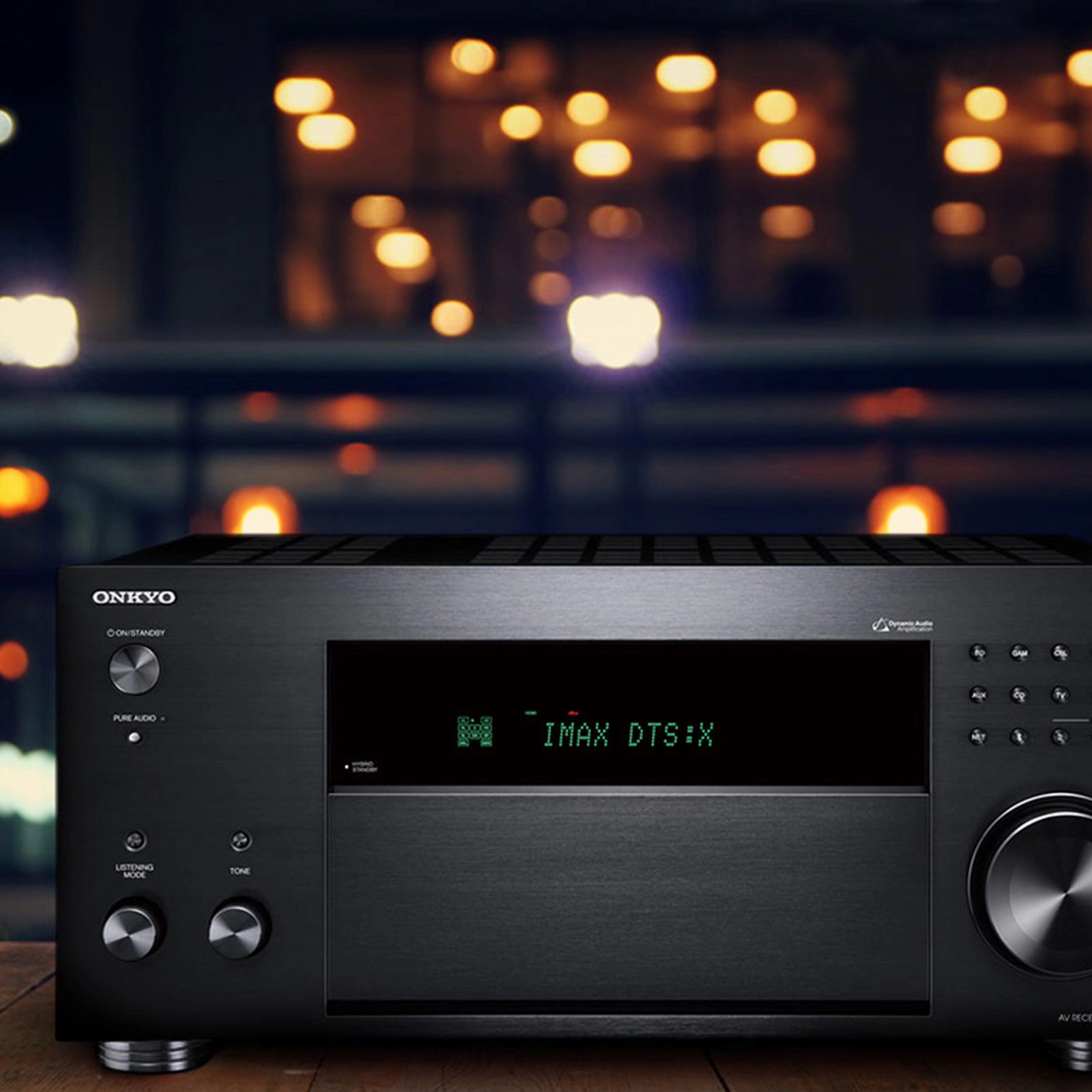

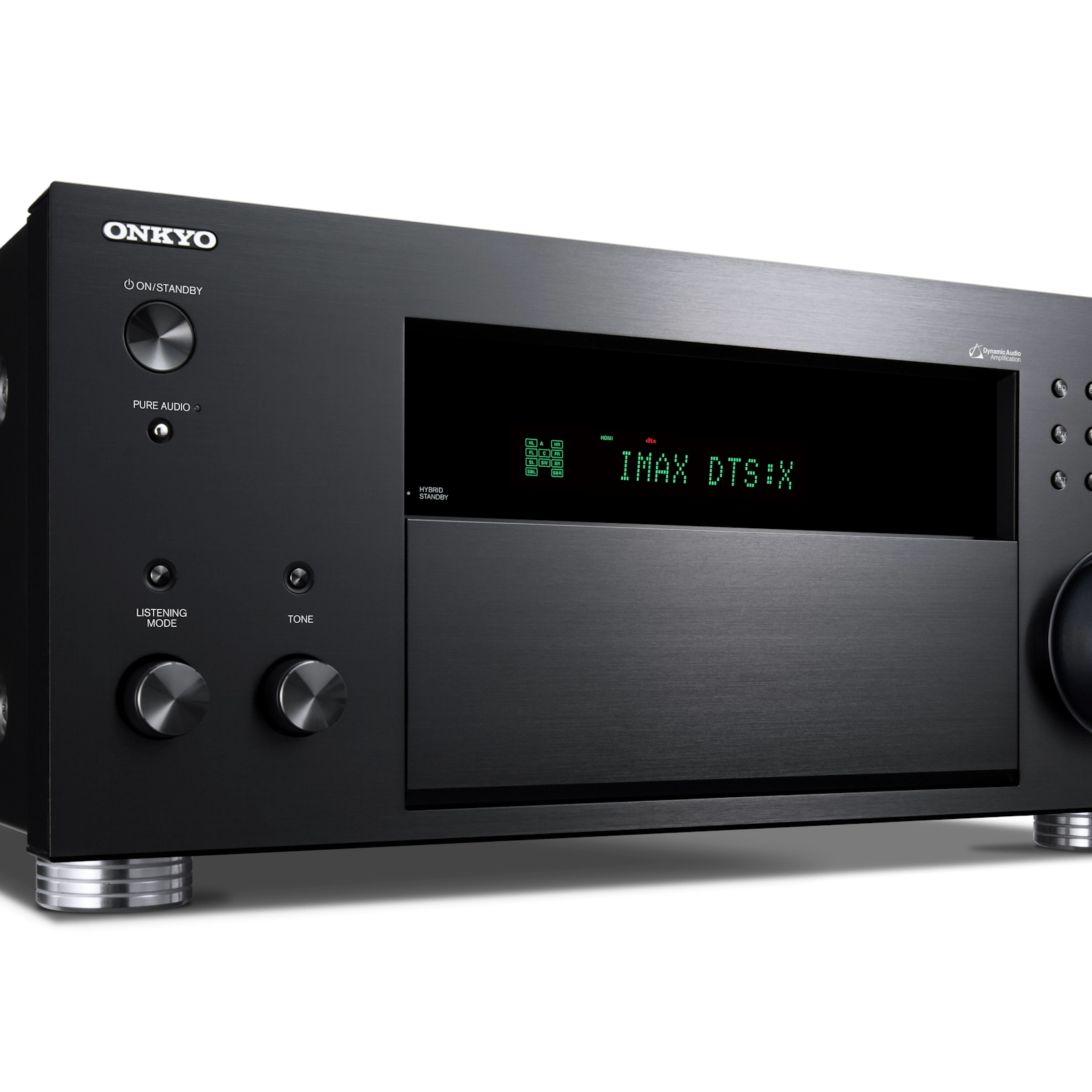

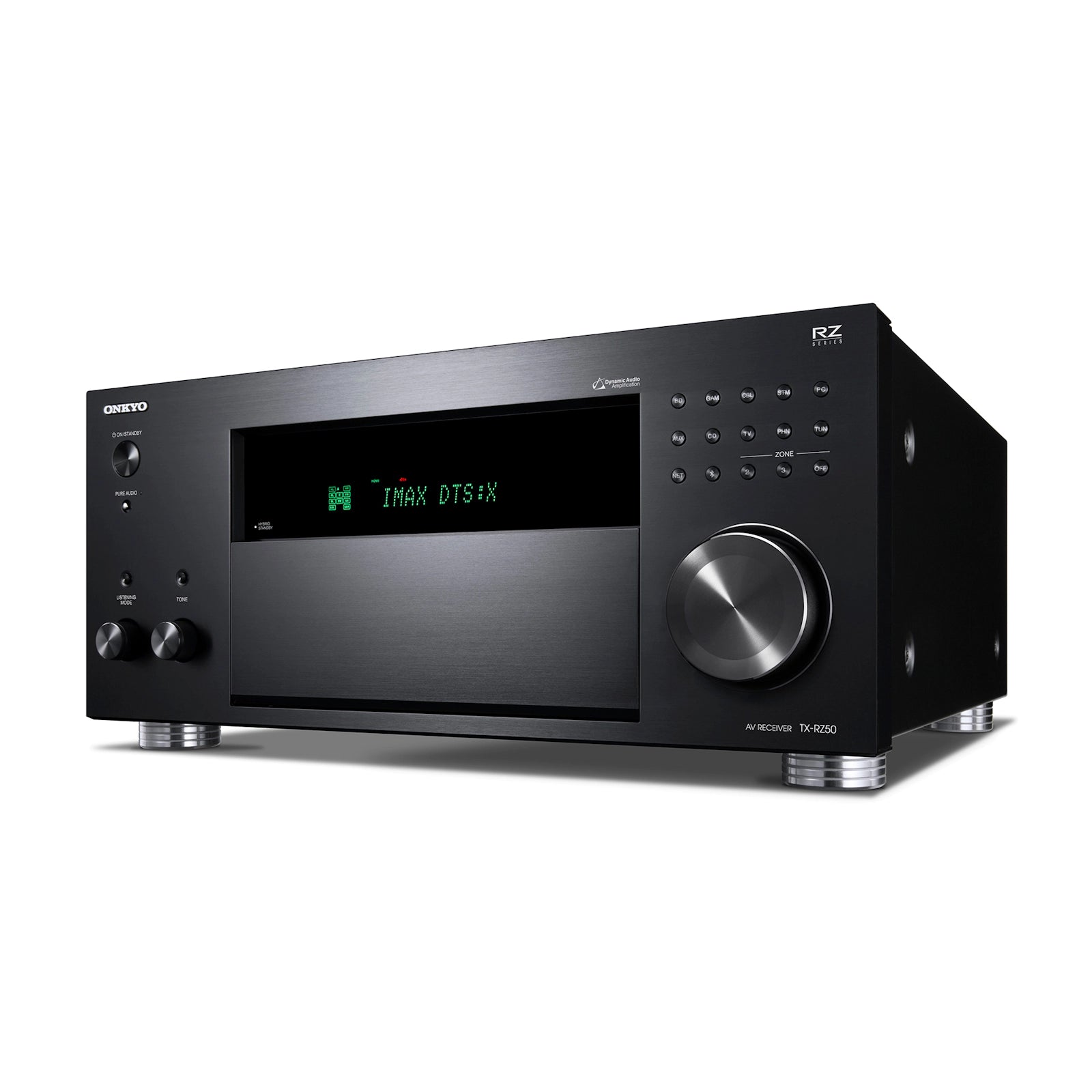

Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver at Vinyl Sound Toronto Canada

The TX-RZ50 is a 9.2-channel THX Certified AV receiver from Onkyo (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Built on the acclaimed RZ Series platform, it is rated at 250 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) and delivers a frequency response of 5 Hz to 100 kHz in Direct Mode. The TX-RZ50 supports 11.2-channel processing with full pre-amplifier outputs for 7.2.4 layouts, ships with Dirac Live Room Correction Full Bandwidth included, and carries IMAX Enhanced and THX certification alongside Dolby Atmos, DTS:X, and a complete wireless streaming suite including AirPlay 2, Chromecast built-in, DTS Play-Fi, and Works with Sonos. It was recognised as the EISA Best Buy AV Receiver 2023-2024 by the European Imaging and Sound Association.

Dynamic Audio Amplification and THX Certification

The TX-RZ50 is powered by Onkyo's Dynamic Audio Amplification architecture, delivering 250 W per channel into 6 ohms and 120 W per channel into 8 ohms across 20 Hz to 20 kHz at 0.08% THD with two channels driven to FTC standard. Dynamic power headroom extends further to 250 W into 3 ohms and 220 W into 4 ohms for demanding front channel loads. The frequency response in Direct Mode spans 5 Hz to 100 kHz with a +1 dB / -3 dB tolerance, and the signal-to-noise ratio measures 106 dB on line inputs. THX Certified Select accreditation confirms that the receiver meets independently verified cinema reference standards for output level, distortion, and noise across all channels and all operating modes, with four distinct THX listening modes available: Cinema, Music, Gaming, and Surround EX. Onkyo was the first consumer home theater electronics brand to achieve THX certification, in 1993.

Dirac Live, IMAX Enhanced, and 11.2-Channel Processing

Dirac Live Room Correction Full Bandwidth is included with every TX-RZ50, calibrating the complete 20 Hz to 20 kHz audible range for all speakers in the system. Measurement can be performed using a smartphone with the included wired microphone, or wirelessly via the Dirac Live PC or macOS application with a third-party USB microphone. An updated delay time ceiling of 50 milliseconds (up from 20 ms) delivers more precise positioning for complex surround layouts, and AccuReflex phase-matching technology ensures coherent blending between conventional speakers and Atmos-enabled up-firing drivers. The TX-RZ50 provides 11.2-channel pre-amplifier outputs, allowing a 7.2.4 system to be built by adding external amplification for the additional channels. IMAX Enhanced certification applies both object-based audio precision and a proprietary video processing algorithm that optimises colour accuracy, contrast, and detail on compatible displays. Dolby Atmos, DTS:X with Neural:X upmixing, and Dolby Surround are all supported natively.

HDMI 2.1, Gaming, and Multi-Zone Capability

The TX-RZ50 provides seven HDMI inputs and three outputs. Inputs 1 through 3 and the Main and Sub outputs support 8K/60 and 4K/120 with DSC; inputs 4 through 6 support 8K/60 and 4K/120 without DSC; and the front panel HDMI input supports up to 4K/60 (HDMI 2.0). HDMI 2.1 features including VRR, ALLM, QFT, DSC, QMS, and eARC are supported across inputs 1 through 6, the Main output, and the Sub/Zone 2 output in Sub Mode, ensuring full compatibility with PlayStation 5, Xbox Series X, and the latest Apple TV. A dedicated Sub/Zone 2 HDMI output enables independent Ultra HD video distribution to a second room at up to 8K/60 resolution from a separate source. Multi-zone audio extends further with a 5.2-channel main zone plus powered Zone 2 and Zone 3 speaker outputs, plus Zone 2/Zone B line-out RCA for compatible audio systems or headphone docks.

Streaming, Wireless, and Klipsch Optimised Mode

The TX-RZ50 integrates AirPlay 2, Chromecast built-in, DTS Play-Fi, and Works with Sonos with Volume Pass-Through for comprehensive multiroom audio. Up to three independent Sonos zones are supported, each capable of playing a different streaming service. Built-in streaming services include Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, TuneIn, and Pandora. Bidirectional Bluetooth with SBC and AAC for receiving and SBC, aptX, and aptX HD (including 24-bit audio) for transmitting covers both incoming playback and wireless headphone output. Dual-band Wi-Fi (802.11ac, 2.4 GHz and 5 GHz) ensures stable network connectivity. Klipsch Optimised Mode stores factory-calibrated crossover values for specific Klipsch Reference Premiere speakers, allowing automatic crossover assignment when those models are selected in the speaker setup menu.

Key Features

• 250 W/Ch THX Certified Amplification: Class AB design rated at 250 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) with a frequency response of 5 Hz to 100 kHz in Direct Mode.
• 11.2-Channel Processing and Pre-Outs: Supports 7.2.4 Dolby Atmos layouts via full 11.2-channel pre-amplifier outputs for external amplification of additional channels.
• Dirac Live Full Bandwidth Included: Calibrates the complete 20 Hz to 20 kHz range; updated delay ceiling of 50 ms improves accuracy for complex layouts; AccuReflex phase-matching for Atmos-enabled speakers.
• IMAX Enhanced and THX Certified: Dual certification for both immersive object-based audio and independently verified cinema reference sound standards, with four THX listening modes.
• HDMI 2.1 with 8K and Zone 2 HDMI: Seven inputs and three outputs with VRR, ALLM, QFT, DSC, QMS, eARC, and a dedicated Zone 2 HDMI output for independent second-room Ultra HD video.
• Dolby Atmos, DTS:X, and IMAX Enhanced Processing: Full object-based surround decoding with Neural:X upmixing, Dolby Surround, and AccuReflex for height speaker coherence.
• Works with Sonos (Up to 3 Zones): Volume Pass-Through for Sonos app control across up to three independent zones, each streaming a different service.
• Comprehensive Streaming Platform: AirPlay 2, Chromecast built-in, DTS Play-Fi, Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, TuneIn, and Pandora built in.
• Bidirectional Bluetooth with aptX HD: Receive audio via SBC or AAC; transmit 24-bit audio to wireless headphones via aptX HD.
• Multi-Zone Audio and Video Distribution: Main 5.2-channel zone plus powered Zone 2 and Zone 3 speaker outputs; Zone 2 HDMI and Zone 2/B RCA line-out for fully independent multiroom setups.
• Klipsch Optimised Mode: Factory crossover values for Klipsch Reference Premiere speakers applied automatically on model selection for seamless integration.
• Phono Input and Custom Install Ready: Dedicated phono MM input (3.5 mV / 47k ohms) plus IP control, RS-232, and IR input for home automation integration.

Technical Specifications

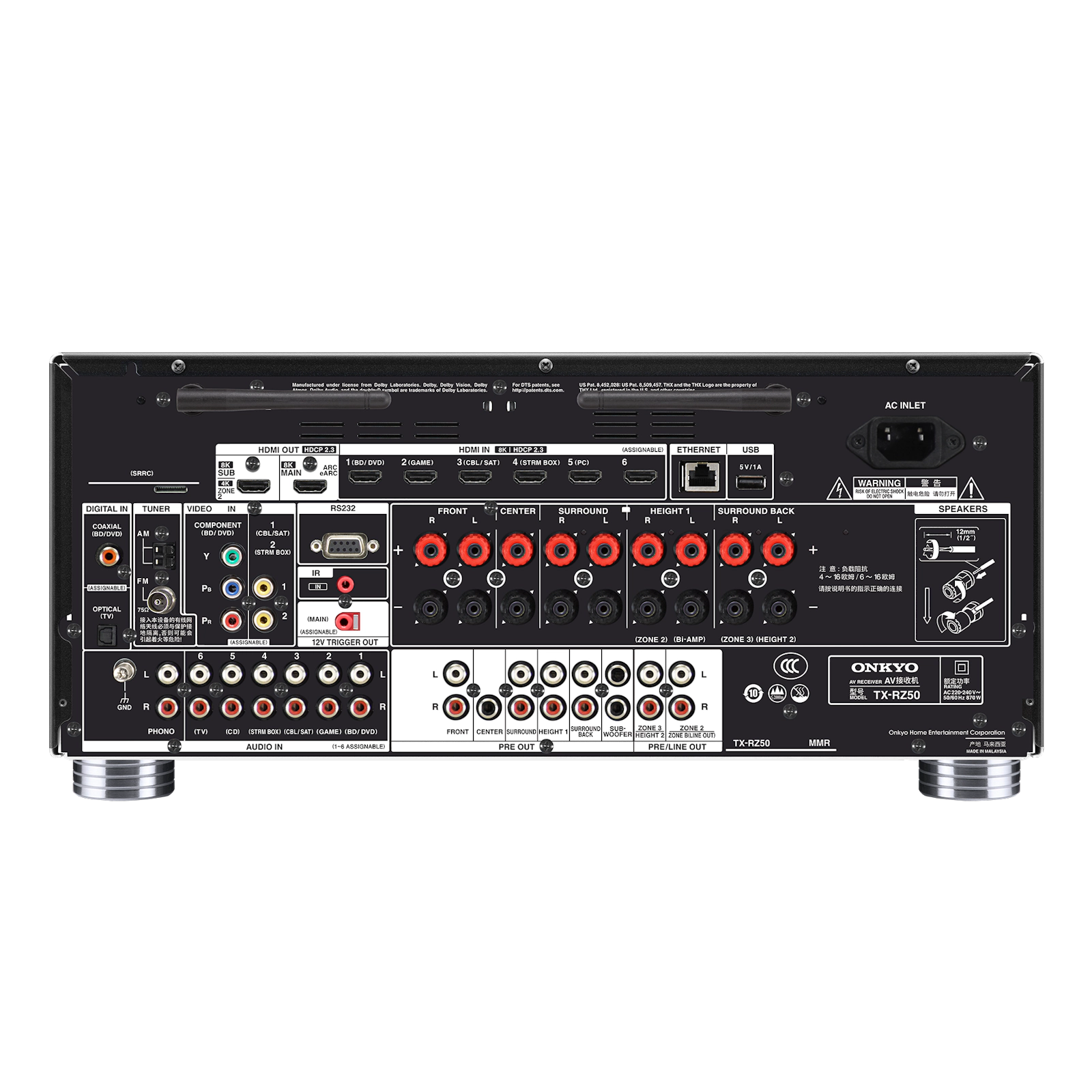

Connections at a Glance

• 7 x HDMI inputs (6 x HDMI 2.1 rear + 1 x HDMI 2.0 front panel)
• 3 x HDMI outputs (Main eARC, Sub/Zone 2, Sub in Sub Mode)
• 11.2-channel pre-amplifier outputs (2 subwoofer outputs)
• Powered Zone 2 and Zone 3 speaker outputs
• Zone 2 / Zone B RCA line-out (stereo)
• Phono MM RCA input
• Dual-band Wi-Fi 802.11ac (2.4 GHz / 5 GHz)
• Bluetooth 4.2 bidirectional (aptX HD TX)
• IP control, RS-232, IR input
• FM and AM tuner with 40-station preset memory

Awards and Critical Recognition

• EISA Best Buy AV Receiver 2023-2024 (European Imaging and Sound Association)

Frequently Asked Questions

What is the Onkyo TX-RZ50?

The Onkyo TX-RZ50 is a 9.2-channel THX Certified AV receiver with 11.2-channel processing, rated at 250 W per channel (6 ohms, 1 kHz, 10% THD, 1-ch driven) and a frequency response of 5 Hz to 100 kHz in Direct Mode. It includes Dirac Live Room Correction Full Bandwidth, Dolby Atmos, DTS:X, IMAX Enhanced, HDMI 2.1 with 8K support, and a full wireless streaming suite. It is the EISA Best Buy AV Receiver 2023-2024 and is available at Vinyl Sound in Toronto, Canada.

How does the Onkyo TX-RZ50 compare to the Denon AVR-X4800H or Yamaha RX-A6A?

The TX-RZ50 outpaces both the Denon AVR-X4800H and Yamaha RX-A6A in several key areas. Its 11.2-channel pre-amplifier outputs allow a full 7.2.4 Atmos layout without an external processor, a capability neither the X4800H nor the RX-A6A matches in their standard configurations. Dirac Live Full Bandwidth is included in the box, whereas Denon bundles Audyssey MultEQ XT32 and Yamaha offers YPAO RSC, neither of which matches Dirac Live's full-range correction accuracy. The TX-RZ50 also holds an EISA Best Buy AV Receiver 2023-2024 award and adds DTS Play-Fi multiroom streaming and bidirectional aptX HD Bluetooth, features absent from most Denon and Yamaha equivalents at the same tier.

Can the Onkyo TX-RZ50 support a 7.2.4 Dolby Atmos layout?

Yes, the TX-RZ50 supports a 7.2.4 Dolby Atmos layout. The receiver provides 11.2-channel pre-amplifier outputs, so a dedicated stereo power amplifier can be added to drive the four overhead or height channels while the nine onboard amplified channels handle the remaining speakers and dual subwoofers. AccuReflex phase-matching technology is included to maintain timing coherence between conventional speakers and Atmos-enabled up-firing drivers in the same system.

What is AccuReflex and how does it work with Atmos-enabled speakers?

AccuReflex is Onkyo's phase-matching solution for Atmos-enabled up-firing speakers. When an up-firing Atmos speaker bounces sound off the ceiling to simulate overhead audio, a phase misalignment can occur between the reflected sound and the direct sound from other speakers in the array. AccuReflex digitally adjusts the phase of the Atmos-enabled speaker's output to compensate for this, ensuring that overhead objects blend cleanly with the surrounding sound field rather than sounding disconnected or smeared.

Does the Onkyo TX-RZ50 support multi-zone video distribution?

Yes, the TX-RZ50 includes a dedicated Sub/Zone 2 HDMI output that can distribute Ultra HD video at up to 8K/60 resolution to a separate display in a second room, independently from the main zone. When two separate HDMI sources are used simultaneously, Zone 2 supports up to 4K/120. Zone 2 and Zone 3 also have powered speaker outputs and a Zone 2/B RCA line-out for audio-only distribution to compatible systems.

What streaming services are built into the TX-RZ50?

The TX-RZ50 has AirPlay 2, Chromecast built-in, DTS Play-Fi, Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, TuneIn, and Pandora built in. Works with Sonos certification with Volume Pass-Through supports up to three independent Sonos zones, each capable of streaming a different service simultaneously. Voice control via Amazon Alexa or Google Assistant is also supported with a compatible third-party smart speaker.

Where can I buy the Onkyo TX-RZ50 in Toronto or Canada?

The Onkyo TX-RZ50 is available at Vinyl Sound, an authorised Onkyo dealer located in Toronto, Canada. Vinyl Sound carries the full Onkyo RZ Series lineup and offers in-store demonstration, Dirac Live calibration guidance, and expert advice on speaker pairing, system layout, and multi-zone integration.
