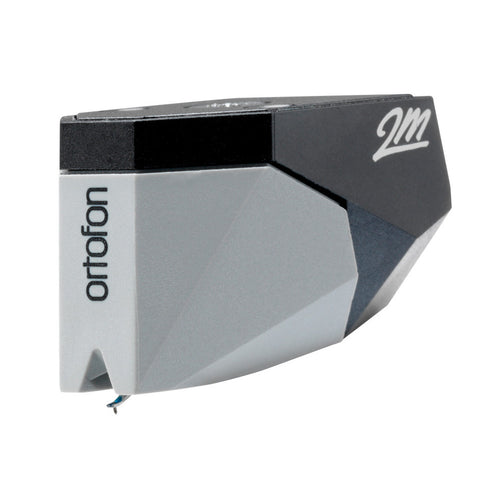

ORTOFON 2M 78 PHONO CARTRIDGE

$159.00

Pay as per month with Paybright

Quantity

Product Details

Product Specifications:



  • Output voltage at 1000 Hz, 5cm/sec: 4 mV
  • Frequency range at - 3dB: 20Hz-22.000 Hz
  • Frequency response 20-20.000 Hz: + 3 / - 1 dB
  • Tracking ability at 315Hz at 1.8g 70 µm
  • Compliance, dynamic, lateral: 18 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 65 µm
  • Tracking force range: 1.6-2.0g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 700 Ohm
  • Internal inductance: 300 mH
  •
