  • ORTOFON CADENZA MONO MC PHONO CARTRIDGE - Vinyl Sound

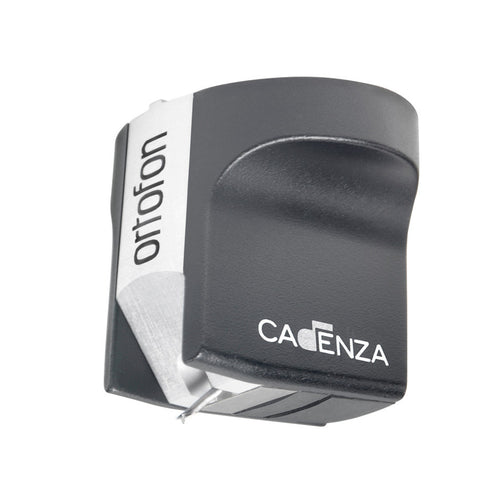

ORTOFON CADENZA MONO MC PHONO CARTRIDGE

$1,765.00

Quantity

Product Details

Product Specifications:

  • Output voltage at 1 kHz 5 cm/sec - 0.45 mV
  • Frequency range at -3 dB - 20 Hz - 50 kHz
  • Frequency response 20 Hz - 20 kHz - +3/-1
  • Tracking ability at 315 Hz at recommended tracking force - 70 μm
  • Compliance, dynamic, lateral - 12 μm/mN
  • Stylus type - Nude Fine Line on Alu cantilever
  • Stylus tip radius - r/R 8/40
  • Tracking force range - 2.2-2.7 g (22-27 mN)
  • Tracking force recommended - 2.5 g (25 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-500 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge colour - Natural/Black
  • Cartridge weight - 10.7 g

    •
