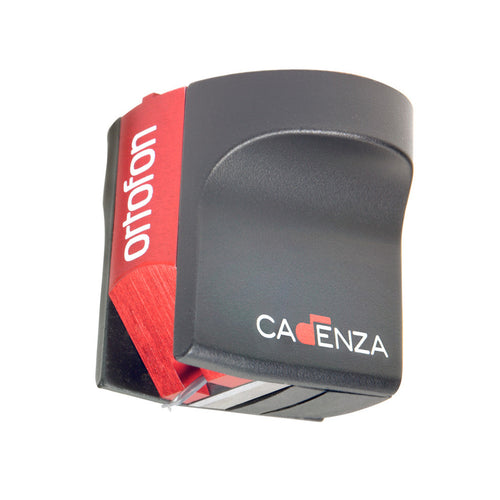

ORTOFON MC CADENZA RED PHONO CARTRIDGE

$2,145.00

Quantity

Product Details

Product Specifications:



  • Output voltage at 1 kHz 5 cm/sec - 0,45 mV
  • Channel balance - < 1,5 dB
  • Channel separation at 1 kHz - > 23 dB
  • Channel separation at 15 kHz - > 15 dB
  • Frequency range at -3 dB - 20 Hz - 50 kHz
  • Frequency response 20 Hz - 20 kHz - +3/-1
  • Tracking ability at 315 Hz at recommended tracking force - 80 μm
  • Compliance, dynamic, lateral - 12 μm/mN
  • Stylus type - Nude Fine Line on Alu cantilever
  • Stylus tip radius - r/R 8/40
  • Tracking force range - 2,2-2,7 g (22-27 mN)
  • Tracking force recommended - 2,5 g (25 mN)

    •
