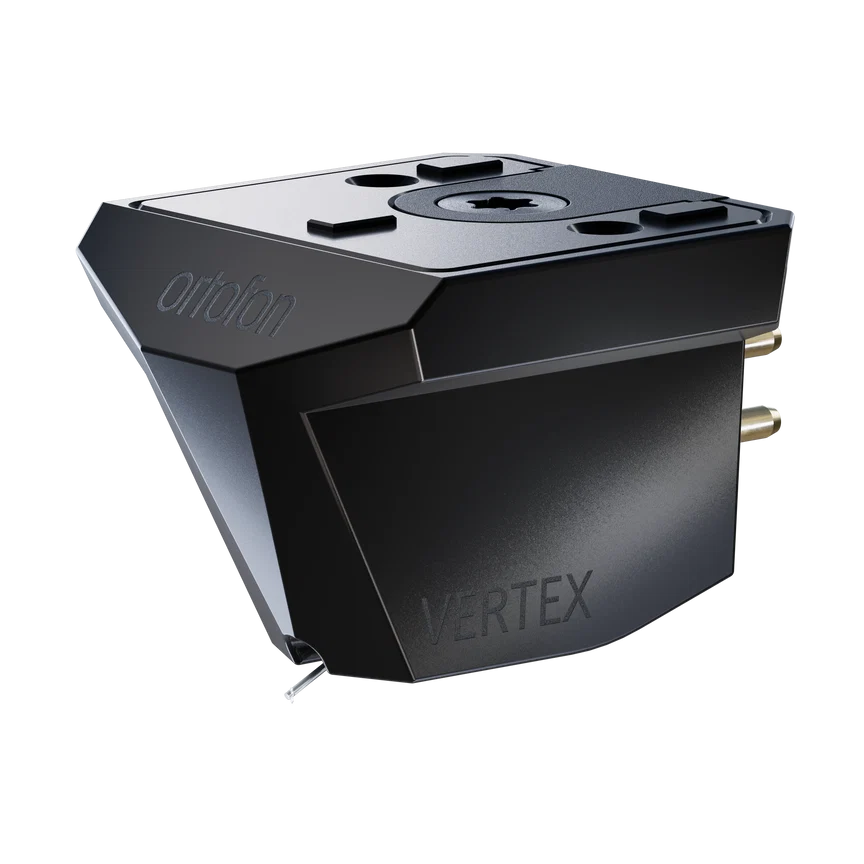

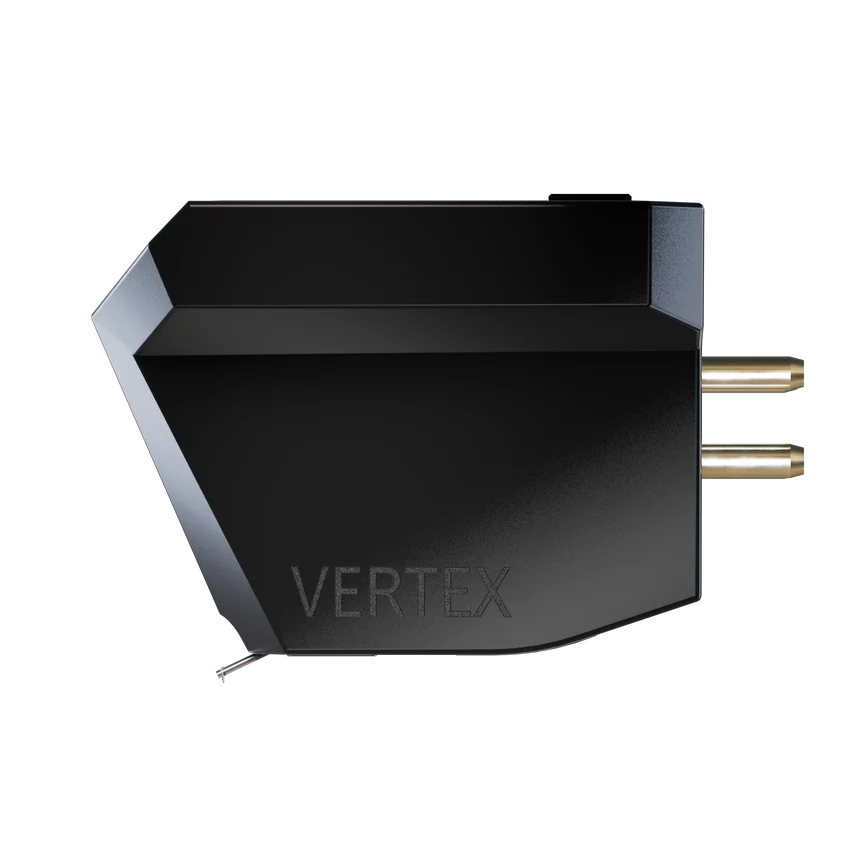

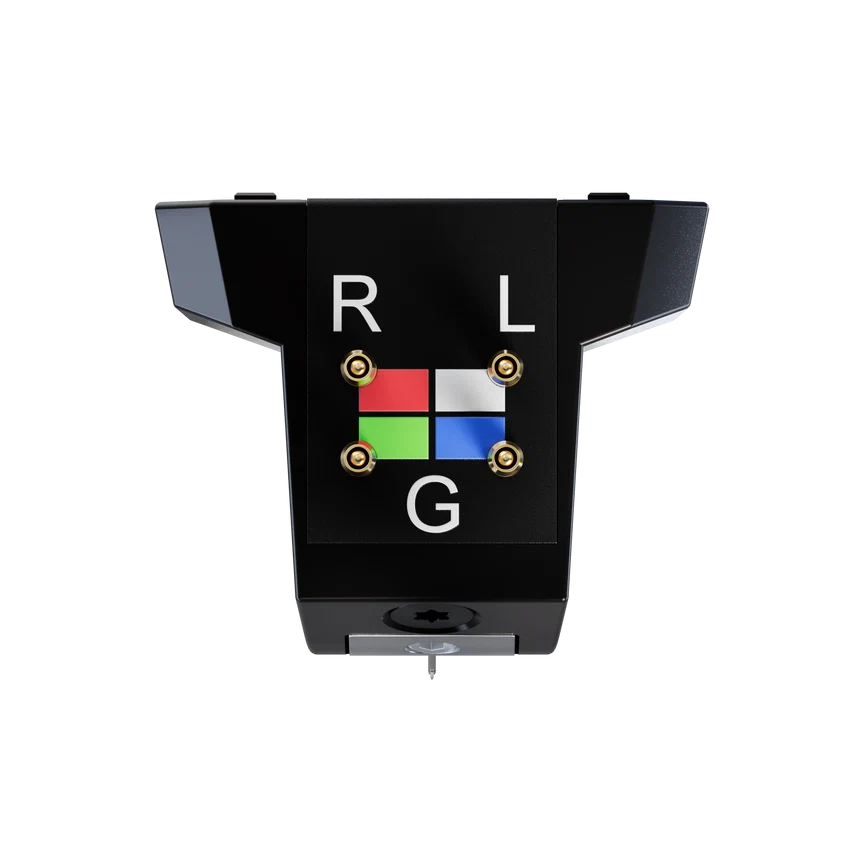

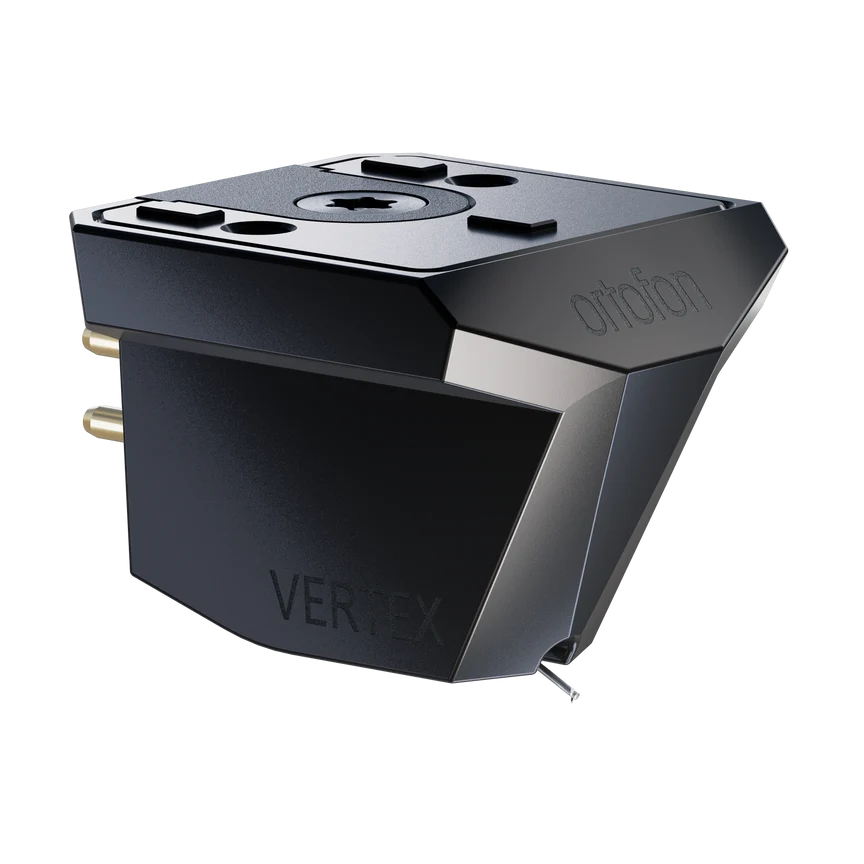

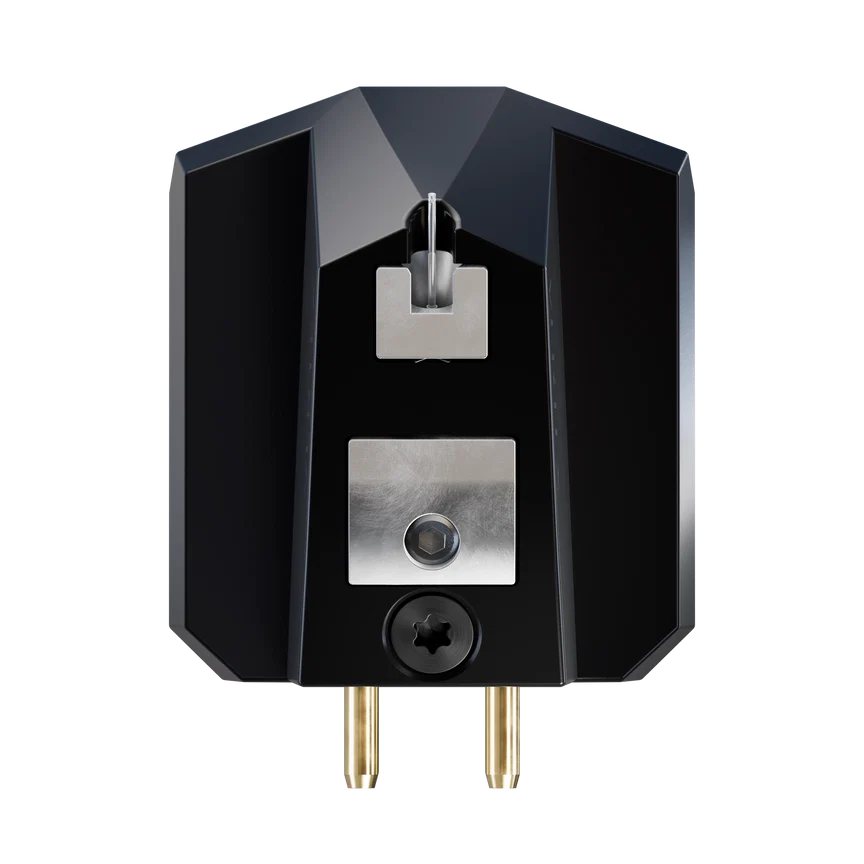

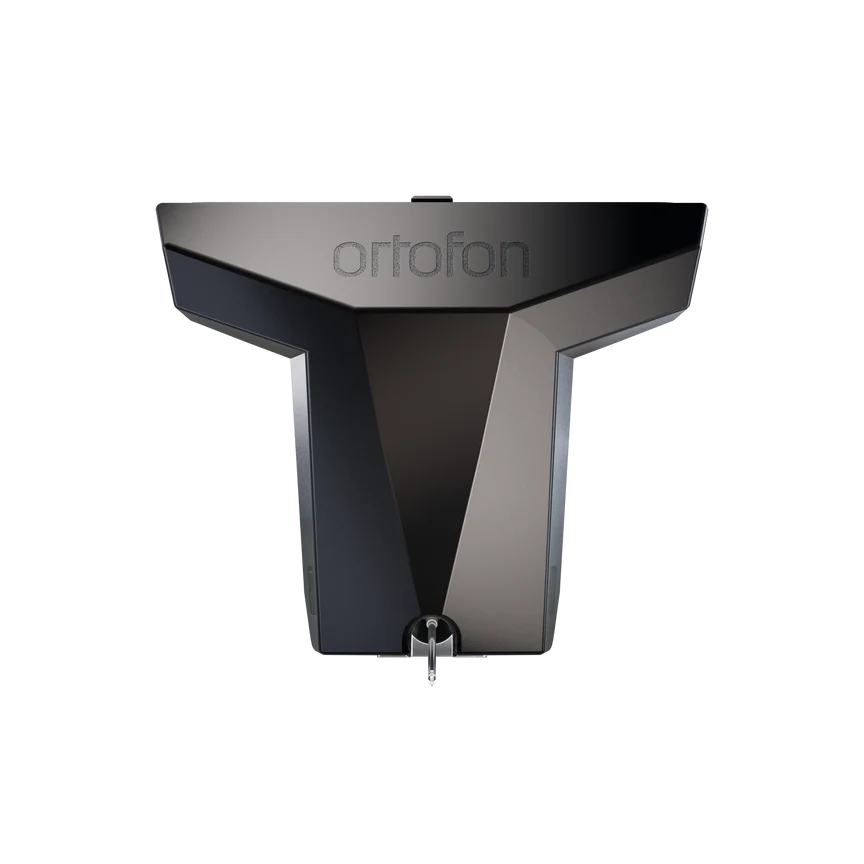

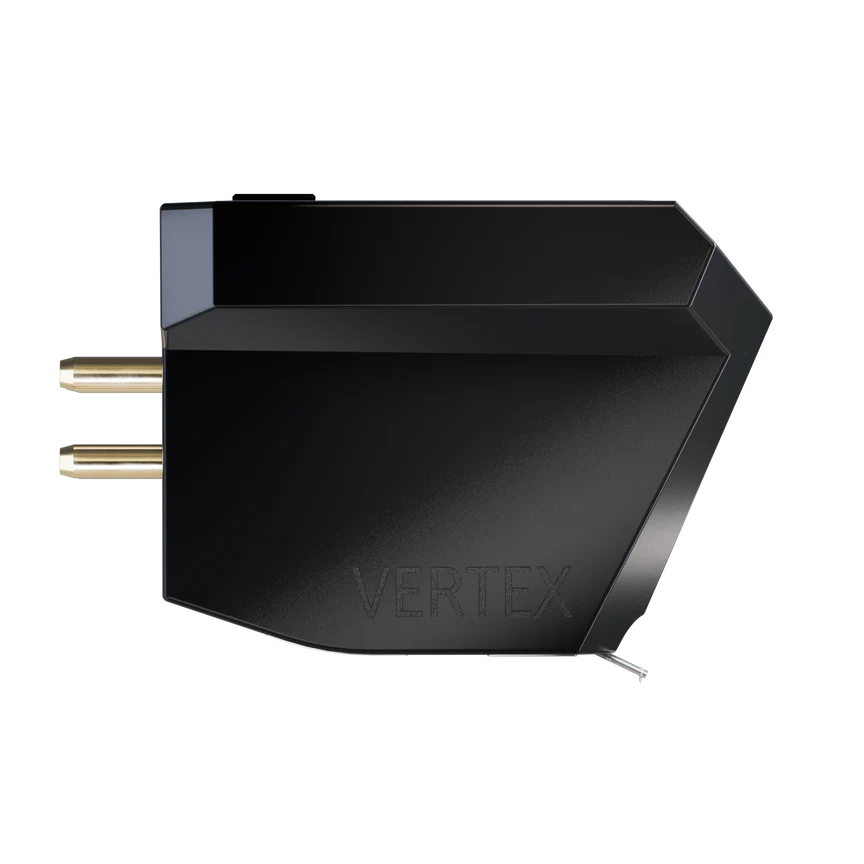

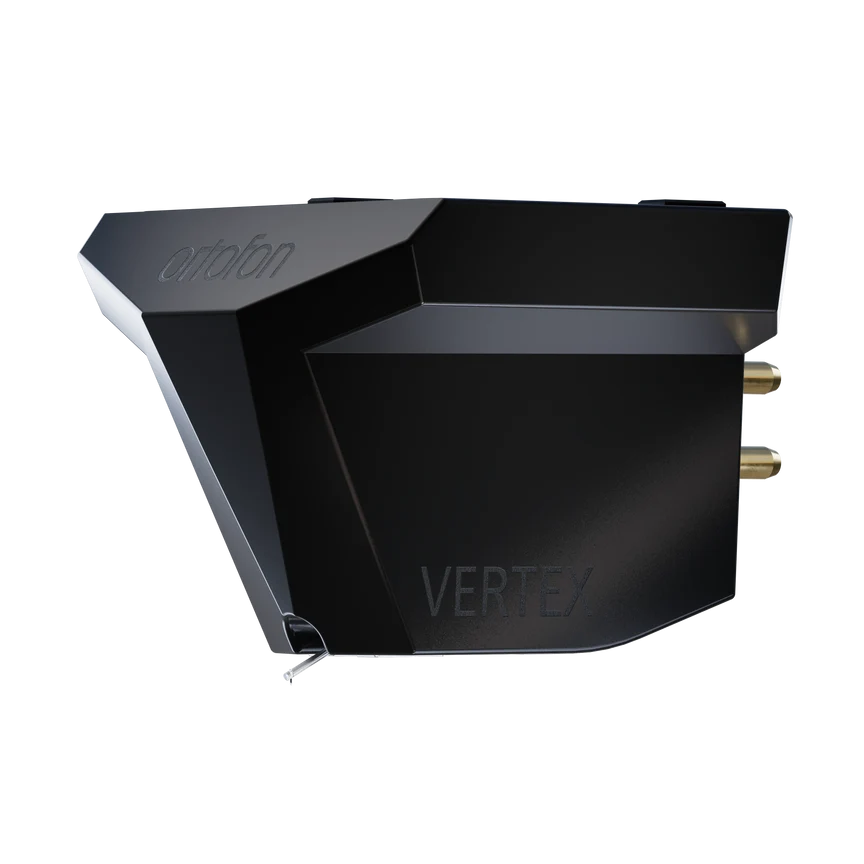

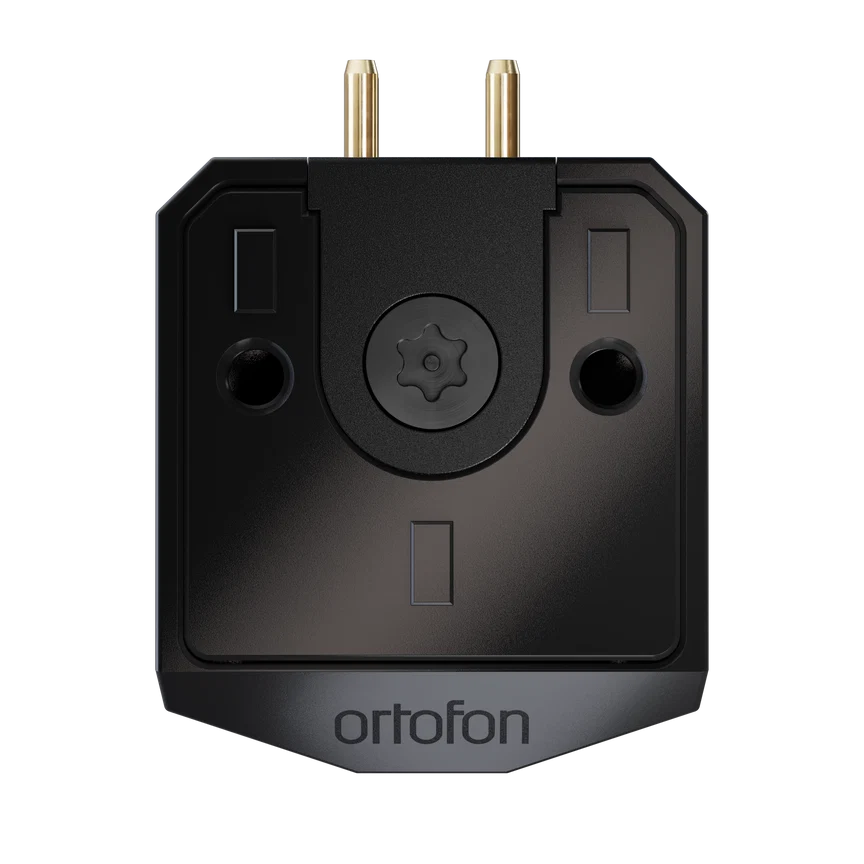

Ortofon MC Vertex Phono Cartridge
$23,999.00
Product Details
Ortofon MC Vertex Phono Cartridge, A New Reference Moving Coil
Developed and manufactured by Ortofon, the MC Vertex reflects a holistic approach to cartridge design in which every element, from diamond to materials to mechanical and magnetic design, is specified in direct relation to the others and optimized as part of a complete system. Energy is transferred from groove to output with precision and stability, enabling accurate tracking, low distortion, and a controlled response across the frequency range. The result is a moving coil cartridge that reveals fine structure, preserves dynamic contrast, and keeps spatial information stable even in complex passages. The MC Vertex is available now at Vinyl Sound in Canada.
The Vertex Diamond
At the core of the MC Vertex is a newly developed diamond with an advanced line-contact geometry, introduced as the Vertex diamond, a new reference in Ortofon diamond technology. It combines a finely optimized 4 μm scanning radius with an exceptionally large 110 μm contact radius, tracing fine groove structures with high precision while distributing contact forces more effectively across the groove walls. The diamond is mounted in a solid diamond cantilever, laser-cut to extremely tight tolerances and laser-polished, forming an extremely rigid, lightweight structure for efficient energy transfer.
Key Features
The cartridge housing and internal core are produced in titanium using Ortofon's Selective Laser Melting technology, with precisely defined density, wall thickness, and internal geometry, plus an intentional cavity for internal damping, finished in a durable DLC black surface with laser-engraved logos. Ortofon's patented Wide Range Damping system uses a platinum disc between two in-house rubber compounds to control resonance across the audible range. A refined generator system with a non-magnetic armature, precision-wound high-purity silver coils, and an optimized magnet configuration delivers high precision, strong channel separation, and a natural, coherent presentation.
Technical Specifications
| Specification | Detail |
|---|---|
| Cartridge Type | Moving coil (MC) |
| Stylus | Vertex diamond, advanced line contact |
| Scanning Radius | 4 μm |
| Contact Radius | 110 μm |
| Cantilever | Solid diamond |
| Body / Housing | Titanium (Selective Laser Melting), DLC black finish |
| Damping | Wide Range Damping (platinum disc, dual rubber compounds) |
| Coils | High-purity silver, non-magnetic armature |
Why Buy from Vinyl Sound?
Vinyl Sound is an authorized Canadian dealer for Ortofon. The MC Vertex comes with full manufacturer warranty and expert support from our team. We offer free ground shipping to all provinces in Canada, and our staff can help you match this reference cartridge to the right tonearm and phono stage.
Frequently Asked Questions
Q: What makes the MC Vertex a reference cartridge?
A: The MC Vertex introduces Ortofon's new Vertex diamond with advanced line-contact geometry on a solid diamond cantilever, in a titanium body made by Selective Laser Melting. Together with Wide Range Damping and a silver-coil generator, it delivers high resolution, clarity, and long-term consistency at the top of Ortofon's range.
Q: What does the MC Vertex pair with?
A: As a moving coil cartridge, the MC Vertex is designed for a high-quality MC phono stage or step-up transformer and a capable tonearm. Compare it with Ortofon's MC X50, and contact Vinyl Sound for setup advice.
Q: Is the Ortofon MC Vertex available in Canada?
A: Yes. The Ortofon MC Vertex is available at Vinyl Sound, an authorized Canadian Ortofon dealer, with free ground shipping to all provinces in Canada. You can also get setup advice at our Toronto store.
